Insulated. Dual-zone chilling. No neoprene sleeve.

The BrewTaurus PF160 PRO Unitank is a 160 L insulated conical unitank with a 304 stainless vessel — 163.4 L to the top of the straight wall, 173.3 L brim-full. It has two separate glycol jackets — one on the cone, one on the body — under 2 cm of PU foam and a stainless outer skin, instead of a neoprene sleeve. 39.8 L sits in the ~57° cone and 123.6 L in the straight cylinder. 2" bottom dump with elbow + butterfly valve, 8" top port, 2" heating-element port on the cone, Tri-Clamp throughout, rated to 2 bar. Ferment ~10–150 L — it chills efficiently from as little as 5 L of wort, so test batches and full-volume brews both work.

Capacity 160 L nominal · 163.4 L to the top of the straight wall · 173.3 L brim-full
Cone · cylinder · dome 39.8 L · 123.6 L · 9.9 L
Fermentation batch ~10–150 L · chills from ~5 L
Cooling two independent glycol jackets: cone + body · 2× 1.5" TC per jacket
Insulation ~2 cm PU foam under a stainless skin on the cone and the body · top head bare
Heating 2" TC port for a heating element on the side of the cone · element not included
Top / bottom 8" TC top port with 8"→4" reducer · 2" TC bottom dump · ~57° cone
Pressure rated to 2 bar · always use a PRV
Material 304 stainless · 1.5 mm sheet
Guarantee 2-year legal guarantee (EU consumer law)

Volumes: cone, cylinder, dome

On a conical it matters where the litres sit: the cone takes the yeast and trub, the cylinder holds the beer, the dome is headspace.

Zone Height Volume Filled up to here
Cone
2" dump to the straight wall 		460 mm 39.8 L 39.8 L
Cylinder
straight wall 		520 mm 123.6 L 163.4 L
Dome
top of the wall to the manway neck 		56 mm 9.9 L 173.3 L brim-full

Above the cone, every centimetre of level in the cylinder adds 2.38 L.

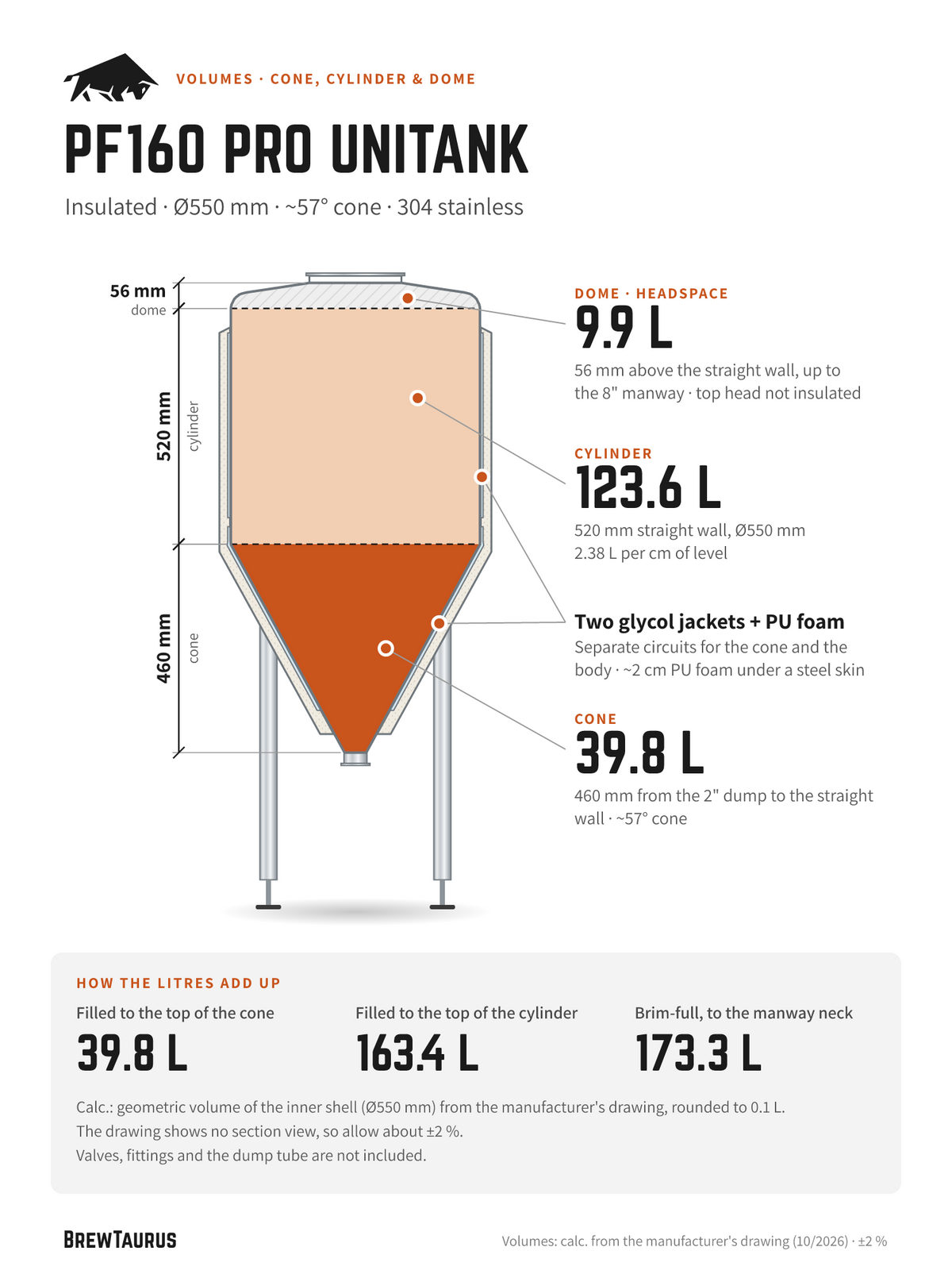

BrewTaurus PF160 PRO Unitank volumes: cone 39.8 L, cylinder 123.6 L, dome 9.9 L, 173.3 L brim-full · inner Ø550 mm, two glycol jackets under PU foam

The cone and the body each have their own glycol circuit, so you can cool them independently: keep the cone colder to drop yeast, or crash only the cone after fermentation. With the cone jacket running, even a few litres in the cone stay cold, which is why the tank chills efficiently from about 5 L. The PU foam holds the temperature between cooling cycles; the top head with the manway and ports stays bare stainless.

Ports & connections

Port Where Job
Top port
8" TC 		centre of the top head filling, cleaning, inspection · 8"→4" sanitary reducer and band clamp in the box
Top ports
4× 1.5" TC 		top head, around the 8" port PRV and pressure gauge (both in the box), gas / blow-off
Cone ports
3× 1.5" TC 		front of the cone, near the top sampling valve and thermowell (both in the box), sensors
Racking port
1.5" TC 		lower on the cone pull clear beer off the yeast · butterfly valve in the box
Heating-element port
2" TC 		side of the cone, ~15 cm below the straight wall (below the three cone ports) 2" Tri-Clamp heating element (not included) for controlled temperature boosts
Cone jacket
2× 1.5" TC 		on the cone glycol in / out, cone circuit
Body jacket
2× 1.5" TC 		on the cylinder glycol in / out, body circuit
Bottom dump
2" TC 		apex of the cone, ≈252 mm above the leg ends (feet extra) yeast and trub dump, draining, CIP · elbow + butterfly valve in the box

Dimensions

Inner Ø · jacket Ø · outer Ø Ø550 mm · Ø564 mm · Ø600 mm (insulated skin)
Overall height 1339 mm from the leg ends to the top of the 8" ferrule, adjustable feet extra
Cone · cylinder · dome height 460 · 520 · 56 mm (inside)
Bottom dump height ≈252 mm to the face of the 2" ferrule (adjustable feet extra)
Legs 4× 38 × 38 mm square legs with adjustable feet
Insulation ~2 cm PU foam between the jackets and the stainless skin

What's in the box

  • PF160 PRO insulated Unitank with two glycol jackets, 4 legs with adjustable feet
  • 1× 1.5" butterfly valve · 1× 2" butterfly valve · 1× 1.5" tri-clover sample valve · 1× 2" elbow
  • 1× 1.5" thermowell (140 mm) · 1× 1.5" pressure gauge · 1× 1.5" PRV
  • Caps: 3× 1.5" · 1× 2" · 1× 4" · 8"→4" reducer
  • Band clamps: 8× 1.5" · 3× 2" · 1× 4" · 1× 8" · matching gaskets

Not included: heating element, glycol chiller and hoses, temperature controller, CO₂ cylinder and regulator. Passivate before first use, as with all stainless brewing gear.

Pressure safety: rated to 2 bar — never exceed the maximum. Always use a PRV.

Run both zones off a glycol chiller · Clean it with the CIP Kit · Heat it with a 2" heating element · Matching brewhouse: K220 1V · K220 2V · K220 3V · See all Pressurised Fermenters

Technical drawing

Download the PF160 PRO drawing (PDF)

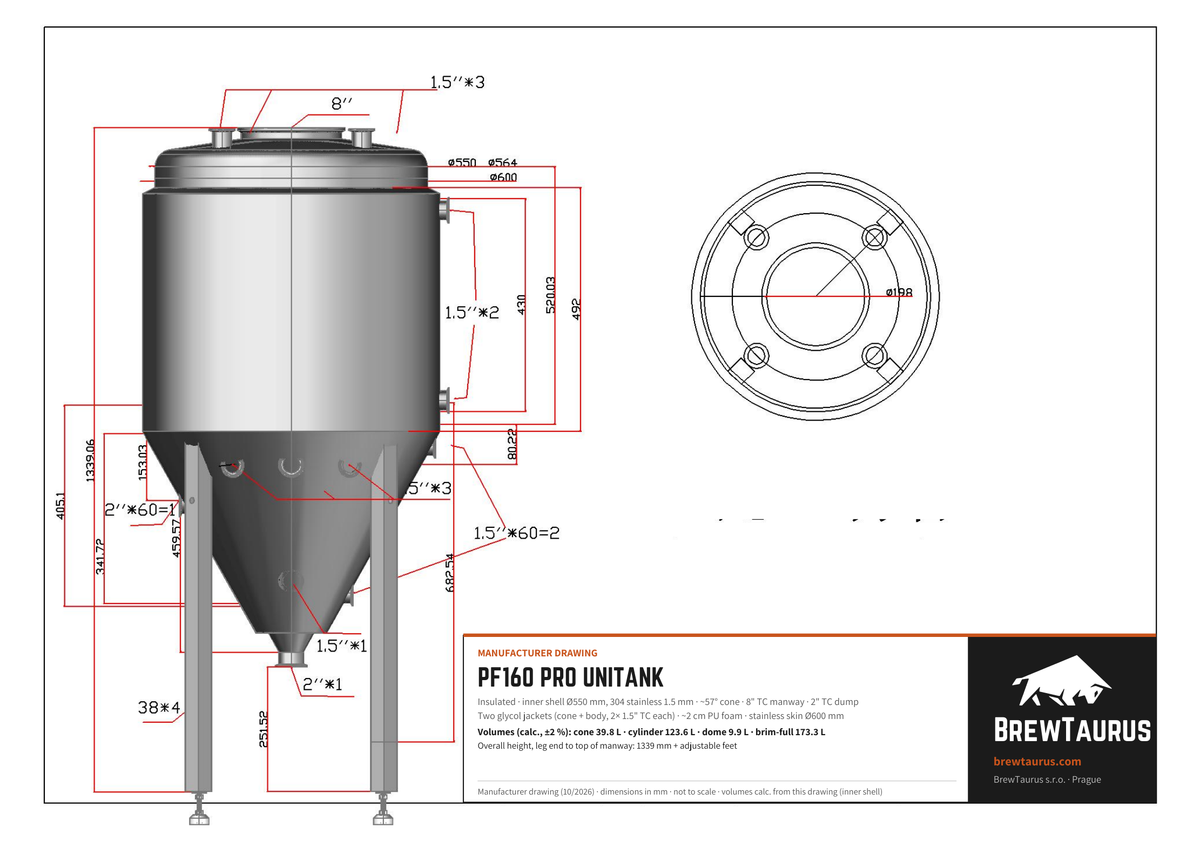

BrewTaurus PF160 PRO Unitank technical drawing: inner Ø550 mm, ~57° cone, 8" TC top port, 2" TC dump, 2" TC heating-element port, insulated skin Ø600 mm, overall height 1339 mm

Which PRO Unitank fits your batch

Both sizes share one insulated, dual-zone design — 2 cm PU foam, separate cone + body glycol circuits, rated to 2 bar, 8" top and 2" dump. Your size is highlighted.

Model Brim-full · inner Ø Cone / cylinder Fermentation batch Overall height
PF80 PRO 87.8 L · Ø450 mm 20.7 / 60.4 L ~5–75 L ~1095 mm
PF160 PRO 173.3 L · Ø550 mm 39.8 / 123.6 L ~10–150 L 1339 mm

FAQ

How much fits in the cone?
39.8 L from the 2" dump up to where the straight wall starts. Every centimetre above that adds 2.38 L.

How small a batch can I cool?
The cone has its own jacket, so a part-filled cone stays in contact with the cooling. It chills efficiently from about 5 L of wort.

How much headspace is left?
Brim-full is 173.3 L. At the top of the recommended range (150 L) about 23.3 L stays free — the dome alone holds 9.9 L.

What does brim-full mean here?
Filled to the base of the manway neck. Filled to the top of the straight wall, it is 163.4 L.

What do I need to run the jackets?
A glycol chiller connected to the cone jacket and the body jacket (2× 1.5" TC each). The two circuits are separate, so you can run them together or one at a time.

Is the whole tank insulated?
The cone and the cylinder are, with ~2 cm PU foam under a stainless skin. The top head with the 8" port and the 1.5" ports stays bare stainless.

Can I heat it?
Yes. The 2" TC port on the side of the cone takes a 2" Tri-Clamp heating element (not included) — for controlled temperature boosts, Kveik, or holding temperature in a cold room. The port sits on the cone, where the inside diameter is only about 38 cm — check the element length against that. Keep the element fully covered whenever it is on: that takes roughly 17 L in the tank. Power control is external (temperature controller + relay). 230 V · one dedicated, RCD-protected circuit per element — have a qualified electrician size and connect the circuits.

Product photos may show a prototype or a different size; production units follow the manufacturer's drawing.
