Mash Scorching in All-in-One Brewing Systems: Why It Happens and How to Stop It

Few things hurt more on a brew day than the smell of scorched wort. If you brew on an all-in-one system with a malt pipe and electric heating elements — like our K-series — you may have met it: the batch tastes burnt, the elements are coated brown, and you start wondering if something is wrong with the system.

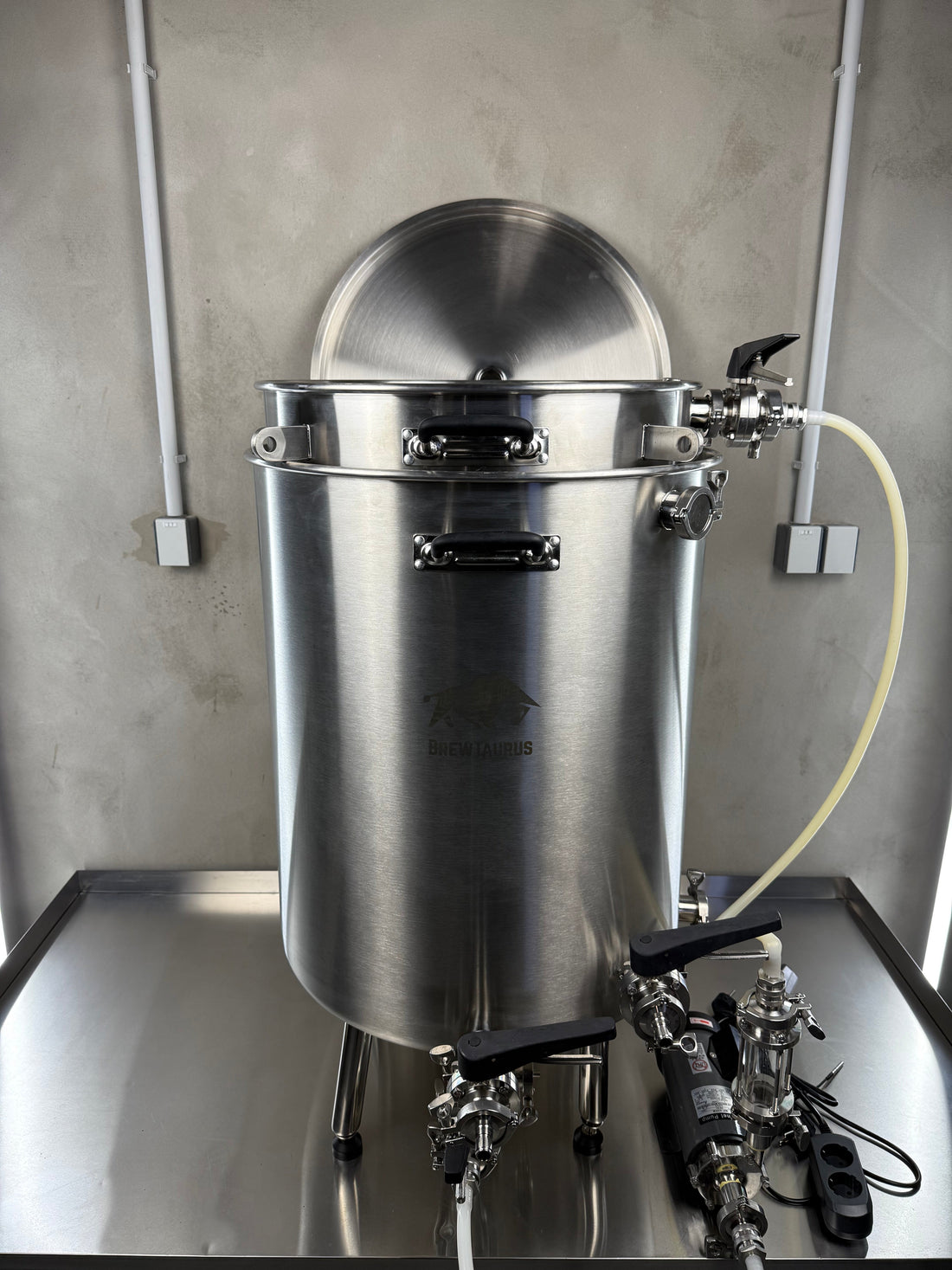

Good news: it is almost always technique, not hardware. This guide comes straight from a real troubleshooting case — a customer brewing on a K160L who went from occasionally dumping batches to zero scorching, including a very high-gravity IPA. Here is exactly what changed.

What actually causes scorching

The heating element itself is rarely the problem. The problem is fine malt particles (flour) that escape through the malt pipe screen and settle on and between the elements. Once they sit there during heating, they toast — even while the wort is circulating.

And here is the counterintuitive part: the biggest source of those particles is usually stirring.

Stirring feels like it should prevent scorching. In a malt-pipe system, it often does the opposite — every pass of the paddle pushes fine material through the slots in the lauter floor, straight into the space around the elements. Sticky, flour-heavy grain bills (wheat, oats, rye, flaked adjuncts) make it worse.

Step 1: Mash-in the right way

The goal: get the malt hydrated without pushing flour through the screen, and never let particles sit on a hot element.

• Crush slightly coarser. A fine crush buys a little efficiency and pays for it in flour.
• Turn the heating elements OFF completely during mash-in.
• Run the pump at 100% through the whirlpool port while you add the malt — this keeps liquid moving around the elements the whole time.
• Add the malt slowly and stir only enough to break up dry clumps. Once everything is hydrated, put the paddle down.
• Let the grain bed settle for 5–10 minutes with the pump still running before you switch an element back on.

Step 2: During the mash — recirculate, don't stir

After mash-in, the grain bed is your friend. Left alone, it acts as its own filter and keeps the fines where they belong: inside the malt pipe.

• Use gentle recirculation from the top instead of mechanical stirring.
• Don't run the pump too hard during the mash — excessive flow compacts the bed and channels the wort.
• Heat mash steps with the lower-power element only (on a K160L: the 2.5 kW element). Save the big element for after lautering.
• Add rice hulls for wheat, oats, rye or any sticky grain bill — they keep the bed open without affecting flavour.
• A top sparging / recirculation manifold is a worthwhile upgrade: it distributes the returning wort evenly over the bed instead of drilling one hole through it.

Pro tip: you may lose a point or two of efficiency by not stirring. That is the price of admission — a dumped batch costs far more.

Step 3: Heat-up and boil — be kind to your elements

• Switch the high-power element on only after lautering is finished and the malt pipe is out.
• On long boils, alternate the elements instead of running both flat-out for 90 minutes — it avoids long-term overheating of any one element.
• Keep flow through the whirlpool port while heating, so there is always liquid moving across the element surfaces.

Does it work?

The customer whose case inspired this guide applied exactly this routine: elements off during mash-in, whirlpool-port circulation, minimal stirring, gentle top recirculation, the small element for mash steps, and alternating elements during the boil.

The result: no scorching since — including a high-OG IPA, the kind of brew that used to be the first to burn. Their own conclusion matched ours: the stirring was the root cause all along.

The quick checklist

• Coarser crush, rice hulls for sticky bills
• Elements OFF during mash-in
• 100% pump flow through the whirlpool port while adding malt
• Stir only to break dry clumps — then stop stirring
• Let the bed settle 5–10 min before heating again
• Gentle top recirculation during the mash, low-power element only
• Big element only after lautering; alternate elements during the boil

Your system works best when the wort moves and the flour stays in the malt pipe. Get those two things right and scorching stops being part of your brew day.

Explore our All-in-One Brewing Systems

Related reading: Fermenter Cleaning, Sanitizing & Passivation

Questions about your setup? Write me at info@brewtaurus.com — I'm happy to help.

– Dan, Founder, BrewTaurus
