K220 2V Brewing System – 225L Two-Vessel Stainless Brewhouse
K220 2V Brewing System – 225L Two-Vessel Stainless Brewhouse
Vessels in stock in Prague — the set ships when the last parts arrive
We'll email you the moment it ships.
🚛 Ships on a pallet · 10 kg · Shipping to Germany: €49
Delivery 3–5 business days · Shipping details · Free shipping over €149 does not apply to fermenters, kettles and other large items
Essential Add-ons
Tick what you need — everything is added to cart together.
Read customer reviews · ✓ 2-year EU warranty
Couldn't load pickup availability
Real output. Real stainless. No proprietary architecture.

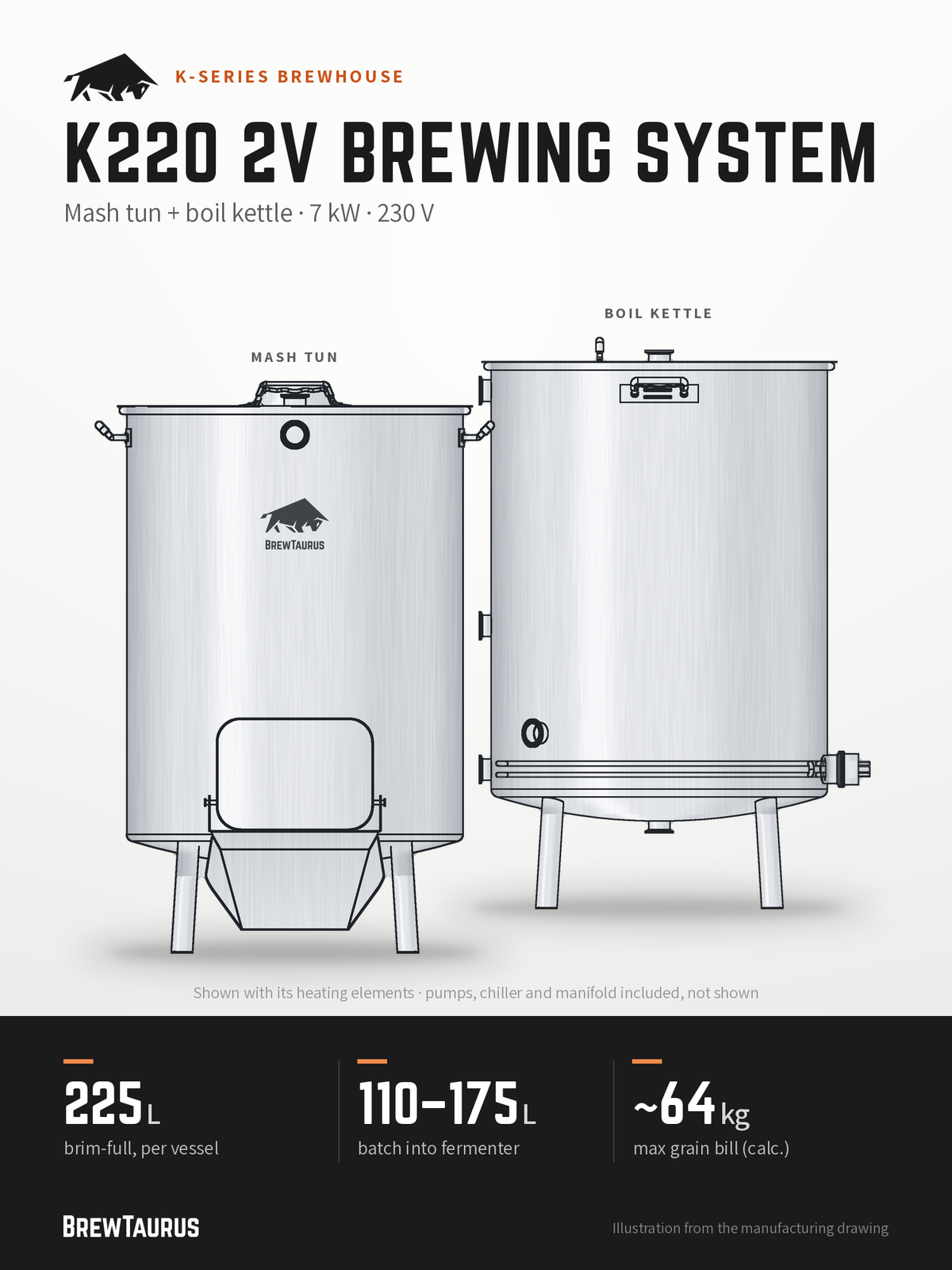

The BrewTaurus K220 2V is a 225 L two-vessel electric brewing system in 304 stainless: K220 mash tun + K220 boil kettle, 7 kW of Tri-Clamp heating, two MP-40RM pumps and a counterflow chiller. 110–175 L into the fermenter, up to ~64 kg of grain. Full sanitary Tri-Clamp architecture, no proprietary parts.
| Vessels | K220 mash tun + K220 boil kettle |
|---|---|
| Batch into fermenter | 110–175 L |
| Max grain bill | ~64 kg · ~68 kg at 2.4 L/kg |
| Volume under mash tun false bottom | 10.5 L |
| Heating | 7 kW — 2× 3.5 kW (boil kettle) |
| Electrical | 230 V · one dedicated, RCD-protected circuit per element (2 in total) |
| Pumps | 2× MP-40RM — 45 L/min, 4.6 m head at 50 Hz, up to 100 °C |
| Wort chilling | counterflow chiller, single pass |
| Brim-full volume | 225 L per vessel |
| Guarantee | 2-year legal guarantee (EU consumer law) |

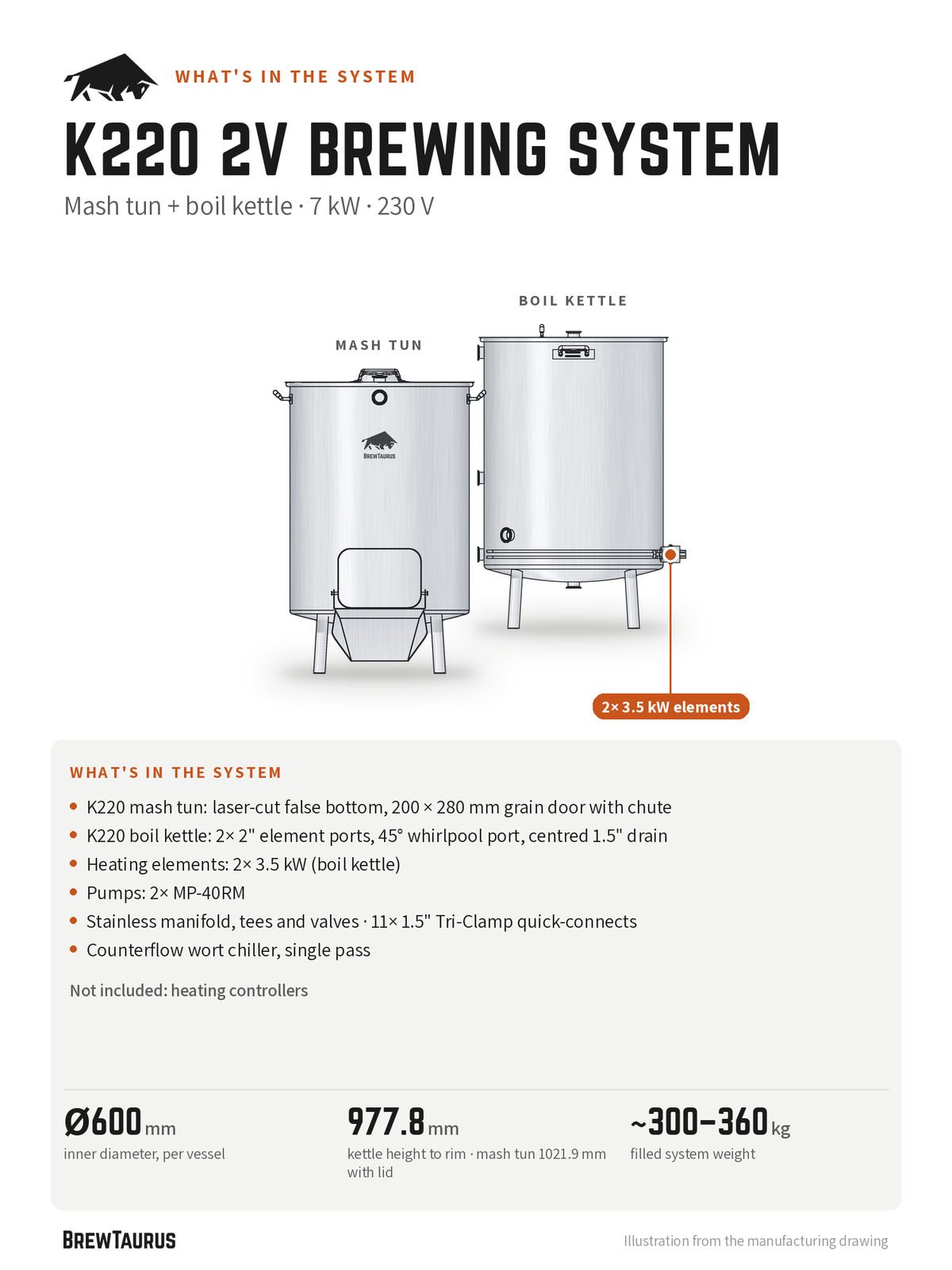

What's in the system
- K220 mash tun: laser-cut false bottom, 200 × 280 mm grain door with chute
- K220 boil kettle: 2× 2" element ports, 45° whirlpool port, centred 1.5" drain
- Heating elements: 2× 3.5 kW (boil kettle)
- Pumps: 2× MP-40RM
- Stainless manifold, tees and valves · 11× 1.5" Tri-Clamp quick-connects
- Counterflow wort chiller, single pass
Not included: heating controllers (see Control below).
Heating & boil
- 2× 3.5 kW (boil kettle) · one dedicated, RCD-protected circuit per element (2 in total) · heating controllers not included
- Heating pace: ~0.5 °C/min at 170 L — mash-to-boil (72→100 °C) in ≈55 min
- Boil: rolling boil at 175 L, boil-off up to ~8–10 L/h
Grain & gravity
| Grain for 12 °P (OG 1.048) at 175 L | ~39 kg |
| Maximum grain bill | ~64 kg |
| Gravity at maximum grain, 175 L | ~18 °P (OG ~1.074) |
Mash thickness 2.4–3.2 L/kg; don't go below 2.3 L/kg. The mash tun takes the grain; the boil kettle sets the batch — so extra grain capacity means stronger beer, not bigger batches.
Hydraulics, cooling & cleaning
- 2× MP-40RM for recirculation, sparge, transfer and whirlpool — MP-40RM specs
- Pumps are not self-priming: mount them below the liquid level and flood the head before starting.
- Counterflow chiller, single pass to 18–22 °C with 10–15 °C mains water; ~18–28 min for 180 L (typical).
- CIP: fit a 1.5" CIP spray head to a 1.5" lid port and recirculate cleaner with the MP-40RM.
Installation: One dedicated, RCD-protected circuit per element (2 in total) — have a qualified electrician size and connect the circuits, stable water supply for the chiller, flat, load-bearing surface (filled system ~300–360 kg). Plan the electrical and structural preparation before delivery.
Control: K-Series systems ship without heating controllers. A dedicated BrewTaurus control unit for the K40/K80/K220 is in development and planned for release in spring 2027 — it will connect to the existing elements and pumps without replacing any vessel. Until then, use a third-party controller rated for the full current of each element.
Dimensions
| Inner diameter | Ø600 mm per vessel |
| Height to rim | 977.8 mm (boil kettle) · mash tun 977.7 mm, 1021.9 mm with lid |
| Width incl. handles | 713.7 mm per vessel |
| Leg footprint (centre to centre) | 404.5 × 404.5 mm (kettle) |
| Grain chute reach | 241.9 mm from the mash tun wall |
| Filled system weight | ~300–360 kg |
1V vs 2V vs 3V — which K220 configuration
Same vessel size, same batch (110–175 L into the fermenter), three brew days. More vessels mean more grain, parallel steps and no lifting. Your configuration is highlighted.
| Config | Vessels | Max grain | Heating · pumps · chiller |
|---|---|---|---|
| K220 1V | kettle + malt pipe | ~57 kg | 7 kW · 1× MP-40RM · no chiller |
| K220 2V | mash tun + boil kettle | ~64 kg | 7 kW · 2× MP-40RM · counterflow chiller |
| K220 3V | HLT (HERMS coil) + mash tun + boil kettle | ~64 kg | 14 kW · 2× MP-40RM · counterflow chiller |

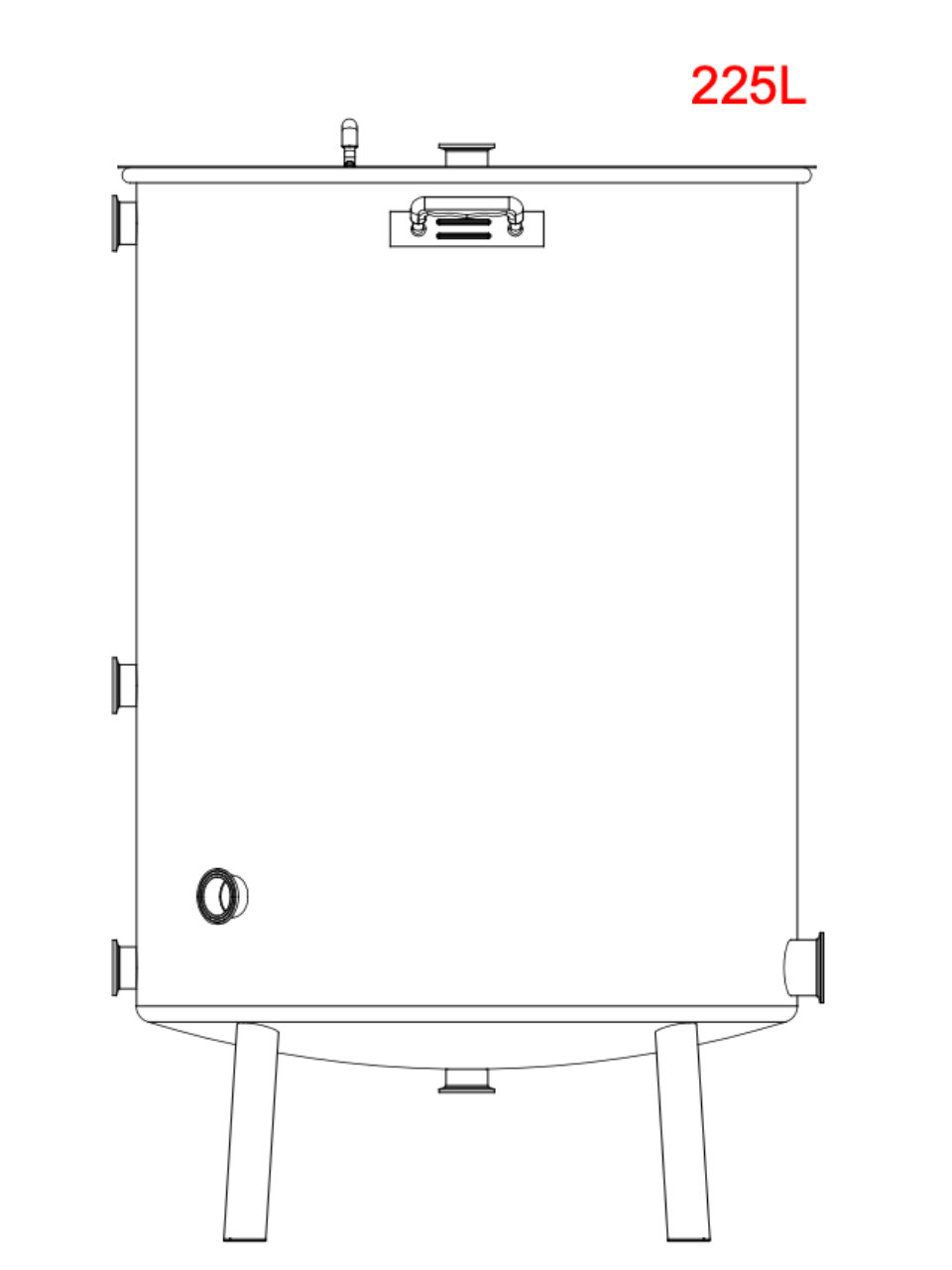

Technical drawing
Mash tun drawing (PDF) · Kettle / HLT drawing (PDF)
Built from: K220 Mash Tun · K220 Boil Kettle · Ø600 steam condenser set for indoor brewing
Compare: K220 1V · K220 3V · See all Brewing Systems
FAQ
How big a batch can I brew?
110–175 L into the fermenter.
How much grain fits?
About 64 kg. A 12 °P beer at 175 L needs ~39 kg; at maximum grain you reach ~18 °P (OG ~1.074).
How do I heat strike and sparge water?
Strike water heats in the boil kettle; pump it across to the mash tun. For sparge water you have two options: brew no-sparge (it works when the whole brewing liquor fits in the mash tun, so smaller or lighter batches), or heat the sparge water in a separate vessel. Tip: use your fermenter. If it has a 2" Tri-Clamp port, fit a 2.2 kW or 3.5 kW element (keep it fully submerged) and heat the sparge water in it — no extra vessel to store, and the hot water sanitises the fermenter before the wort goes in.
What power do I need?
2× 3.5 kW (boil kettle) at 230 V, with one dedicated, RCD-protected circuit per element (2 in total). Have a qualified electrician size and connect the circuits. Power control is external.
Does it come with a controller?
No. A dedicated BrewTaurus control unit is planned for release in spring 2027; until then, use a third-party controller rated for the full current of each element.
Product photos may show a prototype or a different size; production units follow the manufacturing drawing.
Gravity figures assume 70 % brewhouse efficiency (65 % at maximum grain); your mill, malt and process will move them.
