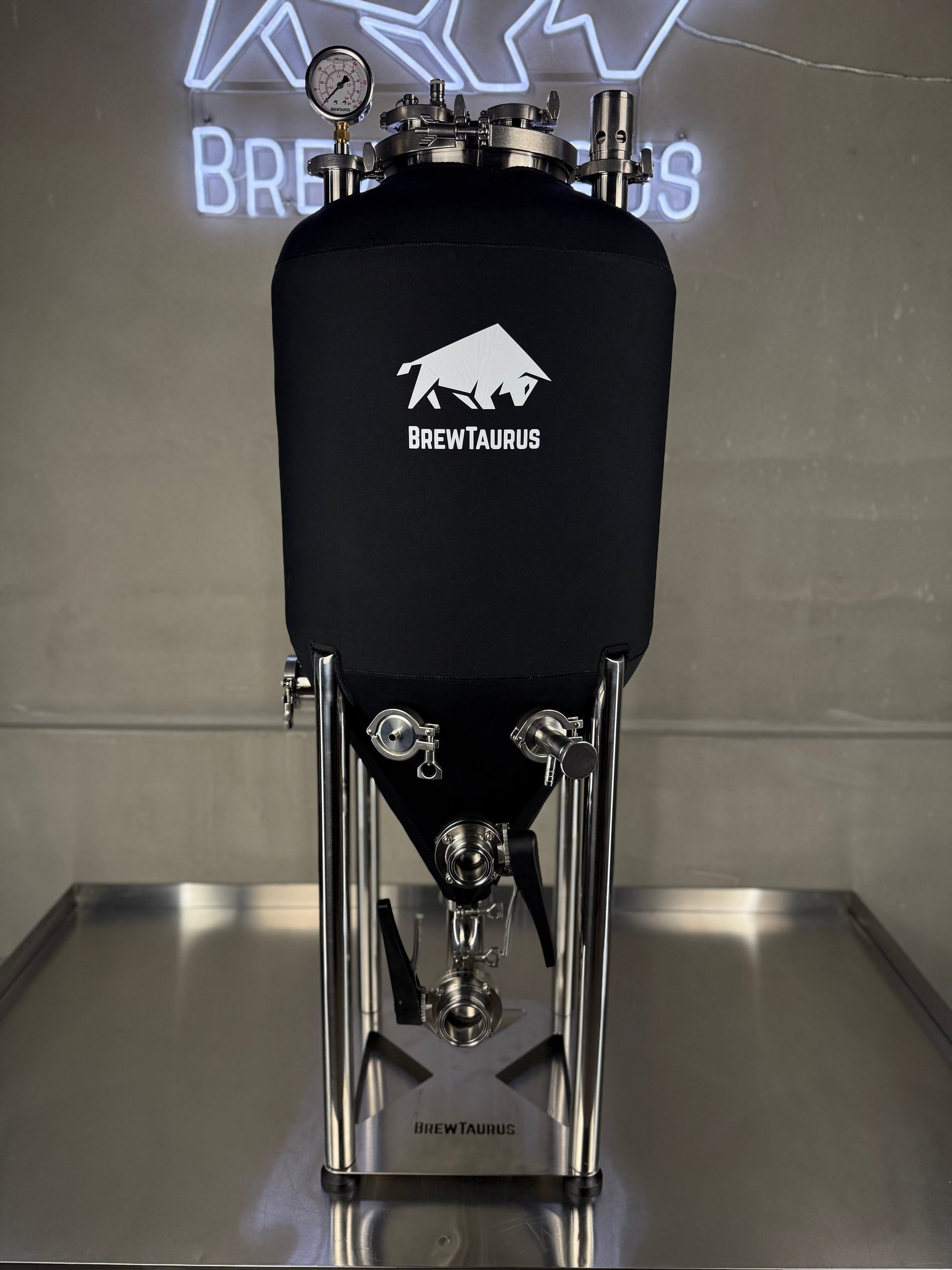

*PRE-ORDER* PF80 Fully Jacketed Unitank +[Extra accessories]

Real unitank architecture — now FULLY jacketed.

The BrewTaurus PF80 Fully Jacketed Unitank takes our proven PF Unitank platform and upgrades the cooling: the glycol jacket now covers both the cone and the cylindrical body. Same brewery-grade architecture — real bottom dump, sanitary tri-clamp workflow, pressure-capable construction — with cooling that works at any fill level, from a full tank down to the last litres in the cone.

Pre-order. The first fully jacketed production batch is on its way to our Prague warehouse — order now to reserve a unit from the incoming shipment.

Why PF Fully Jacketed Unitanks are different

• FULLY jacketed — glycol cooling over both the cone and the cylinder, effective from a full tank down to minimal fill

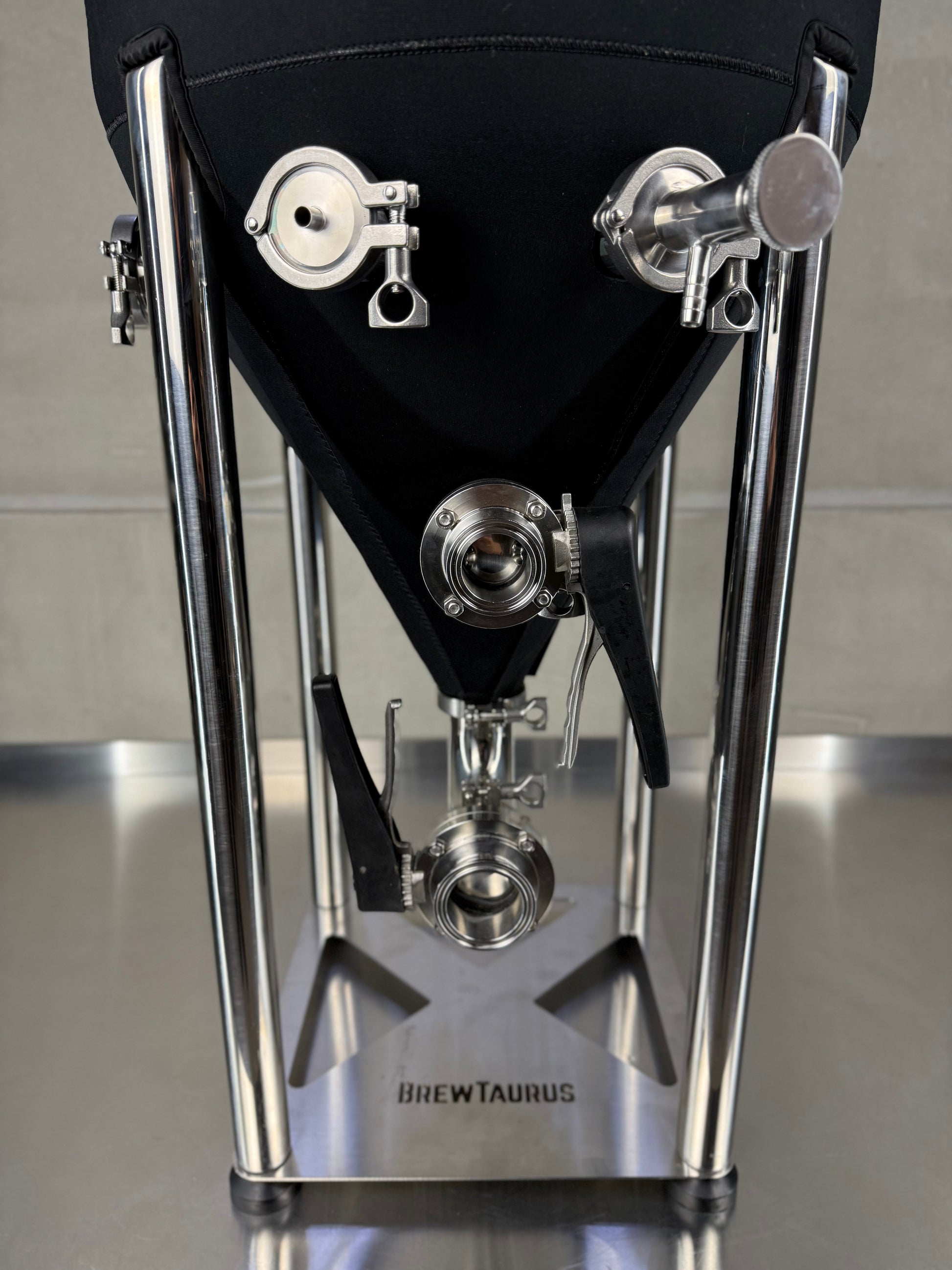

• Real bottom dump — a proper 2" tri-clamp outlet for yeast and trub handling
• Full tri-clamp workflow — modular, sanitary, easy to upgrade over time
• Pressure-capable construction for modern, closed-process fermentation
• Large 8" top access — better cleaning, easier inspection, more accessory options

Batch range & cooling efficiency

• Total gross volume: 80 L · cone ~17 L · cylindrical body ~60 L
• Recommended fermentation batch: ~10–75 L (sweet spot ~40–70 L)

Because the cone is cooled too, there is no practical cooling minimum: even a small volume sitting in the cone stays in full contact with the jacket. That means small pilot batches in a big tank, efficient crash cooling of partial volumes — and if you serve beer straight from the tank, the last pours stay just as cold as the first, because cooling stays efficient as the level drops into the cone. The upper limit is simply fermentation headspace. The supplied neoprene jacket improves stability further.

Port architecture

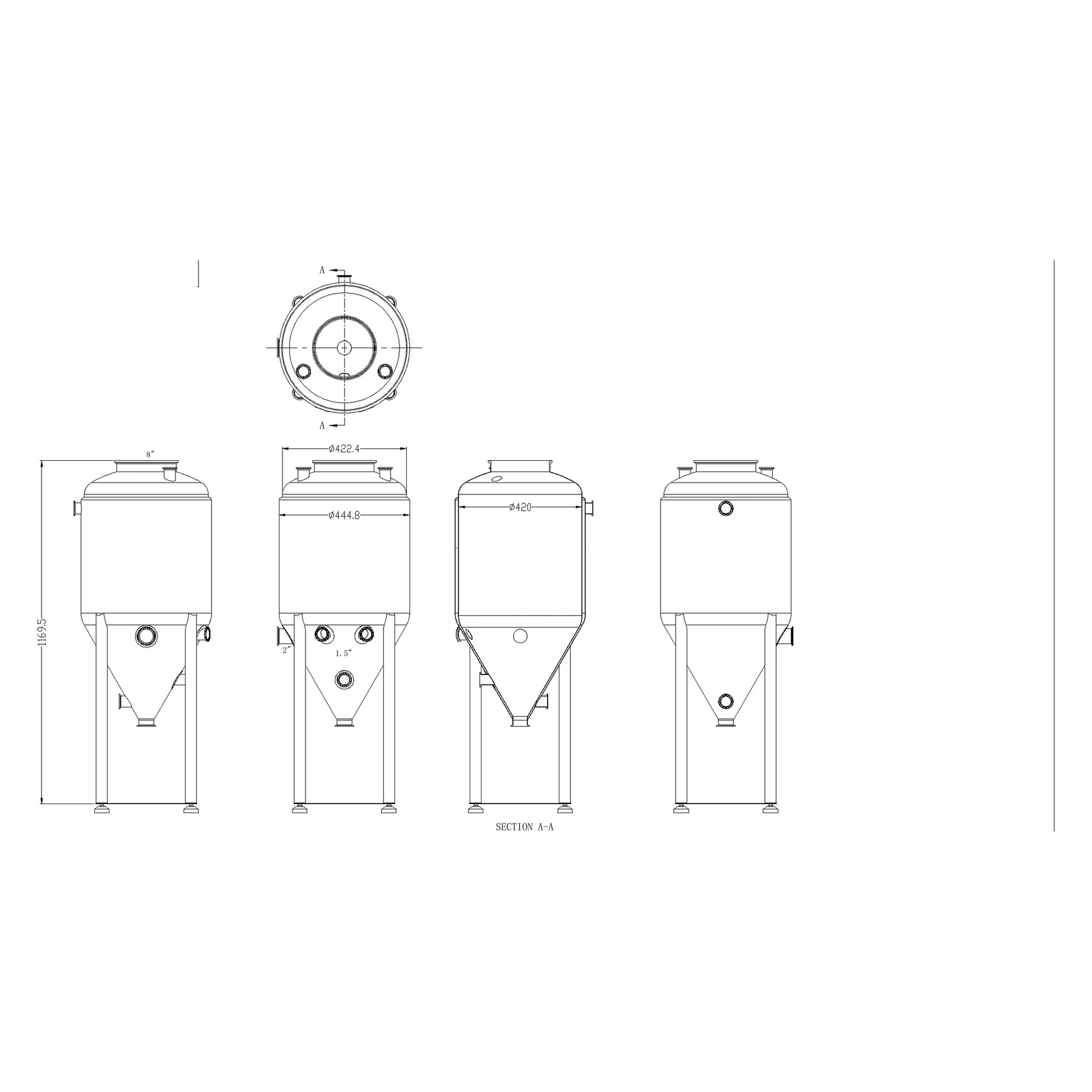

• Top access: 8" TC · Bottom dump: 2" TC (60° cone) · Glycol: 2× 1.5" TC (in/out)
• Multiple 1.5" TC accessory ports — sampling, thermowell, sensors, pressure

What's included

• PF80 fully jacketed Unitank (60° cone) · stepped 8"→4"→2"→1.5" reducer assembly · stainless stand with adjustable M10 feet · removable neoprene insulation jacket
• Clamps + gaskets: 1× 8", 1× 4", 4× 2", 6× 1.5" (with matching gaskets)

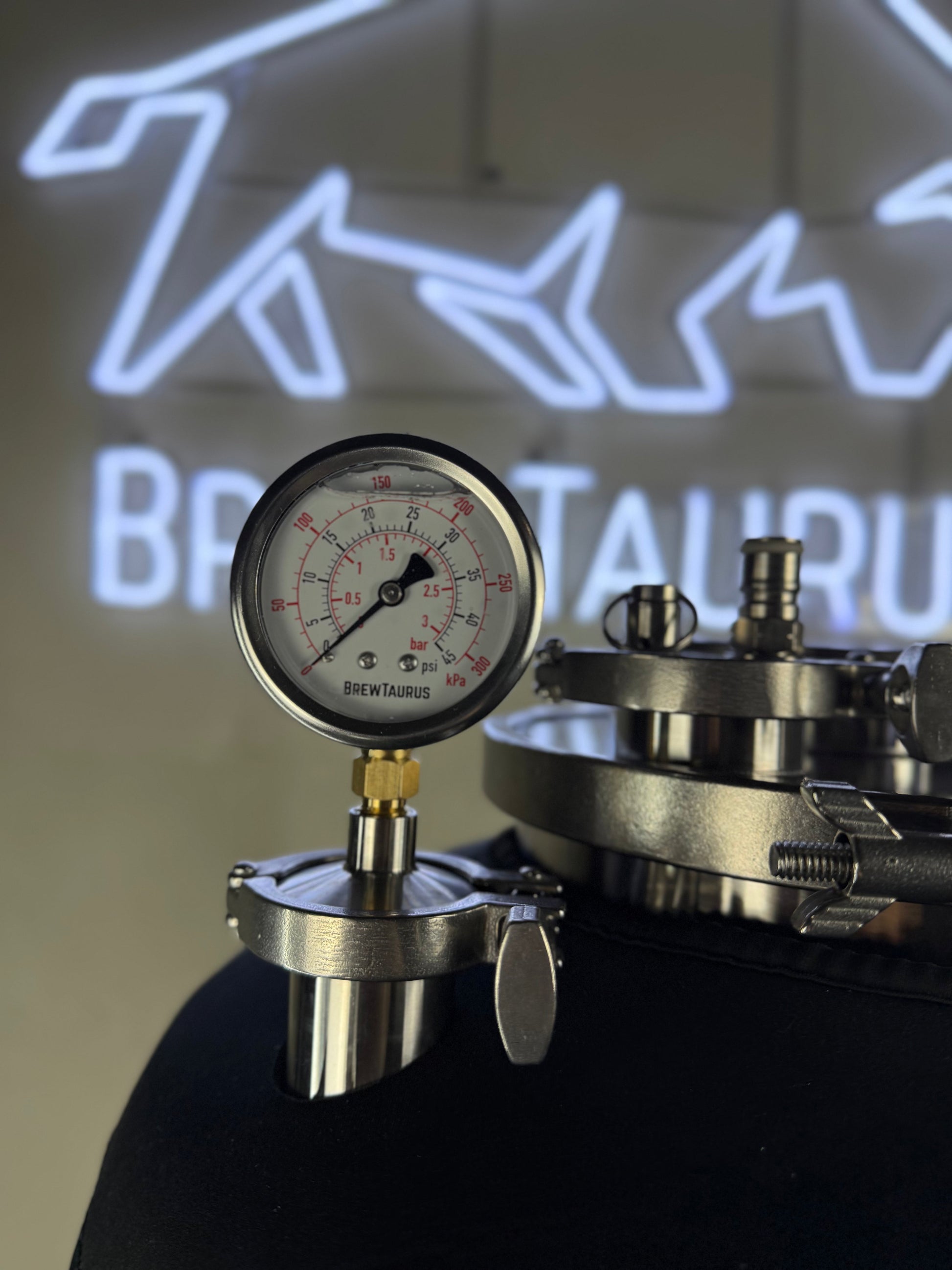

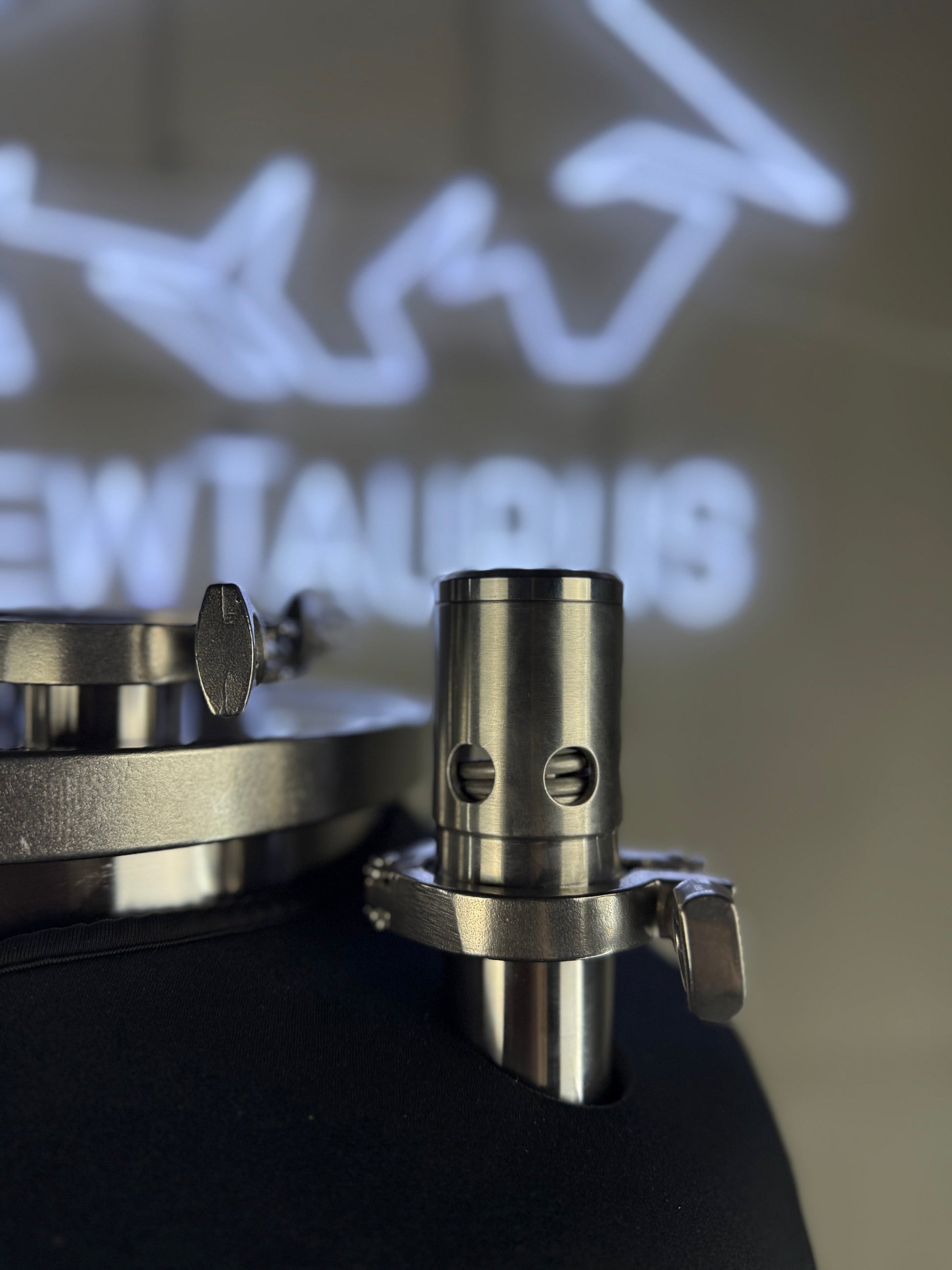

• 1× 2" + 1× 1.5" butterfly valve · 1.5" sample tap · 1.5" thermowell (140 mm) · 1.5" pressure gauge · 1.5" PRV · 2" TC cap with gas post + 35 PSI PRV
• Blind caps: 4", 2", 1.5" · instruction manual (EN/CZ)

Pressure safety: working pressure 1.0 bar, never exceed the 2.0 bar maximum. Always use a PRV.

Run the jacket off a glycol chiller · Clean it with the CIP Kit · See all Pressurised Fermenters

Which Fully Jacketed Unitank fits your batch

All sizes share one fully jacketed, pressure-capable design — 1.0 bar working (2.0 bar max), 2" dump, cooled cone + cylinder. Pick by fermentation batch; your size is highlighted.

Specifications
