Butterfly Valve Care: The 60-Second Fix for a Weeping Valve

Butterfly valves do more work than any other part of a stainless brewery — every transfer, every dump, every sample runs through one. So when a valve that has been fine for months starts to drip, the natural conclusion is “it's broken.” In almost every case, it isn't. It's out of adjustment — and the fix takes about a minute.

How a butterfly valve actually seals

Inside the valve there are only two parts that matter: a stainless disc and a silicone seat. The seal is nothing more than the disc pressing into the seat with the right amount of tension. Enough compression and the valve is bubble-tight; too little and it weeps; too much and the seat wears out fast while the handle fights you.

Why valves loosen over time

Two things slowly change that tension. First, thermal cycles: hot wort, cold rinse, hot caustic, cold water — the silicone works, relaxes and settles. Second, friction: every open–close drags the disc across the seat, and if the seat runs dry, each cycle wears it a little more. Caustic cleaning makes this worse than most brewers realise — it strips away any lubrication, so the disc runs dry exactly when the valve gets used the most.

The 60-second fix: adjust the seal tension

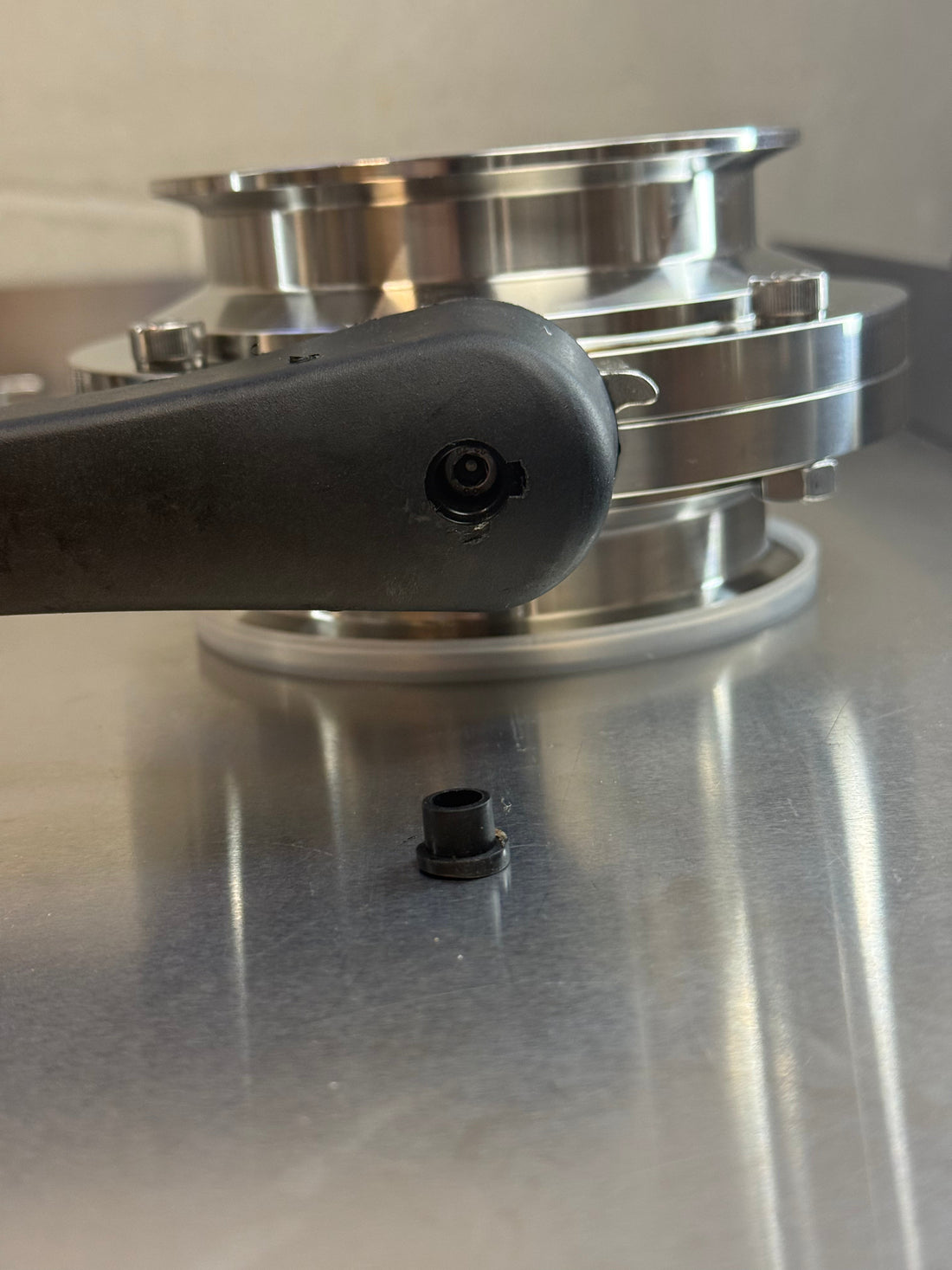

BrewTaurus butterfly valves have adjustable seal tension. On the handle, under the protective cap, sits a hex adjustment screw:

1. Pry off the protective cap on the handle.
2. Tighten the hex screw in small steps — a fraction of a turn at a time.
3. Test with water between steps, and stop as soon as the valve holds tight.

Resist the urge to crank it down: an over-tightened valve feels stiff, and the extra compression wears the silicone seat out much faster. You want the lightest setting that seals.

The habit that prevents it: food-grade lubrication

Keep the silicone seat and the edge of the disc lightly coated with a food-grade lubricant (a food-safe silicone grease or keg lube — never petroleum-based products). The lubricant lowers the operating resistance, and lower resistance is exactly what protects the seat from wear. Re-apply a thin film whenever the valve has been through a caustic cycle or feels stiffer than usual — a stiff handle is the seat telling you it's running dry.

Three small habits that add years

• Store valves open. Between brew days, leave the disc half-open so the seat isn't sitting under compression for weeks.
• Don't marinate them in caustic. Clean, rinse, done — long soaks age the silicone and strip lubrication.
• Re-check the tension now and then. A 30-second check of the hex screw as part of your cleaning routine catches a weep before it ever reaches the floor.

When it's actually worn out

If adjustment and lubrication don't stop the leak, open the Tri-Clamp and look at the parts: a cracked or torn silicone seat, or a visibly scored disc edge, means the seat has reached the end of its life. The good news — seats are cheap, standard spare parts, and swapping one takes minutes. No need to replace the whole valve.

Questions about a specific valve, or need a spare seat? Write to us at info@brewtaurus.com — we'll sort you out.
