K40 Boil Kettle + Malt Pipe – Complete Set (incl. valves & clamps)

The system you buy when all-in-one stops making sense.

The K40 Boil Kettle with Malt Pipe is a modular stainless brewhouse foundation that runs like a real mash system — without locking you into proprietary all-in-one hardware. Built from 304 stainless, designed around tri-clamp architecture, with a proper malt pipe from day one. Start with one vessel and grow to a two- or three-vessel brewhouse: nothing here is temporary.

Made to order (pre-order). We build in monthly production batches — contact us for the current lead time before ordering.

Malt pipe workflow

With the malt pipe installed, the K40 becomes a mash-capable vessel: load grain, recirculate, lift, drain and sparge — clean and repeatable.

• Grain capacity: ~12–16 kg (depending on malt and crush)

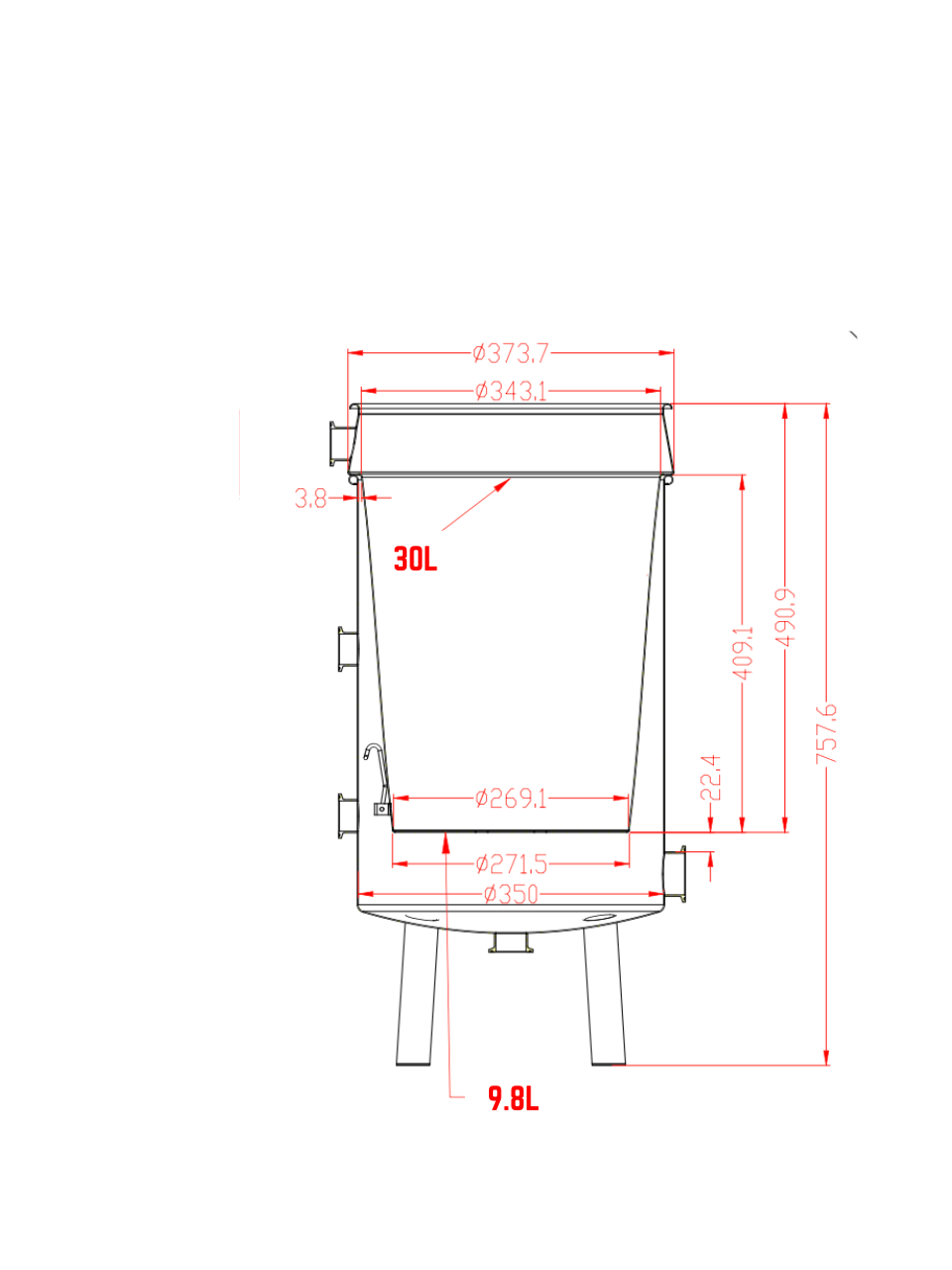

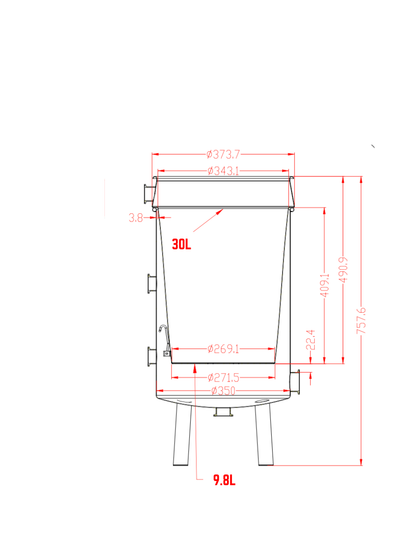

• Malt pipe (grain basket) volume: ~30 L
• Volume below the malt pipe: ~9.8 L

Port architecture

• Bottom drain: 1.5" TC, centred for complete drainage (dish bottom)
• Heating port: 1× 2" TC (electric heating-element ready)
• Process ports: 2× 1.5" TC (return / whirlpool / transfer)
• Thermowell port: 1× 1.5" TC

What's included (Complete Set)

• K40 stainless boil kettle (SS304) with dish bottom + central drain · stainless lid with central 1.5" TC port
• Stainless malt pipe (grain basket)
• 1× 1.5" TC elbow · 4× 1.5" TC butterfly valve (black handle) · 13× 1.5" band clamps + 13× gaskets · 3× 1.5" blind cap
• 1× 1.5" thermowell (79mm) · 3× pickup tube (racking / pick-up / whirlpool) · 1× TC tee (3A clamped, SS304)
• 1× 2" TC band clamp + gasket + blind cap · brushed stainless finish

Not included (by design): heating elements, controllers, pumps, hoses/quick-connects. Add control your way — or step into a complete Brewing System.

See all Brewing Kettles · Add heating elements · Expand with 2" tri-clamp fittings

Which K-Series size fits your batch

The K-Series shares one tri-clamp architecture across three sizes — pick by the batch you want in the fermenter. Your size is highlighted.

Specifications
