2" Steam Condenser Kit — without lid · fits any 2" TC port

Brew indoors. No steam. No extractor hood.

The BrewTaurus 2" Steam Condenser Kit turns any 2" Tri-Clamp lid port into a full steam condensing system. A fine cold-water spray from the condenser nozzle knocks down the boil steam inside the column, and the condensate drains away through the drain barb. Boil indoors all winter: basement, garage, wherever you brew. No cloud of steam, no extractor hood.

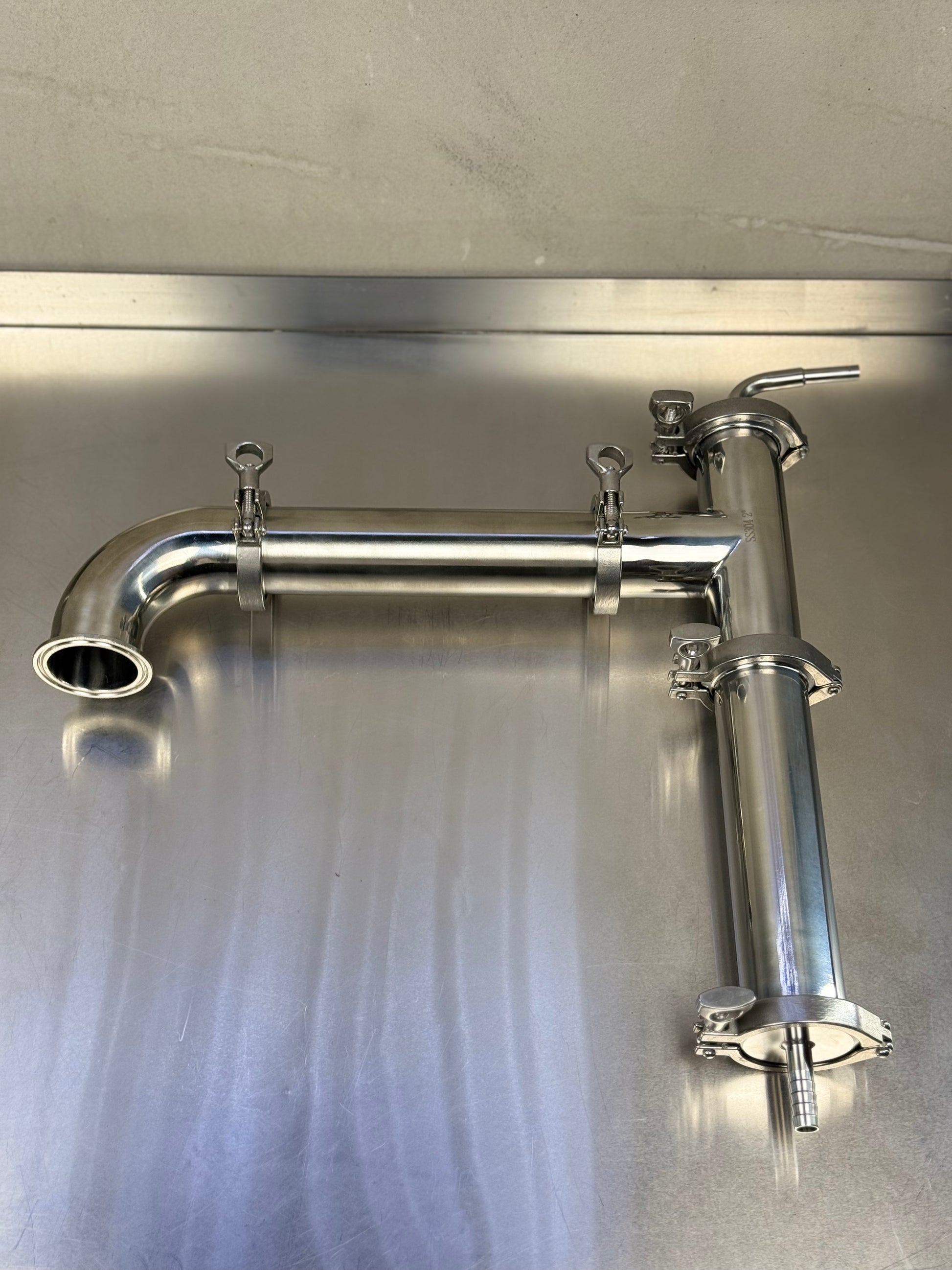

What's included:

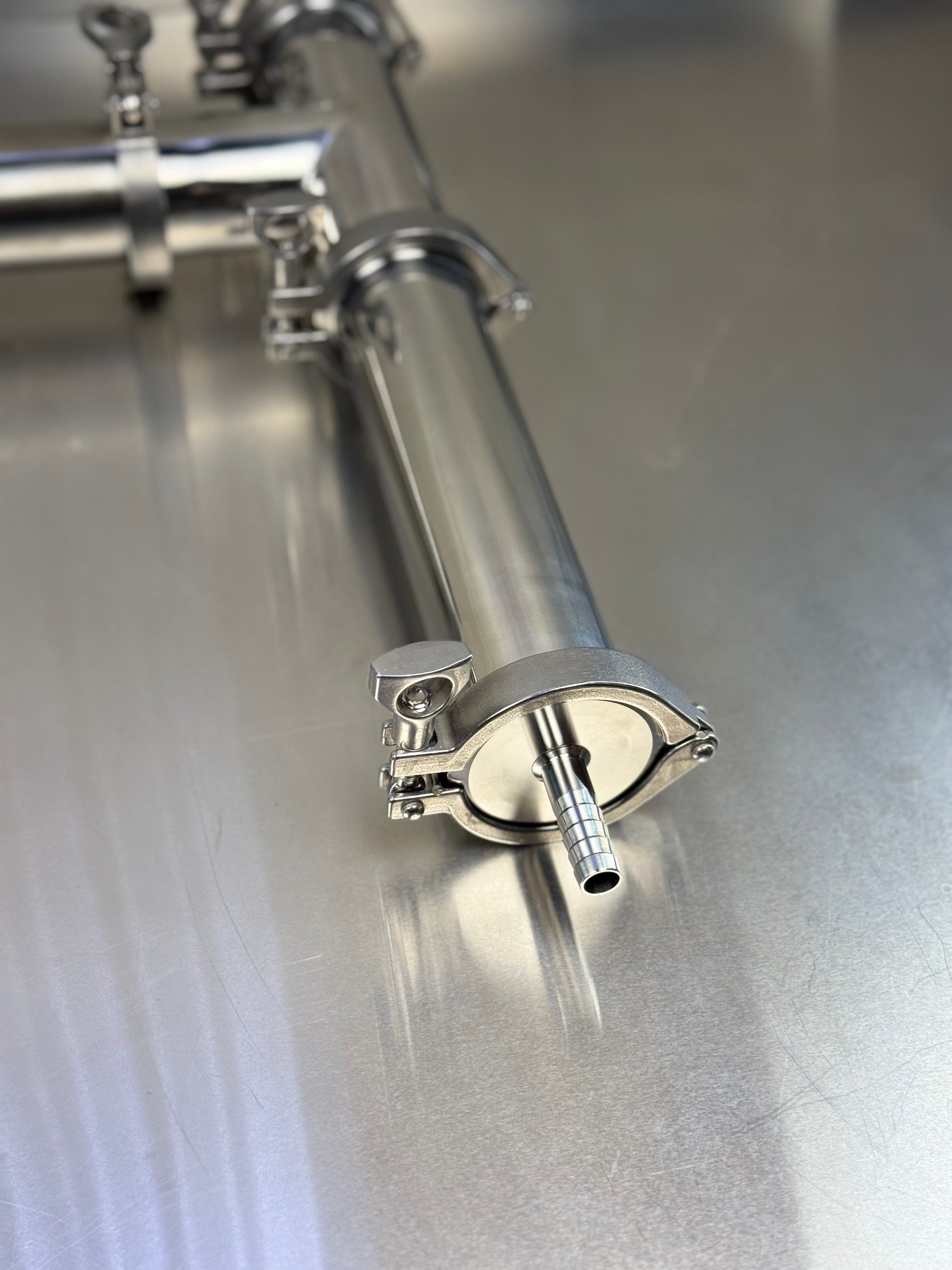

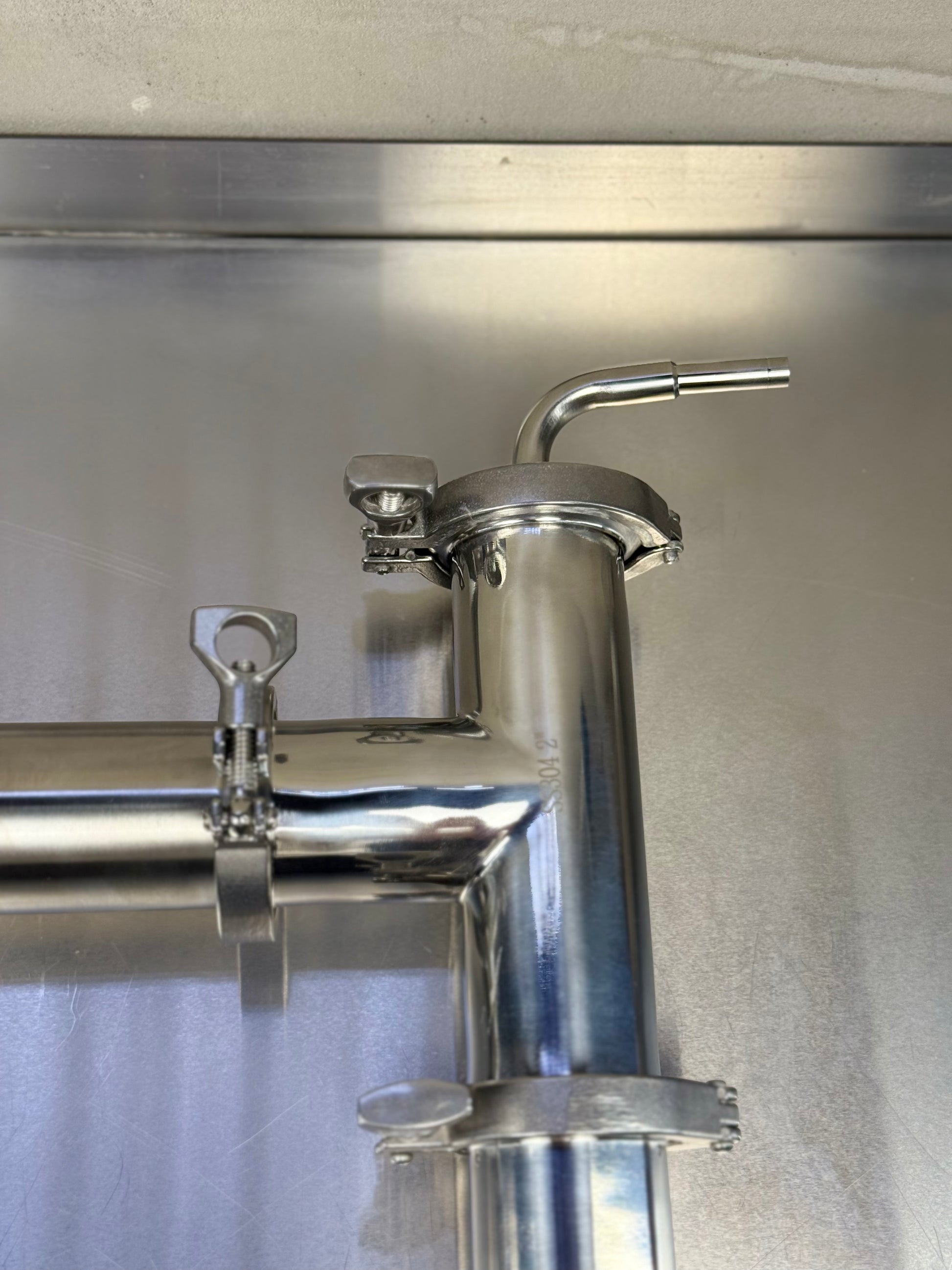

• 1× 2" Tri-Clamp Condenser nozzle – 3/8" push-fit water inlet
• 1× 2" Tri-Clamp Tee
• 2× 2" Tri-Clamp I piece 20 cm (condenser columns)

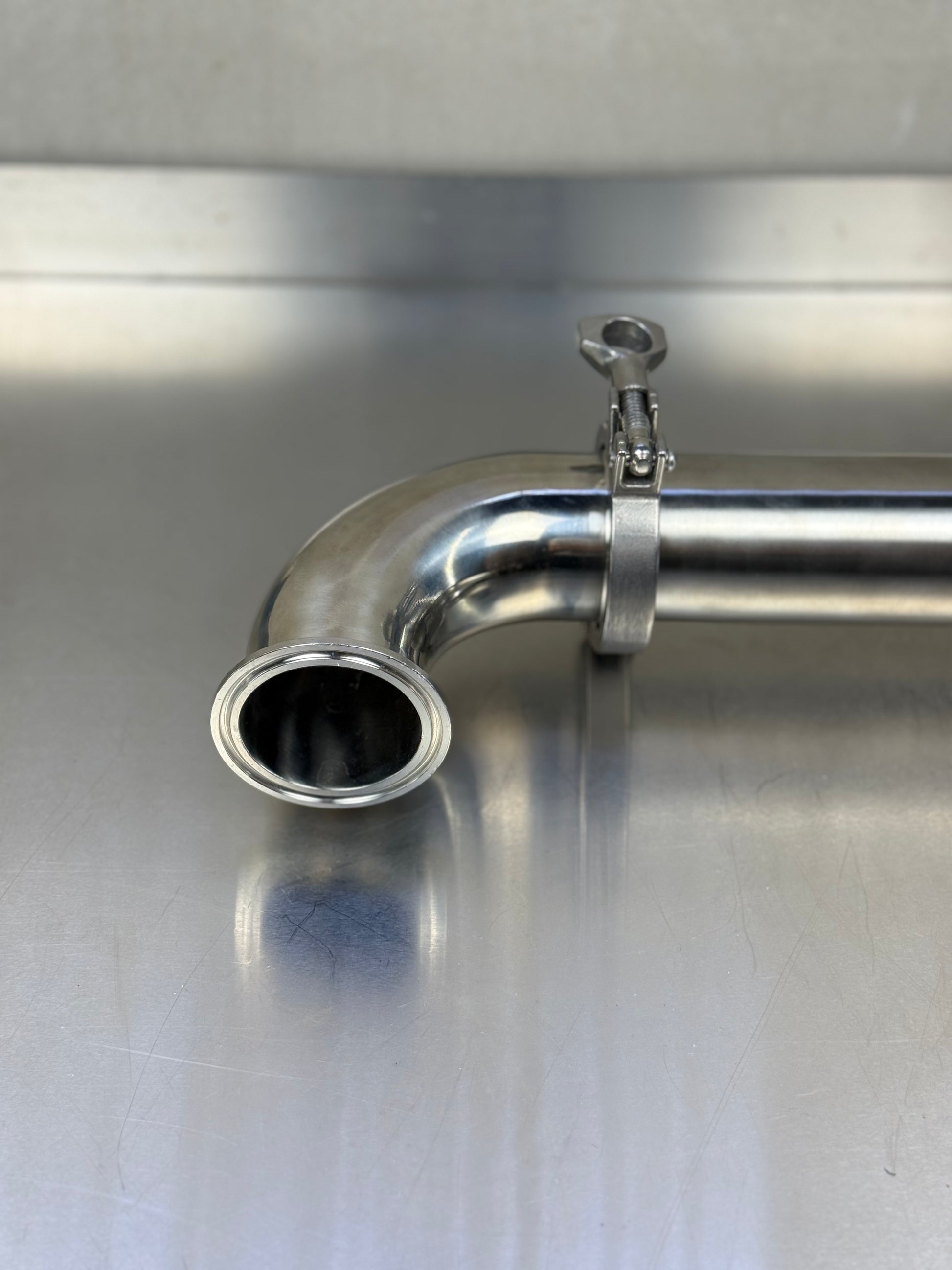

• 1× 2" Tri-Clamp Elbow 90°
• 1× 2" Tri-Clamp 12.7 mm hose barb (condensate drain)
• 6× 2" Band clamp
• 6× 2" TC Gasket

Complete the installation: add the Steam Condenser Connection Kit — 2 m silicone drain hose, 2 m EVABarrier water line and the duotight 3/8" joiner. Everything between your tap, the condenser and the drain, for €29.95.

Which systems does it fit?

• Direct fit (2" TC port): Sight Glass Lid Ø350 mm (B40L & systems with a Ø340–355 mm opening), Dome Lid Ø350 mm (K40 / K40L) — and any system with a 2" TC steam port on the lid.
• With a 4"→2" reducer: Sight Glass Lid Ø400 mm (B70L / B80L PRO), Dome Lid Ø450 mm (K80 / K80L) and Dome Lid Ø600 mm (K220) — and 4" TC distilling lids of other brands.

One practical note from real brew days: a condenser works best when you can throttle your element — all BrewTaurus systems have stepless power control, so the boil stays rolling with the lid on.

Want to dose hops straight into the steam path for extra aroma? Check the 2" Steam Condenser Kit with Hop Tube.
