K40 Boil Kettle + Malt Pipe — Vessel Only (no fittings)

Kettle and malt pipe, nothing else. Your fittings, your build.

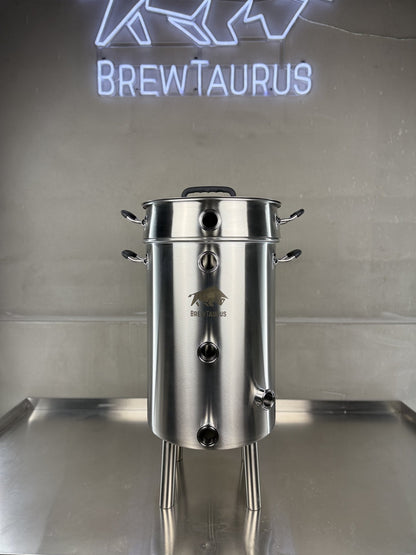

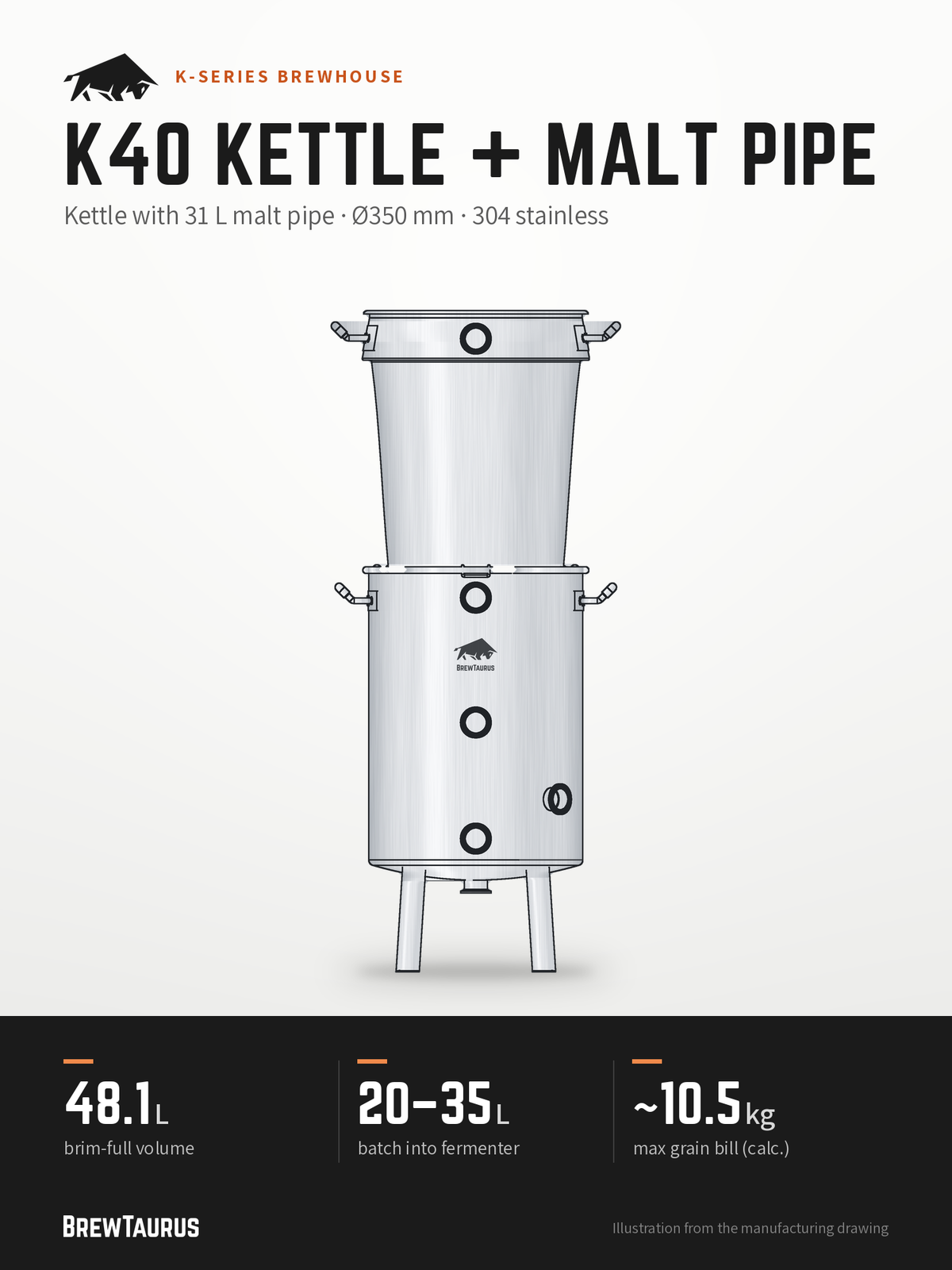

The K40 Boil Kettle with Malt Pipe — vessel only — turns one 48.1 L stainless kettle into a single-vessel electric brewhouse: mash in the malt pipe, lift it, hang it on the rim to drain, sparge, boil. Up to ~10.5 kg of grain. Add your fittings, elements and a pump — or take the K40 1V system.

Vessel only — no fittings. You get the kettle with its stainless lid and the malt pipe. None of the Tri-Clamp fittings are included — no valves, clamps, gaskets or blind caps; the full list is under “Not in the box” below. Want the fittings too? The K40 Boil Kettle + Malt Pipe — Complete Set comes with all of them.

Malt pipe workflow

• Malt pipe (grain basket): 31 L to the rim level · laser-cut bottom plus four rows of side perforations · 1.5" TC port on the top ring · two silicone handles.
• Drain position: the pipe hangs on the kettle rim with its bottom at the 40 L line, so the wort drains back while you sparge.
• 7.6 L sits below the malt pipe. It is part of your strike water but sits under the grain bed — count it when you set mash thickness.
• At full grain the malt pipe weighs more than 25 kg even after draining. Hung on the rim to drain, its top sits 1086.9 mm above the floor; to lift it fully out, the pipe bottom has to clear the rim, so plan at least 1.17 m to the top of the pipe (rim + pipe height) plus room for your hands or hoist. Use heat-resistant gloves; a pulley makes it easier.

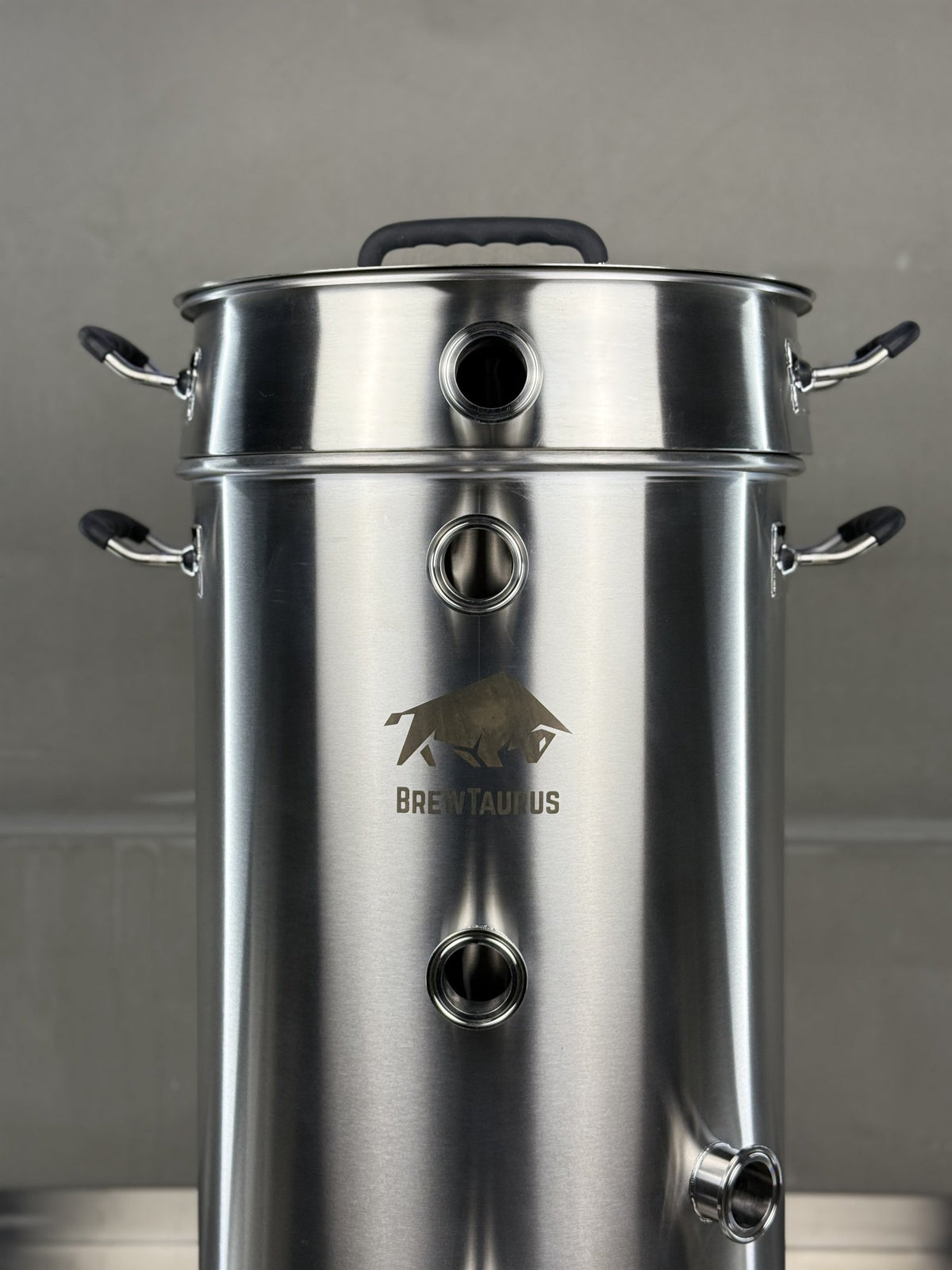

Ports & connections

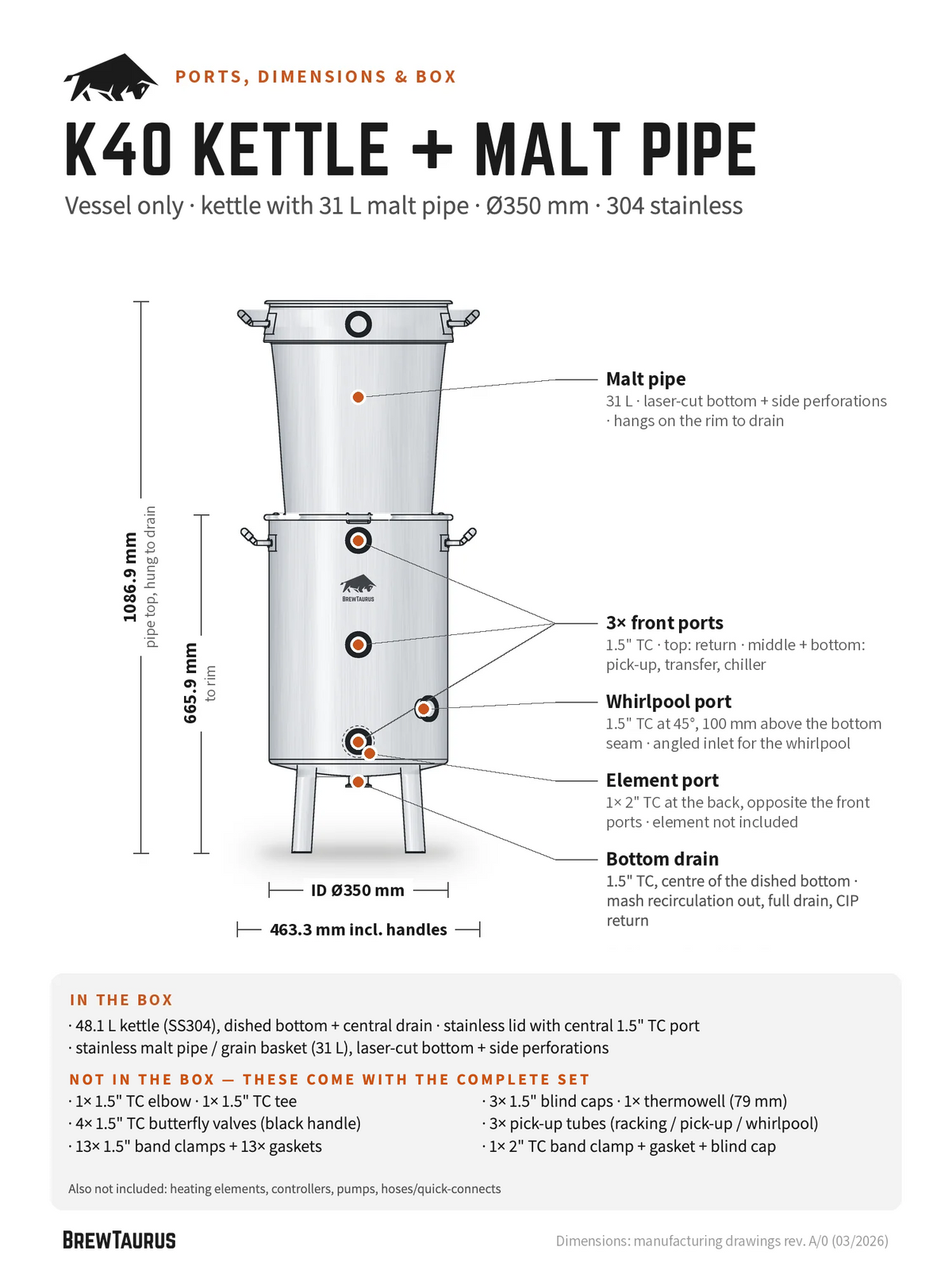

Dimensions

What's in the box

• 48.1 L kettle (SS304), dished bottom + central drain · stainless lid with central 1.5" TC port

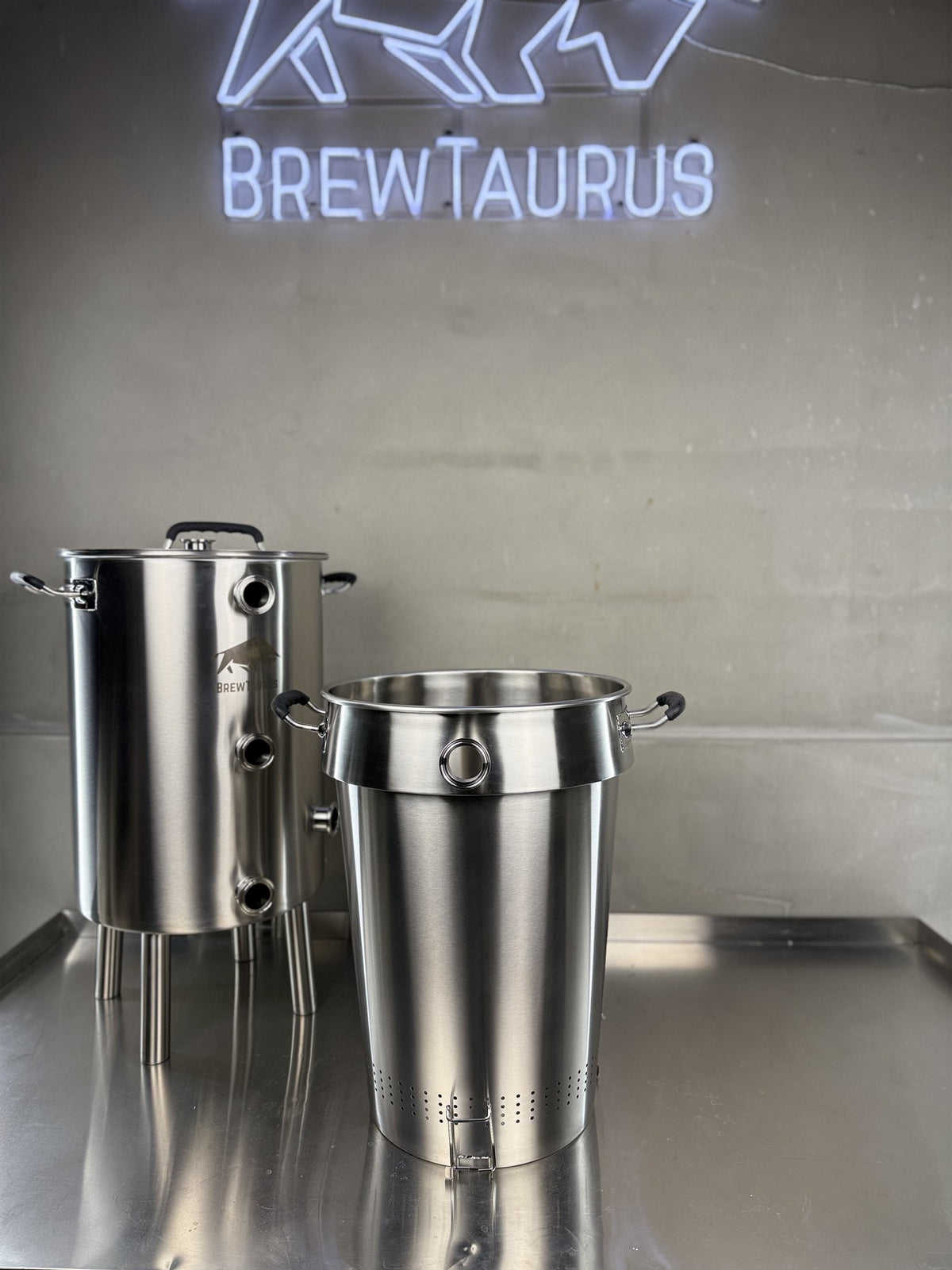

• Stainless malt pipe / grain basket (31 L) with laser-cut bottom and side perforations

Not in the box — these come with the complete set

• 1× 1.5" TC elbow · 4× 1.5" TC butterfly valves (black handle) · 13× 1.5" band clamps + 13× gaskets · 3× 1.5" blind caps
• 1× 1.5" thermowell (79 mm) · 3× pick-up tubes (racking / pick-up / whirlpool) · 1× 1.5" TC tee
• 1× 2" TC band clamp + gasket + blind cap

Also not included: heating elements, controllers, pumps, hoses/quick-connects. Passivate before first use, as with all stainless brewing gear.

With all fittings: K40 Boil Kettle + Malt Pipe — Complete Set. Add heating elements · a 15R pump · Ø350 steam condenser set · all brewing kettles

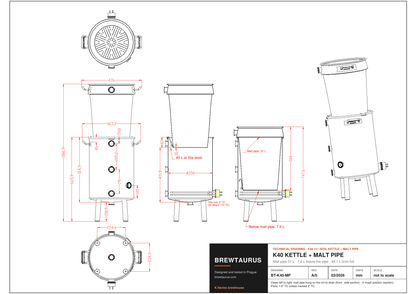

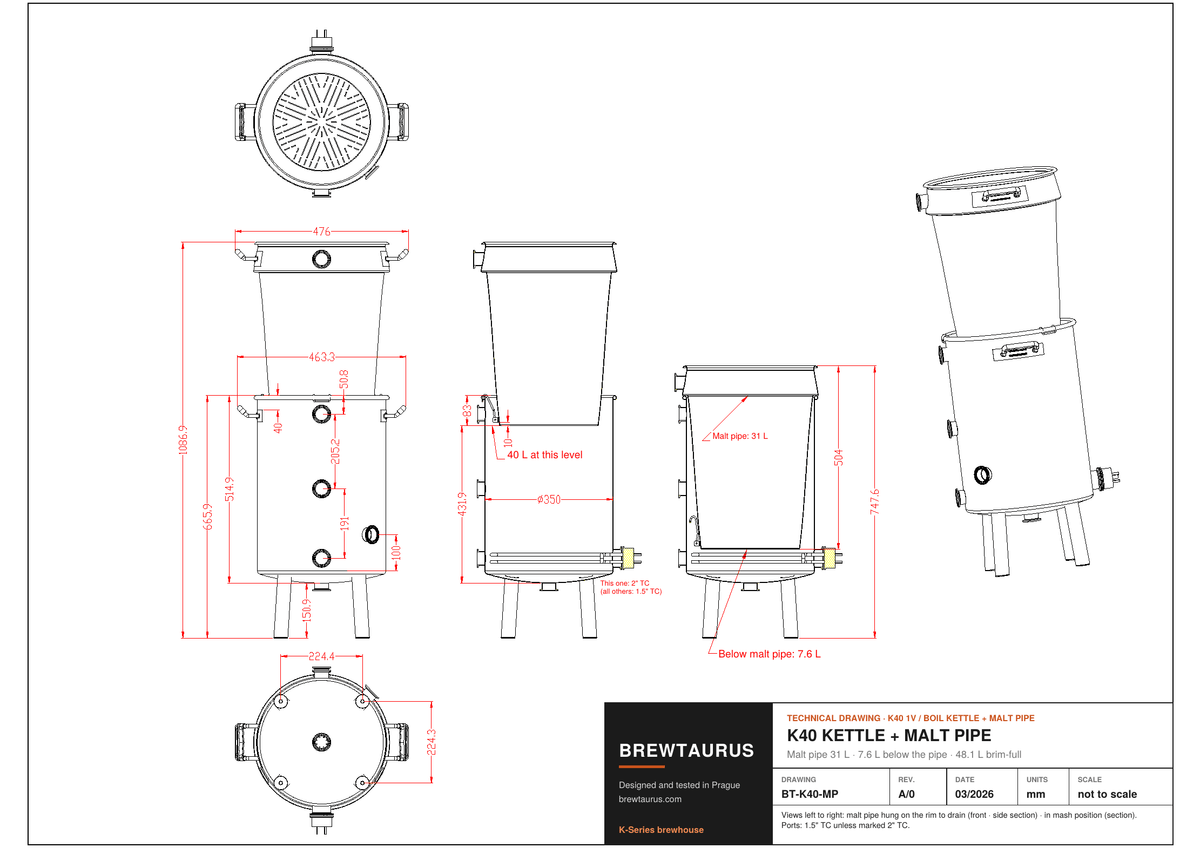

Technical drawing

Download the K40 kettle + malt pipe drawing (PDF)

Which K-Series size fits your batch

Same Tri-Clamp architecture in three sizes. Pick by the batch you want in the fermenter. Your size is highlighted.

FAQ

What does the complete set add?
The K40 Boil Kettle + Malt Pipe — Complete Set adds 1× 1.5" TC elbow · 4× 1.5" TC butterfly valves (black handle) · 13× 1.5" band clamps + 13× gaskets · 3× 1.5" blind caps · 1× 1.5" thermowell (79 mm) · 3× pick-up tubes (racking / pick-up / whirlpool) · 1× 1.5" TC tee · 1× 2" TC band clamp + gasket + blind cap. Take the vessel only if you already have Tri-Clamp valves and fittings, or want to pick your own.

How much grain fits in the malt pipe?
About 10.5 kg. A 12 °P beer at 35 L needs ~7.9 kg; at maximum grain you reach ~15 °P (OG ~1.061) at 35 L.

How much liquid sits below the malt pipe?
7.6 L. It is part of your strike water but sits under the grain bed, so count it when you set mash thickness.

Do I need a hoist?
At full grain the malt pipe weighs more than 25 kg even after draining. Hung on the rim to drain, its top sits 1086.9 mm above the floor; to lift it fully out, the pipe bottom has to clear the rim, so plan at least 1.17 m to the top of the pipe (rim + pipe height) plus room for your hands or hoist. Use heat-resistant gloves; a pulley makes it easier.

Can I add a mash tun later?
Yes. The kettle becomes the boil kettle of a K40 2V or K40 3V — nothing gets replaced.

Product photos may show a prototype or a different size; production units follow the manufacturing drawing.

Gravity figures assume 70 % brewhouse efficiency (65 % at maximum grain); your mill, malt and process will move them.
