K80 Mash Tun - Complete Set (incl. valves & clamps)
K80 Mash Tun - Complete Set (incl. valves & clamps)
Couldn't load pickup availability
The heart of a real mash workflow — built for larger batches.

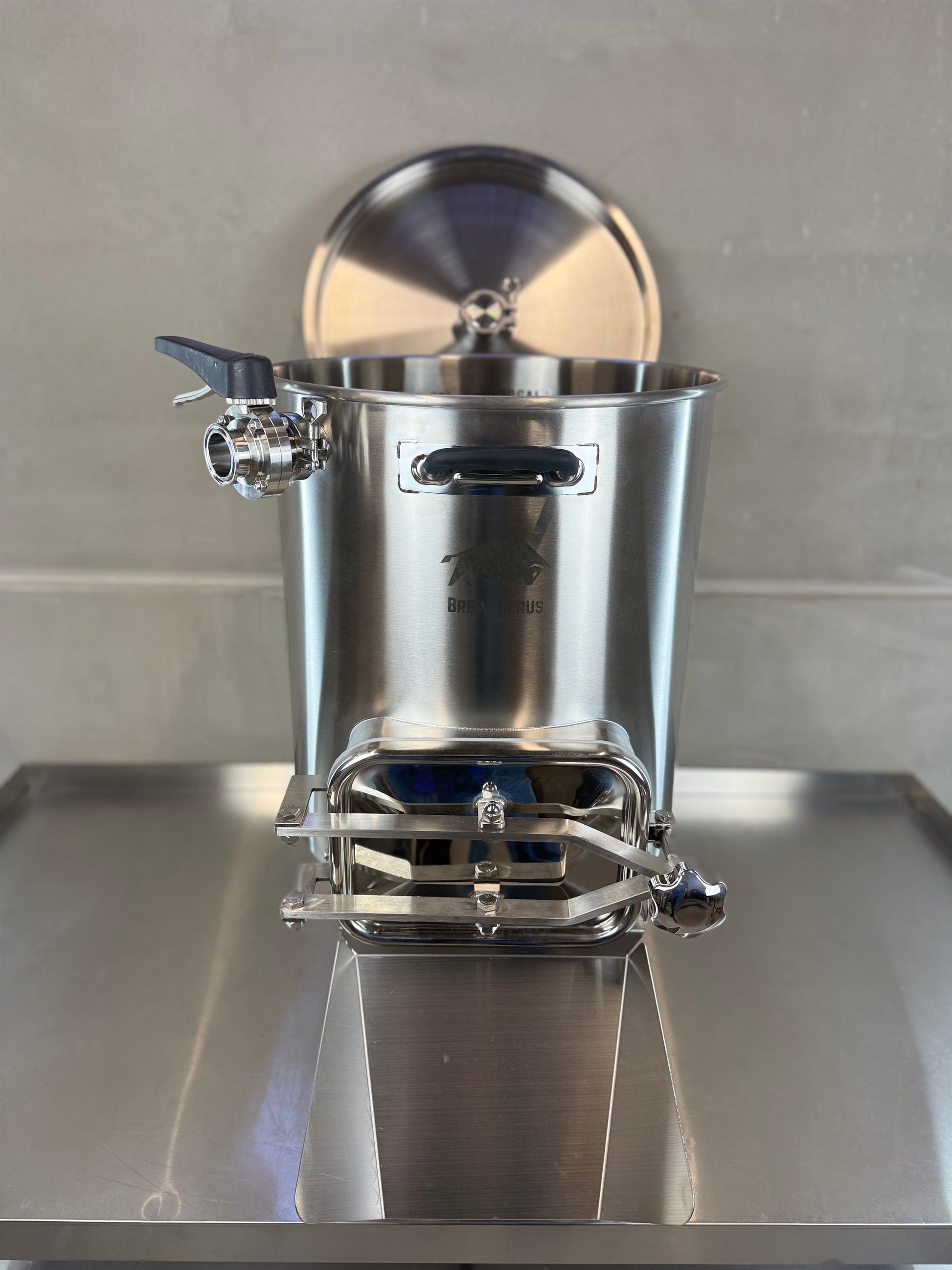

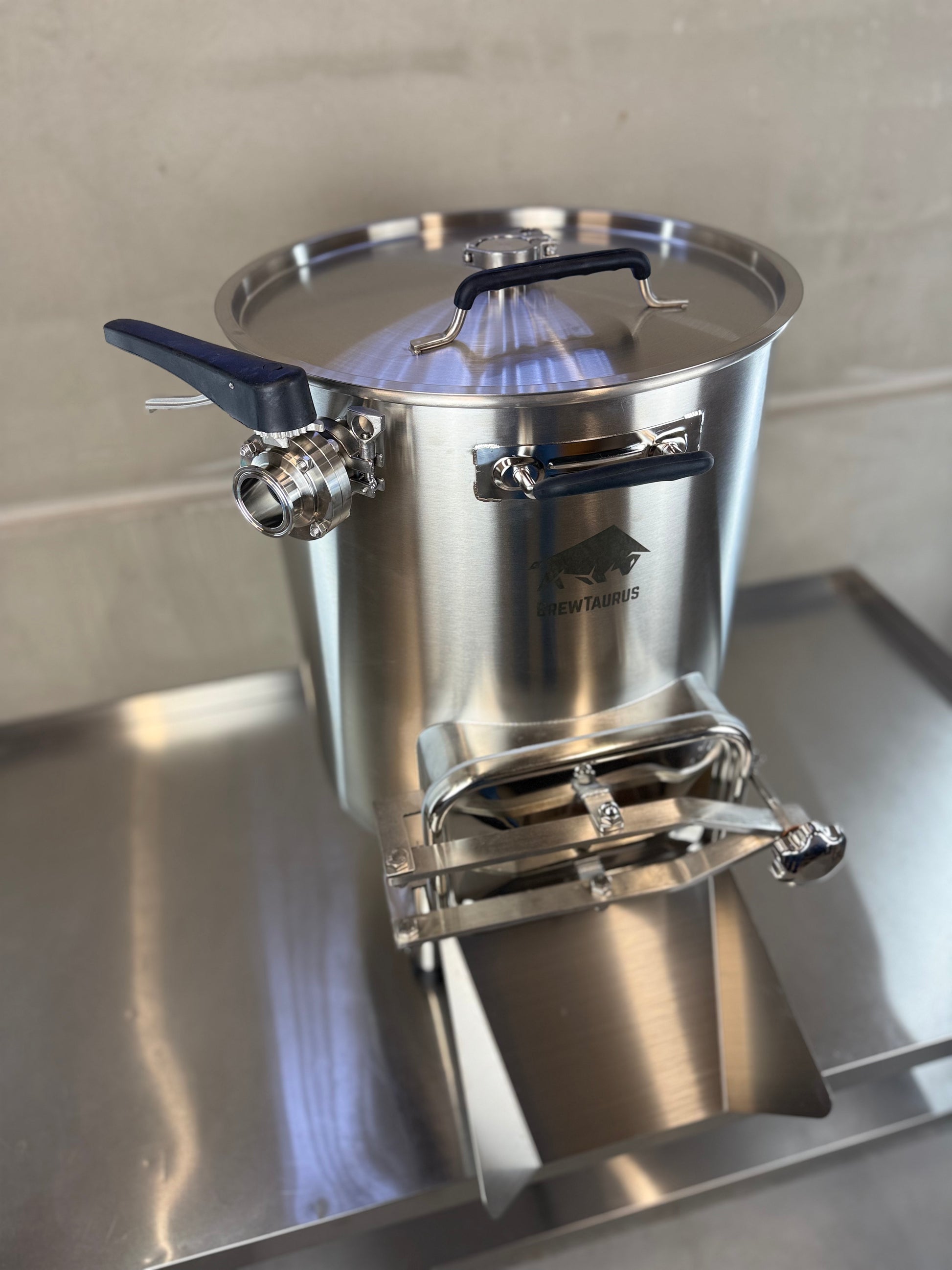

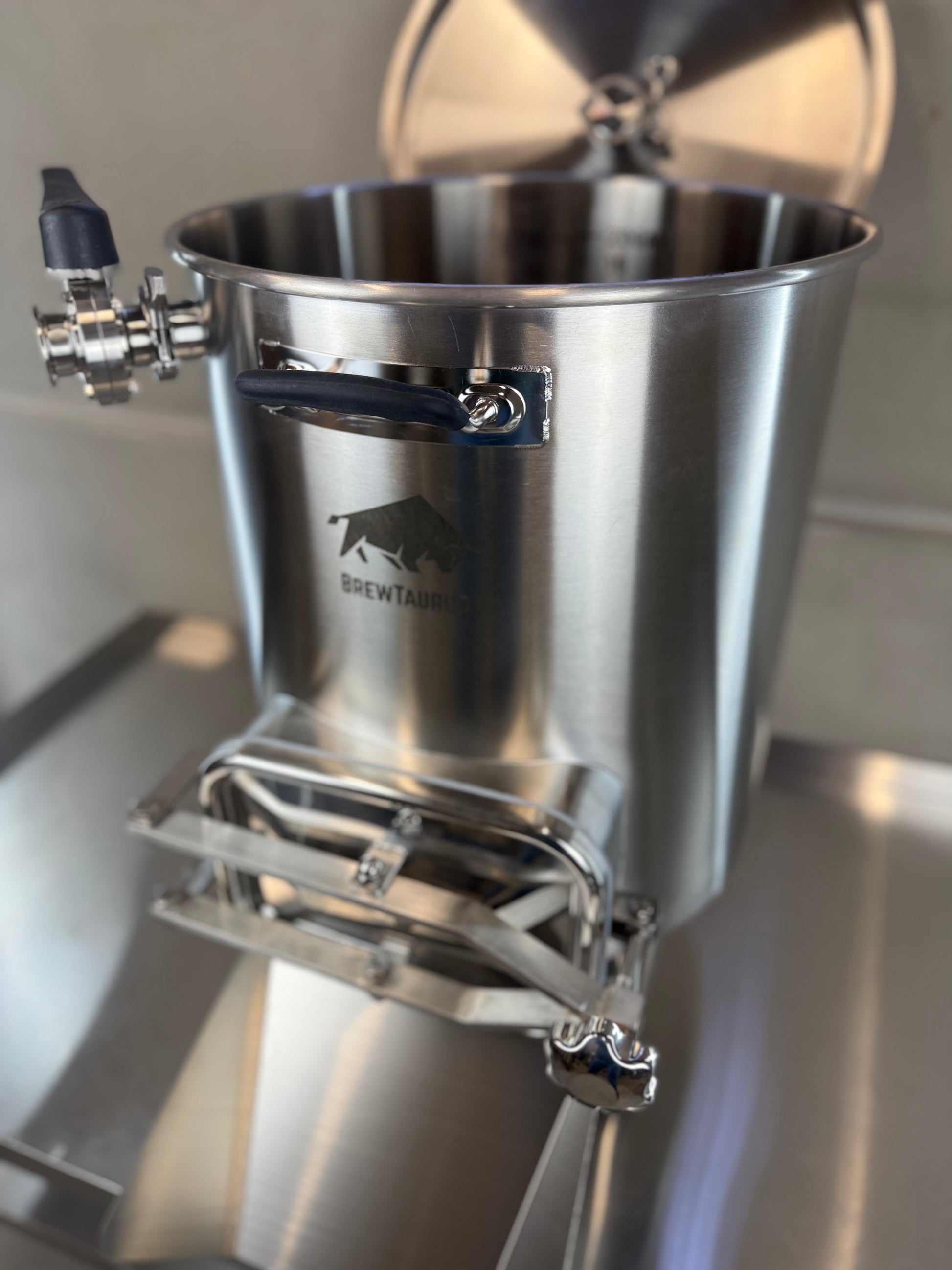

The BrewTaurus K80 Mash Tun is a 93.3 L modular stainless mash vessel built for brewers who want repeatable mash performance, clean lautering and a system that scales without redesign. No integrated electronics, no proprietary internals — just brewhouse logic: mash, recirculate, sparge, lauter. Run it as infusion, HERMS or RIMS.
Made to order (pre-order). We build in monthly production batches — contact us for the current lead time before ordering.

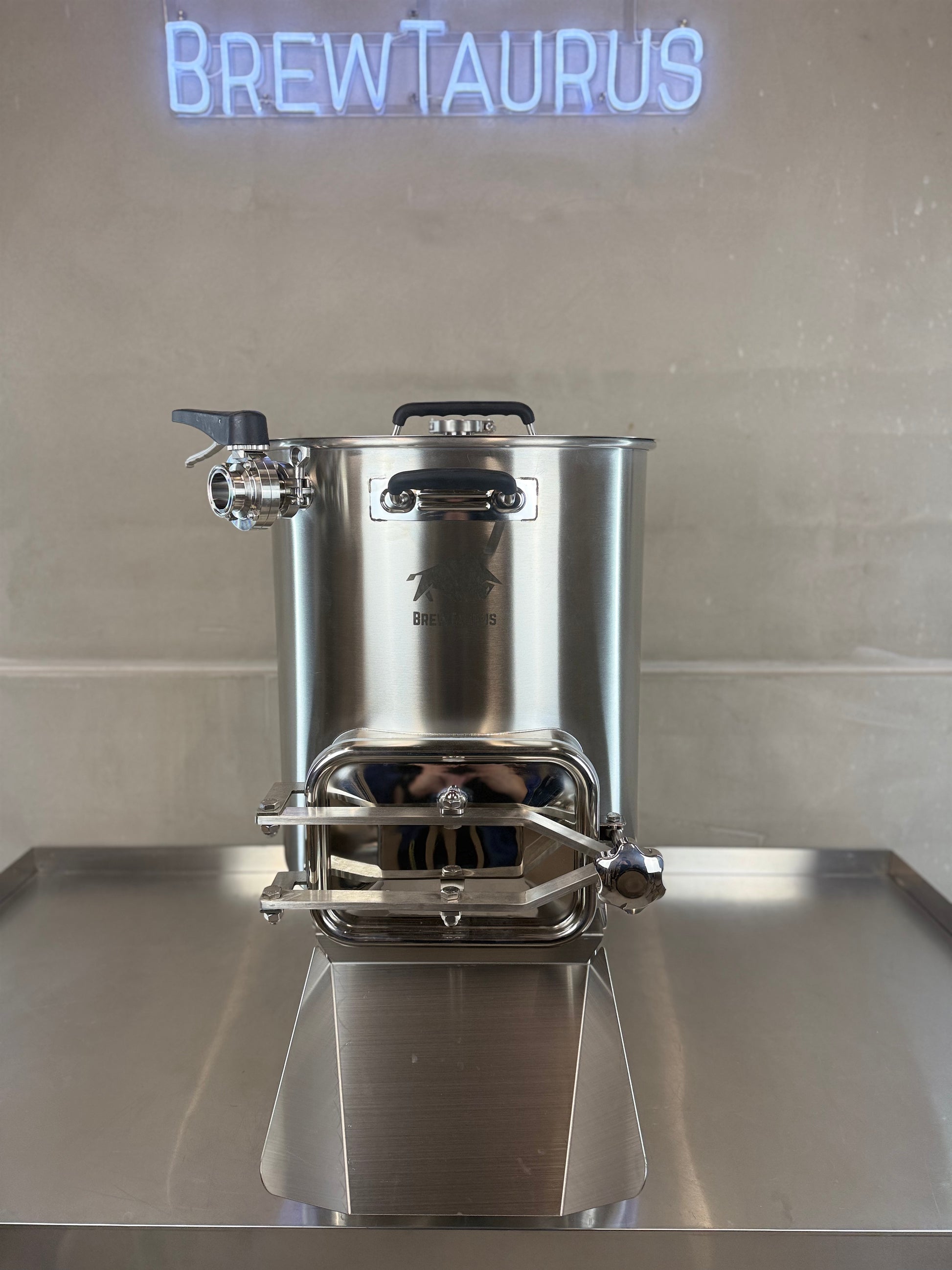

Grain door — built for real brewing
When batch sizes grow, access matters even more.

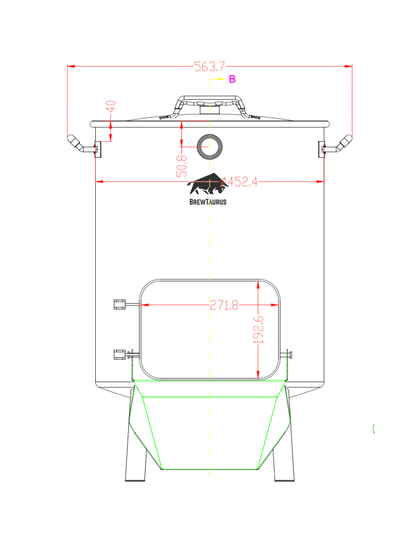

- 200 × 280 mm grain door with integrated gasket
- 2× butterfly clamps for secure closure
- Hinged for quick access, fully removable for deep cleaning
- Grain chute included for clean, controlled grain handling
Port architecture

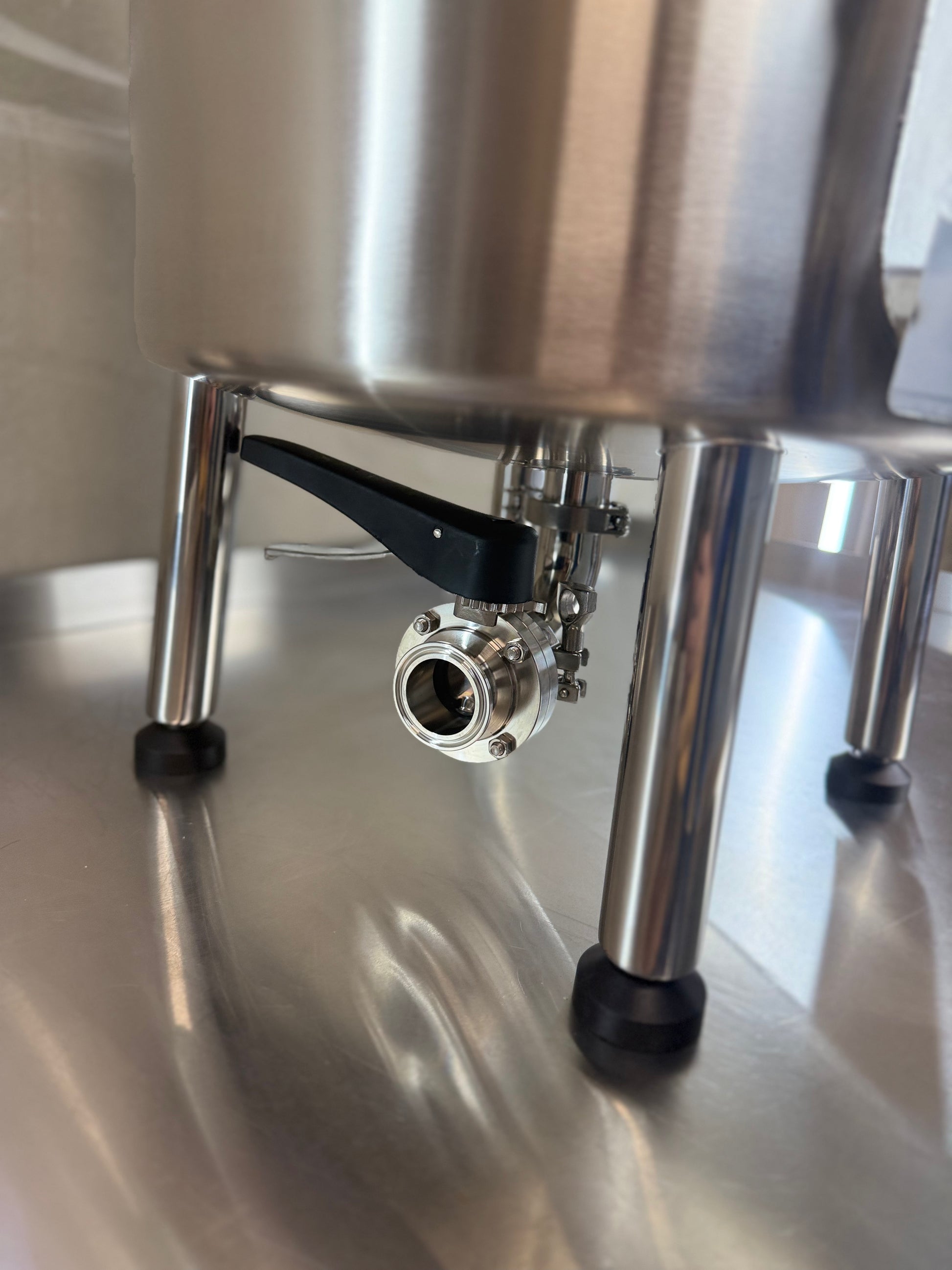

- Bottom drain / mash outlet: 1.5" TC, centred for complete drainage and wort draw-off
- Recirculation return: 1× 1.5" TC (upper front)
- Lid port: central 1.5" TC
What's included (Complete Set)
- 93.3 L stainless mash tun (SS304) · stainless lid with central 1.5" TC port · dish bottom + central drain
- 200 × 280 mm grain door with gasket (hinged + removable) · grain chute included
- 1× 1.5" TC elbow · 2× 1.5" TC butterfly valves · 4× 1.5" band clamps + 4× gaskets · 1× 1.5" blind cap

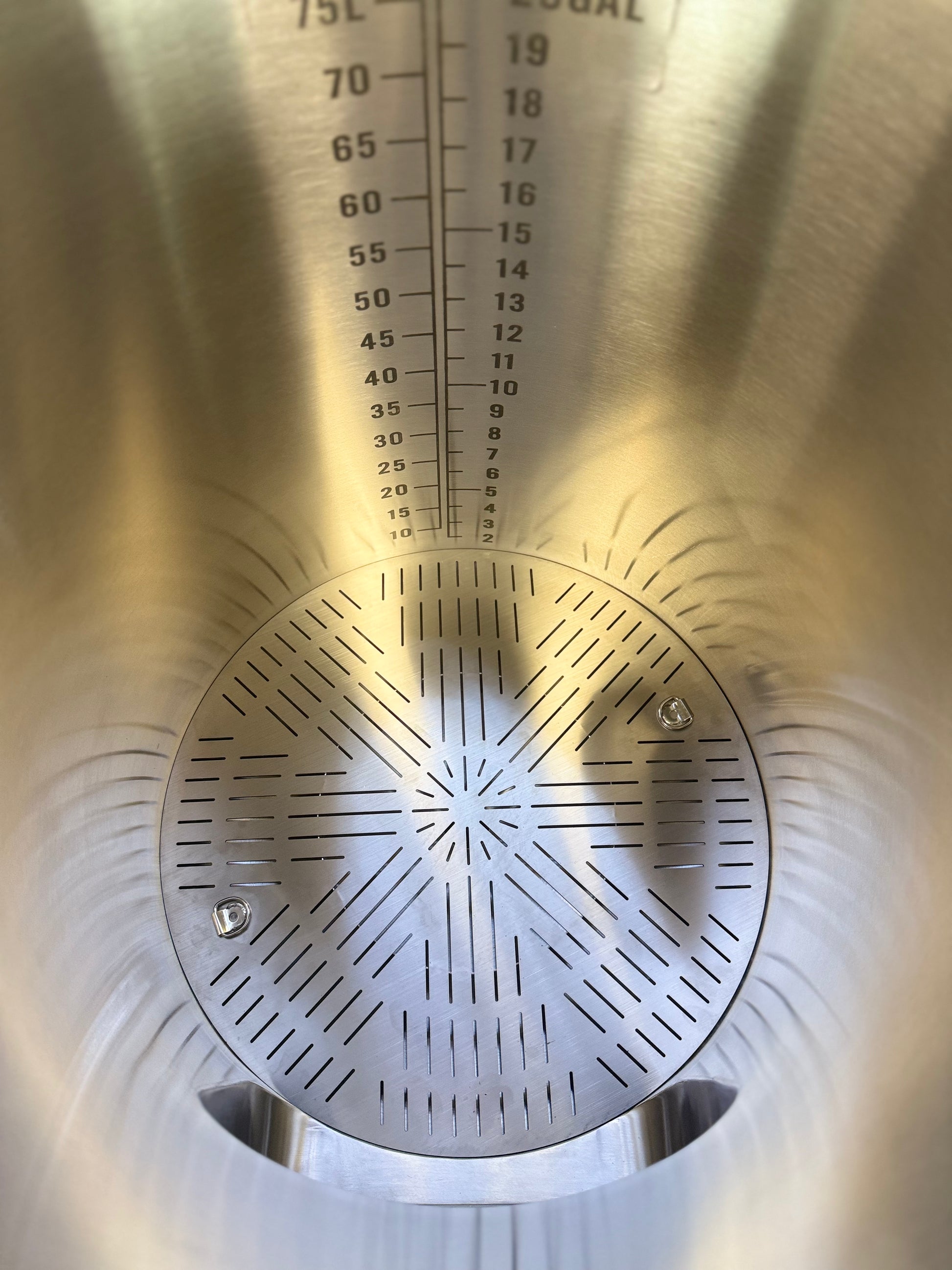

- 1× laser-cut SS304 false bottom (1.5 mm) · perforated drain-protection stand · brushed finish
Not included (by design): heating elements, controllers, pumps, hoses/quick-connects. This vessel has no heating port — it's not designed for direct heating. Passivate before first use.
Pair with a K80 Boil Kettle · Build a full Brewing System · See all Brewing Kettles
Which K-Series size fits your batch
The K-Series shares one tri-clamp architecture across three sizes — pick by the batch you want in the fermenter. Your size is highlighted.
| Size | Vessel capacity | Diameter | Typical batch (into fermenter) |
| K40 | 48.1 L | Ø350 mm | ~20–35 L |
| K80 | 93.3 L | Ø450 mm | ~45–70 L |
| K220 | 225 L | Ø600 mm | ~110–175 L |
Specifications
| Full capacity | 93.3 L |

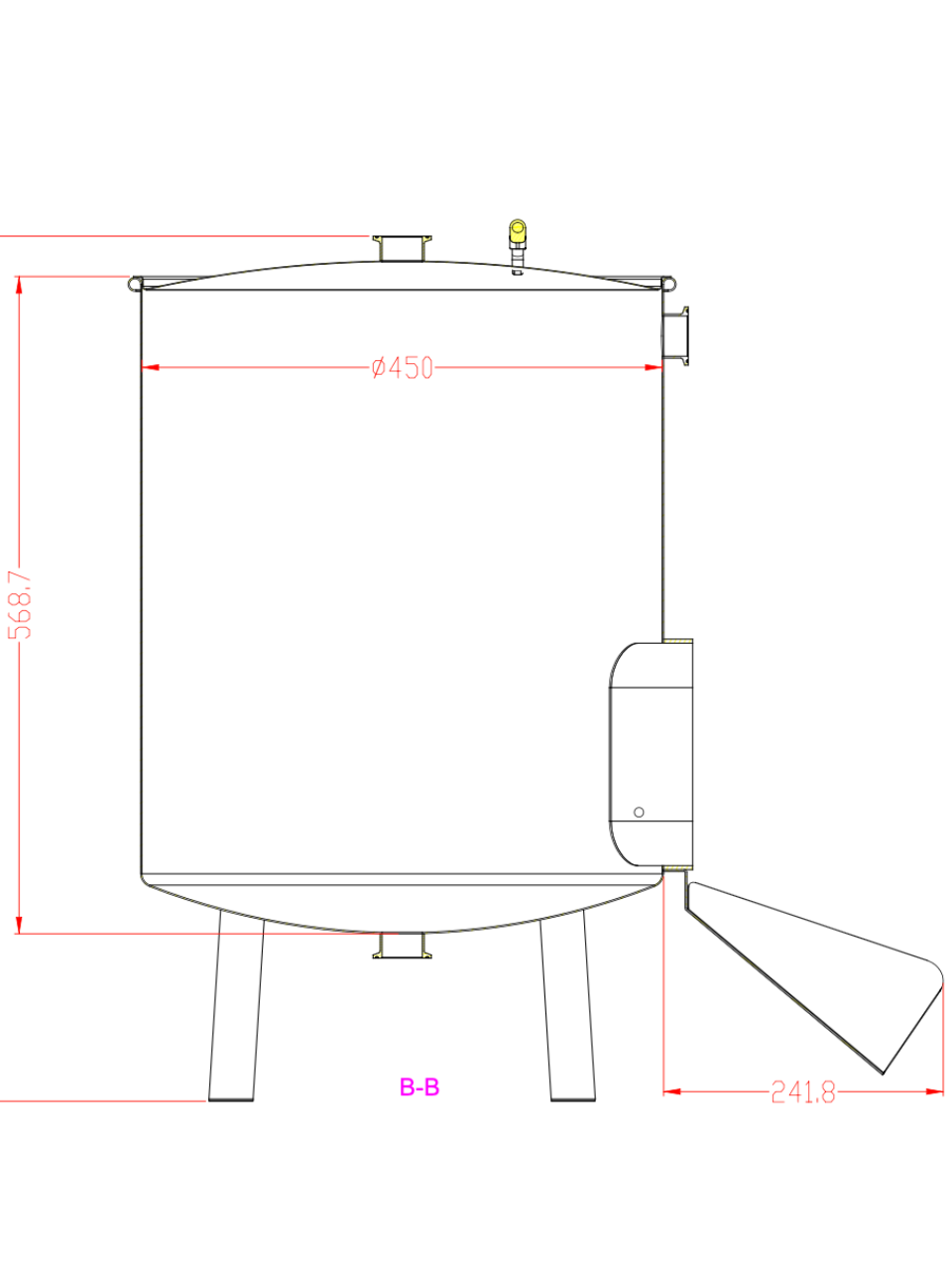

| Diameter / height | Ø450 mm · 568 mm |
| Grain door | 200 × 280 mm, gasketed, hinged + removable |
| Material | Stainless steel SS304, brushed |
| Wall / lid / leg | 1.2 mm / 1.0 mm / 1.2 mm |
| Bottom / heating | Dish bottom + central drain · no heating port |

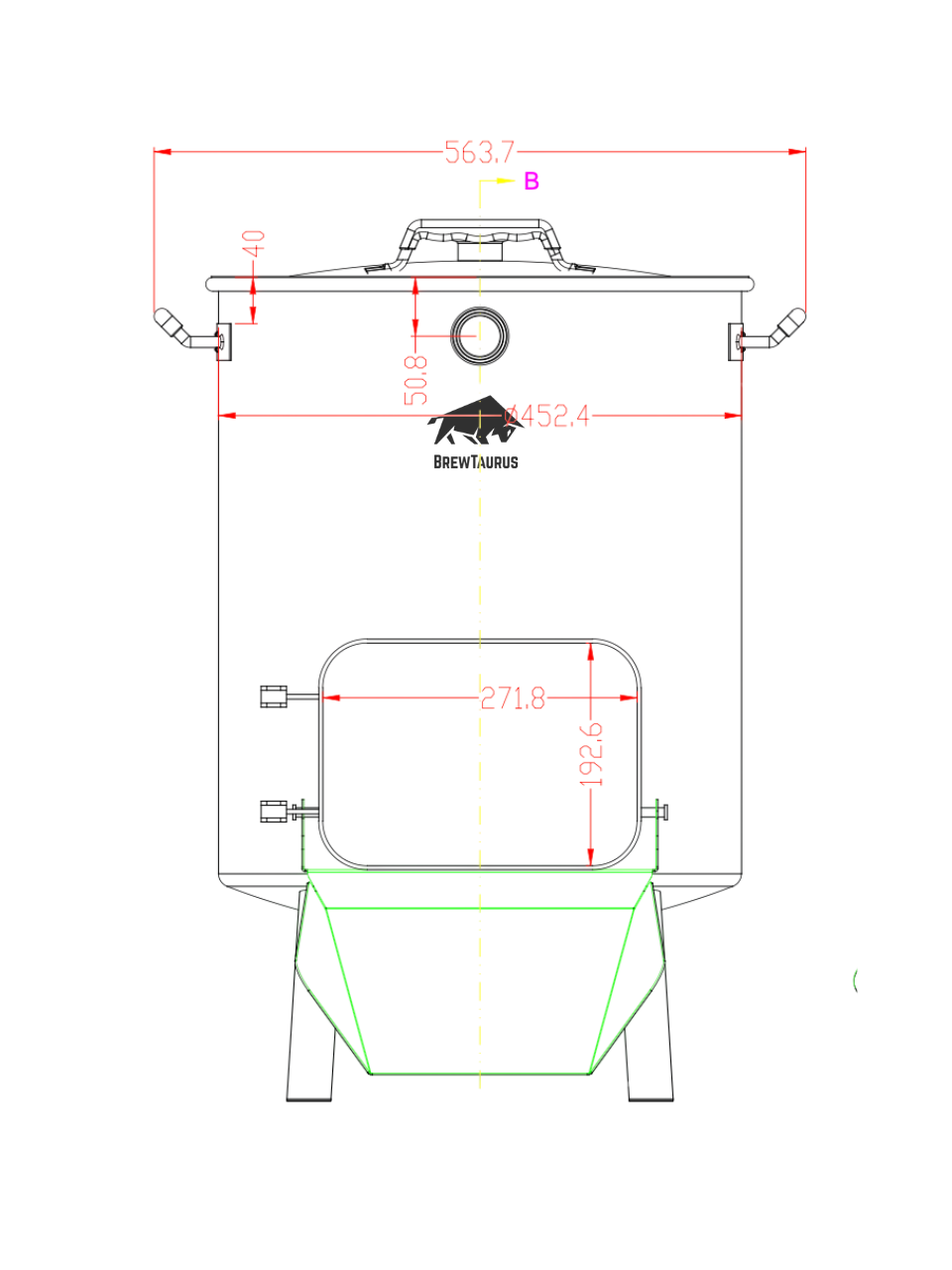

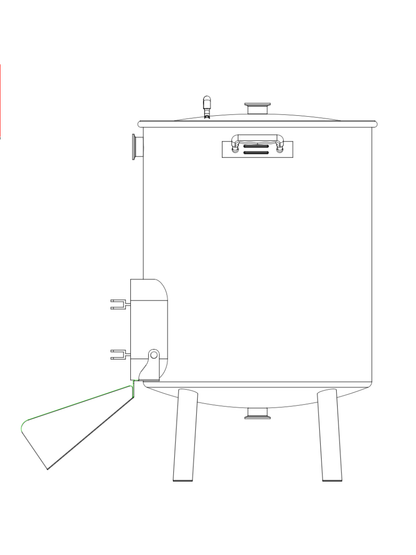

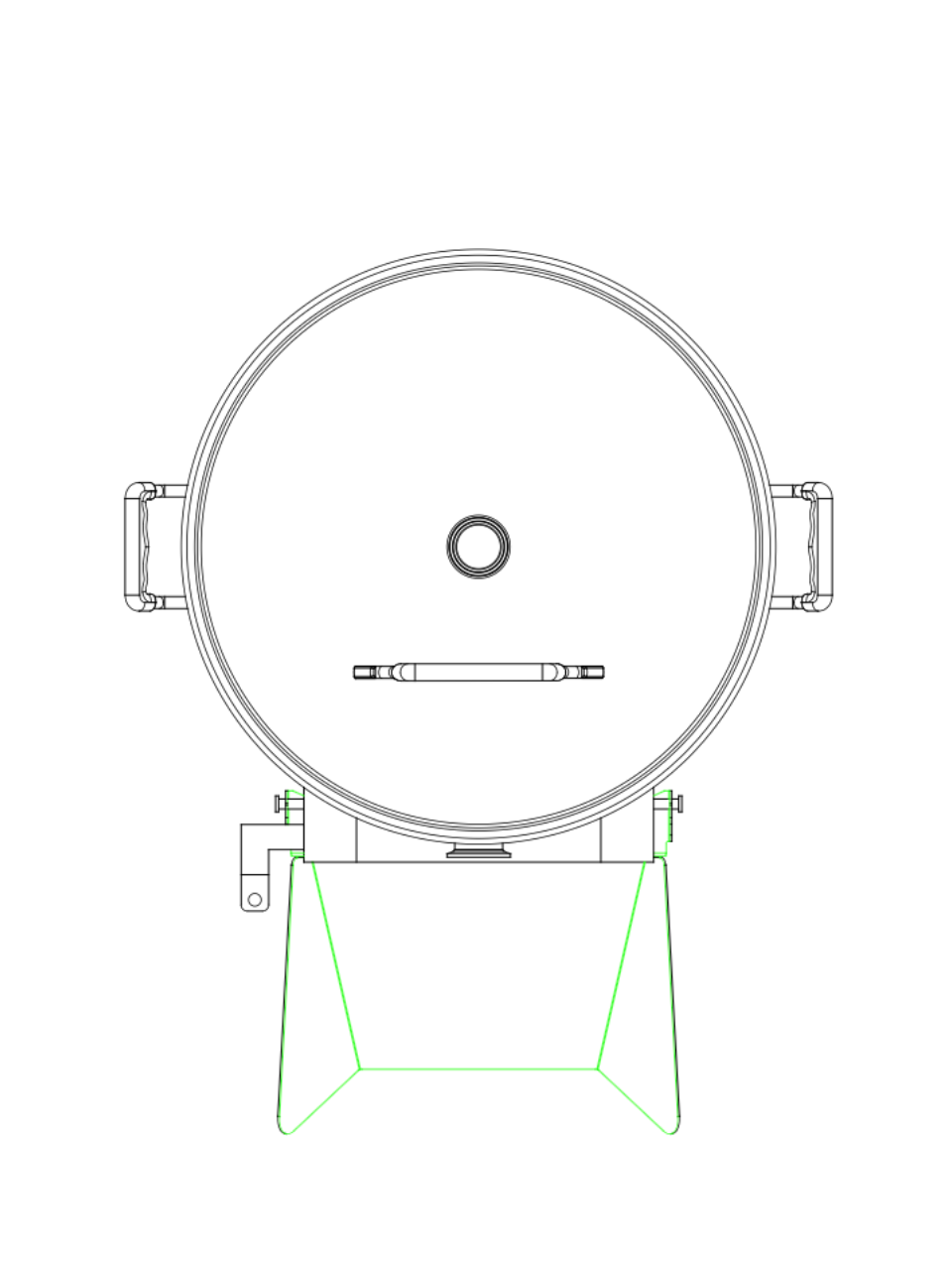

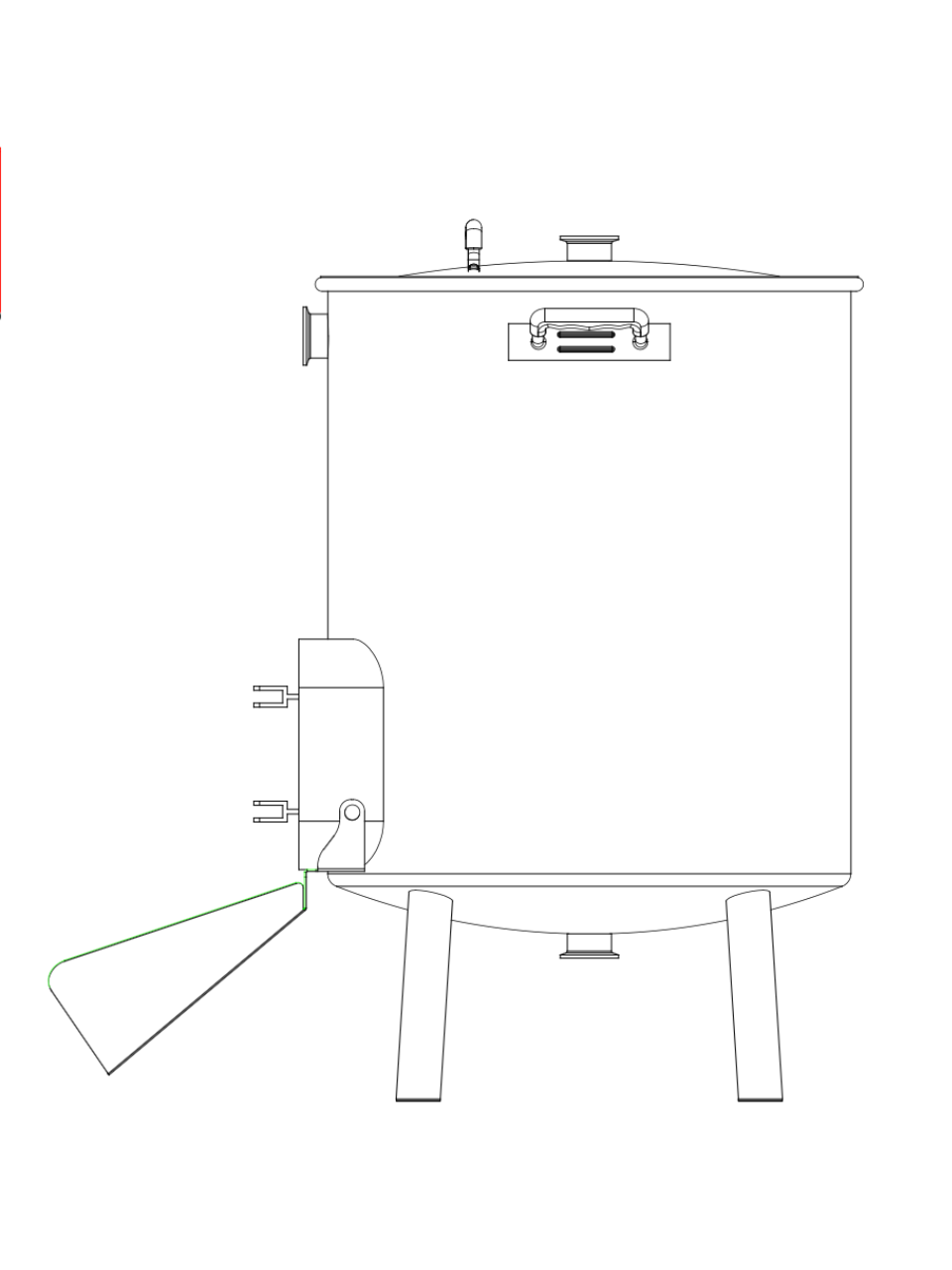

Product photos may show a prototype; production units follow the updated technical drawing and may include minor port refinements.
