K80 3V Brewing System – 86.5L Three-Vessel Stainless Brewhouse

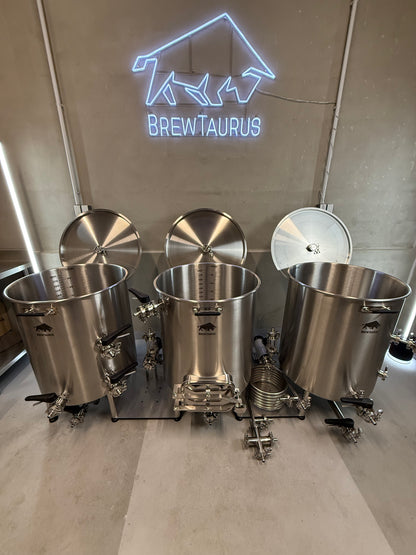

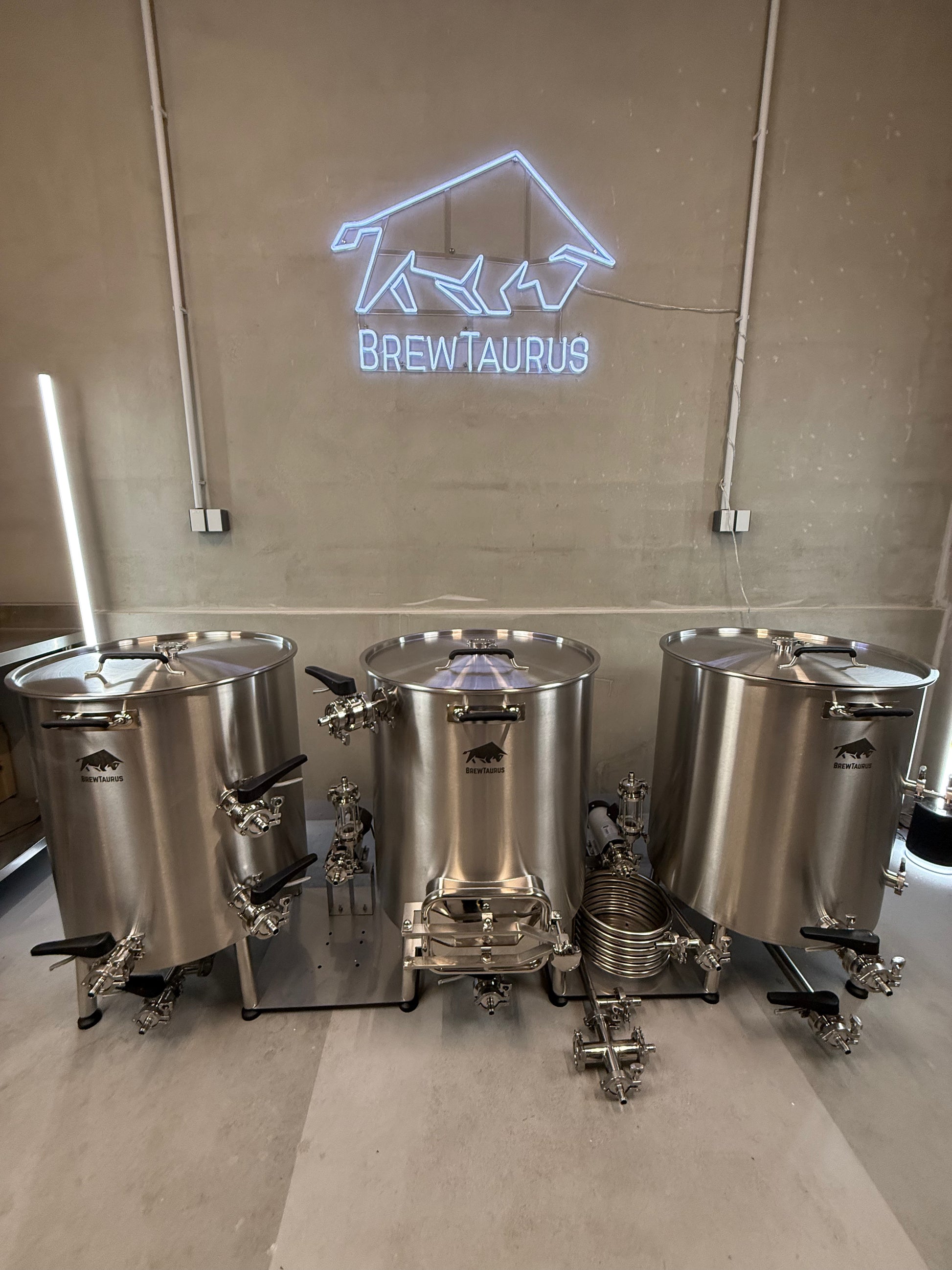

80L Three-Vessel Brewing System.

Dedicated HLT. Dedicated Mash. Dedicated Boil. 11.4kW total heating. Full stainless tri-clamp architecture.

Designed operating range

• Nominal kettle capacity: 86.5 L (each vessel)
• Recommended production range (into fermenter): 55–75 L
• Maximum practical knockout volume: 78–80 L
• Flexible batch capability: 35–75 L

Designed for optimal performance in the 60–75L range.
Smaller batches are fully supported by adjusting heating power and pump flow control.

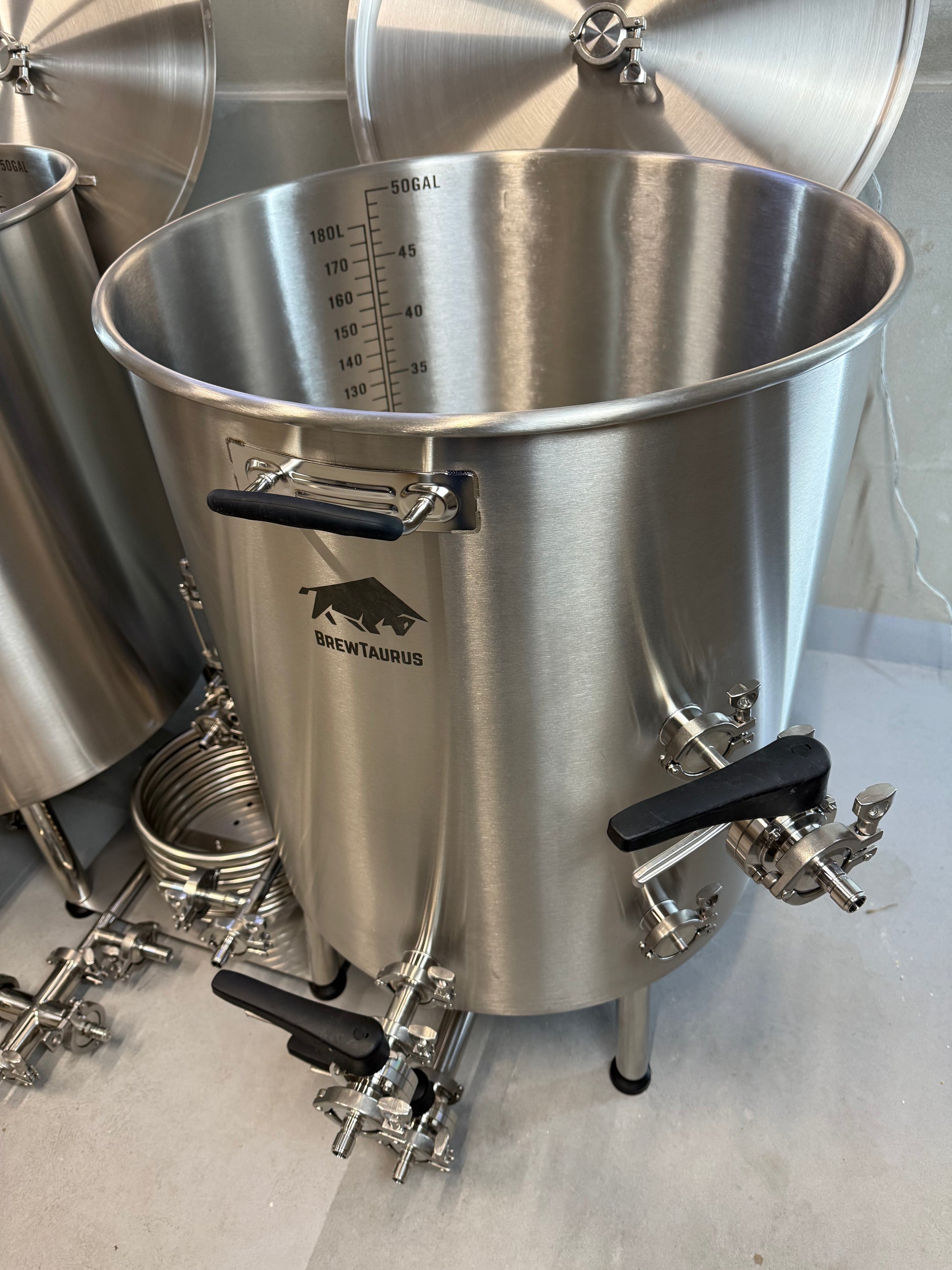

System architecture

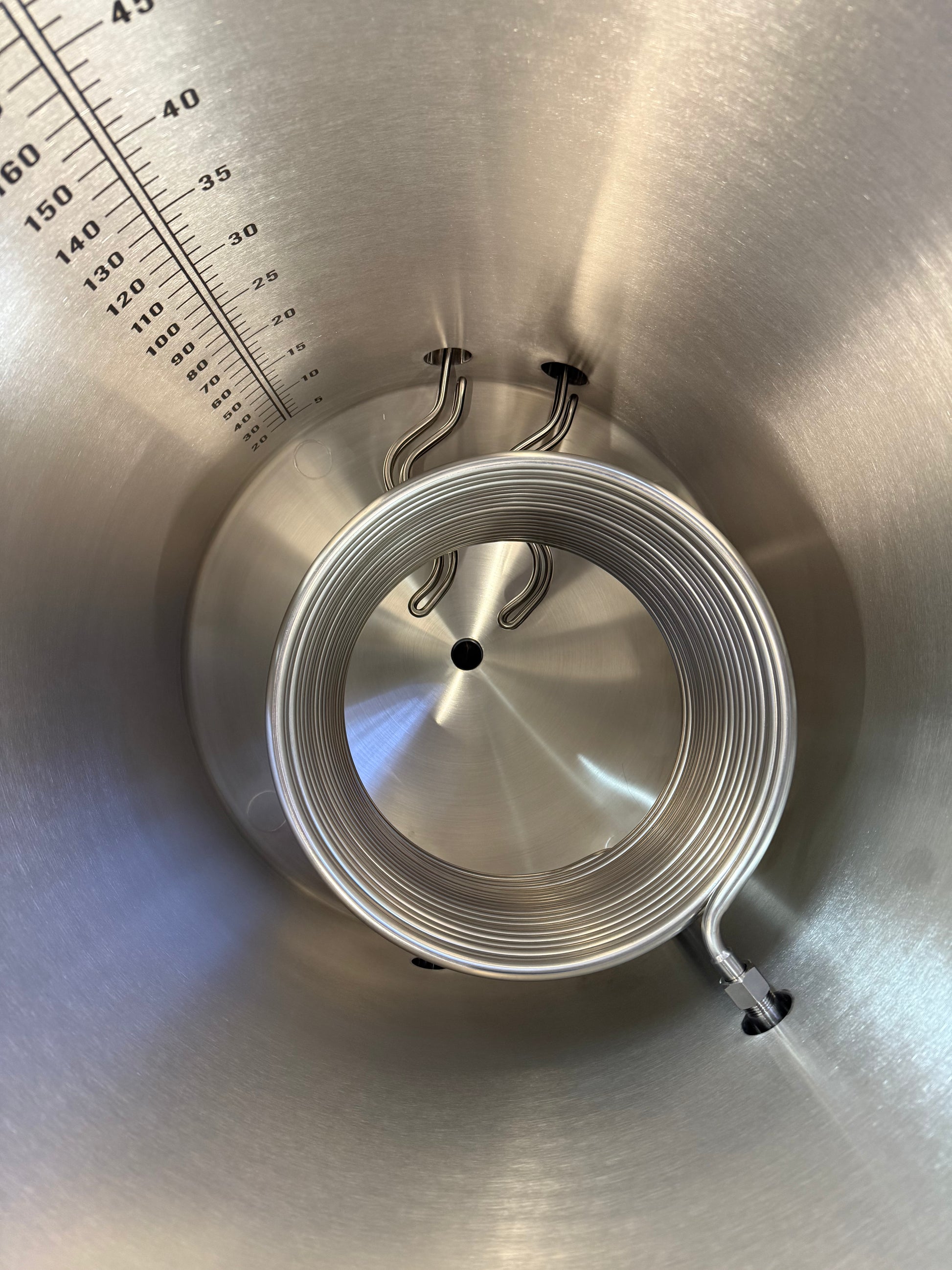

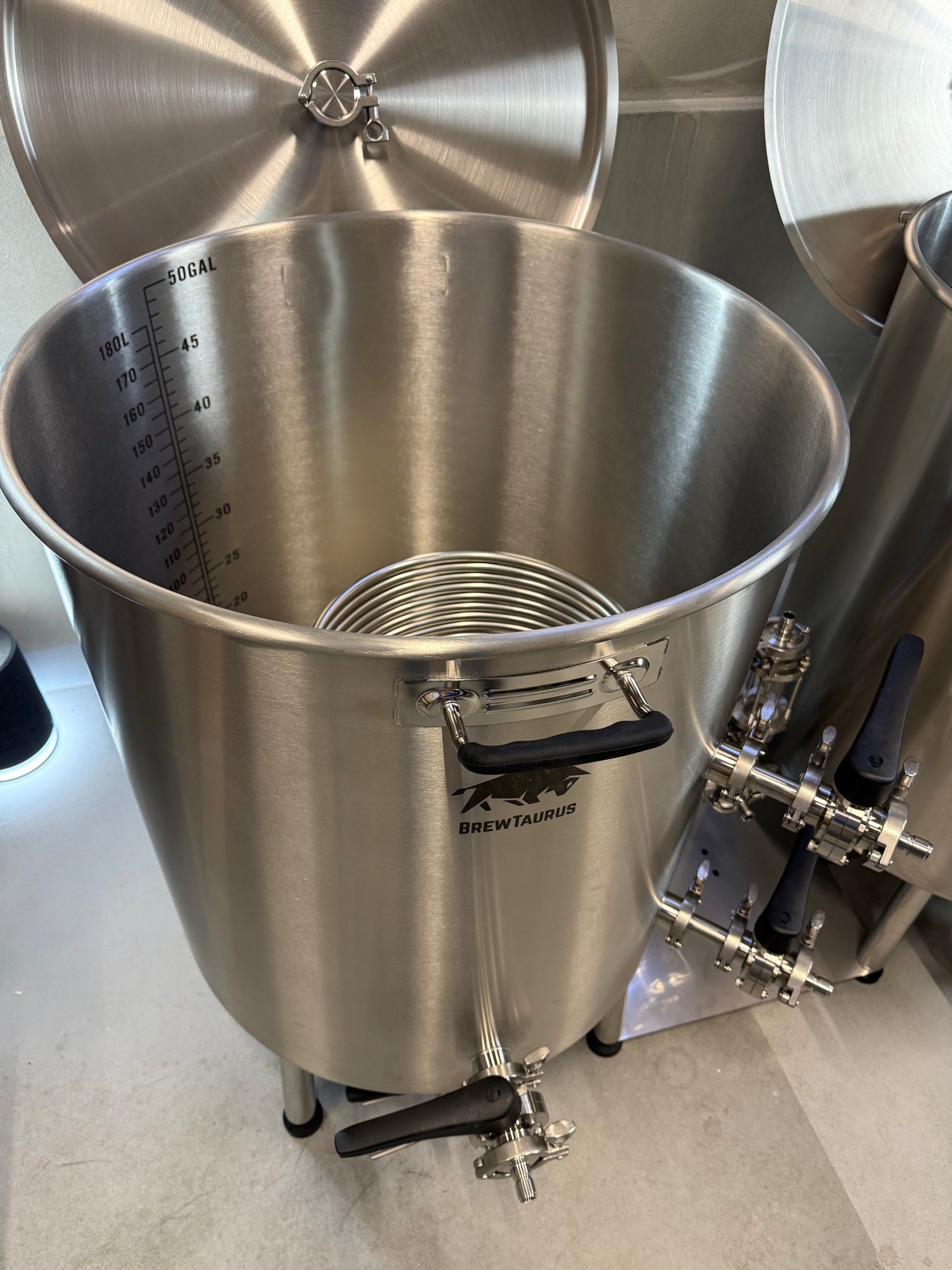

• HLT (Hot Liquor Tank): dedicated heating vessel

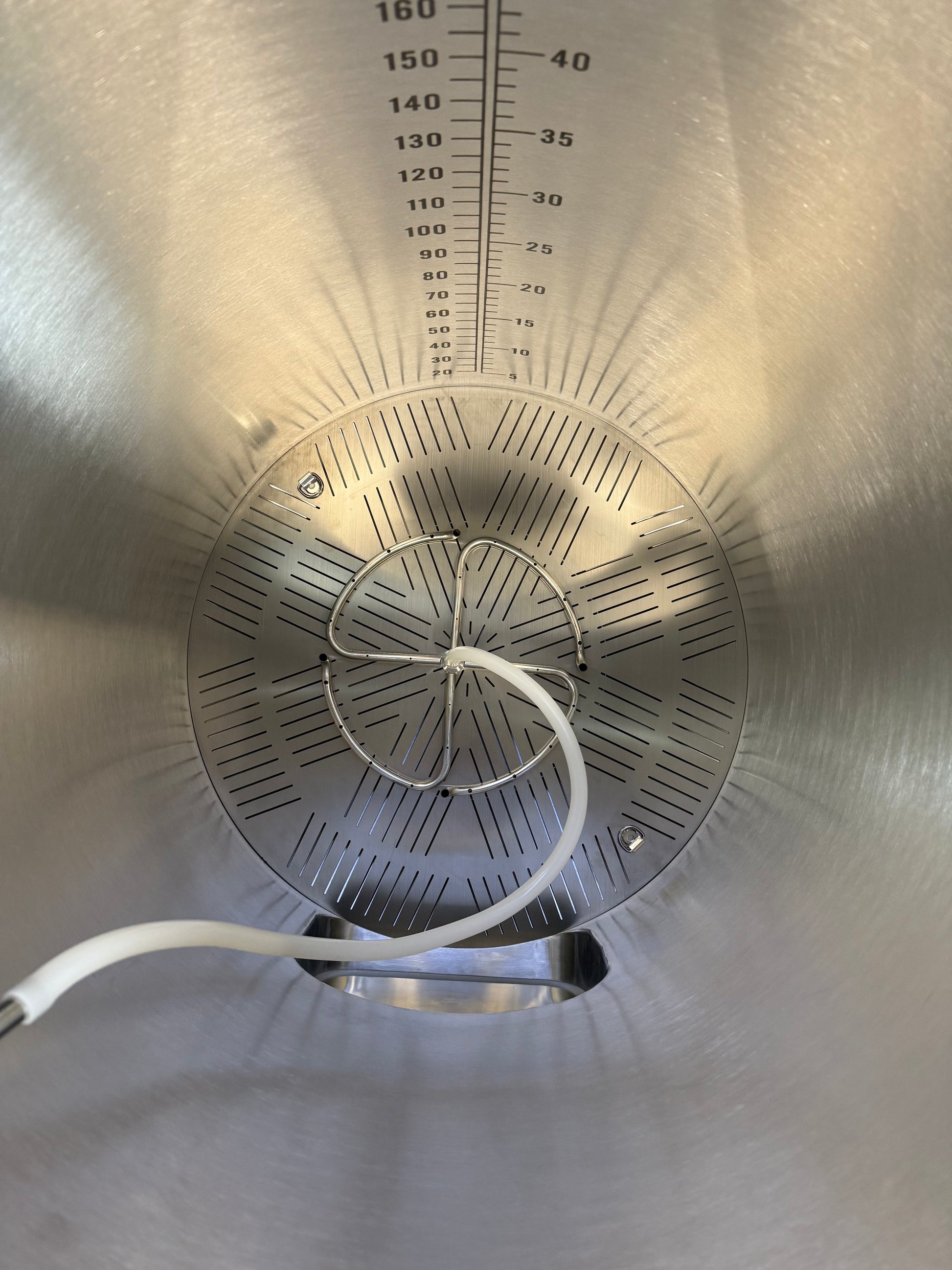

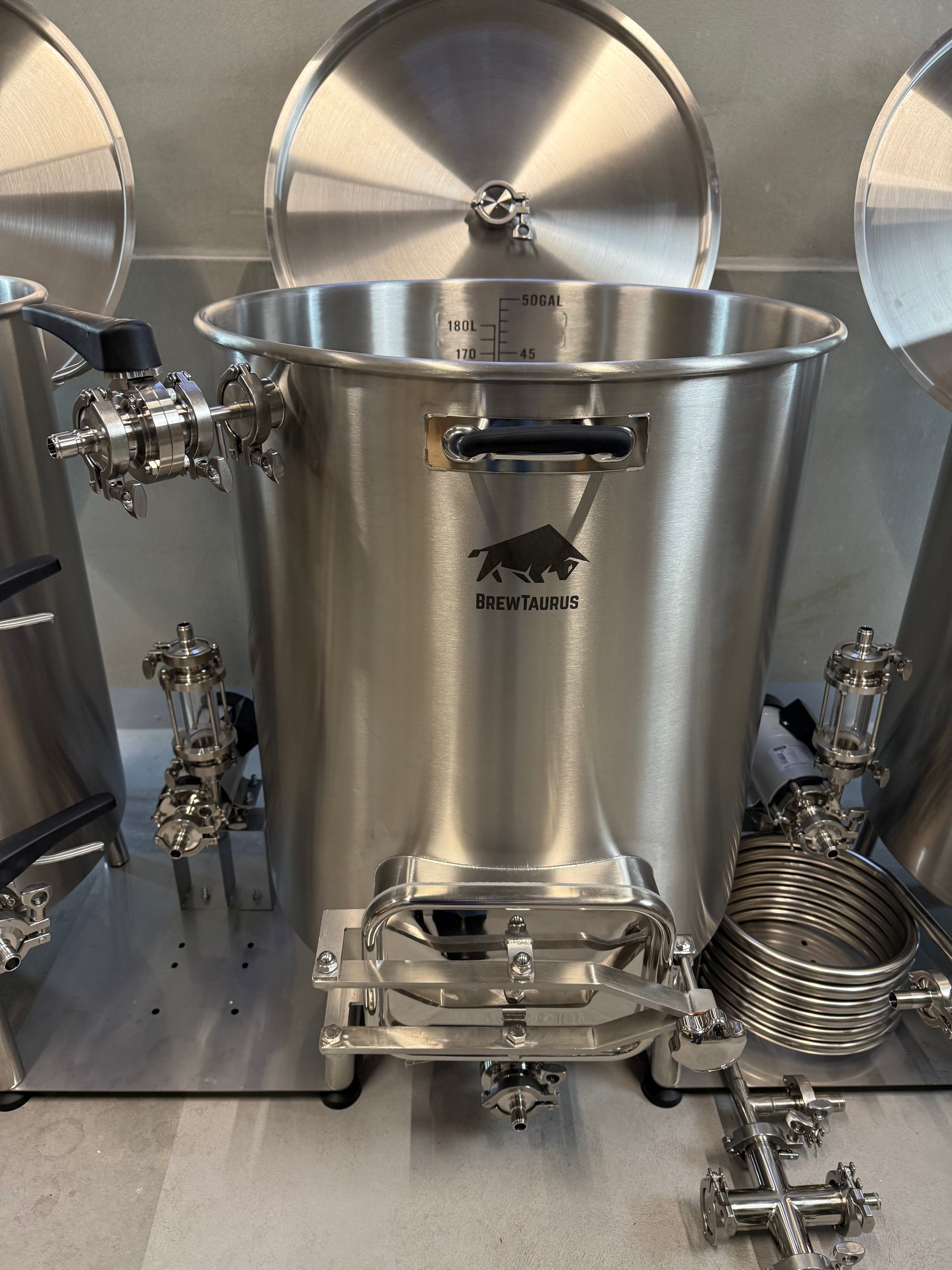

• Mash Tun: laser-cut stainless false bottom (K80 size)

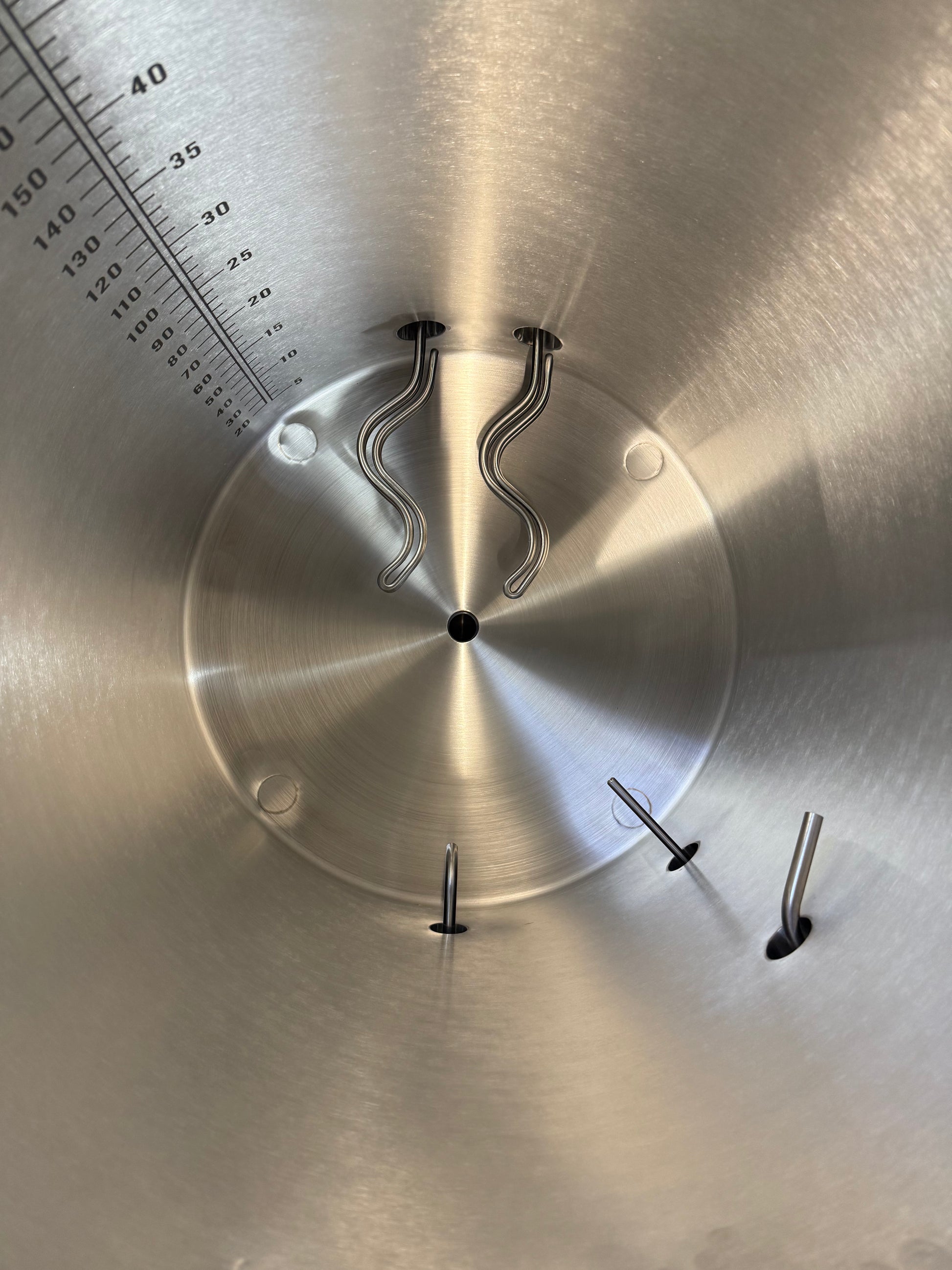

• Boil Kettle: dual-element heating configuration
• Architecture: full 1.5" sanitary tri-clamp routing

No shared vessel compromises. Each stage runs independently.

Heating performance

• 2 × 3.5 kW heating elements (HLT)
• 2 × 2.2 kW heating elements (Boil)
• Total installed power: 11.4 kW
• 4 × Inkbird C236T (16A EU plug)

Electrical requirement: four independent 16A circuits.

Estimated heat-up (70 L water, 15°C → 100°C):
≈ 25–35 minutes depending on ambient conditions.

Boil performance (65–75 L):
Stable rolling boil. Expected evaporation ~6–8% per hour.

Grain load & mash performance

• Recommended grain bill: 18–25 kg
• High gravity capability: up to ~28 kg
• Recommended mash thickness: 2.6–3.2 L/kg

Example: 22 kg grain × 2.8 L/kg → ~62 L mash volume.
Stable recirculation is achievable using dual MP40 pumps within this range.

For optimal flow stability, mash thickness below 2.3 L/kg is not recommended.

Hydraulics & flow

• 2 × MP40 65W pumps (continuous duty)
• Stainless manifold routing
• 1.5" tri-clamp quick-connect fittings
• Sanitary 1.5" 4-way cross integration

Dual-pump routing supports:

• HLT → Mash transfer
• Mash recirculation
• Sparge routing
• Whirlpool & knockout preparation
• CIP recirculation

System is CIP-capable when fitted with a spray head via standard tri-clamp ports.

Cooling performance

• Counterflow wort chiller (single-pass)
• Optimized for 55–75 L knockout volumes

With 10–15°C groundwater:
Single-pass cooling to 18–22°C achievable at controlled flow rate.

Estimated knockout time (70 L): 10–18 minutes depending on water pressure and delta-T.

Oxygenation & monitoring

• Integrated 1.5" 4-way cross
• 1.5" small carb stone (oxygenation)
• Thermowell for temperature probe

Oxygenate inline during knockout and monitor temperature without improvised fittings.

Power & installation requirements

• 4 × independent 16A circuits
• Stable water supply
• Load-bearing floor (filled system approx. 200–250 kg total)

Ensure proper electrical preparation and structural support.

Technical summary

• System type: Three-vessel (HLT + Mash + Boil)
• Nominal vessel volume: 86.5 L
• Working batch range: 35–75 L
• Total heating power: 11.4 kW
• Pumps: 2 × MP40 65W
• Cooling: Counterflow, single-pass
• Architecture: Full stainless tri-clamp
• Material: SS304
