Not just hot water — temperature control at scale.

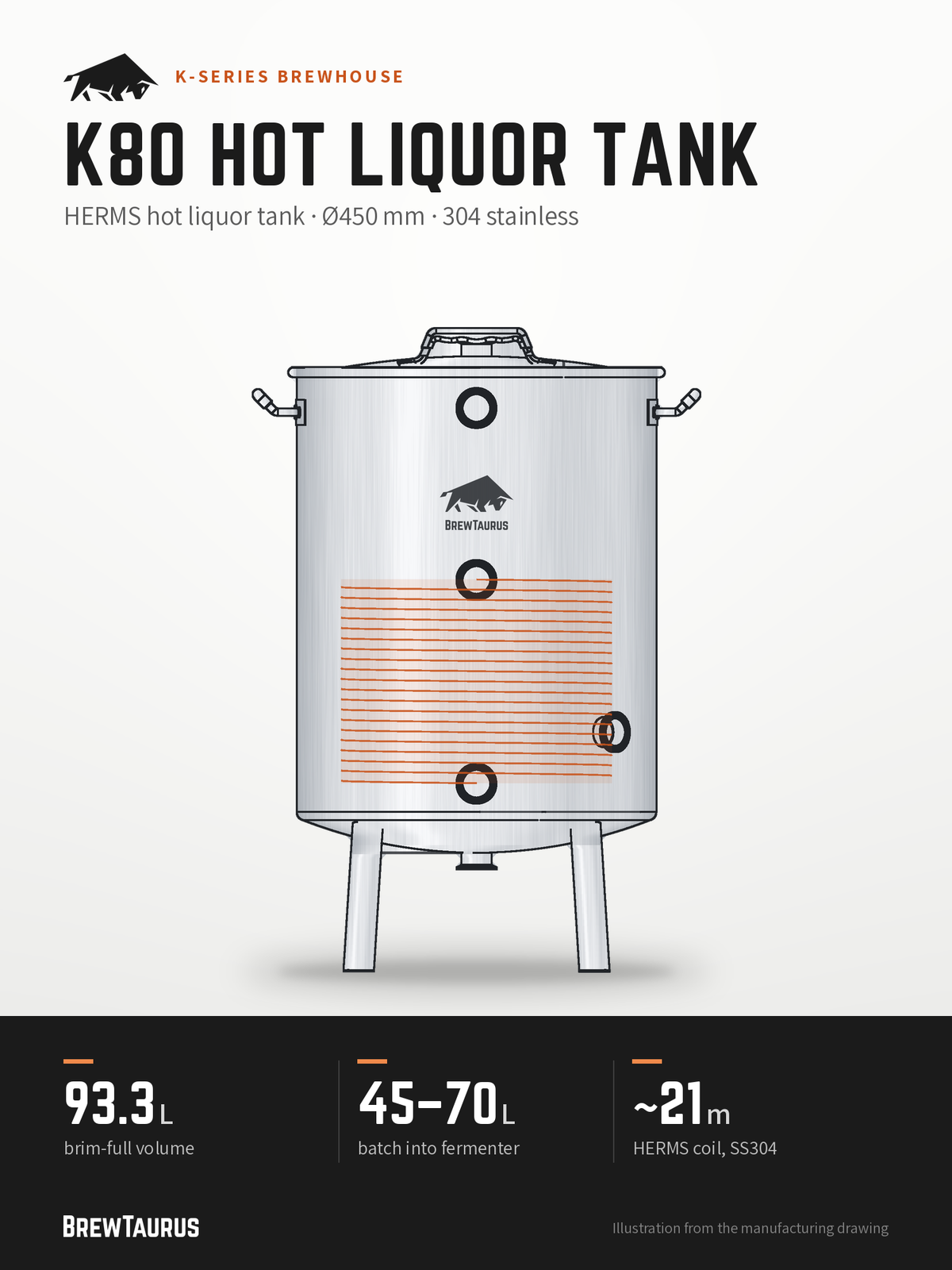

The BrewTaurus K80 HLT is a 93.3 L hot liquor tank in 304 stainless with a removable ~21 m stainless HERMS coil. Heat and hold sparge water, then pump the mash through the coil for stable, scorch-free mash temperatures. Same workflow now, same workflow when you scale.
| Brim-full volume | 93.3 L |
|---|---|
| Working volume | up to ~80 L (80 L line on the drawing, 82.3 mm below the rim) |
| HERMS coil | SS304, ~21 m tube, Ø340 mm coil, ~254 mm tall, 1.5" TC, removable |
| Heating ports | 2× 2" TC (120 mm apart) |
| Empty weight | ≈10.6 kg (vessel without coil) |
| Material | 304 stainless · 1.2 mm wall · 1.0 mm lid |
| Guarantee | 2-year legal guarantee (EU consumer law) |
HERMS coil
- 304 stainless, ~21 m of 0.9 mm-wall tube wound to Ø340 mm, ~254 mm tall
- Connects to the two lower front ports (256 mm apart) with 1.5" Tri-Clamp
- Removable for cleaning or when you want the vessel as a plain kettle

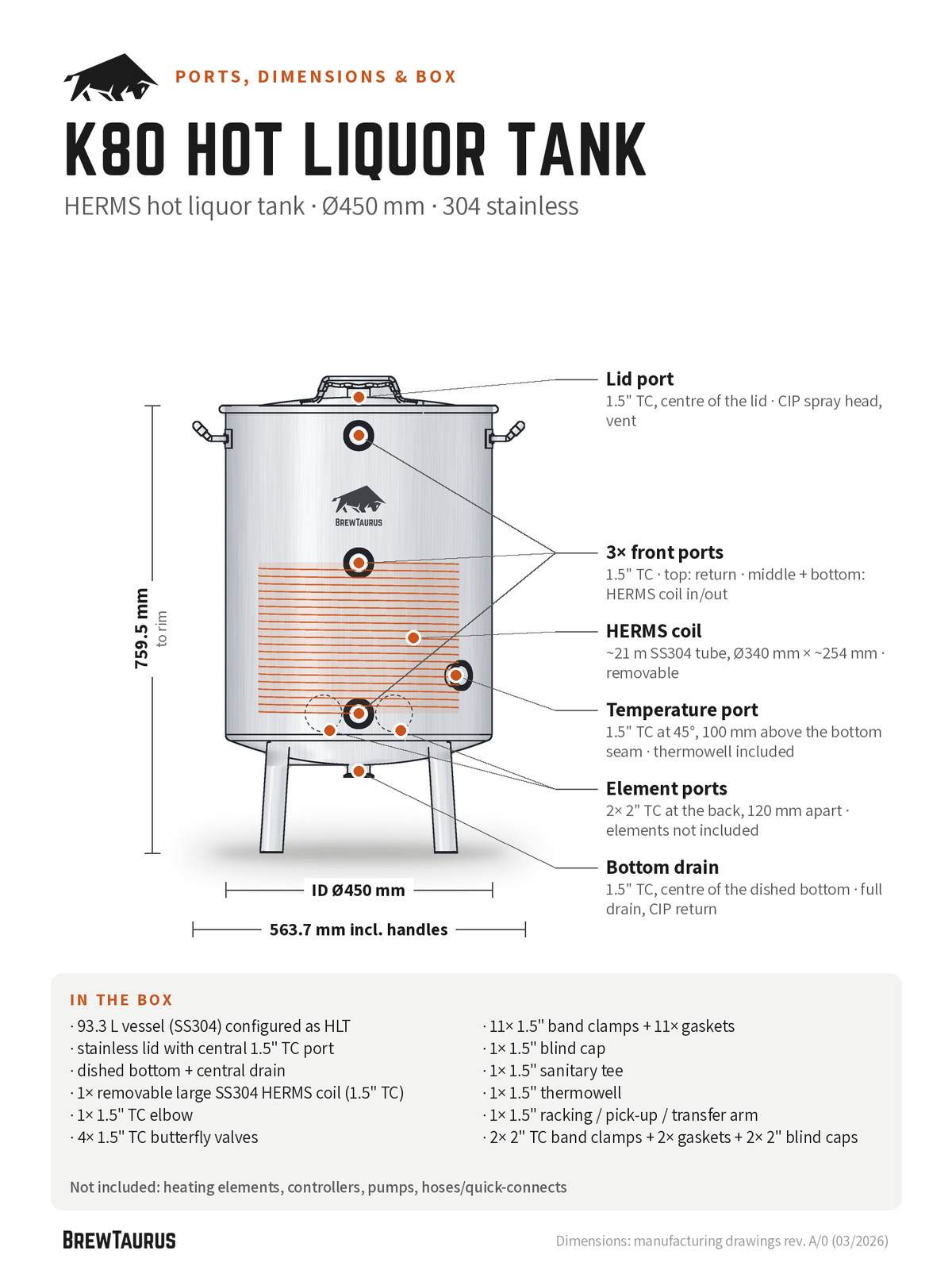

Ports & connections
| Port | Where | Job |
|---|---|---|
| Heating elements 2× 2" TC |
low, opposite the front ports, 120 mm apart | 2" Tri-Clamp elements (not included) |
| Front ports 3× 1.5" TC |
50.8 / 266.9 / 522.9 mm below the rim | top: return · middle + bottom: HERMS coil in/out |
| Temperature port 1.5" TC |
at 45°, 100 mm above the bottom seam | thermowell (included) |
| Bottom drain 1.5" TC |
centre of the dished bottom | full drain, CIP return |
| Lid port 1.5" TC |
centre of the lid | CIP spray head, vent |
Dimensions
| Inner diameter | Ø450 mm |
| Body height (rim to bottom) | 609.4 mm |
| Height to rim | 759.5 mm (legs 150 mm) |
| Width incl. handles | 563.7 mm |
| Leg footprint (centre to centre) | 296.5 × 296.5 mm |
| Wall / lid / leg | 1.2 mm / 1.0 mm / 1.2 mm |
What's in the box
- 93.3 L vessel (SS304) configured as HLT · stainless lid with central 1.5" TC port · dished bottom + central drain
- 1× removable large SS304 HERMS coil (1.5" TC)
- 1× 1.5" TC elbow · 4× 1.5" TC butterfly valves · 11× 1.5" band clamps + 11× gaskets · 1× 1.5" blind cap
- 1× 1.5" sanitary tee · 1× 1.5" thermowell · 1× 1.5" racking / pick-up / transfer arm
- 2× 2" TC band clamps + 2× gaskets + 2× 2" blind caps
Not included (by design): heating elements, controllers, pumps, hoses/quick-connects. HERMS needs a recirculation pump (your choice). Passivate before first use.
Build your brewhouse: K80 Mash Tun · K80 Boil Kettle · K80 3V system
Technical drawing
Download the K80 vessel drawing (PDF)
Which K-Series size fits your batch
Same Tri-Clamp architecture in three sizes. Pick by the batch you want in the fermenter. Your size is highlighted.
| Size | Brim-full · inner Ø | Batch into fermenter | Max grain: malt pipe / mash tun |
|---|---|---|---|
| K40 | 48.1 L · Ø350 mm | 20–35 L | ~10.5 / ~13 kg |
| K80 | 93.3 L · Ø450 mm | 45–70 L | ~22 / ~26 kg |
| K220 | 225 L · Ø600 mm | 110–175 L | ~57 / ~64 kg |
FAQ
Do I need a pump?
Yes — HERMS means pumping the mash liquor through the coil. A MP-40RM pump (as in our K80 systems) does the job.
Can I use it as a boil kettle?
Yes. It is the same body as the K80 Boil Kettle; take the coil out and boil.
How does the coil connect?
Through the two lower front ports, 256 mm apart — matched to the coil height. The top front port stays free for a return line.
Does the coil come out for cleaning?
Yes. Release the clamps and lift it out.
Product photos may show a prototype or a different size; production units follow the manufacturing drawing.
