K40 Mash Tun - Complete Set (incl. valves & clamps)
K40 Mash Tun - Complete Set (incl. valves & clamps)
Vessel in stock in Prague — the set ships when the last parts arrive
We'll email you the moment it ships.
🚚 Bulky item · 16 kg · Shipping to Germany: €14.90
Delivery 2–3 business days · Shipping details · Free shipping over €149 does not apply to fermenters, kettles and other large items
Crew Earns 899 Crew points · How it works
Essential Add-ons
Tick what you need — everything is added to cart together.
Read customer reviews · ✓ 2-year EU warranty
Couldn't load pickup availability
Grain door. False bottom. Room for ~13 kg of grain.

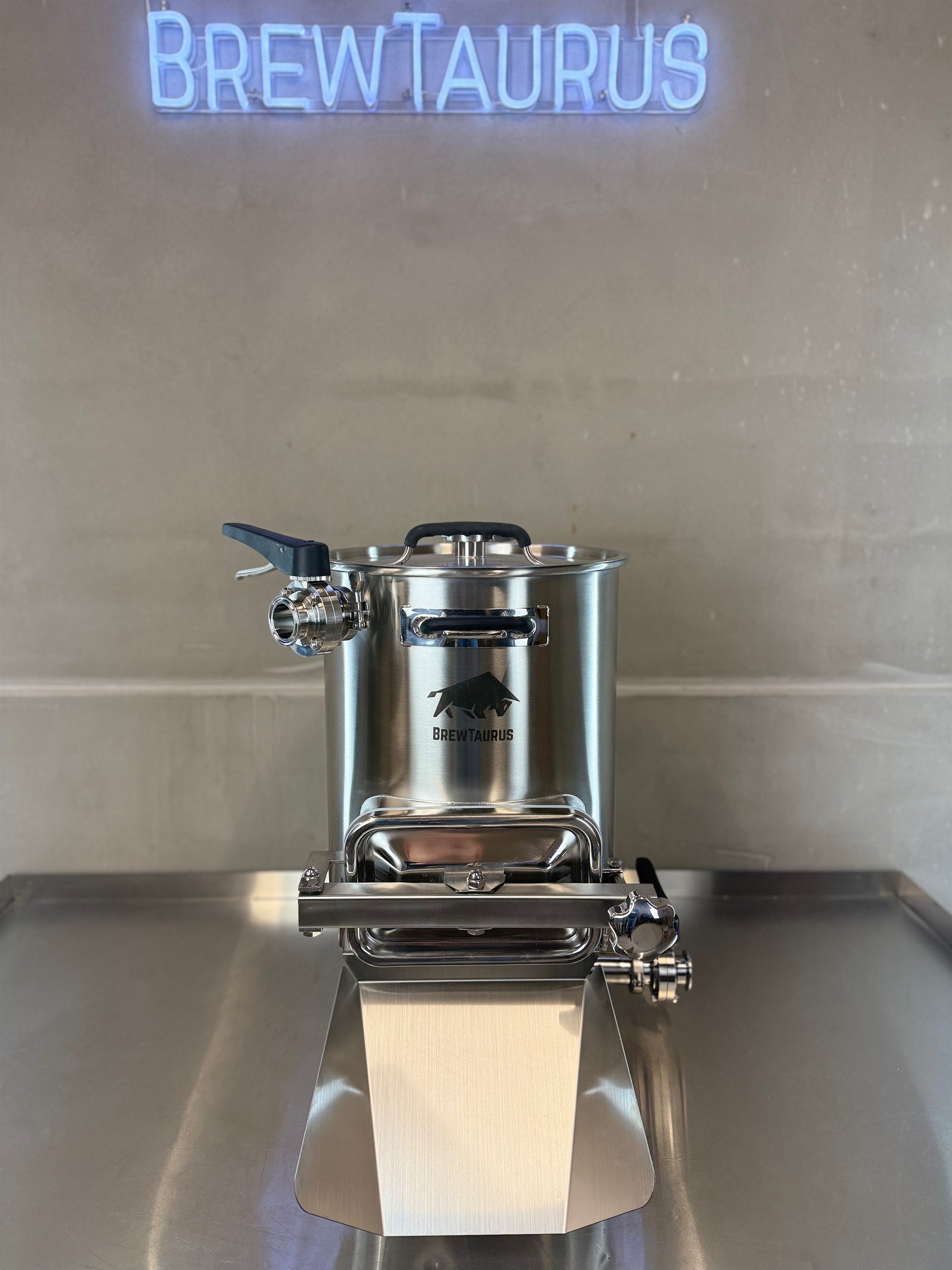

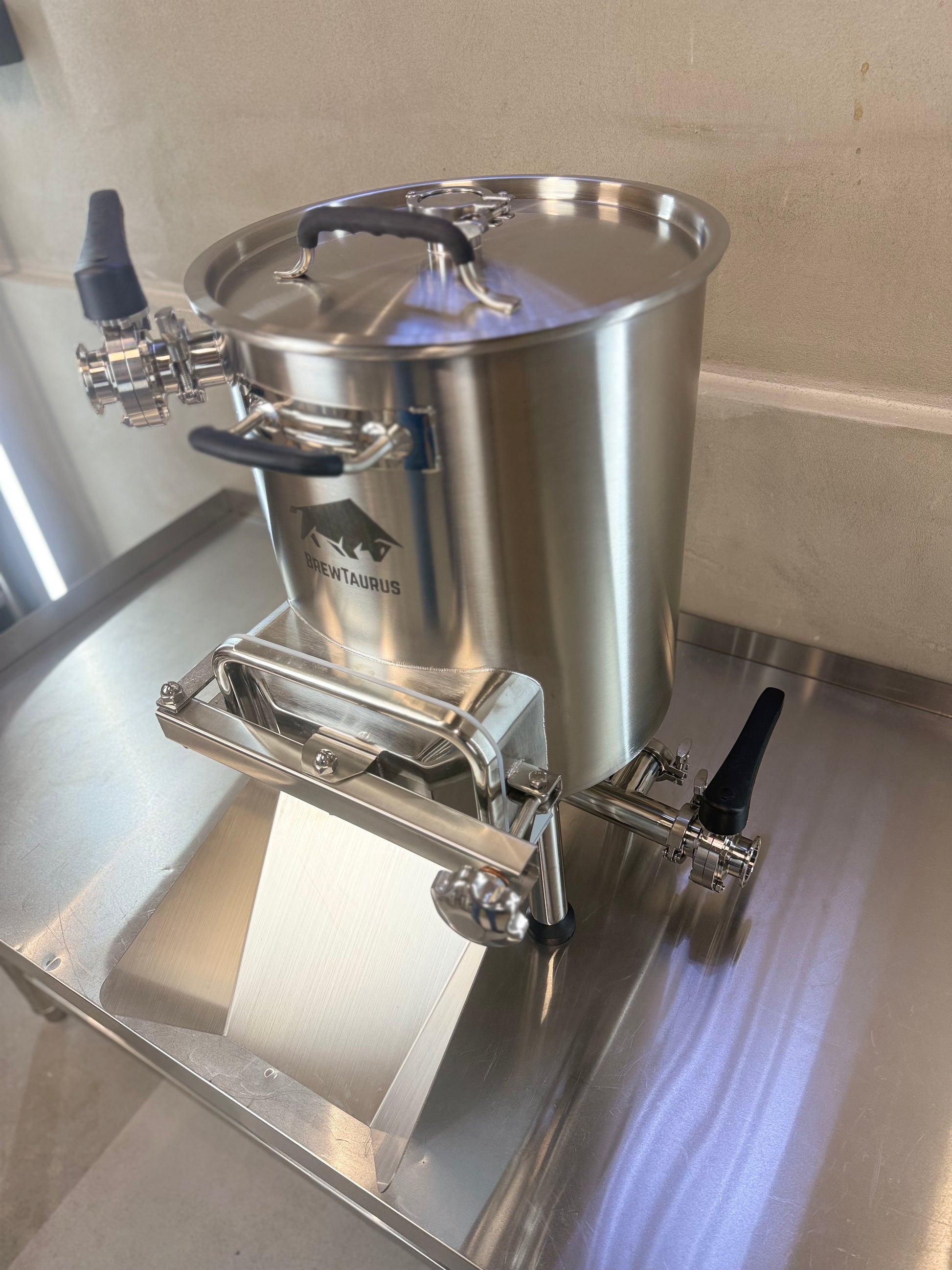

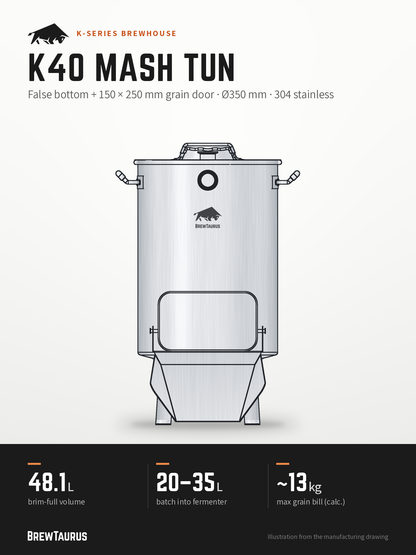

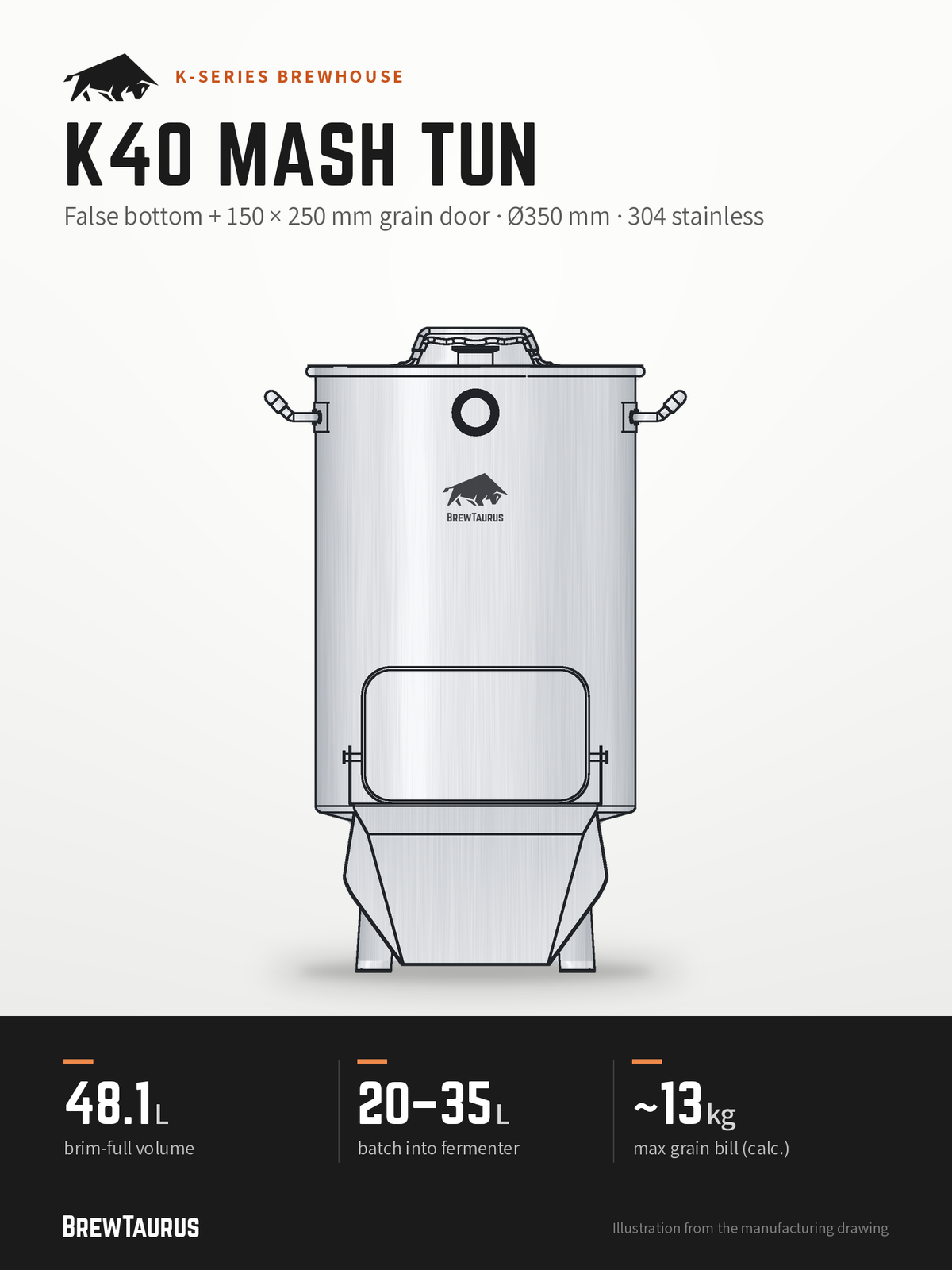

The BrewTaurus K40 Mash Tun is a 48.1 L mash tun in 304 stainless: laser-cut false bottom, 150 × 250 mm grain door with chute and 1.5" Tri-Clamp ports throughout. Pair it with the K40 HLT for HERMS, or with the K40 Boil Kettle for a two-vessel brew day. Spent grain leaves through the door, not over your head.
| Brim-full volume | 48.1 L |
|---|---|
| Max grain bill | ~13 kg at 2.6 L/kg · ~14 kg at 2.4 L/kg |
| Volume under false bottom | 2 L |
| False bottom height | 33 mm above the lowest point of the bottom |
| Grain door | 150 × 250 mm (clear opening 143 × 243 mm) |
| Ports | all 1.5" Tri-Clamp |
| Empty weight | ≈10.8 kg (vessel only) |
| Material | 304 stainless · 1.2 mm wall · 1.0 mm lid |
| Guarantee | 2-year legal guarantee (EU consumer law) |
How much grain fits
| Mash thickness | Max grain | Strike water |
|---|---|---|
| 2.4 L/kg (thick) | ~14 kg | ~34 L |
| 2.6 L/kg | ~13 kg | ~34 L |
| 3.0 L/kg (thin) | ~11.5 kg | ~35 L |
A 12 °P (OG 1.048) beer at 35 L into the fermenter needs ~7.9 kg. At maximum grain you reach ~18 °P (OG ~1.074) at 35 L. Strike water includes the liquor below the false bottom.
Built for real mash work

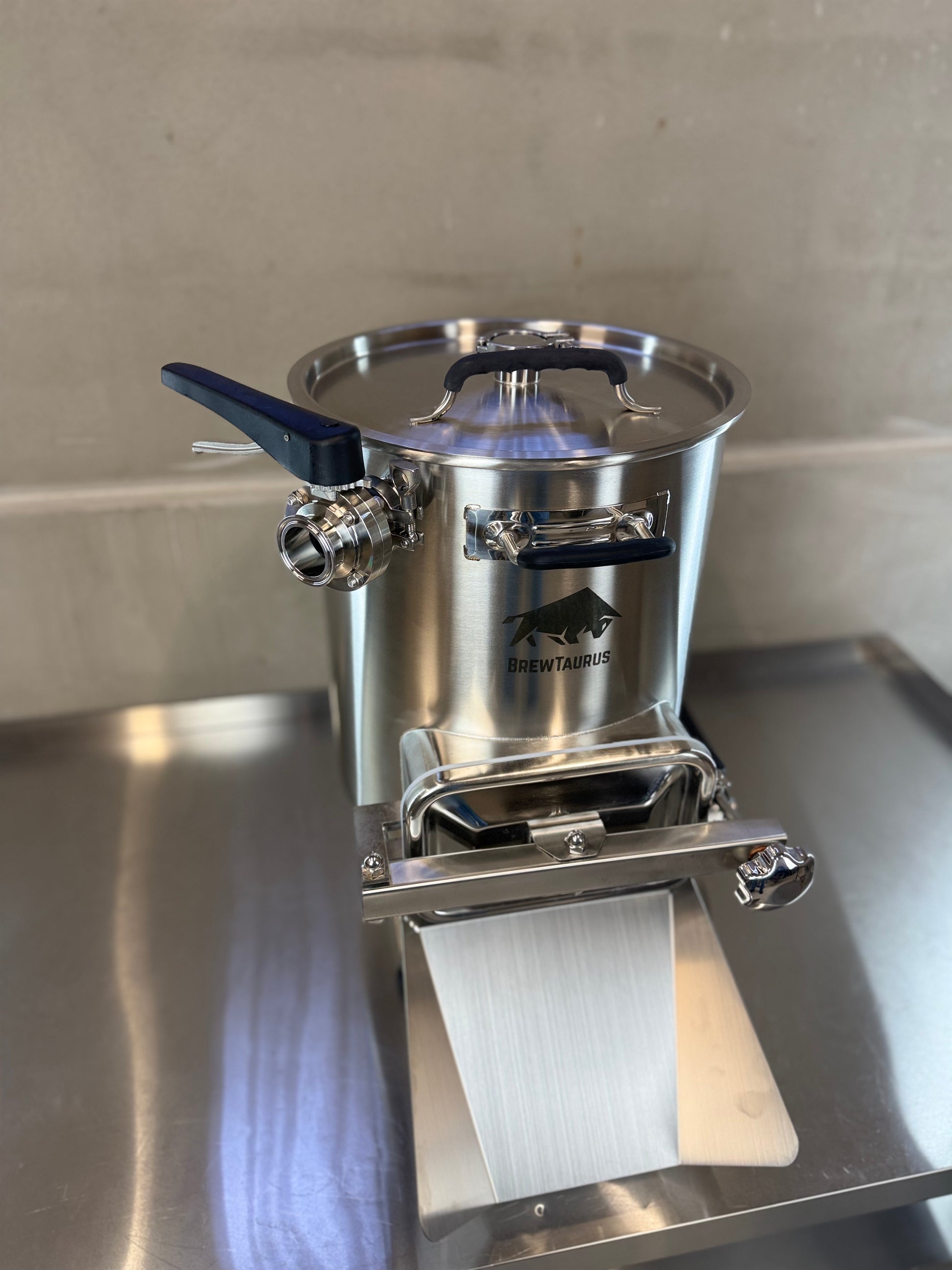

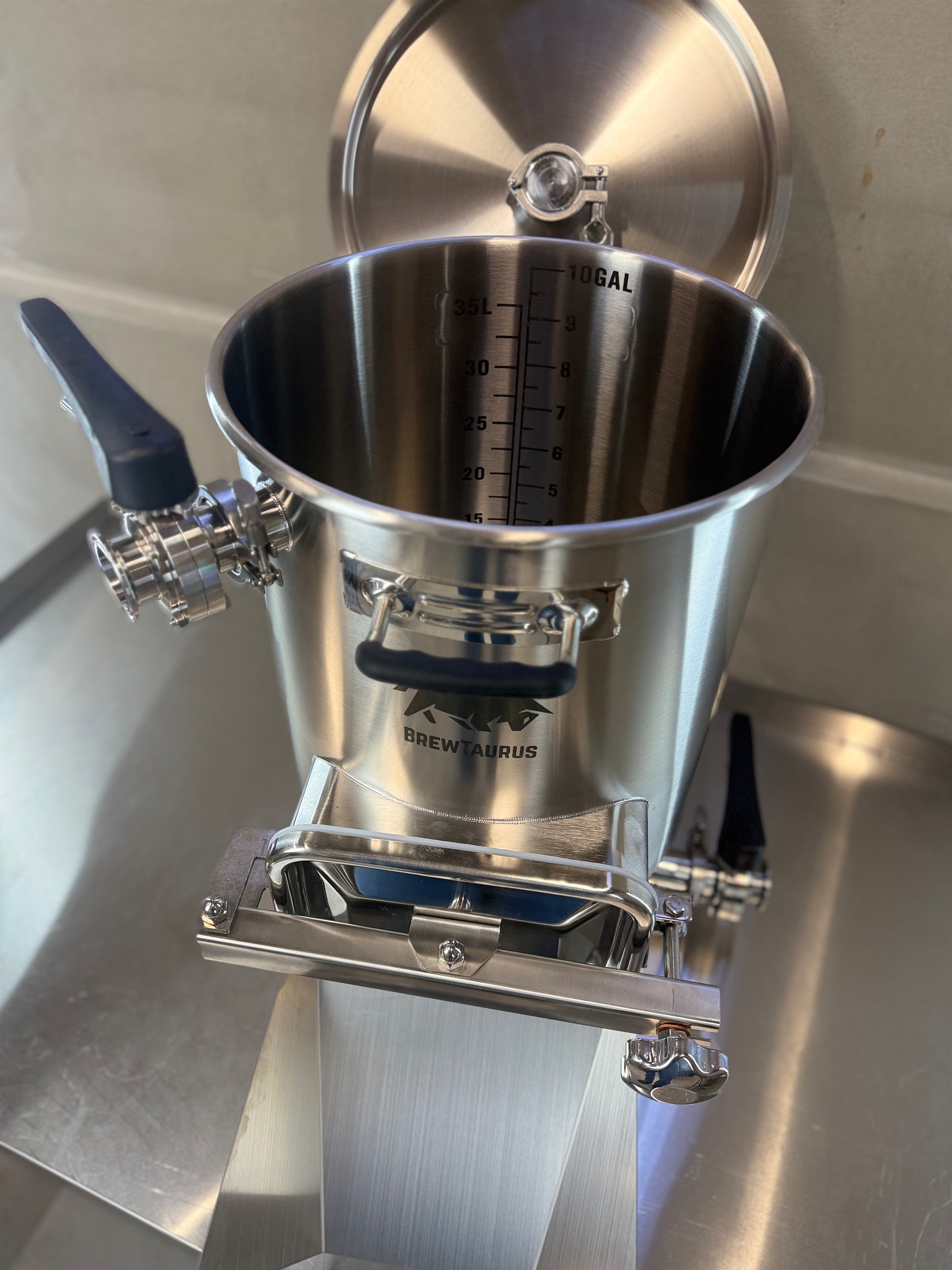

- Grain door 150 × 250 mm (clear opening 143 × 243 mm) — gasketed, locked by a crossbar with a hand knob, hinged and fully removable. Drain, open, rake the grain down the chute. No lifting a wet grain bed.

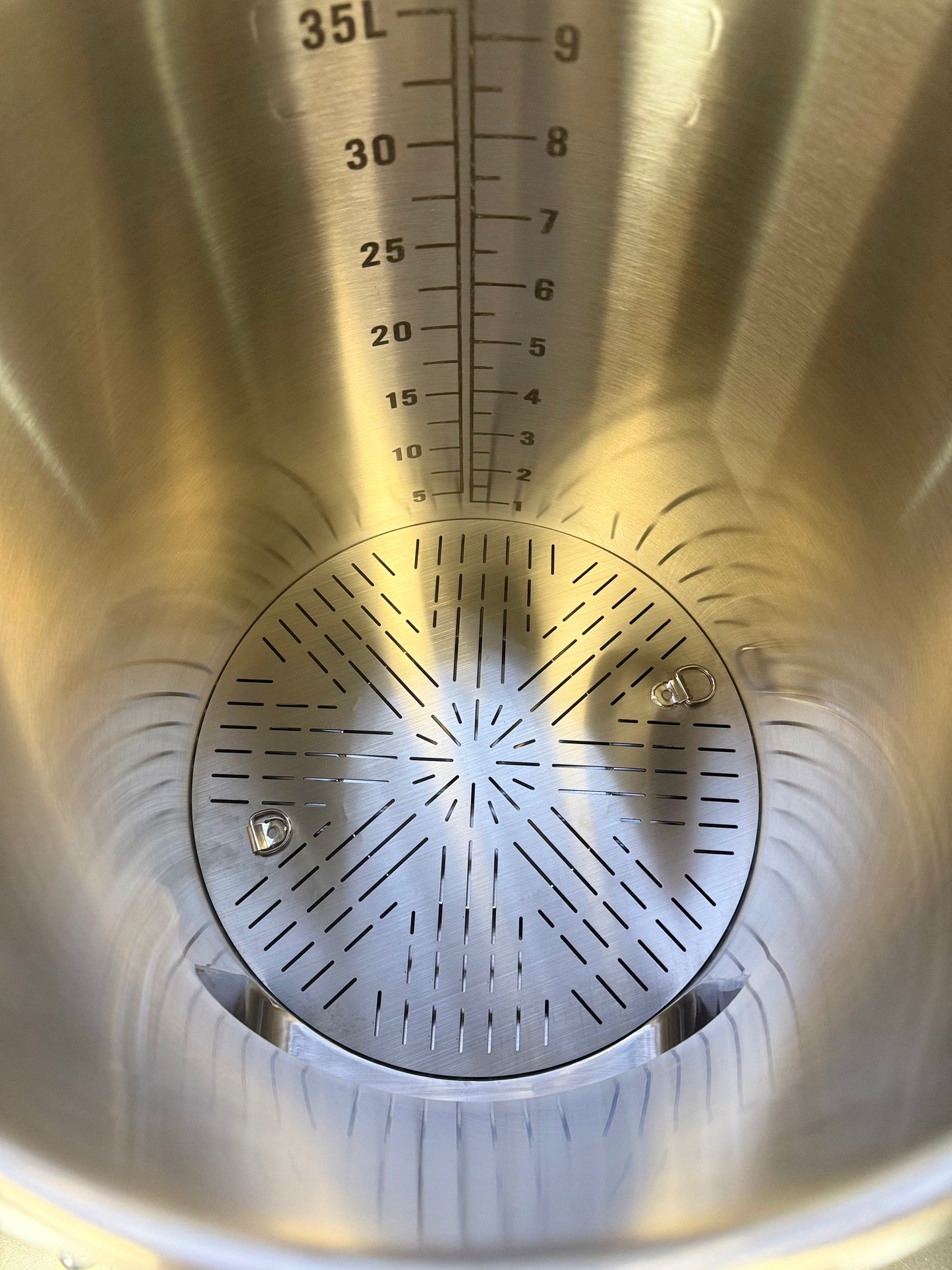

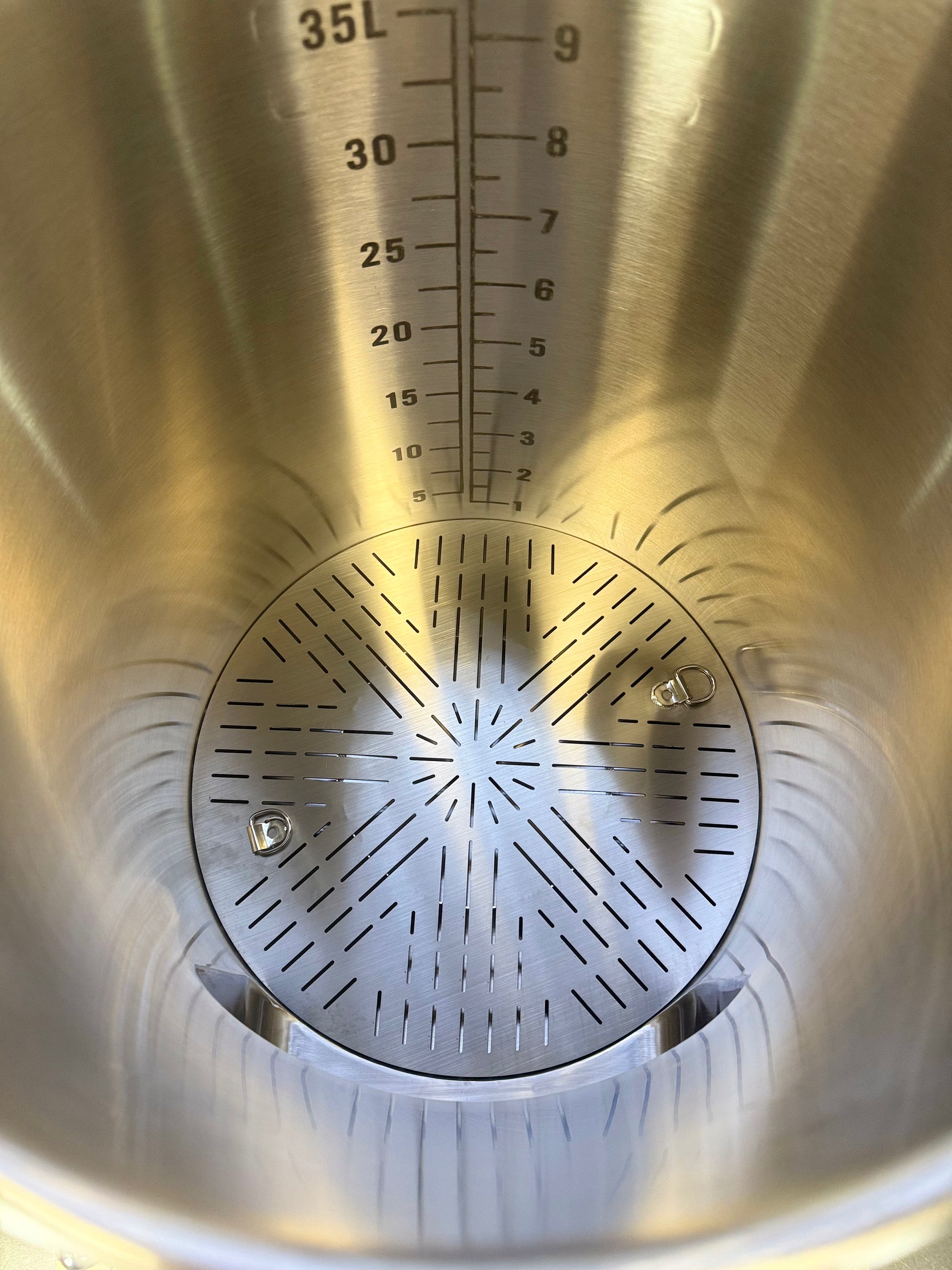

- Laser-cut 1.5 mm stainless false bottom on a drain-protection stand; runoff leaves through a centred 1.5" outlet in the dished bottom.
- Temperature port at 45°, 100 mm above the bottom seam, for a thermowell or probe.
- Recirculation return 50.8 mm below the rim · central 1.5" lid port for a CIP spray head.
- No heating port, by design. Hold mash temperature with HERMS (K40 HLT), RIMS or pre-heated strike water.

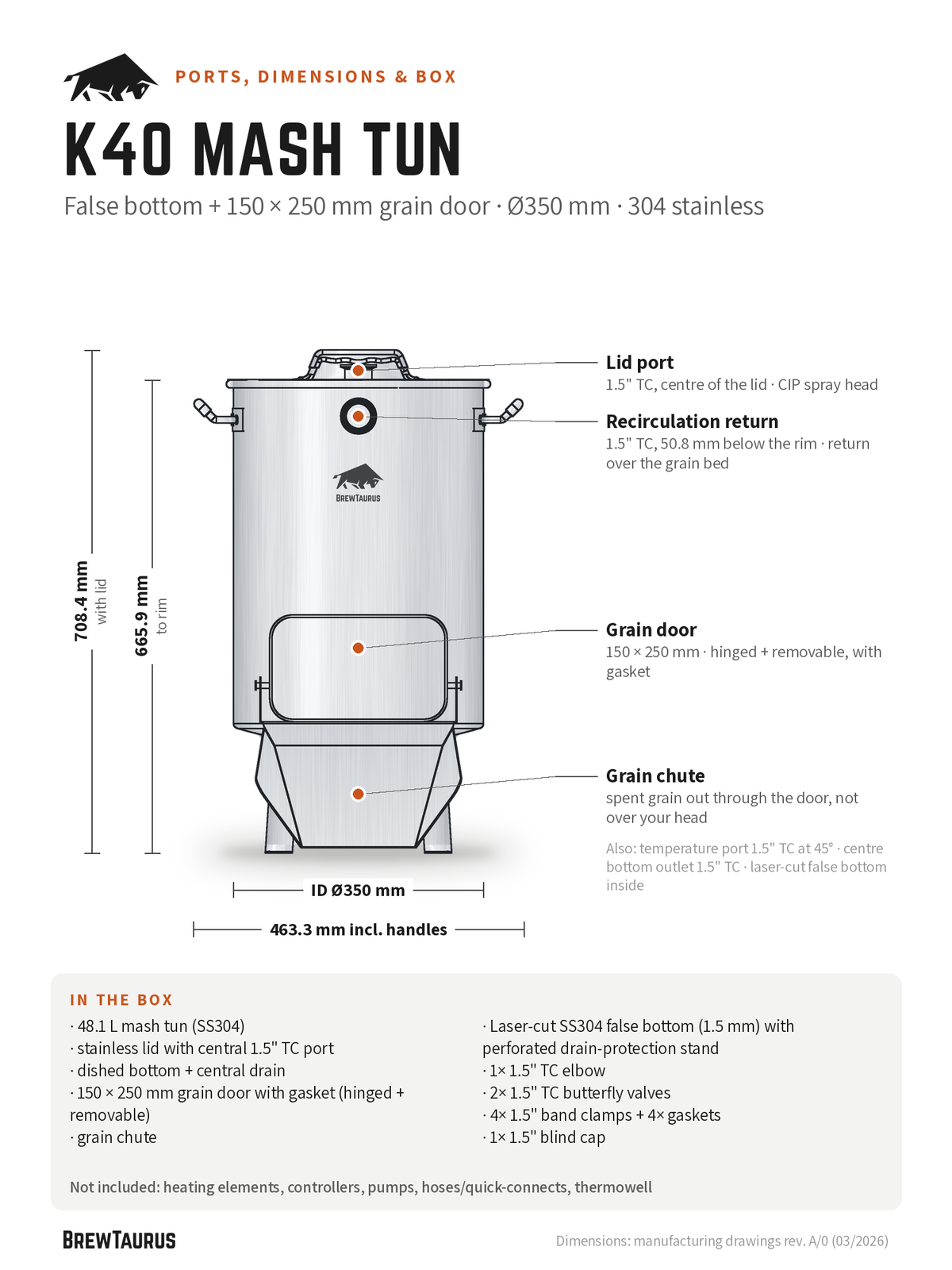

Ports & connections
| Port | Where | Job |
|---|---|---|
| Bottom outlet 1.5" TC |
centre of the dished bottom | wort draw-off, drain |
| Recirculation return 1.5" TC |
50.8 mm below the rim | return over the grain bed |
| Temperature port 1.5" TC |
at 45°, 100 mm above the bottom seam | thermowell or probe (not included) |
| Lid port 1.5" TC |
centre of the lid | CIP spray head |
| Grain door 150 × 250 mm |
front, at the bottom seam | spent grain out, via the chute |

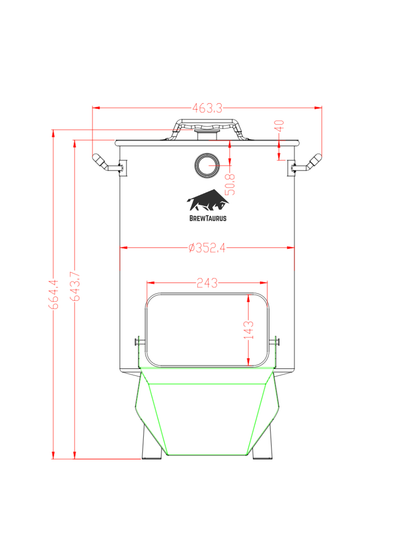

Dimensions
| Inner diameter | Ø350 mm |
| Body height (rim to bottom) | 514.9 mm |
| Height to rim | 665.9 mm |
| Overall height with lid | 708.4 mm |
| Width incl. handles | 463.3 mm |
| Leg footprint (centre to centre) | 224.4 × 224.4 mm |
| Grain chute reach (from the vessel wall) | 239.4 mm |
| Wall / lid / leg | 1.2 mm / 1.0 mm / 1.2 mm |
What's in the box

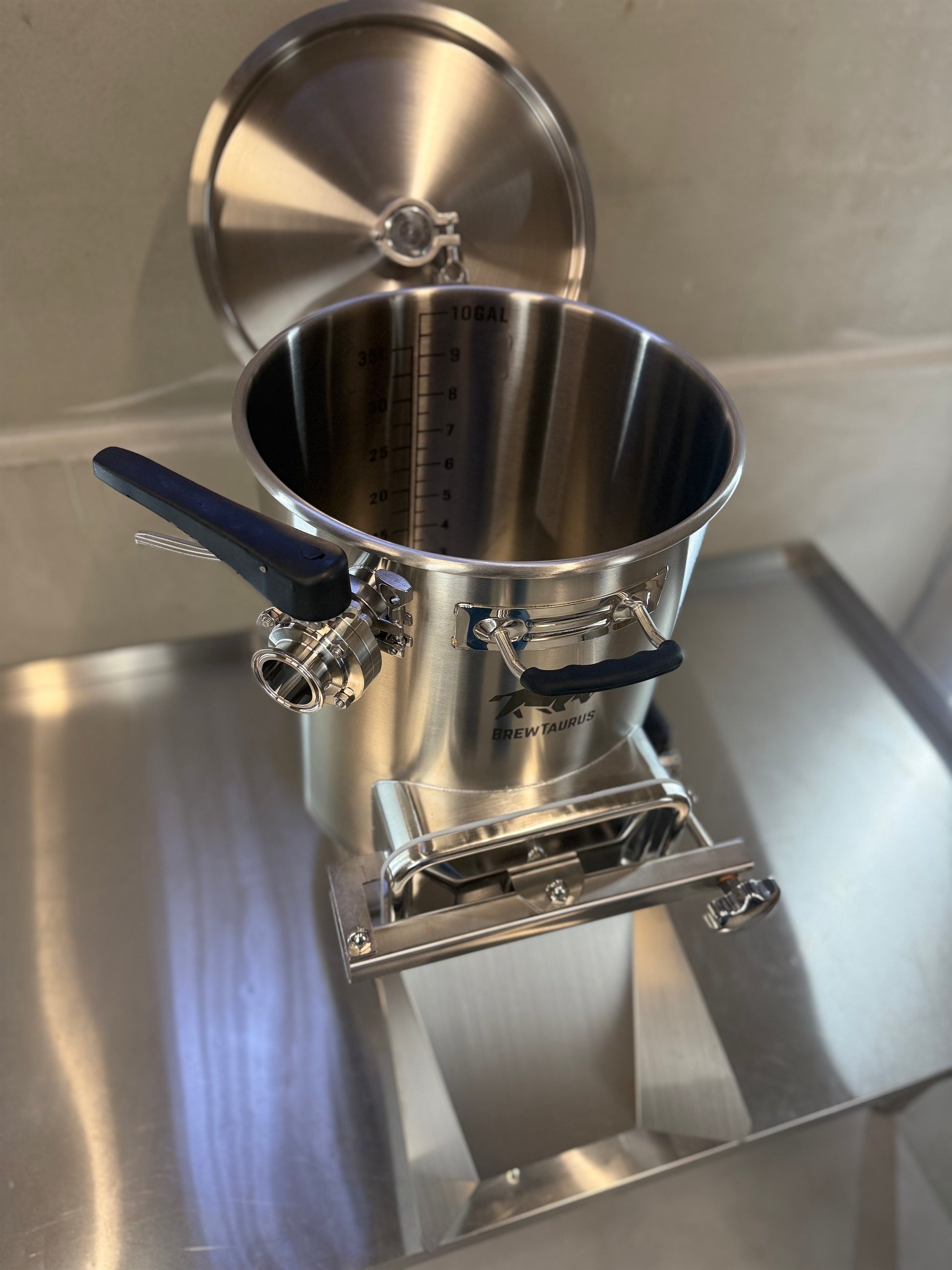

- 48.1 L mash tun (SS304) · stainless lid with central 1.5" TC port · dished bottom + central drain
- 150 × 250 mm grain door with gasket (hinged + removable) · grain chute
- Laser-cut SS304 false bottom (1.5 mm) with perforated drain-protection stand

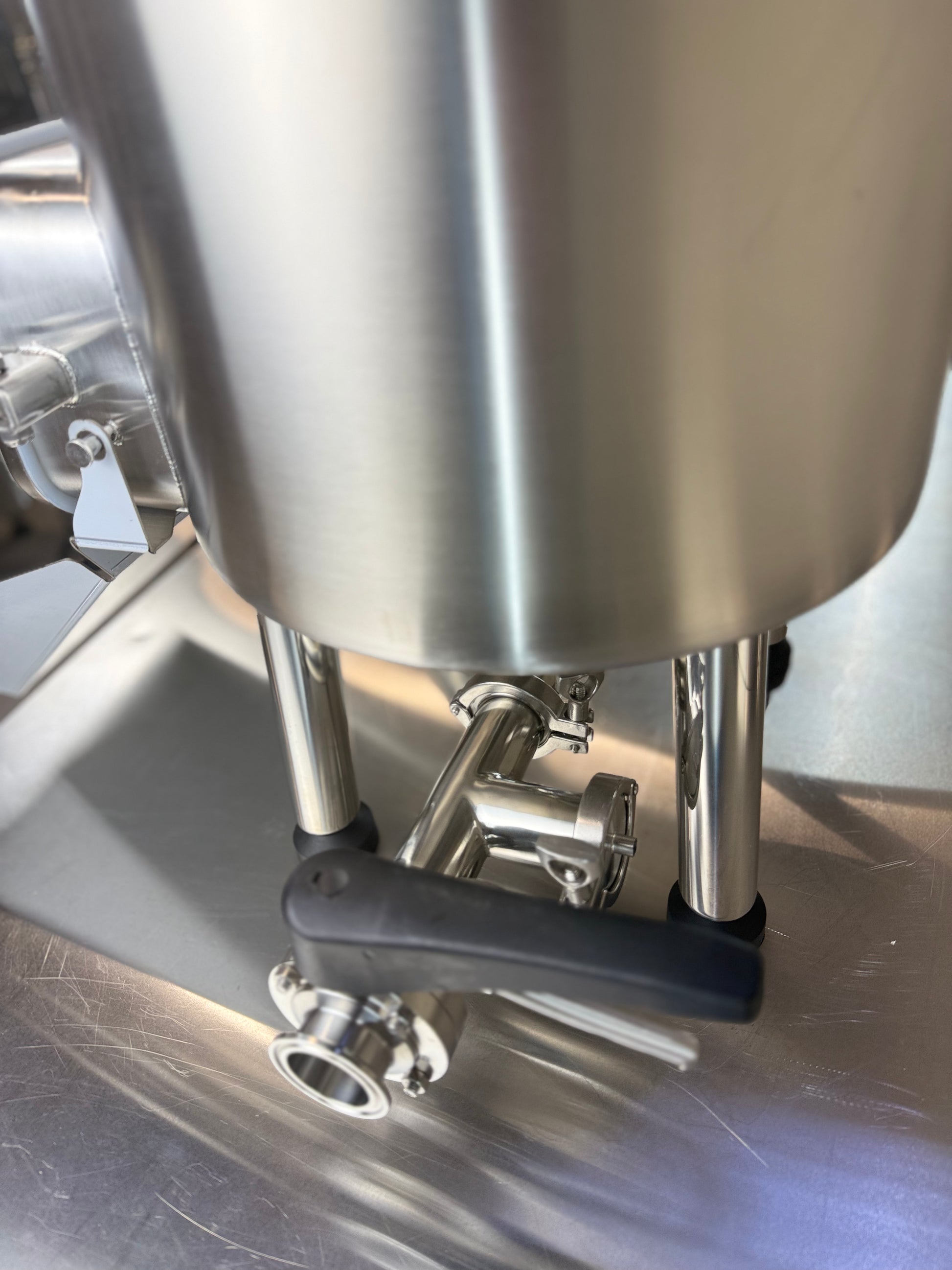

- 1× 1.5" TC elbow · 2× 1.5" TC butterfly valves · 4× 1.5" band clamps + 4× gaskets · 1× 1.5" blind cap
Not included: heating elements, controllers, pumps, hoses/quick-connects, thermowell. Passivate before first use.
Build your brewhouse: K40 HLT (HERMS) · K40 Boil Kettle · K40 2V system · K40 3V system

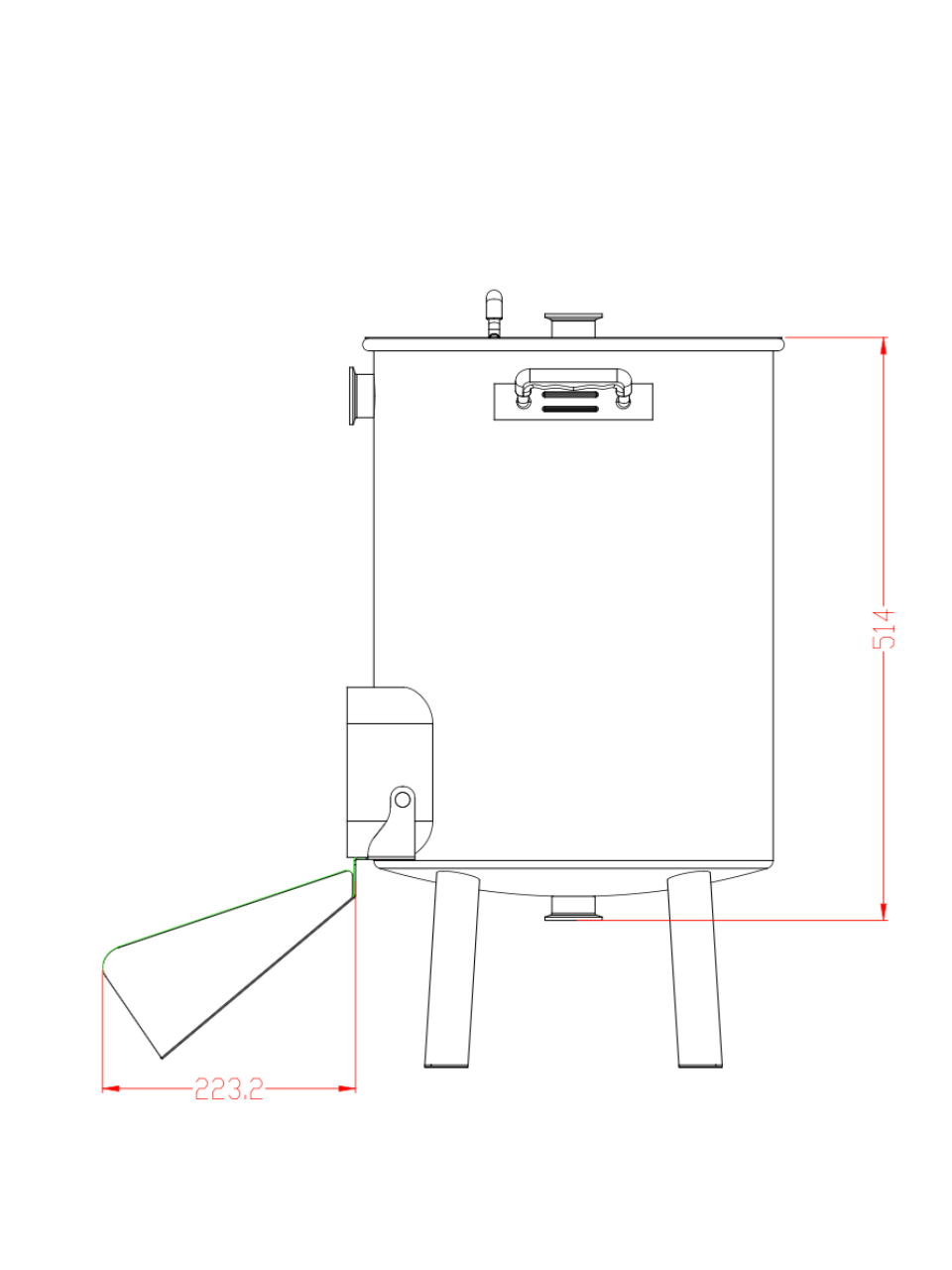

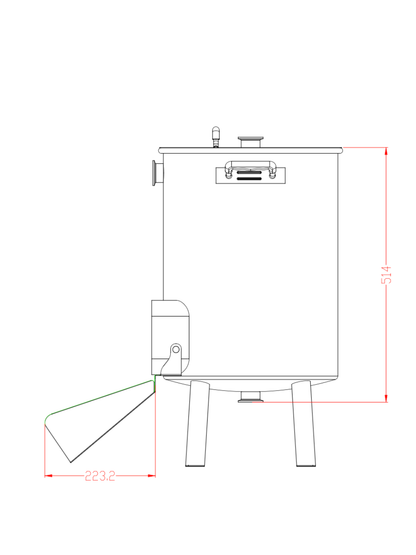

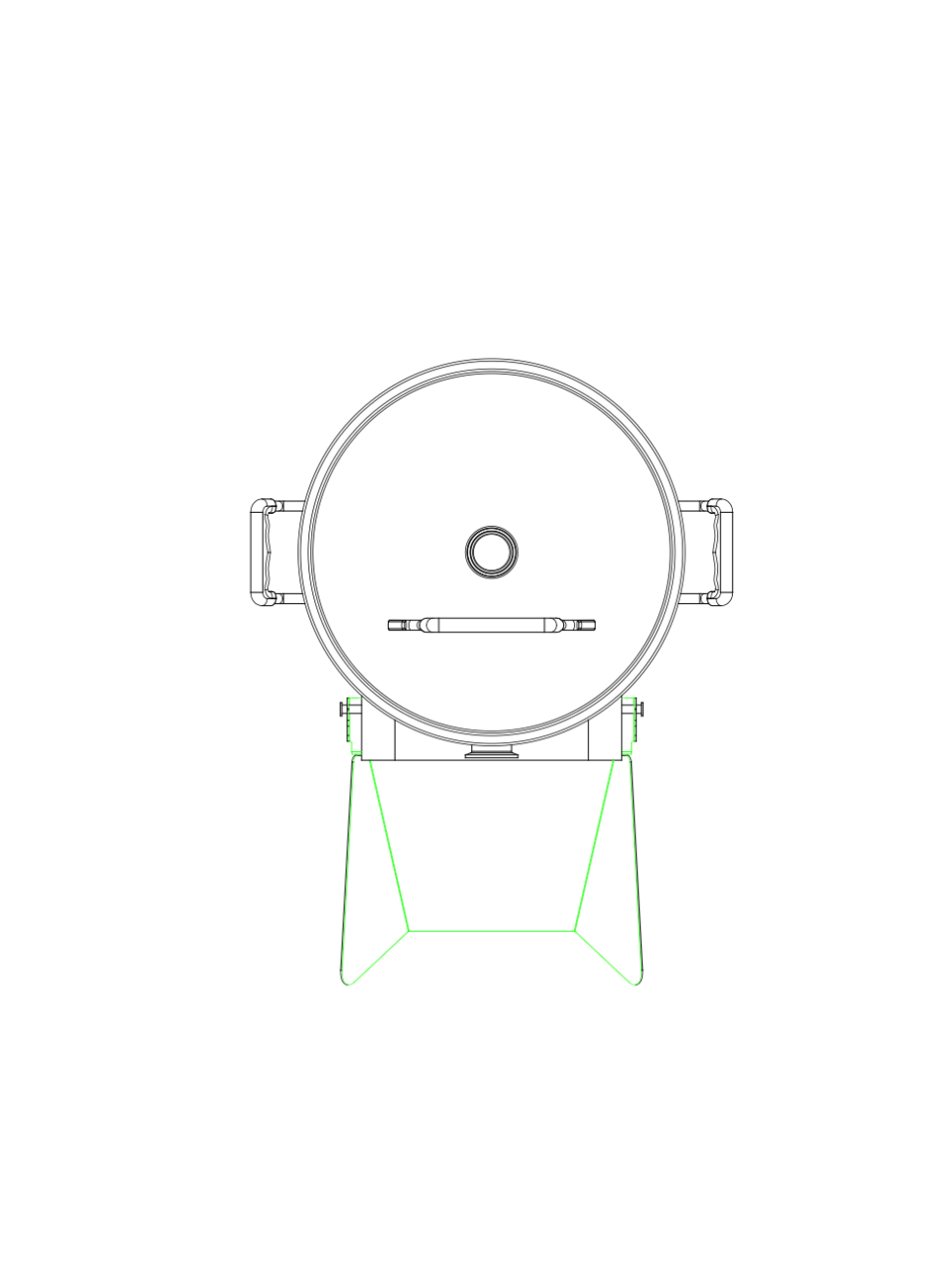

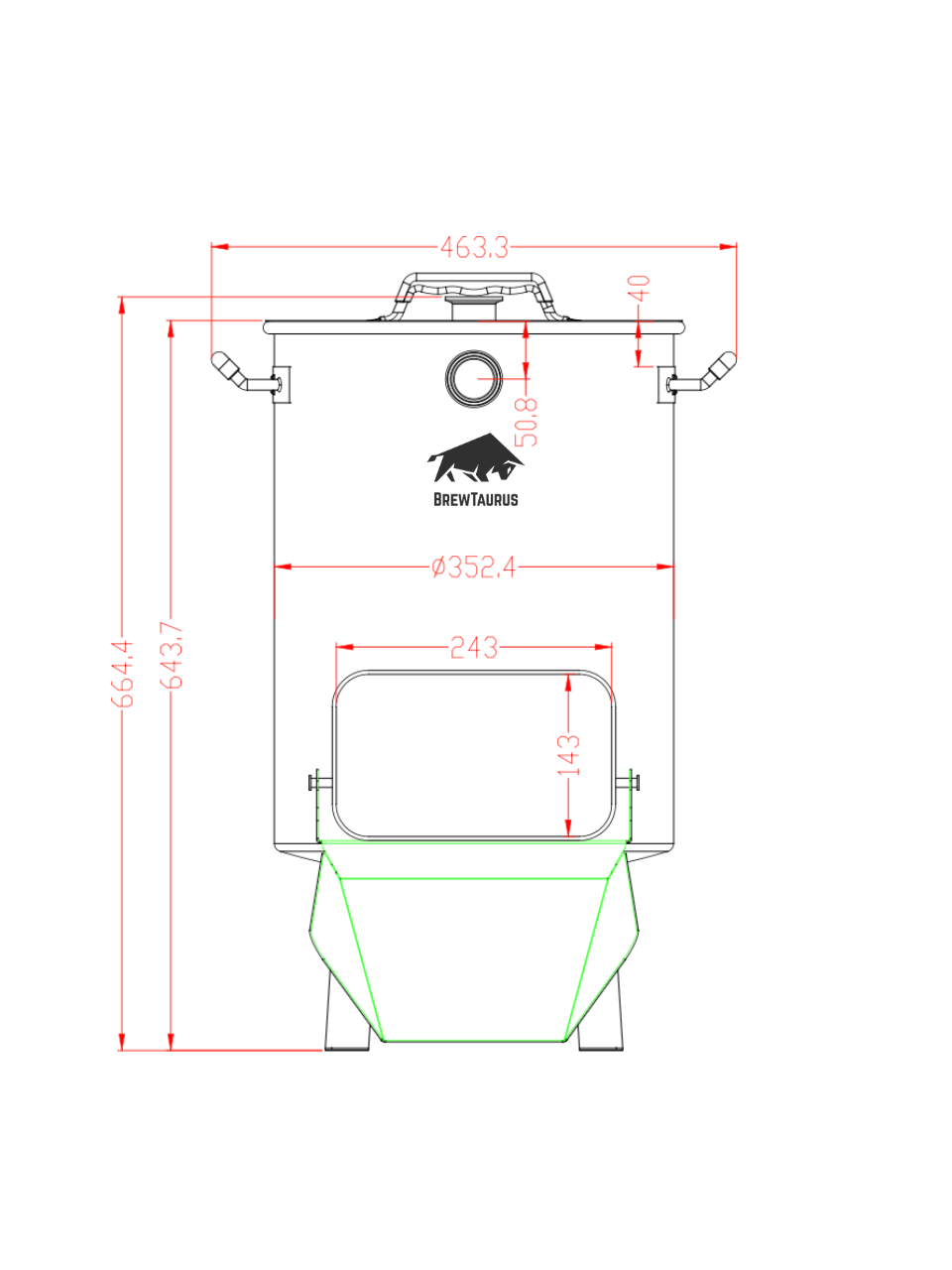

Technical drawing
Download the K40 mash tun drawing (PDF)
Which K-Series size fits your batch
Same Tri-Clamp architecture in three sizes. Pick by the batch you want in the fermenter. Your size is highlighted.
| Size | Brim-full · inner Ø | Batch into fermenter | Max grain: malt pipe / mash tun |
|---|---|---|---|
| K40 | 48.1 L · Ø350 mm | 20–35 L | ~10.5 / ~13 kg |
| K80 | 93.3 L · Ø450 mm | 45–70 L | ~22 / ~26 kg |
| K220 | 225 L · Ø600 mm | 110–175 L | ~57 / ~64 kg |
FAQ
How much grain does the K40 mash tun hold?
About 13 kg at a standard 2.6 L/kg mash, up to ~14 kg at a thick 2.4 L/kg (fly sparge). That brews a 35 L batch up to ~18 °P (OG ~1.074).
How much volume is under the false bottom?
2 L sits below the false bottom. The strike water figures on this page already include it.
Can I heat the mash tun directly?
No. It has no heating port. Keep the mash on temperature with a HERMS coil in the K40 HLT, a RIMS tube, or pre-heated strike water.
How does the spent grain come out?

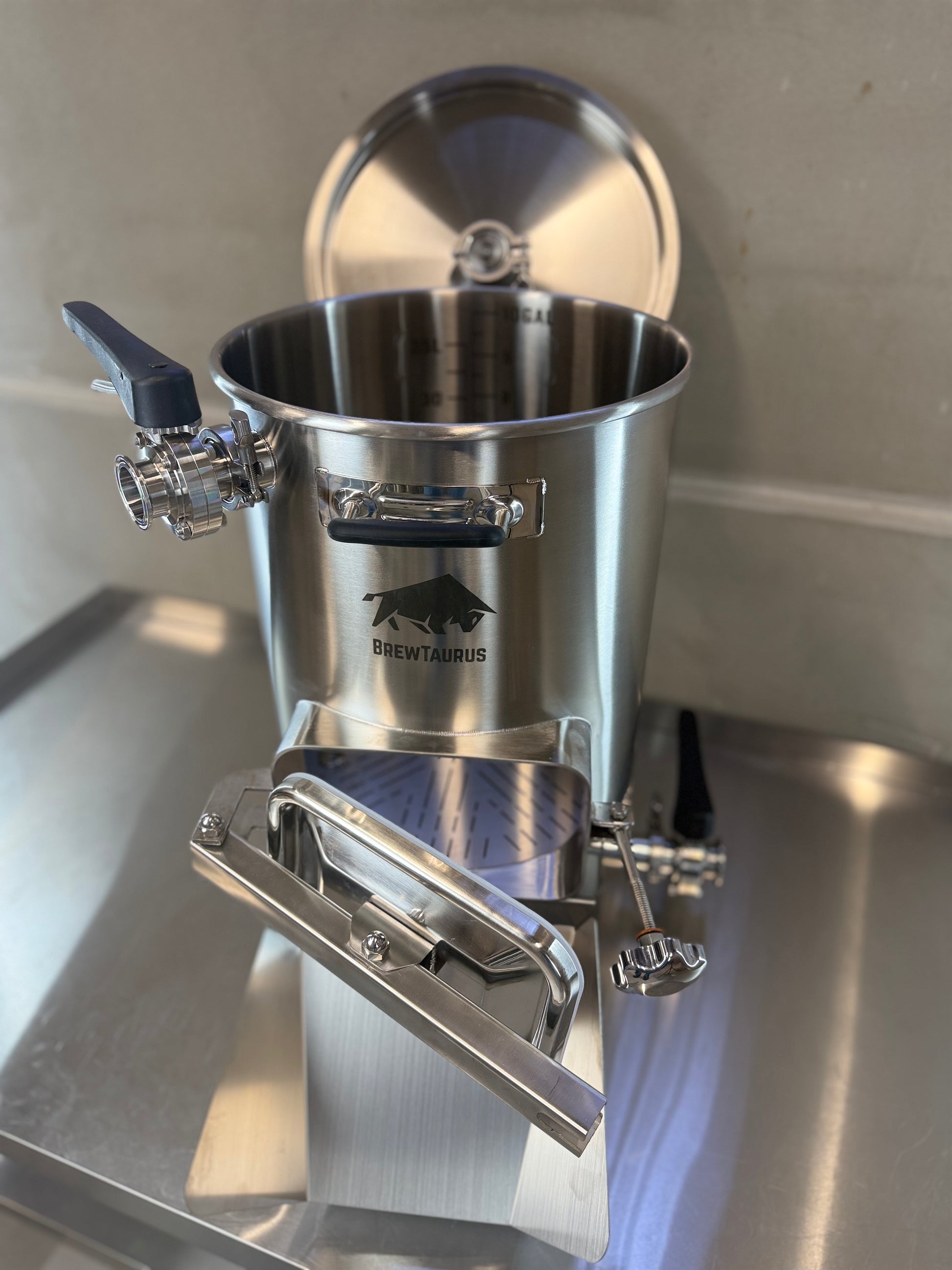

Drain the tun, loosen the hand knob, swing the crossbar aside, open the door and rake the grain down the chute into a bucket. The door lifts off completely for cleaning.
Fly sparge or batch sparge?
Both work. The maximum grain figure assumes fly sparging; for batch sparging keep the grain bill lower so the sparge water fits under the rim.
Can I clean it in place?
Yes. Fit a 1.5" CIP spray head to the 1.5" lid port and recirculate cleaner with a pump strong enough to drive it, such as the MP-40RM.
Product photos may show a prototype or a different size; production units follow the manufacturing drawing.
Gravity figures assume 70 % brewhouse efficiency (65 % at maximum grain); your mill, malt and process will move them.
