K220 Boil Kettle + Malt Pipe – Complete Set (incl. valves & clamps)
K220 Boil Kettle + Malt Pipe – Complete Set (incl. valves & clamps)
🚛 Ships on a pallet · 39 kg · Shipping to Germany: €49
Delivery 3–5 business days · dispatched by the next business day · Shipping details · Free shipping over €149 does not apply to fermenters, kettles and other large items
Crew Earns 1999 Crew points · How it works
Pairs well with
-
K220 False Bottom — 1.5 mm Stainless 5+ in stockView details €259.95
-
Steam Condenser Connection Kit — Water & Drain Available to orderView details €29.95
Read customer reviews · ✓ 2-year EU warranty
Couldn't load pickup availability
Out of stock — similar options in stock:
-
Steam Condenser Set Ø600 — Dome Lid + 2" Kit + Reducer · fits K220 & 595–605 mm
€419.95 EUR
- Steam Condenser Connection Kit — Water & Drain €29.95 EUR
-
2" Steam Condenser Kit — without lid · fits any 2" TC port
€179.95 EUR
-
Dome Steam Condenser / Still Lid — Ø600 mm · 4" TC · fits K220 & 595–605 mm
€249.00 EUR
One kettle. Mash, lift, drain, boil — at brewhouse scale.
The K220 Boil Kettle with Malt Pipe turns one 225 L stainless kettle into a single-vessel electric brewhouse: mash in the malt pipe, lift it, hang it on the rim to drain, sparge, boil. Up to ~57 kg of grain. Add elements and a pump — or take the complete K220 1V system.
| Brim-full volume | 225 L |
|---|---|
| Malt pipe | ~165 L |
| Below the malt pipe | 26.5 L |
| Max grain bill | ~57 kg |
| Batch into fermenter | 110–175 L |
| Heating ports | 2× 2" TC (120 mm apart) |
| Empty weight | kettle ≈19.5 kg · malt pipe ≈11.4 kg |
| Guarantee | 2-year legal guarantee (EU consumer law) |
Malt pipe workflow

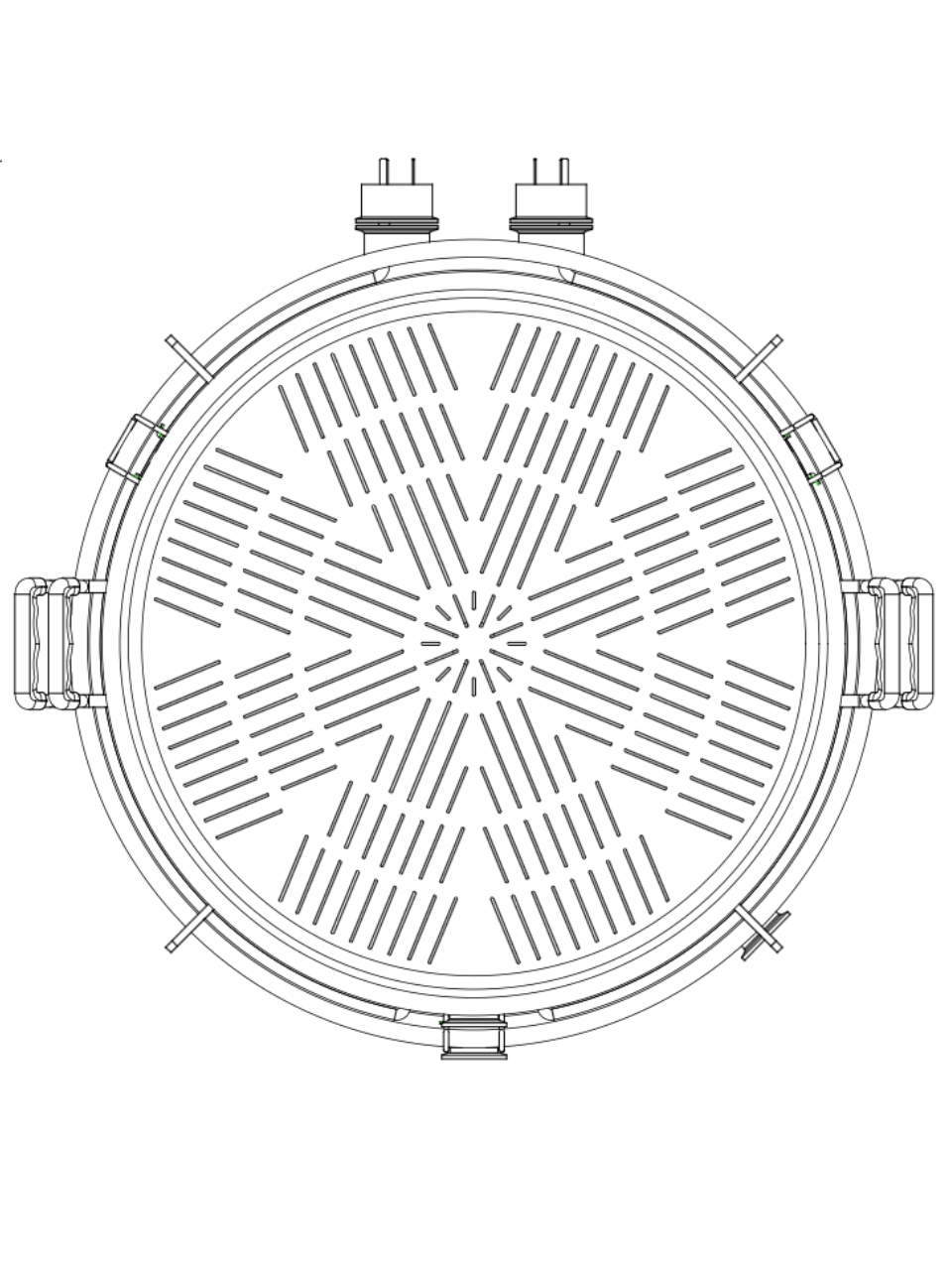

- Malt pipe (grain basket): ~165 L to the rim level · laser-cut bottom plus a perforated drainage band at the top · 1.5" TC port on the top ring · two silicone handles.

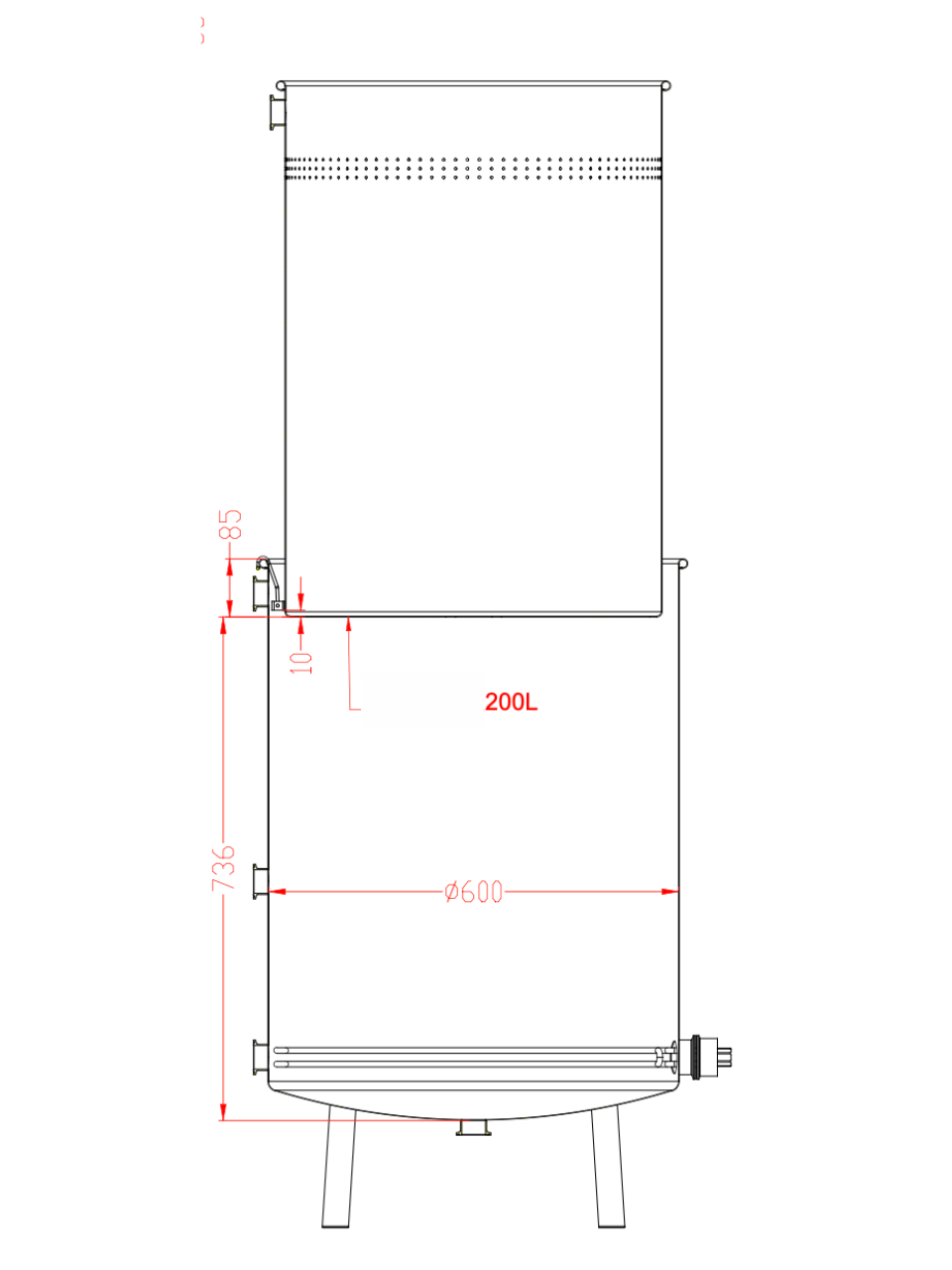

- Drain position: the pipe hangs on the kettle rim with its bottom at the 200 L line, so the wort drains back while you sparge.

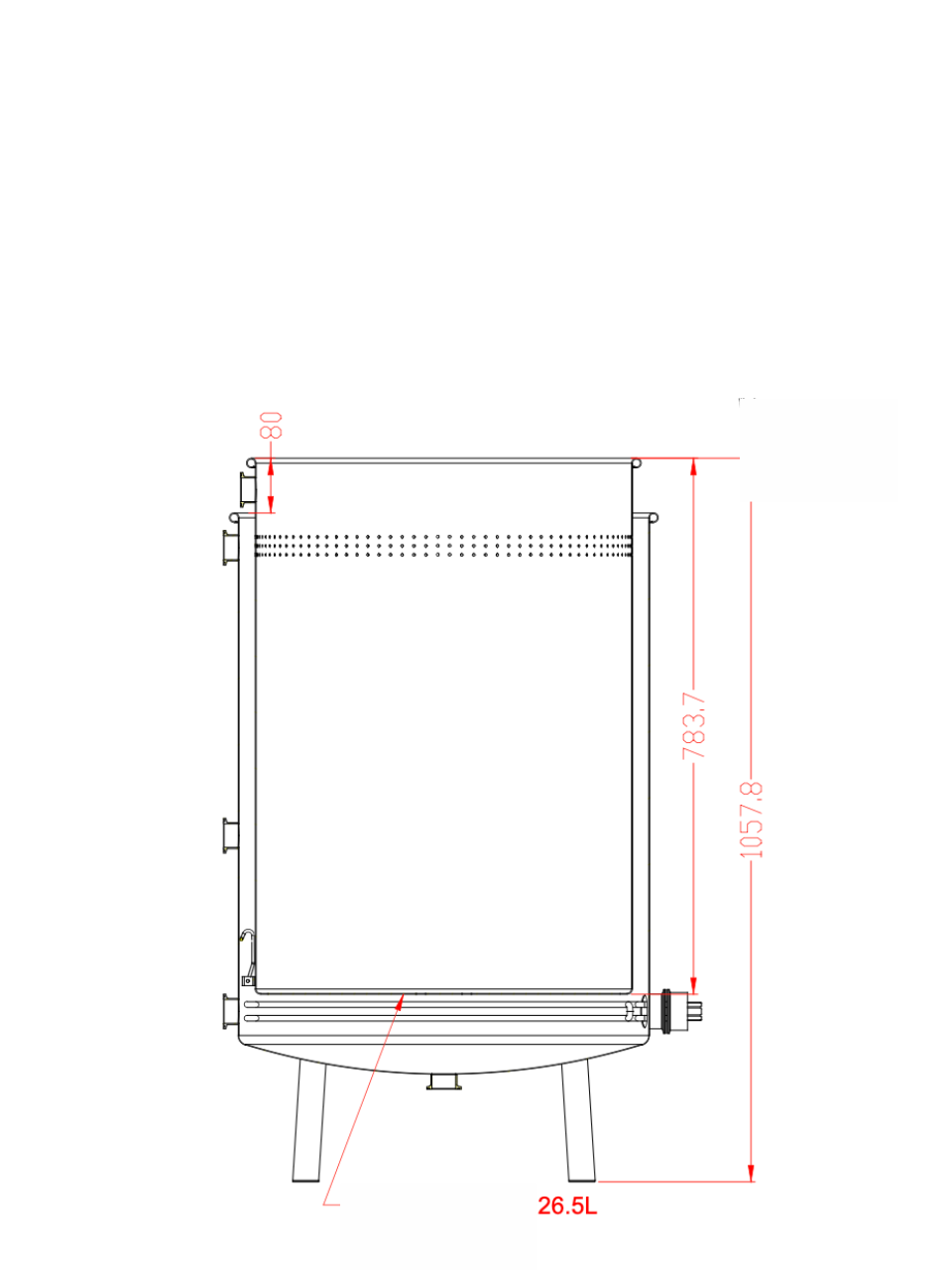

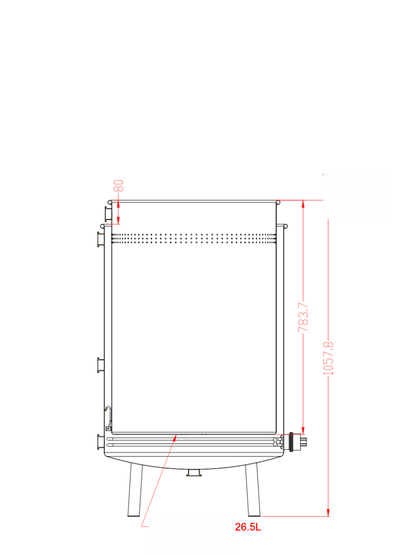

- 26.5 L sits below the malt pipe. It is part of your strike water but sits under the grain bed — count it when you set mash thickness.
- At full grain the malt pipe weighs more than 125 kg even after draining. Hung on the rim to drain, its top sits 1676.5 mm above the floor; to lift it fully out, the pipe bottom has to clear the rim, so plan at least 1.76 m to the top of the pipe (rim + pipe height) plus room for your hands or hoist. A hoist is a must — or choose the K220 2V with a grain door.
Ports & connections
| Port | Where | Job |
|---|---|---|
| Heating elements 2× 2" TC |
low, opposite the front ports, 120 mm apart | 2" Tri-Clamp elements (not included) |
| Front ports 3× 1.5" TC |
50.8 / 471.7 / 728.7 mm below the rim | top: return · middle + bottom: pick-up, transfer, chiller |
| Whirlpool port 1.5" TC |
at 45°, 100 mm above the bottom seam | angled inlet for the whirlpool |
| Bottom drain 1.5" TC |
centre of the dished bottom | full drain, CIP return |
| Lid port 1.5" TC |
centre of the lid | CIP spray head, vent |

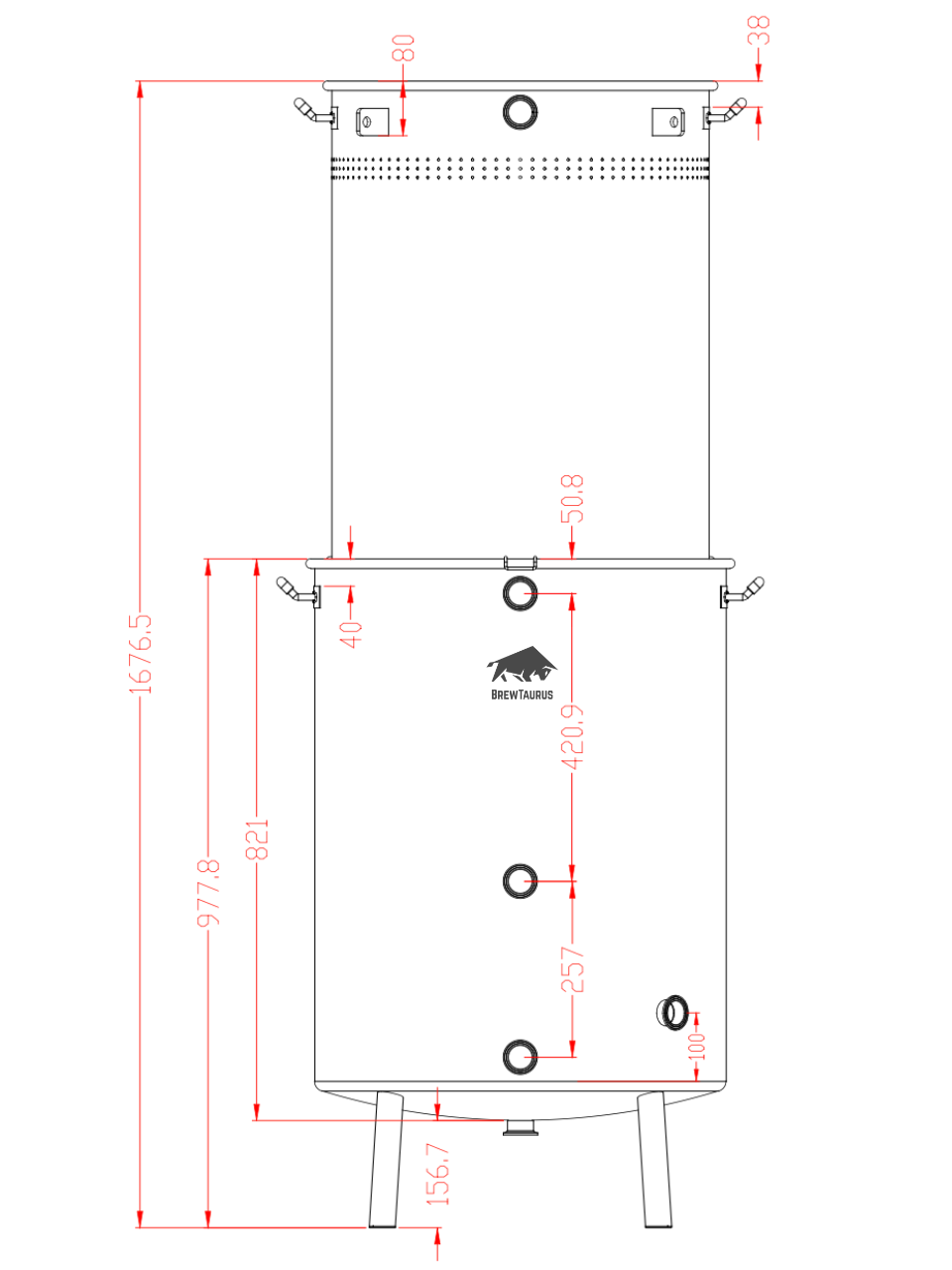

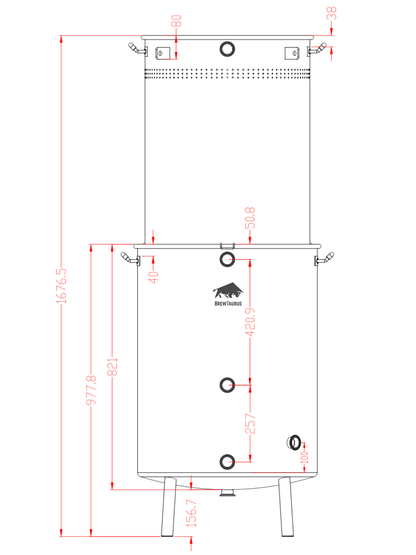

Dimensions
| Inner diameter | Ø600 mm |
| Body height (rim to bottom) | 821 mm |
| Height to rim | 977.8 mm (legs 156.7 mm) |

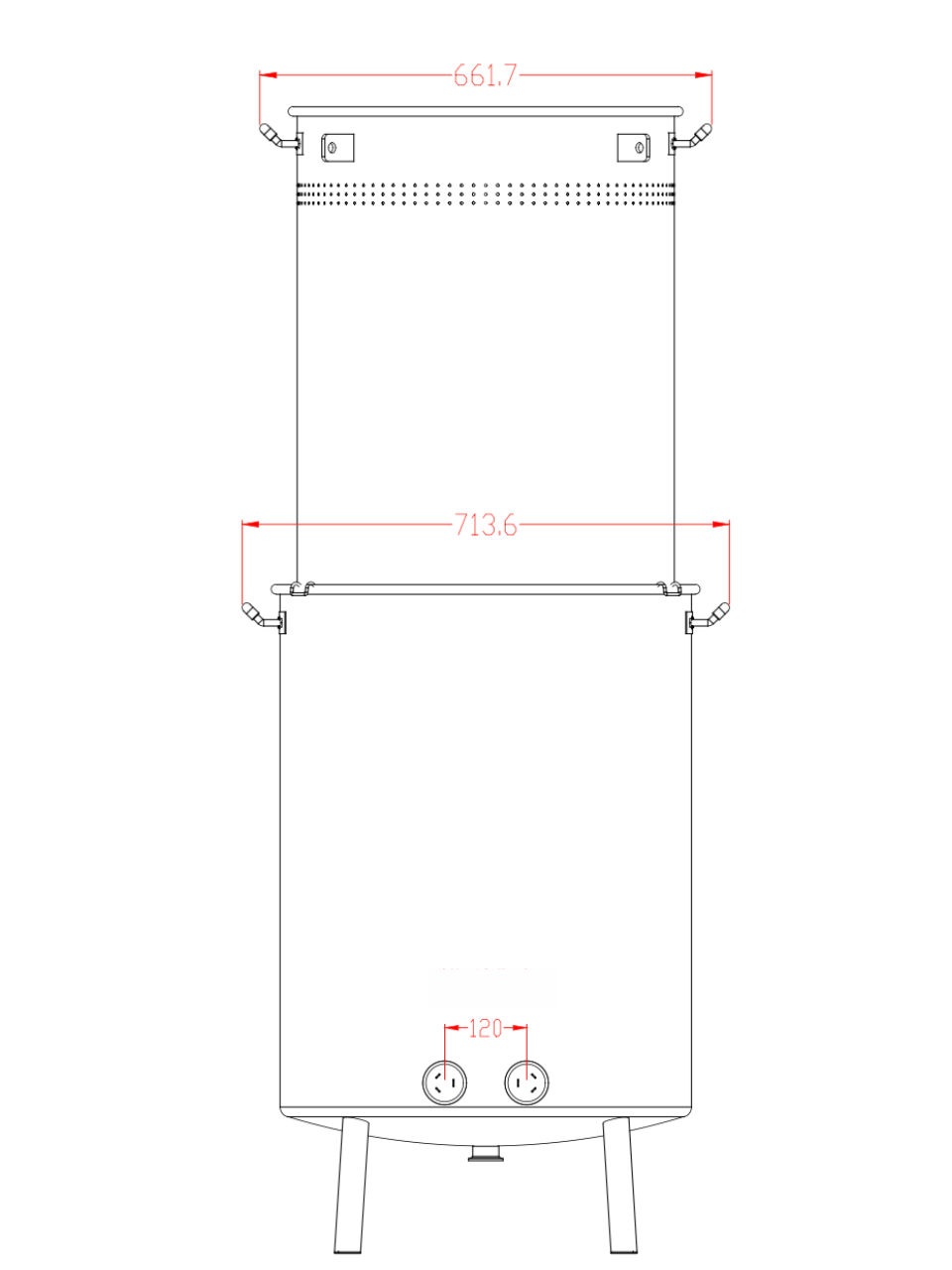

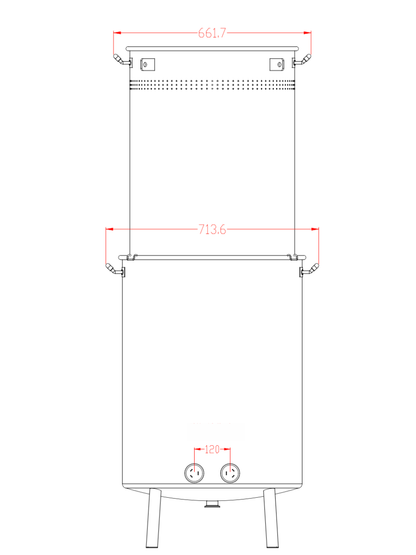

| Width incl. handles | 713.7 mm |
| Leg footprint (centre to centre) | 404.5 × 404.5 mm |
| Wall / lid / leg | 1.2 mm / 1.0 mm / 1.2 mm |
| Malt pipe height | 783.7 mm |
| Top of malt pipe in mash position | 1057.8 mm from the floor |
| Top of malt pipe hung on the rim to drain | 1676.5 mm from the floor |
| Height to lift the pipe fully out | at least 1761.5 mm from the floor (rim + pipe height) |
What's in the box
- 225 L kettle (SS304), dished bottom + central drain · stainless lid with central 1.5" TC port
- Stainless malt pipe / grain basket with laser-cut bottom and perforated drainage band
- 1× 1.5" TC elbow · 4× 1.5" TC butterfly valves · 14× 1.5" band clamps + 14× gaskets · 3× 1.5" blind caps · 1× 1.5" TC tee
- 1× 1.5" thermowell (79 mm) · 2× 1.5" racking / pick-up / whirlpool arms · 1× ½" NPT male to 1.5" TC adapter · 1× 1.5" TC to ½" DN15 female adapter · 1× 1.5" TC hose barb (12.7 mm)
- 2× 2" TC band clamps + 2× gaskets + 2× 2" blind caps
Not included (by design): heating elements, controllers, pumps, hoses/quick-connects. Add control your way — or step into a complete Brewing System.
Add heating elements · a MP-40RM pump · Ø600 steam condenser set · all brewing kettles
Technical drawing
Download the K220 kettle + malt pipe drawing (PDF)
Which K-Series size fits your batch
Same Tri-Clamp architecture in three sizes. Pick by the batch you want in the fermenter. Your size is highlighted.
| Size | Brim-full · inner Ø | Batch into fermenter | Max grain: malt pipe / mash tun |
|---|---|---|---|
| K40 | 48.1 L · Ø350 mm | 20–35 L | ~10.5 / ~13 kg |
| K80 | 93.3 L · Ø450 mm | 45–70 L | ~22 / ~26 kg |
| K220 | 225 L · Ø600 mm | 110–175 L | ~57 / ~64 kg |
FAQ
How much grain fits in the malt pipe?
About 57 kg. A 12 °P beer at 175 L needs ~39 kg; at maximum grain you reach ~16 °P (OG ~1.065) at 175 L.
How much liquid sits below the malt pipe?
26.5 L. It is part of your strike water but sits under the grain bed, so count it when you set mash thickness.
Do I need a hoist?
At full grain the malt pipe weighs more than 125 kg even after draining. Hung on the rim to drain, its top sits 1676.5 mm above the floor; to lift it fully out, the pipe bottom has to clear the rim, so plan at least 1.76 m to the top of the pipe (rim + pipe height) plus room for your hands or hoist. A hoist is a must — or choose the K220 2V with a grain door.
Can I add a mash tun later?
Yes. The kettle becomes the boil kettle of a K220 2V or K220 3V — nothing gets replaced.
Product photos may show a prototype or a different size; production units follow the manufacturing drawing.
Gravity figures assume 70 % brewhouse efficiency (65 % at maximum grain); your mill, malt and process will move them.
