K220 Malt Pipe — ~165 L Stainless Grain Basket
K220 Malt Pipe — ~165 L Stainless Grain Basket
🚛 Ships on a pallet · 13 kg · Shipping to Germany: €49
Delivery 3–5 business days · dispatched by the next business day · Shipping details · Free shipping over €149 does not apply to fermenters, kettles and other large items
Essential Add-ons
Tick what you need — everything is added to cart together.
Read customer reviews · ✓ 2-year EU warranty
Couldn't load pickup availability
The K220 malt pipe on its own — for the K220 kettle you already have, or any kettle it fits.

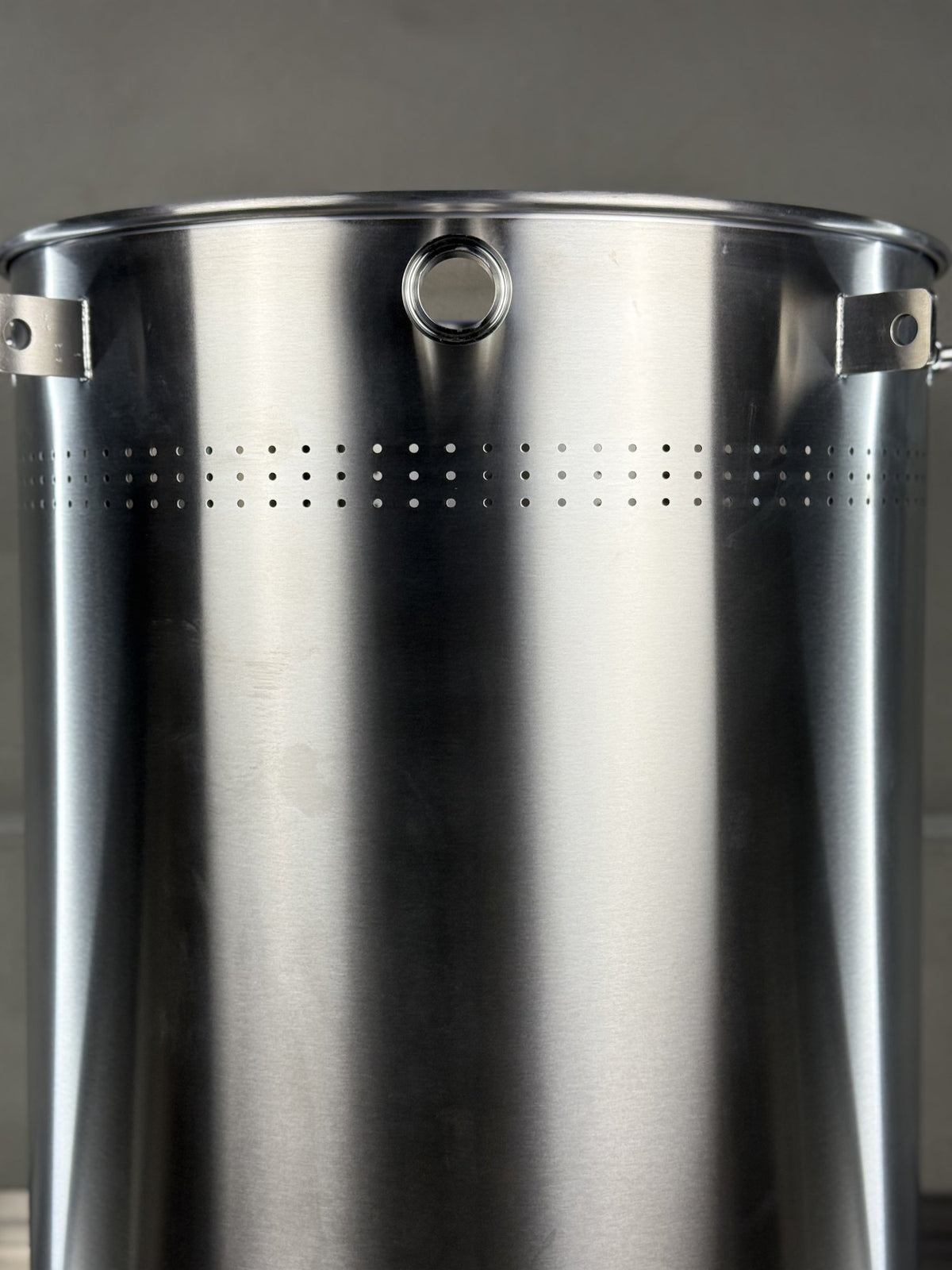

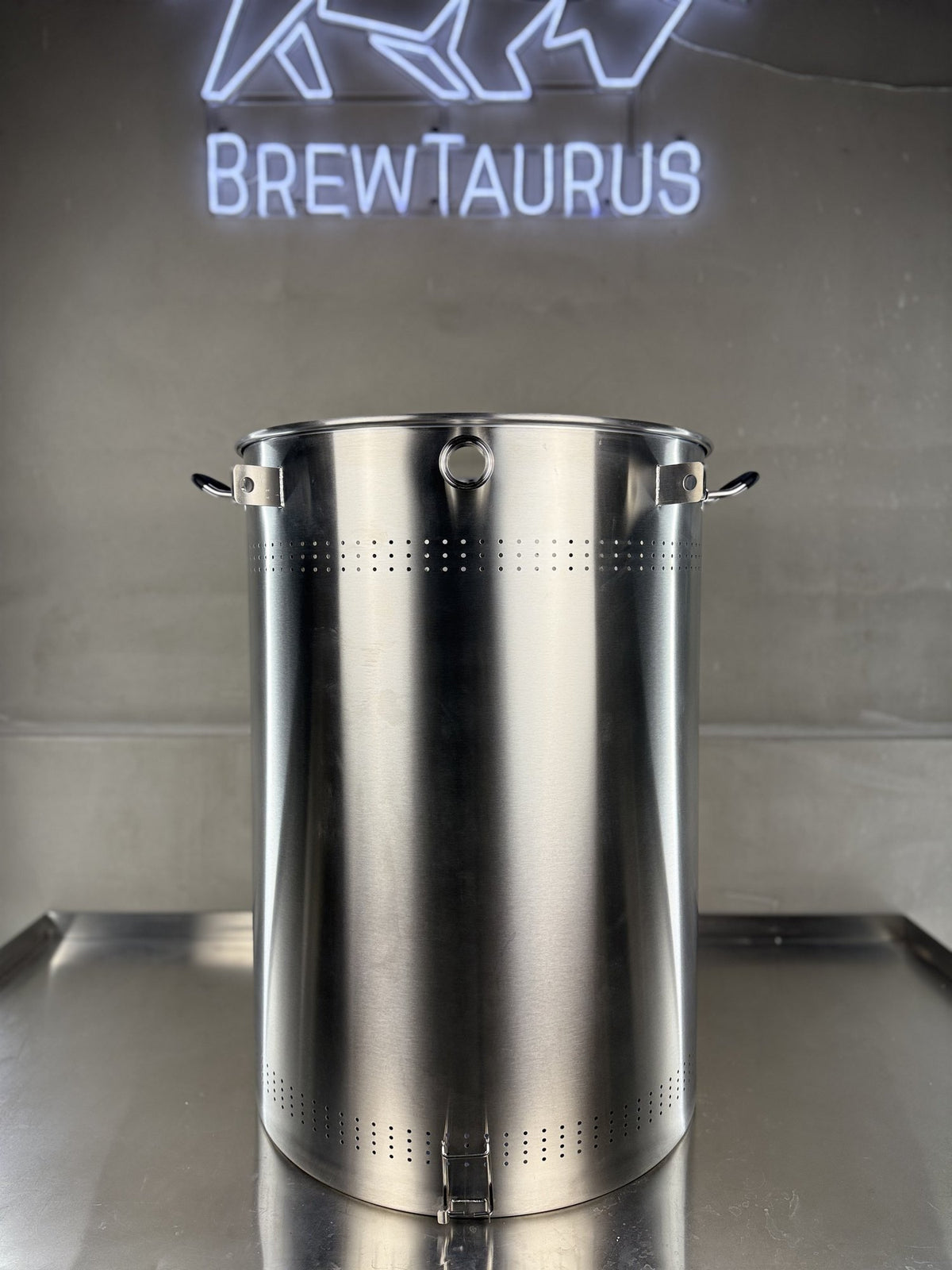

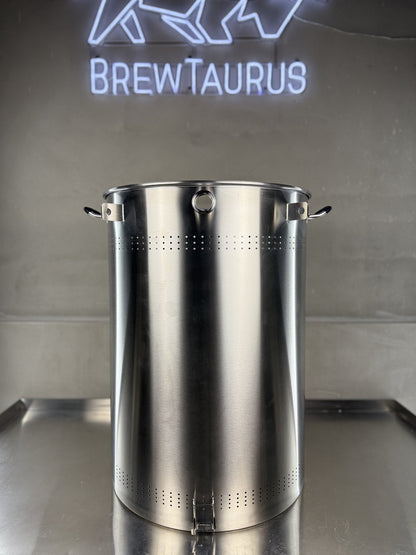

A ~165 L stainless grain basket made for the BrewTaurus K220 Boil Kettle: laser-cut bottom + a perforated drainage band at the top, a 1.5" Tri-Clamp port on the top ring and two silicone handles. Mash in it, lift it, hang it on the rim to drain, sparge — up to ~57 kg of grain in the K220 kettle.
Malt pipe only. No kettle, lid or fittings. Need the kettle too? Take the K220 Boil Kettle + Malt Pipe — Complete Set or add the K220 Boil Kettle — Vessel Only.
| Volume | ~165 L to the rim level |
|---|---|
| Max grain bill (in the K220 kettle) | ~57 kg |
| Overall diameter | Ø550 mm |
| Height | 783.7 mm |
| Drainage | laser-cut bottom + a perforated drainage band at the top |
| Top ring | 1.5" TC port · two silicone handles |
| Material | 1.0 mm stainless, matt polished |
| Weight | ≈11.4 kg |
| Made for | K220 Boil Kettle (225 L, inner Ø600 mm) |
| Guarantee | 2-year legal guarantee (EU consumer law) |
In the K220 kettle
- Mash position: the top of the pipe sits 1057.8 mm above the floor.
- Drain position: the pipe hangs on the kettle rim with its bottom at the 200 L line, so the wort drains back while you sparge. Its top then sits 1676.5 mm above the floor.
- 26.5 L sits below the malt pipe. It is part of your strike water but sits under the grain bed — count it when you set mash thickness.
- At full grain the malt pipe weighs more than 125 kg even after draining. To lift it fully out, plan at least 1.76 m to the top of the pipe (rim + pipe height) plus room for your hands or hoist. A hoist is a must.
What's in the box
- 1× K220 malt pipe / grain basket (~165 L), laser-cut bottom + a perforated drainage band at the top, 1.5" TC port on the top ring, two silicone handles
Not included: kettle, lid, fittings, heating elements, pump. Passivate before first use, as with all stainless brewing gear.
With the kettle: K220 Boil Kettle + Malt Pipe — Complete Set · K220 Boil Kettle — Vessel Only · K220 1V system · all brewing kettles
FAQ
Will it fit my own kettle?
It is made for the K220 Boil Kettle (225 L, inner Ø600 mm). For another kettle, compare the overall diameter (Ø550 mm) and the height (783.7 mm) with your kettle before you order.
How much grain fits?
About 57 kg in the K220 kettle. The full brewing figures for this pairing are on the K220 Boil Kettle + Malt Pipe page.
Do I need a hoist?
At full grain the malt pipe weighs more than 125 kg even after draining. A hoist is a must.
Product photos may show a prototype or a different size; production units follow the manufacturing drawing.
