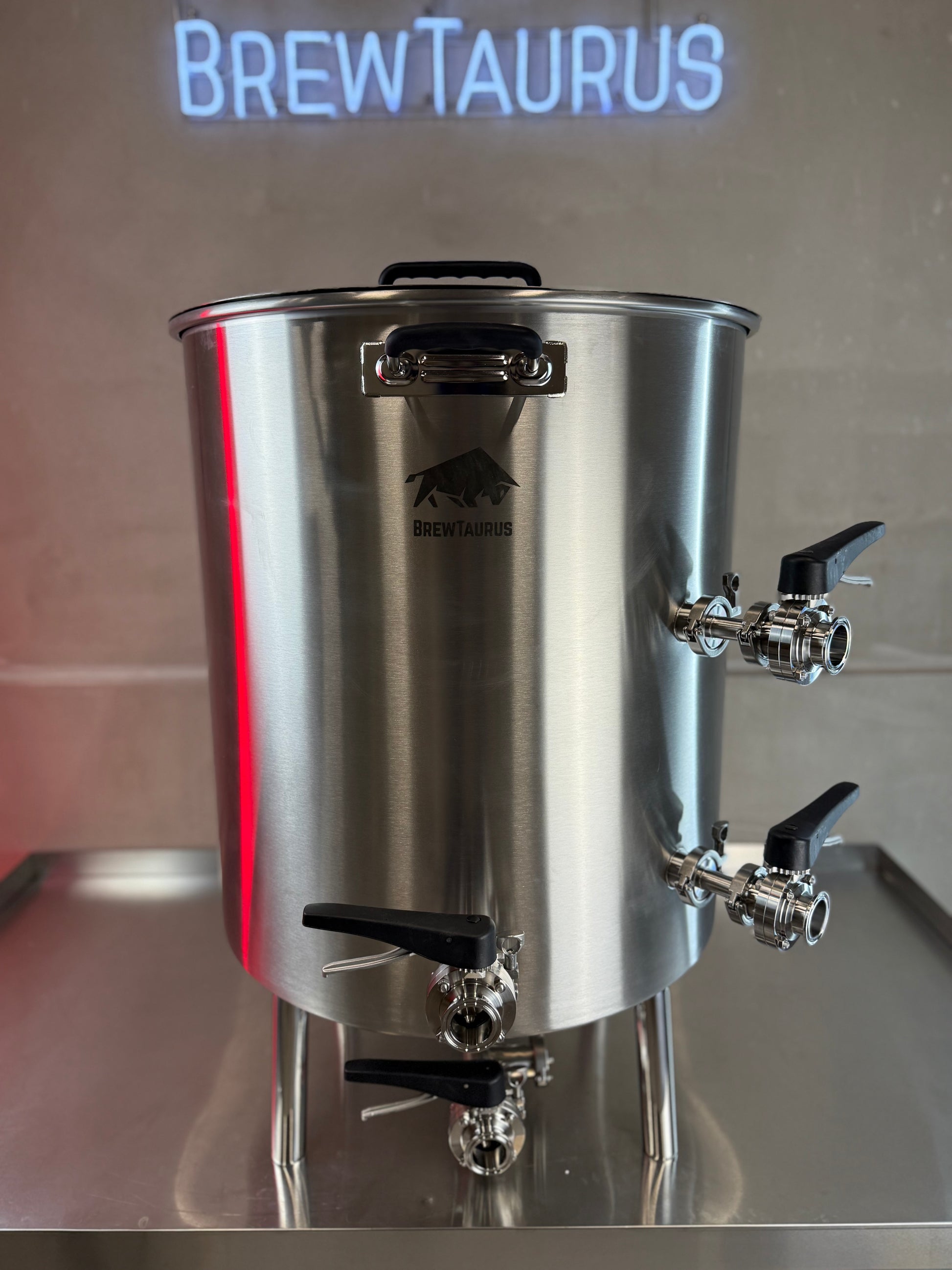

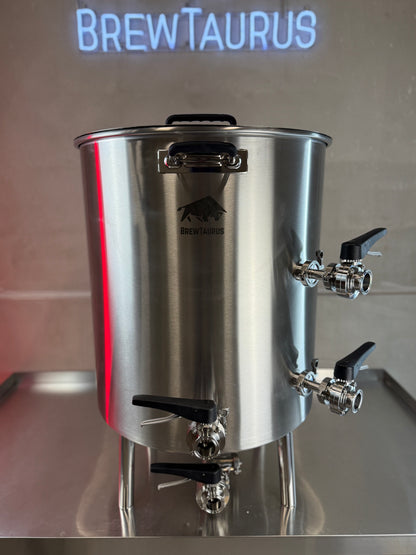

K220 Hot Liquor Tank - Complete Set (incl. valves & clamps)

Not just hot water — thermal control at scale.

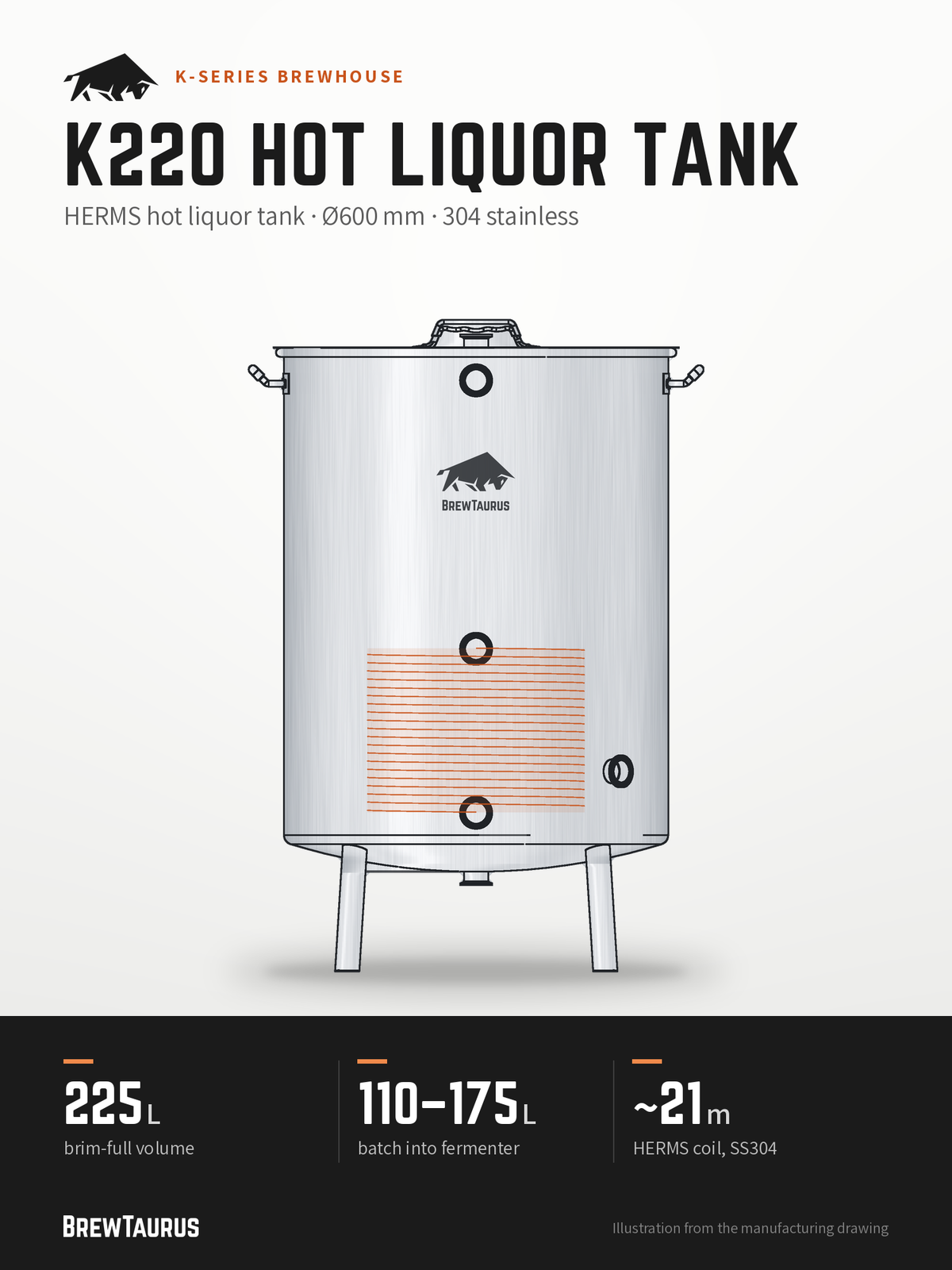

The BrewTaurus K220 HLT is the thermal backbone of a brewhouse-scale system: a 225 L modular stainless hot liquor tank with a built-in HERMS coil. At this size, temperature stability isn't convenience — it's process control. Heat water, hold temperature, drive HERMS recirculation. High thermal mass for repeatable mash control, no proprietary internals.

Made to order (pre-order). We build in monthly production batches — contact us for the current lead time before ordering.

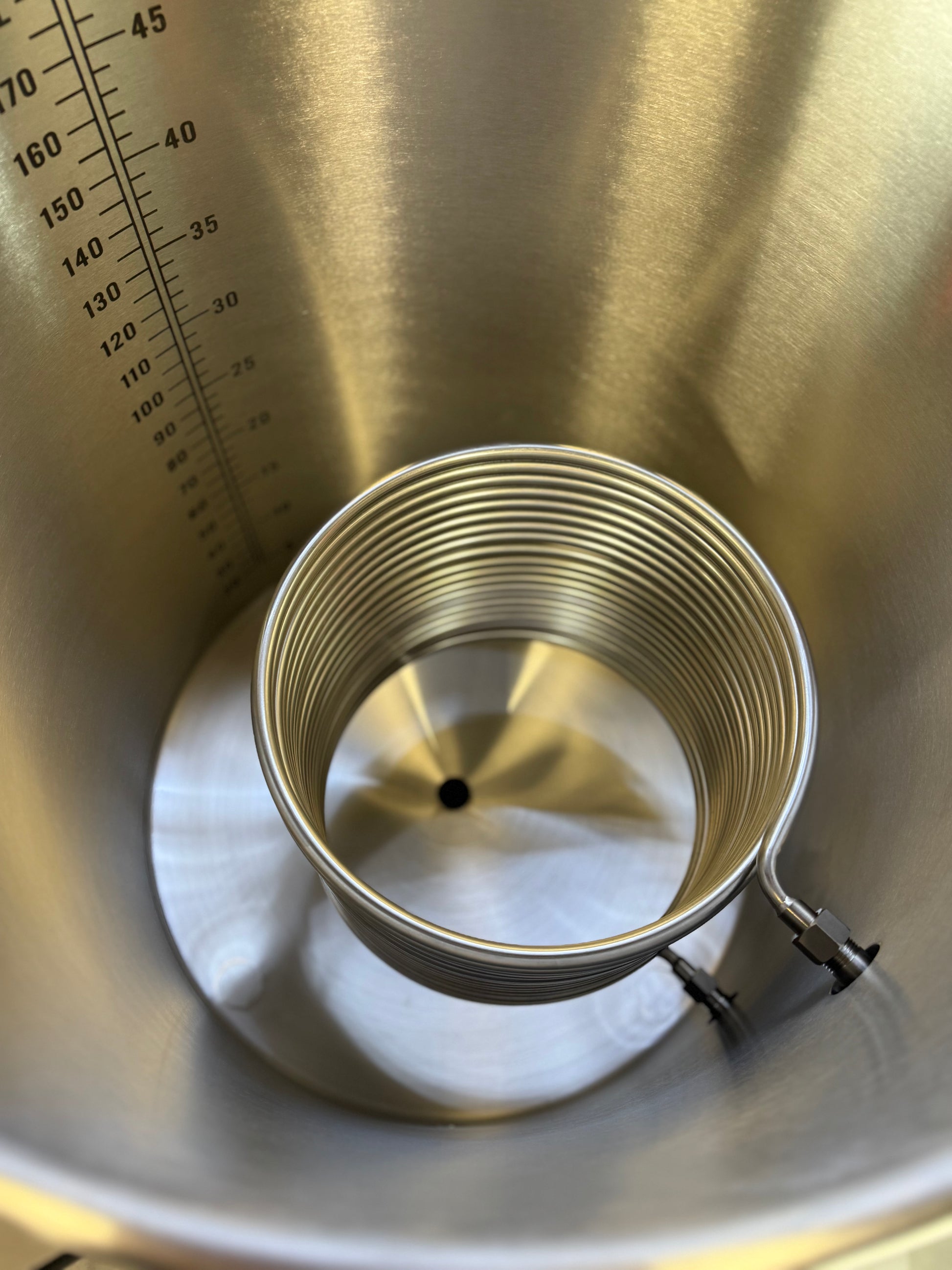

HERMS coil (included)

Clean heat exchange, serviceability and long-term reliability.

• SS304, removable for cleaning or reconfiguration
• 1.5" TC connections
• Optimised for HERMS mash-temperature control

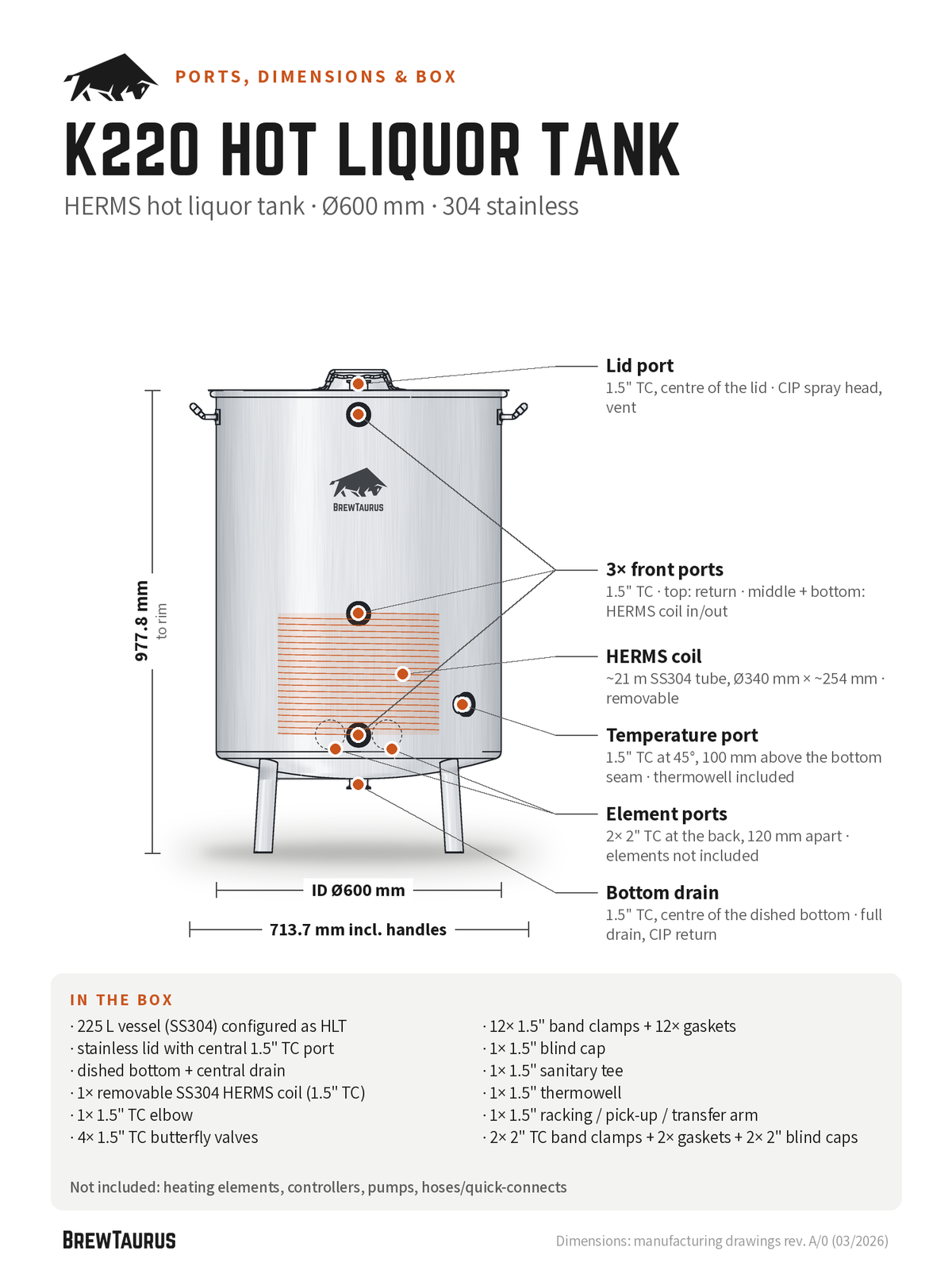

Port architecture (HLT workflow)

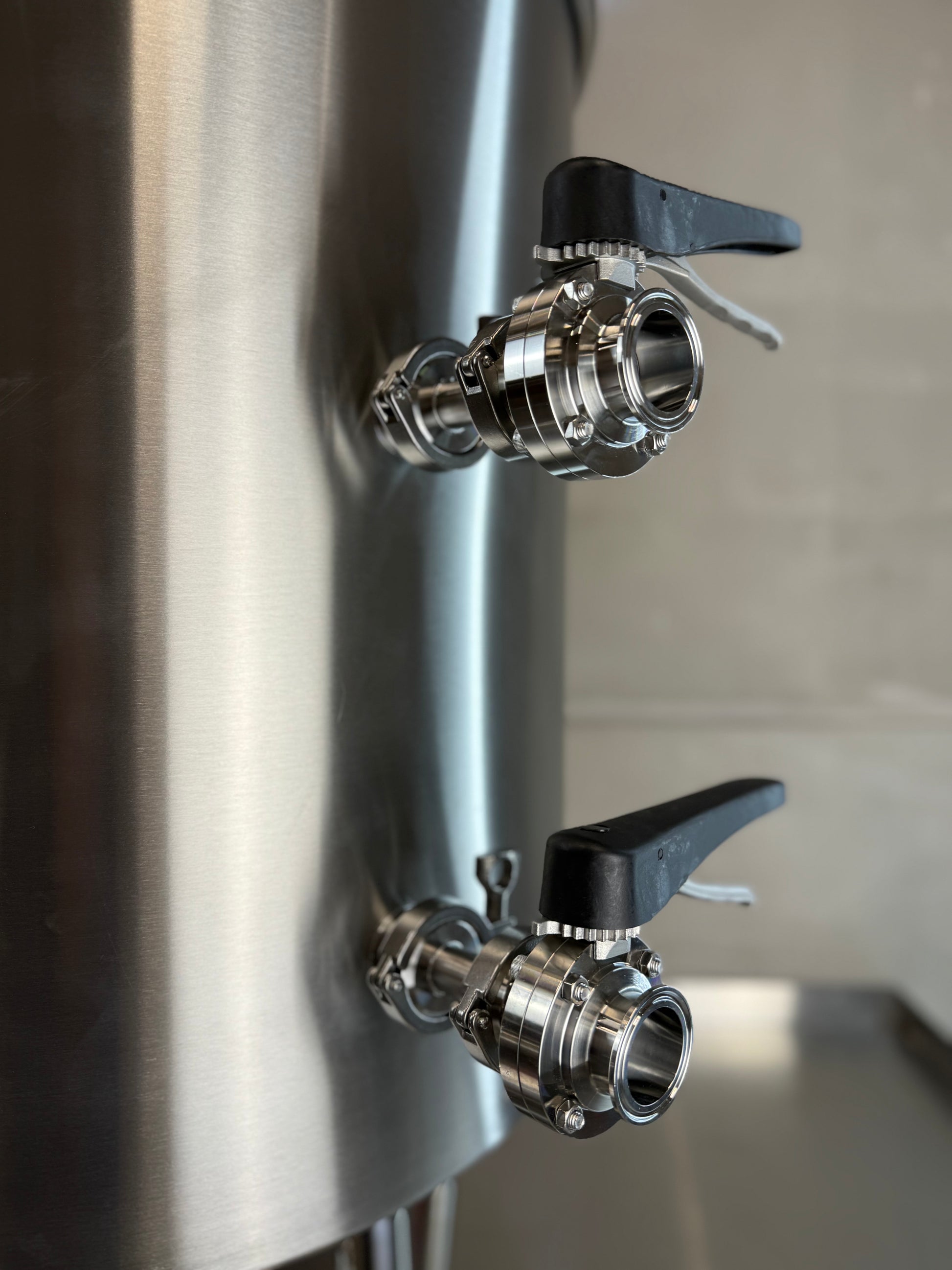

• Heating ports: 2× 2" TC (heating-element ready)

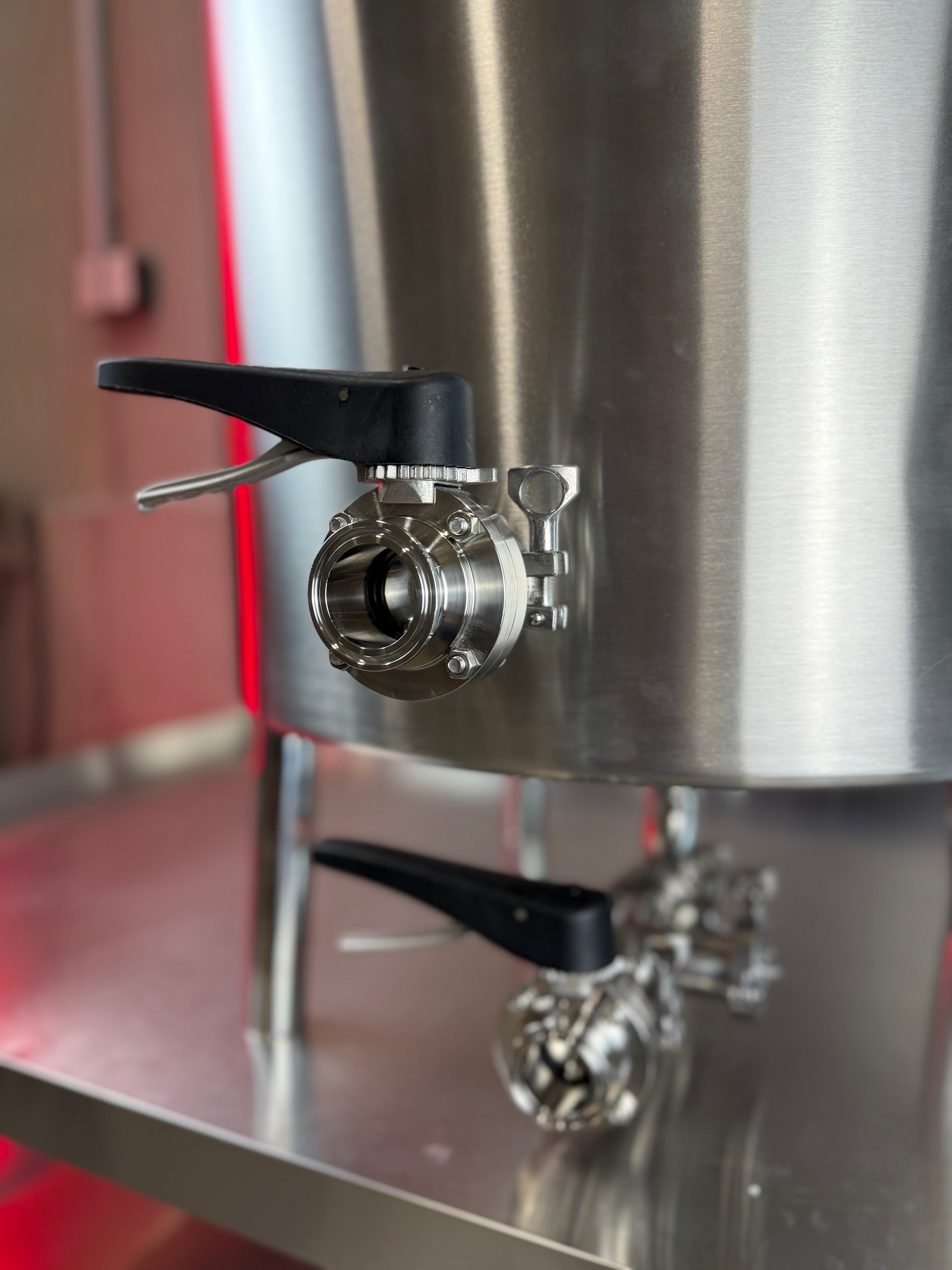

• Bottom drain / hot-water out: 1.5" TC for fast transfer and complete drainage
• HERMS coil in/out: tri-clamp ports for a clean, serviceable HERMS loop

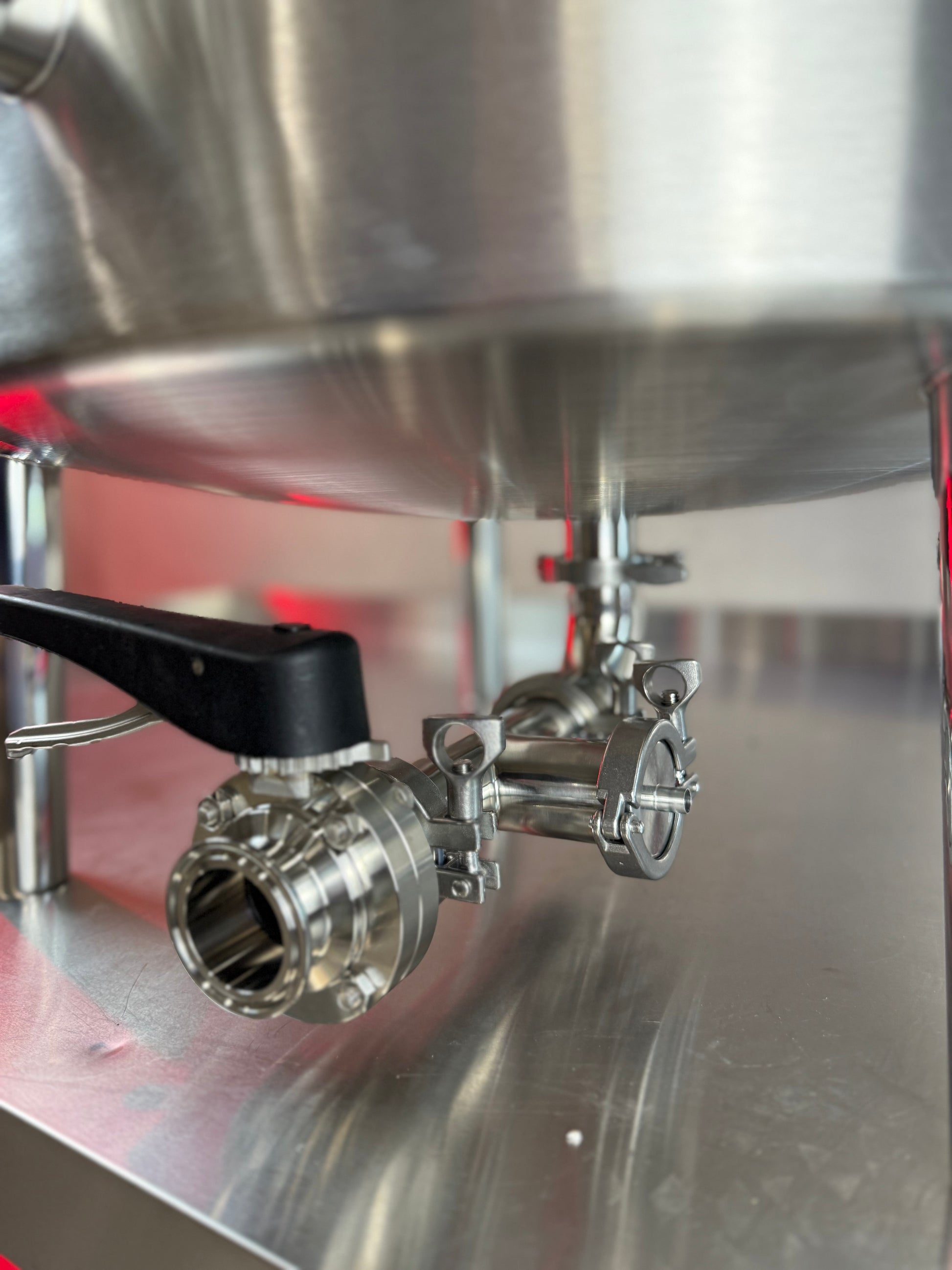

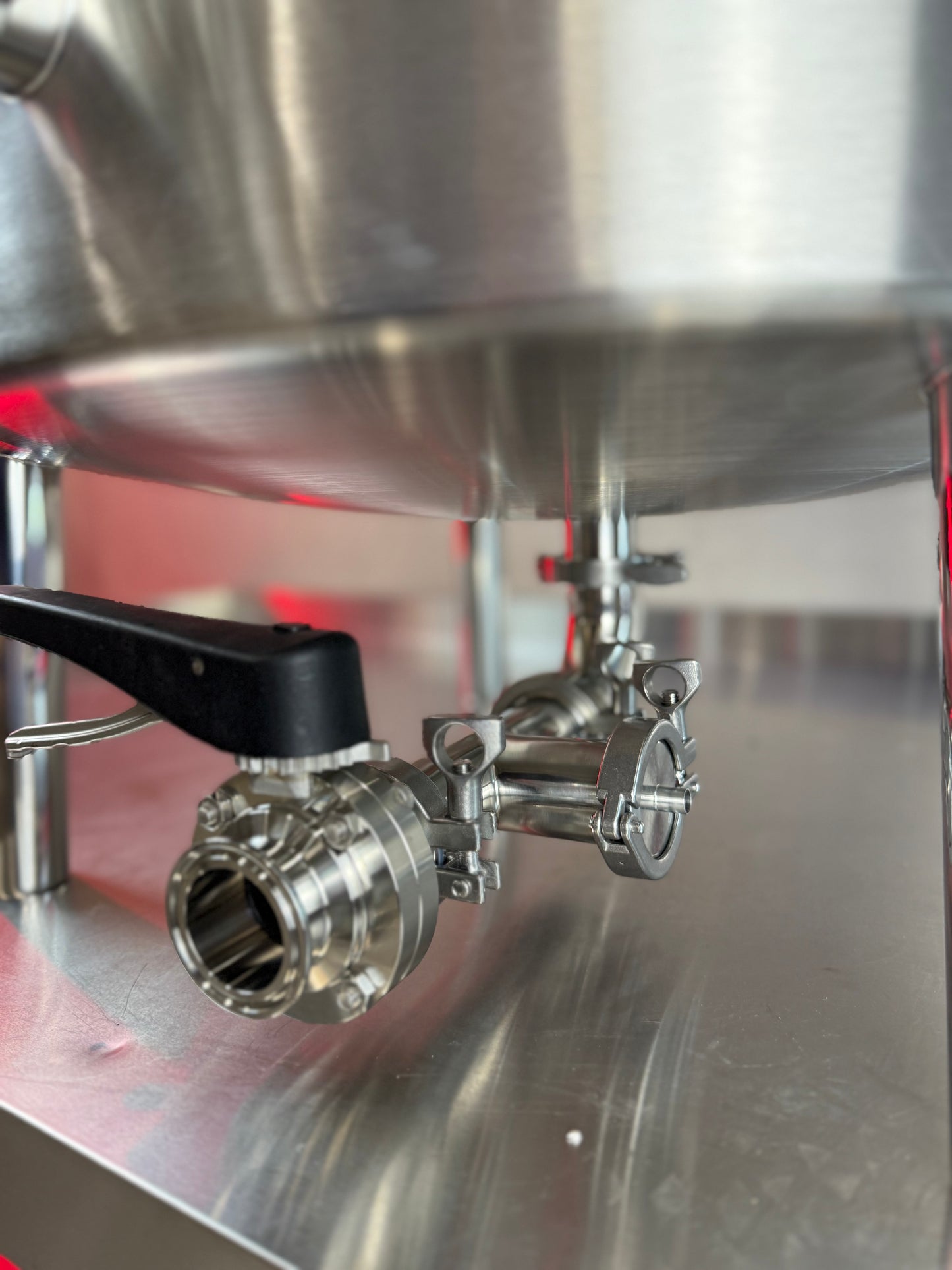

• Temperature sensing: thermowell via a sanitary TEE at the drain

What's included (Complete Set)

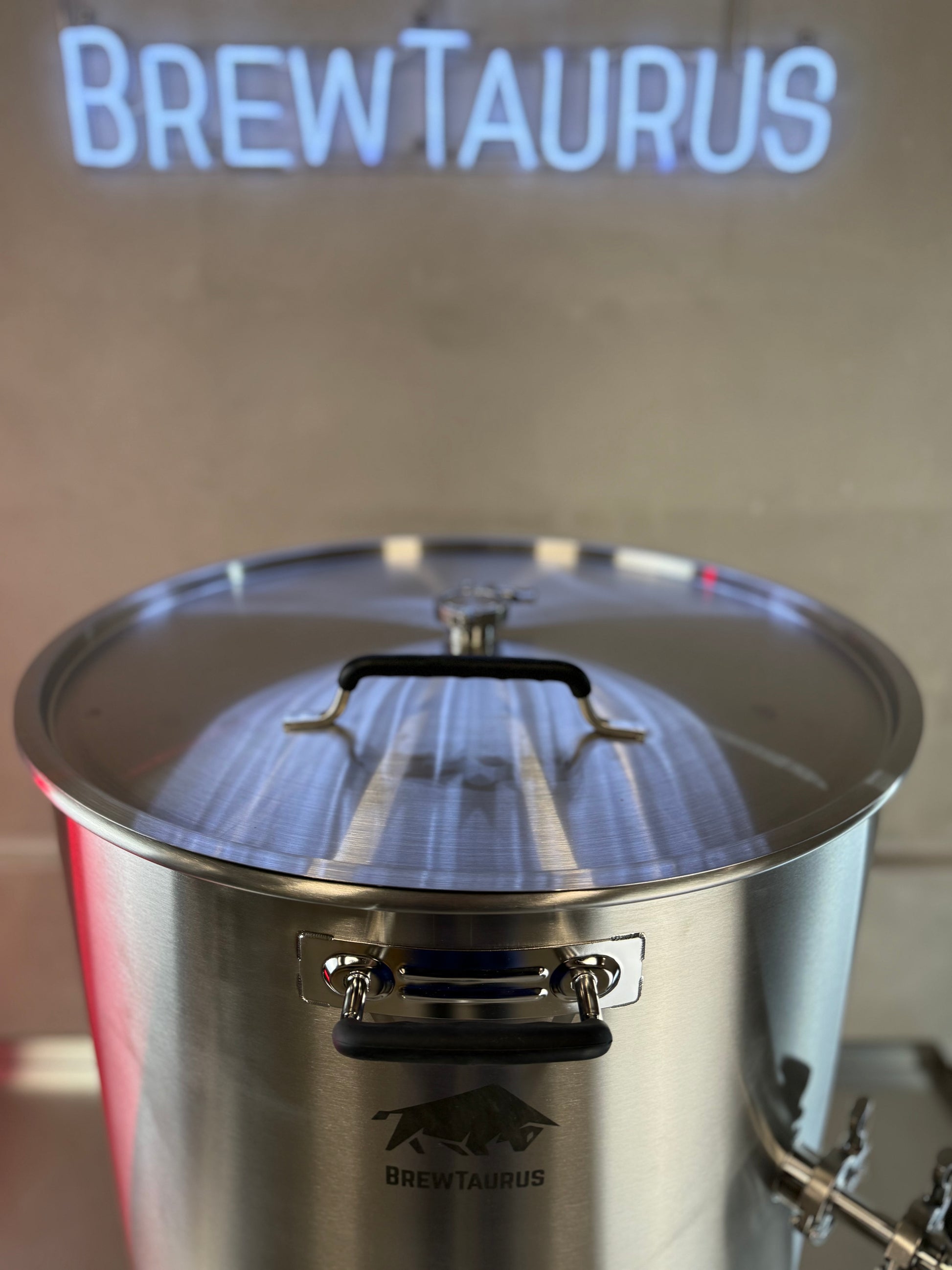

• 225 L stainless kettle platform (SS304), configured as HLT · stainless lid with central 1.5" TC port · dish bottom + central drain
• 1× removable SS304 HERMS coil (1.5" TC)
• 1× 1.5" TC elbow · 4× 1.5" TC butterfly valves · 12× 1.5" band clamps + 12× gaskets · 1× 1.5" blind cap
• 1× 1.5" sanitary TEE · 1× 1.5" thermowell · 1× 1.5" racking / pick-up / transfer arm
• 2× 2" TC band clamps + 2× gaskets + 2× 2" blind caps · brushed finish

Not included (by design): heating elements, controllers, pumps, hoses/quick-connects. HERMS requires a recirculation pump (your choice). Passivate before first use.

Pair with a K220 Mash Tun & K220 Boil Kettle · Build a full Brewing System · See all Brewing Kettles

Which K-Series size fits your batch

The K-Series shares one tri-clamp architecture across three sizes — pick by the batch you want in the fermenter. Your size is highlighted.

Specifications

Product photos may show a prototype; production units follow the updated technical drawing and may include minor port refinements.
