• BrewTaurus K220 Boil Kettle – Tri-Clamp boil kettle · Ø600 mm · 304 stainless: 225 L brim-full volume, 110–175 L batch into fermenter, 2× 2" TC heating-element ports
  • BrewTaurus K220 Boil Kettle — 225 L 304 stainless kettle with 1.5" Tri-Clamp front ports and whirlpool port
  • K220 Boil Kettle — close-up of a 1.5" Tri-Clamp front port, the angled whirlpool port and the etched BrewTaurus logo

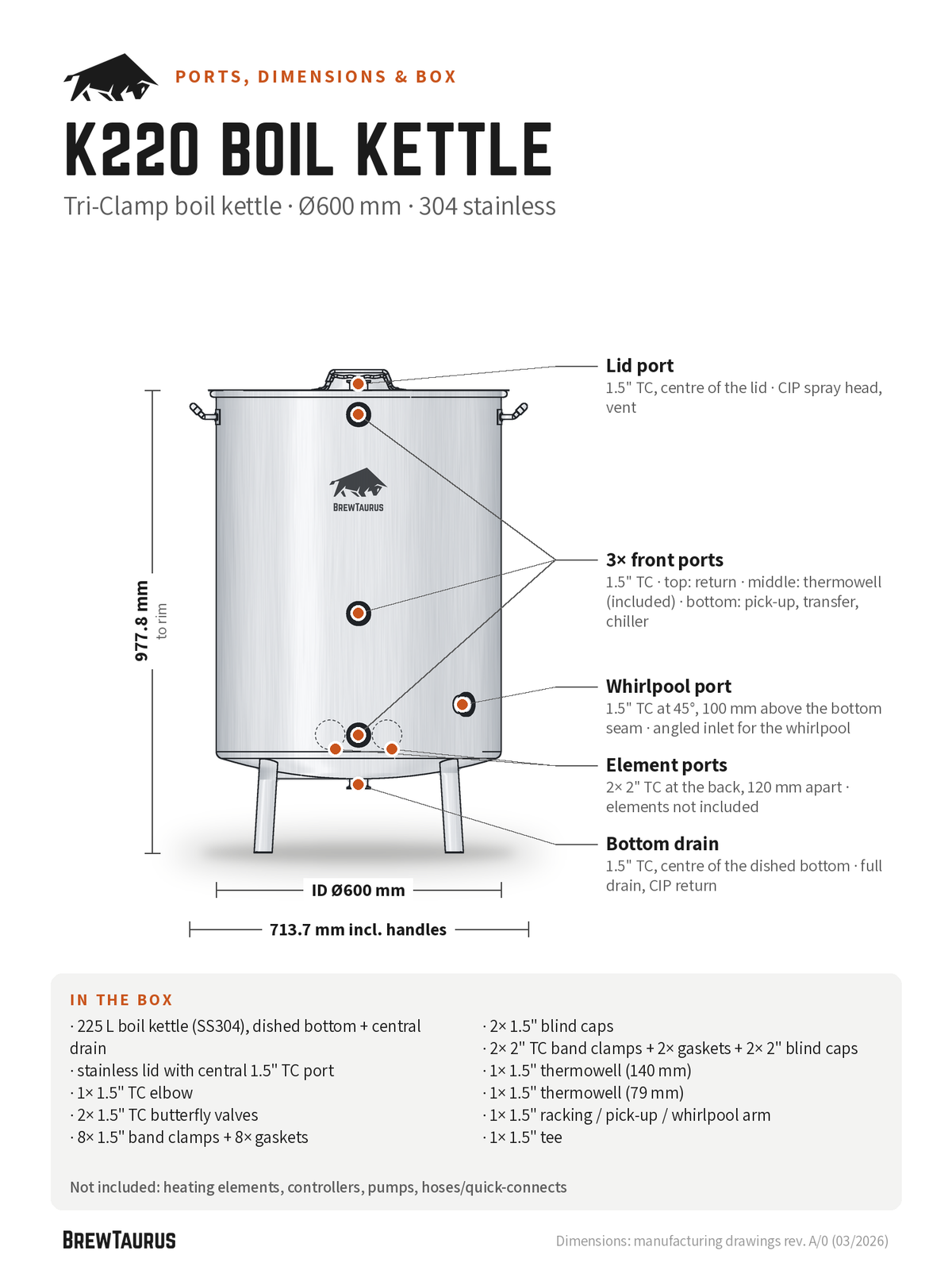

  • BrewTaurus K220 Boil Kettle ports and dimensions: lid port, 3× front ports, whirlpool port, element ports, bottom drain; 977.8 mm to rim, inner Ø600 mm, 713.7 mm incl. handles, in-the-box list
  • BrewTaurus K220 kettle / HLT vessel technical drawing with dimensions
1 5

BrewTaurus.com | Brewing Technology

K220 Boil Kettle - Complete Set (incl. valves & clamps)

K220 Boil Kettle - Complete Set (incl. valves & clamps)

€1.599,00 EUR
€1.599,00 EUR
Sale Sold out
Taxes included.
Vessel only €1.399,00 Add your own fittings · In stock Complete set €1.599,00 Vessel + all fittings · Pre-order
Pre-order Shipping date by email

Vessel in stock in Prague — the set ships when the last parts arrive

We'll email you the moment it ships.

🚛 Ships on a pallet · 25 kg · FREE shipping to Czechia (orders over €149)

Delivery 2–3 business days · Shipping details

Crew Earns 1599 Crew points · How it works

Essential Add-ons

Tick what you need — everything is added to cart together.

Estimated Total €1.599,00

Read customer reviews · ✓ 2-year EU warranty

Brewhouse-scale stainless — where small systems end.

The BrewTaurus K220 Boil Kettle is a 225 L kettle in 304 stainless, built around Tri-Clamp: two 2" heating-element ports, three 1.5" front ports, a 45° whirlpool port and a centred bottom drain. Boil in it, add a malt pipe for single-vessel brewing, or run it as the boil vessel of a two- or three-vessel brewhouse. Nothing here is temporary.

Brim-full volume 225 L
Working volume up to ~200 L pre-boil (200 L line on the drawing, 85 mm below the rim)
Batch into fermenter 110–175 L
Heating ports 2× 2" TC (120 mm apart)
Empty weight ≈19.5 kg
Material 304 stainless · 1.2 mm wall · 1.0 mm lid
Guarantee 2-year legal guarantee (EU consumer law)

Ports & connections

Port Where Job
Heating elements
2× 2" TC 		low, opposite the front ports, 120 mm apart 2" Tri-Clamp elements (not included)
Front ports
3× 1.5" TC 		50.8 / 471.7 / 728.7 mm below the rim top: return · middle: thermowell (included) · bottom: pick-up, transfer, chiller
Whirlpool port
1.5" TC 		at 45°, 100 mm above the bottom seam angled inlet for the whirlpool
Bottom drain
1.5" TC 		centre of the dished bottom full drain, CIP return
Lid port
1.5" TC 		centre of the lid CIP spray head, vent

Dimensions

Inner diameter Ø600 mm
Body height (rim to bottom) 821 mm
Height to rim 977.8 mm (legs 156.7 mm)
Width incl. handles 713.7 mm
Leg footprint (centre to centre) 404.5 × 404.5 mm
Wall / lid / leg 1.2 mm / 1.0 mm / 1.2 mm

What's in the box

  • 225 L boil kettle (SS304), dished bottom + central drain · stainless lid with central 1.5" TC port
  • 1× 1.5" TC elbow · 2× 1.5" TC butterfly valves · 8× 1.5" band clamps + 8× gaskets · 2× 1.5" blind caps
  • 2× 2" TC band clamps + 2× gaskets + 2× 2" blind caps
  • 1× 1.5" thermowell (140 mm) · 1× 1.5" thermowell (79 mm) · 1× 1.5" racking / pick-up / whirlpool arm · 1× 1.5" tee

Not included (by design): heating elements, controllers, pumps, hoses/quick-connects. Passivate before first use, as with all stainless brewing gear.

Grow it: K220 + Malt Pipe · Ø600 steam condenser set · heating elements · 2" Tri-Clamp fittings · all brewing kettles

Technical drawing

Download the K220 vessel drawing (PDF)

BrewTaurus K220 kettle / HLT vessel technical drawing with dimensions

Which K-Series size fits your batch

Same Tri-Clamp architecture in three sizes. Pick by the batch you want in the fermenter. Your size is highlighted.

Size Brim-full · inner Ø Batch into fermenter Max grain: malt pipe / mash tun
K40 48.1 L · Ø350 mm 20–35 L ~10.5 / ~13 kg
K80 93.3 L · Ø450 mm 45–70 L ~22 / ~26 kg
K220 225 L · Ø600 mm 110–175 L ~57 / ~64 kg

FAQ

What is the real working volume?
225 L brim-full. Plan up to ~200 L pre-boil to keep boil-overs away — that gives 110–175 L into the fermenter.

Which heating elements fit?
Any 2" Tri-Clamp element — for example our 2.2 kW or 3.5 kW (230 V). Power control is external (PID + SSR or a power controller), and each element needs its own dedicated, RCD-protected circuit. Our K220 systems run 2× 3.5 kW (7 kW).

Can I brew indoors?
Yes. Swap the flat lid for the Ø600 steam condenser set — it condenses the boil vapour instead of venting it into the room. See the set for its water connection.

Is the HLT the same vessel?
Yes. The K220 HLT uses this body and adds a removable HERMS coil and its fittings.

Product photos may show a prototype or a different size; production units follow the manufacturing drawing.
