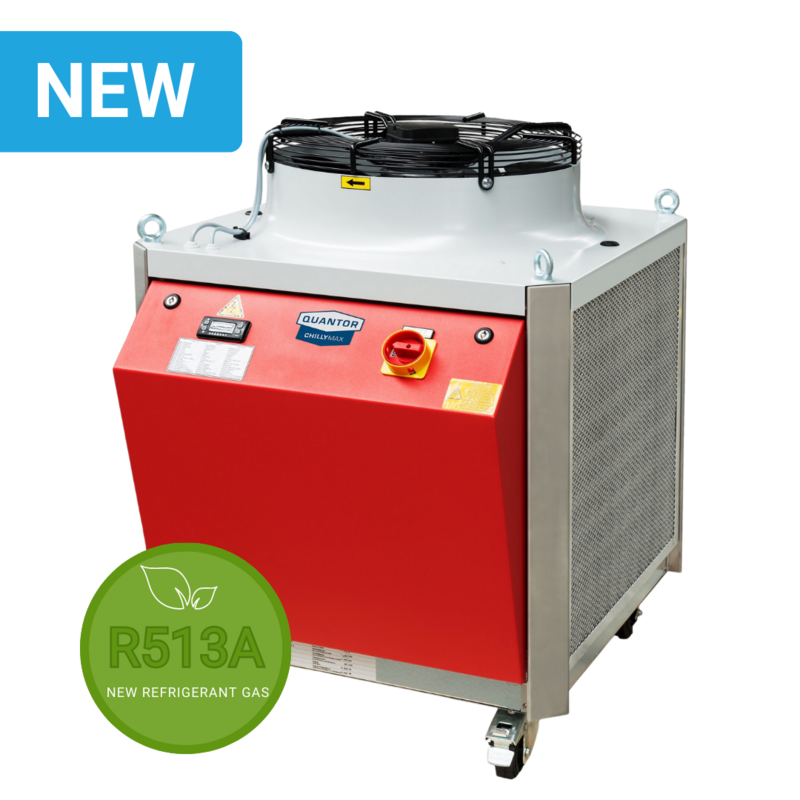

Quantor Chilly MAX 50 · Glycol Chiller & Heater 6.4 kW

Cooling and heating for a 500–1,000 L brewery from one mobile unit.

The Quantor Chilly MAX 50 is a compact chiller on wheels with a 3 kW electric heating rod built into its stainless tank — so the same glycol loop that crash-cools your beer can warm a tank for a diacetyl rest or hold a kombucha ferment in winter. Scroll compressor, micro-channel condenser, plate heat exchanger, Grundfos pump with pressure-switch control and a level switch are all built in; side panels lift off for service and the fan blows upward, so it can stand against a wall. Made in Germany by WTG-Quantor.

Key points

• 6.4 kW cooling (at +15°C water / +32°C ambient) + 3 kW heating
• Water range -10°C to +40°C — lager, crash-cool and heat from one loop
• Mobile on wheels; top-blowing fan, place any side to a wall
• 30 L stainless tank, Grundfos CM 3-4 pump, dry-run and pressure protection
• Insulated water path, IP54, eco R513A refrigerant
• 400 V three-phase supply

Ships on a pallet directly from the manufacturer in Germany, typically 2–6 weeks. Freight is quoted to your address — request a quote and we reply within 24 hours with a delivered price. Add 30–35% propylene glycol for outlet temperatures below +7°C.

Sized for a 500–1,000 L brewhouse with 5–8 tanks. See all PRO Cooling · pairs with a glycol water tank for larger cellars
