PF220 Fully Jacketed Unitank — Tank Only
PF220 Fully Jacketed Unitank — Tank Only
Reserved from the next production batch
We'll email you the moment it ships.
🚛 Ships on a pallet · 53 kg · Shipping to Germany: €49
Delivery 3–5 business days · Shipping details · Free shipping over €149 does not apply to fermenters, kettles and other large items
Essential Add-ons
Tick what you need — everything is added to cart together.
Read customer reviews · ✓ 2-year EU warranty
Couldn't load pickup availability
The PF220 Fully Jacketed Unitank, tank only — for brewers who already own their fittings.
The same 220.4 L tank as our PF220 complete set: 304 stainless, a glycol jacket over the whole cone and the cylinder, 2.0 bar working pressure (2.5 bar max). It comes on its stainless stand with adjustable M10 feet and with the removable neoprene insulation jacket. The valves, caps and pressure gear from the set are not included.
The 8" manway on top is open. To close and pressurise the tank you need an 8" Tri-Clamp closure — the 8" multi-port reducer cap from the set or your own — with an 8" band clamp, an 8" gasket and a PRV. Never pressurise the tank without a PRV.
At a glance

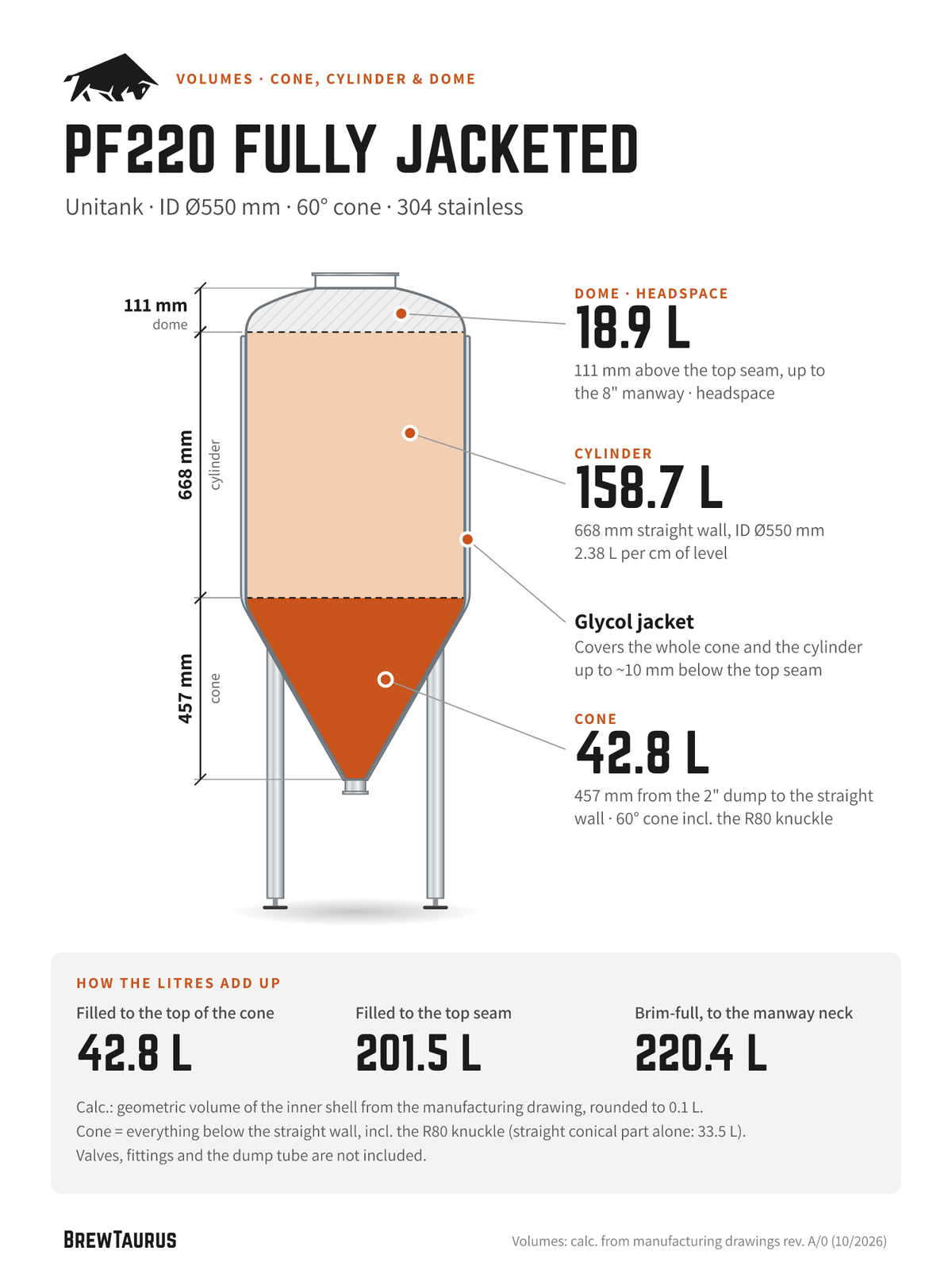

| Volume | 220.4 L brim-full · cone 42.8 L · cylinder 158.7 L |
| Fermentation batch | ~20–200 L |
| Pressure | Tank: 2.0 bar working · 2.5 bar max · always use a PRV Cooling jacket: 0.2 bar working · 0.3 bar max |
| Cooling | Glycol jacket over the cone and the cylinder · 2× 1.5" TC glycol ports |
| Ports | 8" TC manway · 2" TC dump · 2" TC heating-element port · 3× 1.5" TC on the cone · 2× 1.5" TC on the dome |
| Height | 1572.2 mm without the adjustable feet |
| Weight | 46 kg net |
| Material | 304 stainless steel |
In the box
- PF220 fully jacketed Unitank (60° cone)
- Stainless stand with adjustable M10 feet
- Removable neoprene insulation jacket
Not included
Everything in the complete set's accessory pack: stepped 8"→4"→2"→1.5" reducer assembly, clamps and gaskets (8", 4", 2", 1.5"), 2" and 1.5" butterfly valves, 1.5" sample tap, 1.5" thermowell, 1.5" pressure gauge, 1.5" PRV, 2" TC cap with gas post and PRV, blind caps. Also not included: heating element, glycol chiller and hoses, temperature controller, CO₂ cylinder and regulator. Passivate before first use, as with all stainless brewing gear.
Pressure safety: never run the tank above 2.0 bar working pressure, and never pressurise the cooling jacket on its own while the tank is unpressurised. Every tank is air-pressure tested at the factory with a 4-hour static hold.
Want it ready to brew? The PF220 Fully Jacketed Unitank complete set comes with every fitting listed above — full specifications, volumes, drawing and FAQ are on that page · Run the jacket off a glycol chiller · See all Pressurised Fermenters
Photos show the tank with the complete-set fittings fitted; the tank-only version ships without them.
