K80 Malt Pipe — 64 L Stainless Grain Basket

The K80 malt pipe on its own — for the K80 kettle you already have, or any kettle it fits.

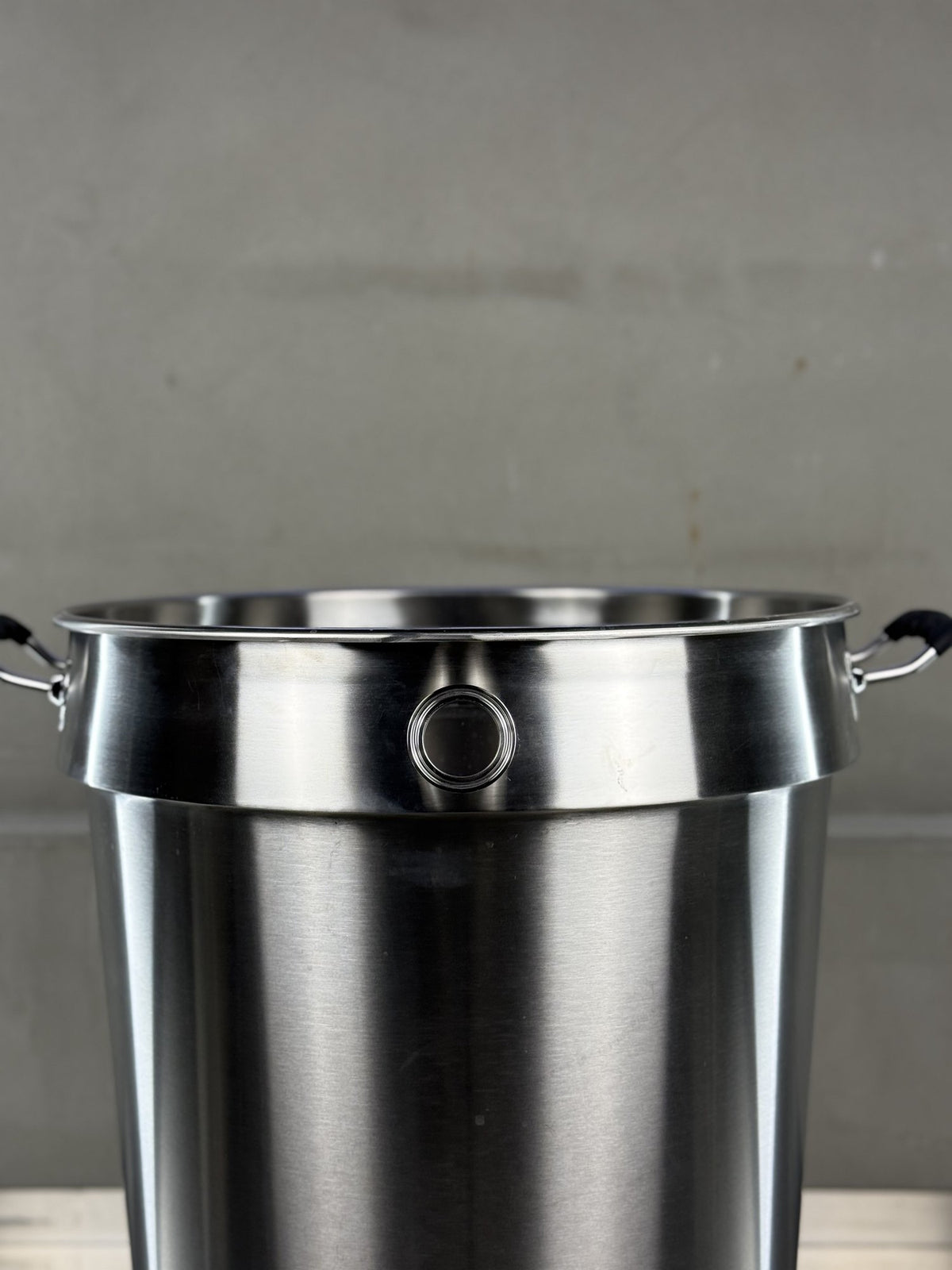

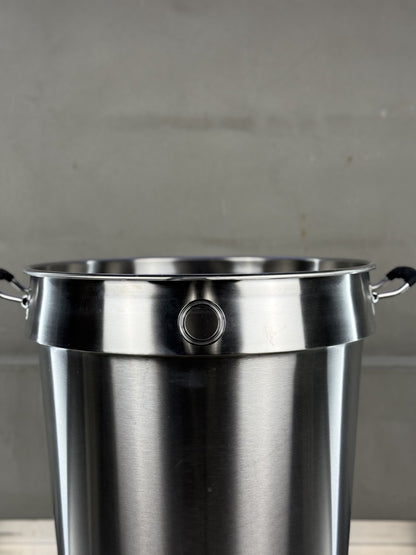

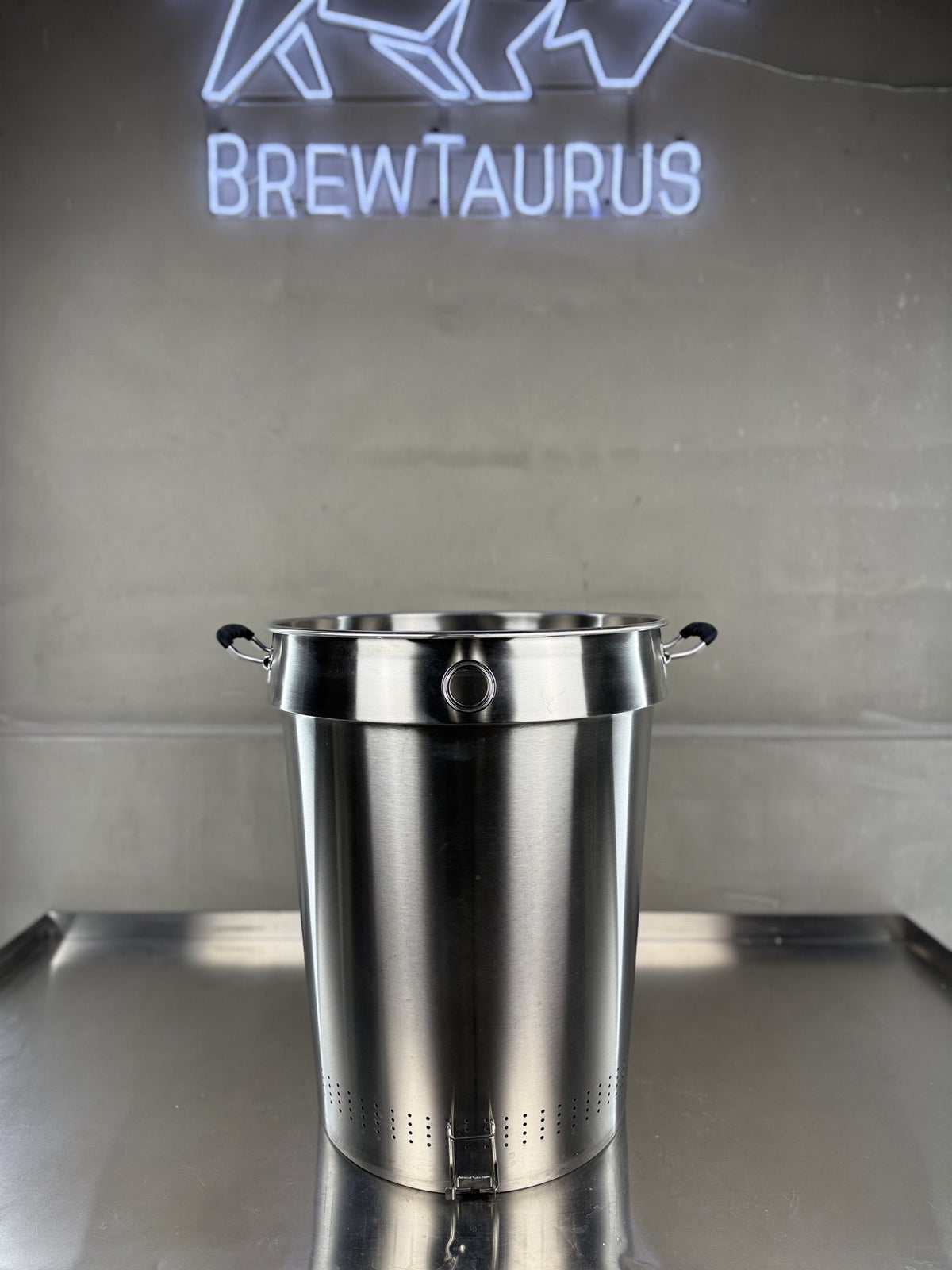

A 64 L stainless grain basket made for the BrewTaurus K80 Boil Kettle: laser-cut bottom + four rows of side perforations, a 1.5" Tri-Clamp port on the top ring and two silicone handles. Mash in it, lift it, hang it on the rim to drain, sparge — up to ~22 kg of grain in the K80 kettle.

Malt pipe only. No kettle, lid or fittings. Need the kettle too? Take the K80 Boil Kettle + Malt Pipe — Complete Set or add the K80 Boil Kettle — Vessel Only.

In the K80 kettle

• Mash position: the top of the pipe sits 841.2 mm above the floor.
• Drain position: the pipe hangs on the kettle rim with its bottom at the 80 L line, so the wort drains back while you sparge. Its top then sits 1256.9 mm above the floor.
• 14 L sits below the malt pipe. It is part of your strike water but sits under the grain bed — count it when you set mash thickness.
• At full grain the malt pipe weighs more than 50 kg even after draining. To lift it fully out, plan at least 1.34 m to the top of the pipe (rim + pipe height) plus room for your hands or hoist. Use a hoist or pulley and heat-resistant gloves.
• The K80 kettle lid sits on the top ring of the malt pipe.

What's in the box

• 1× K80 malt pipe / grain basket (64 L), laser-cut bottom + four rows of side perforations, 1.5" TC port on the top ring, two silicone handles

Not included: kettle, lid, fittings, heating elements, pump. Passivate before first use, as with all stainless brewing gear.

With the kettle: K80 Boil Kettle + Malt Pipe — Complete Set · K80 Boil Kettle — Vessel Only · K80 1V system · all brewing kettles

FAQ

Will it fit my own kettle?
It is made for the K80 Boil Kettle (93.3 L, inner Ø450 mm). For another kettle, compare the overall diameter (Ø475 mm) and the height (579.8 mm) with your kettle before you order.

How much grain fits?
About 22 kg in the K80 kettle. The full brewing figures for this pairing are on the K80 Boil Kettle + Malt Pipe page.

Do I need a hoist?
At full grain the malt pipe weighs more than 50 kg even after draining. Use a hoist or pulley and heat-resistant gloves.

Product photos may show a prototype or a different size; production units follow the manufacturing drawing.
