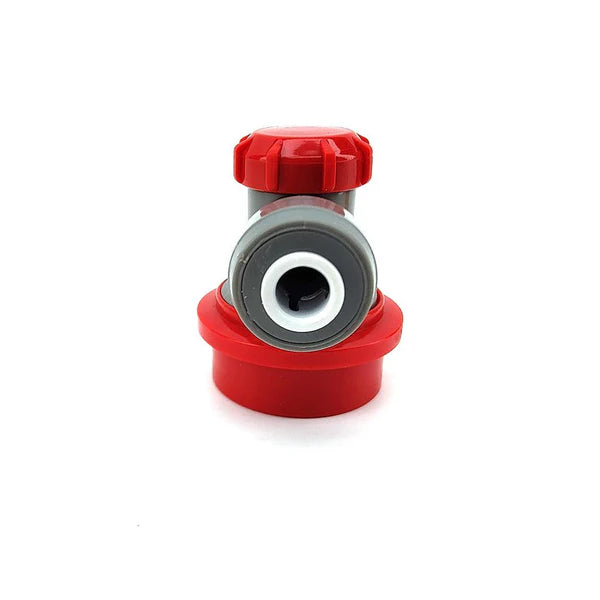

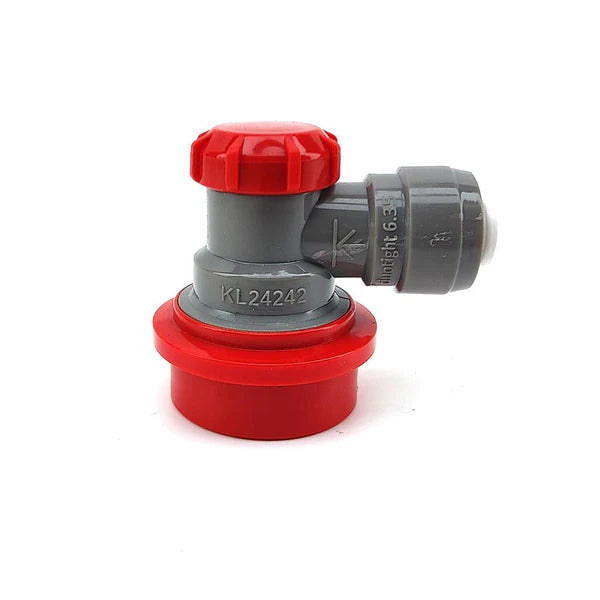

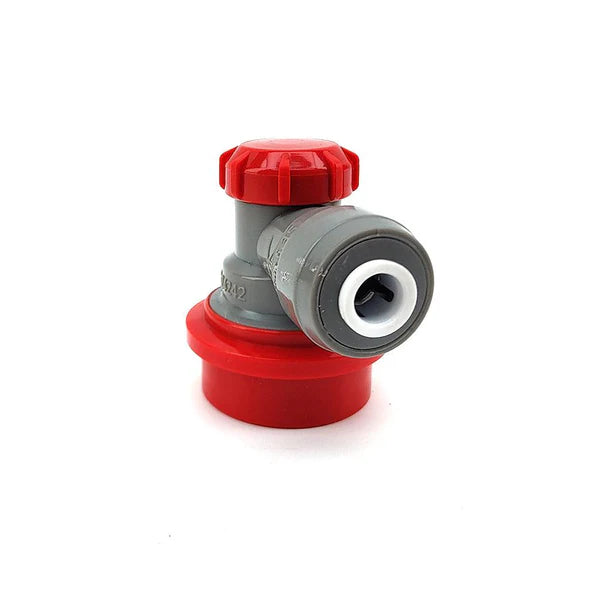

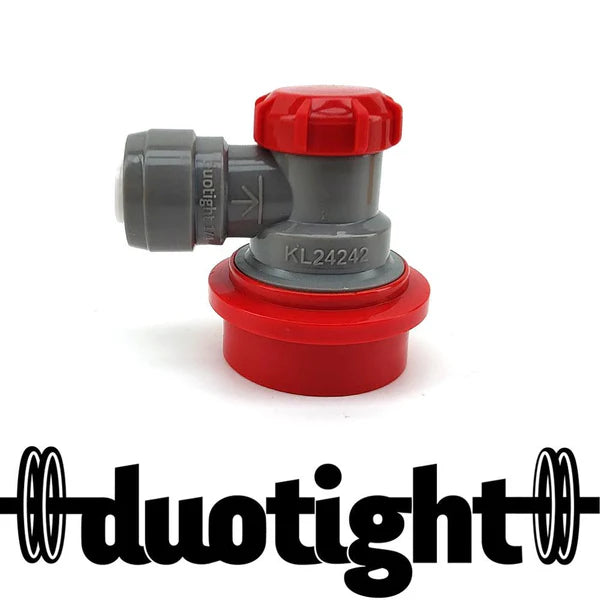

duotight 6.35mm (1/4) x Ball Lock Disconnect - (Grey + Red Gas)
duotight 6.35mm (1/4) x Ball Lock Disconnect - (Grey + Red Gas)
Couldn't load pickup availability
Push-fit ball-lock gas disconnect — 6.35 mm (1/4") CO₂ line straight in, no clamps.
The duotight ball-lock disconnect swaps the usual barb-and-clamp for an integrated push-in fitting: push your 6.35 mm EVABarrier gas line in and it locks. Compact, chemical-resistant and fully hand-serviceable. This is the gas (CO₂-in) version.
Key points
- Integrated 6.35 mm (1/4") duotight push-in — connect EVABarrier gas line with no tools or clamps.
- Overmoulded poppet — couples and disconnects up to 150 psi without o-ring blow-outs.
- Compact body — ideal for tight keg setups, manifolds and fridge systems.
- Tool-less strip-down — hand-loosen the cap to clean; no screwdriver.
- Chemical-resistant — handles phosphoric, caustic and peroxide cleaners.
Which duotight disconnect do you need?
| Disconnect | Line | Side | Colour |
| 6.35 mm Liquid | 6.35 mm (1/4") | Liquid / beer | Black + Yellow |
| 6.35 mm Gas | 6.35 mm (1/4") | Gas / CO₂ | Grey + Red |
| 8 mm Gas | 8 mm (5/16") | Gas / CO₂ | Grey + Red |
Specifications
| Fitting | 6.35 mm (1/4") duotight push-in |
| Side | Gas / CO₂ (grey + red) |
| Max pressure | Couples / disconnects up to 150 psi |
| Body | Engineering polyketone (PK) resin |
| Poppet / seals | PP/EPDM overmoulded poppet; EPDM seals |
| Springs & balls | Stainless steel |
| Fits | 6.35 mm (1/4") EVABarrier; Cornelius / AEB-style ball-lock posts |
Use & care: Cut the tube square, push it fully home, then tug to confirm it's locked. To release, press the collar and pull the tube out. Hand-tighten only — no tools. Strip by hand to clean, then rinse and dry before reassembly.
Complete the pair with the 6.35 mm liquid disconnect, add 6.35 mm line from the Hoses range, or browse the full duotight system in KegLand.
