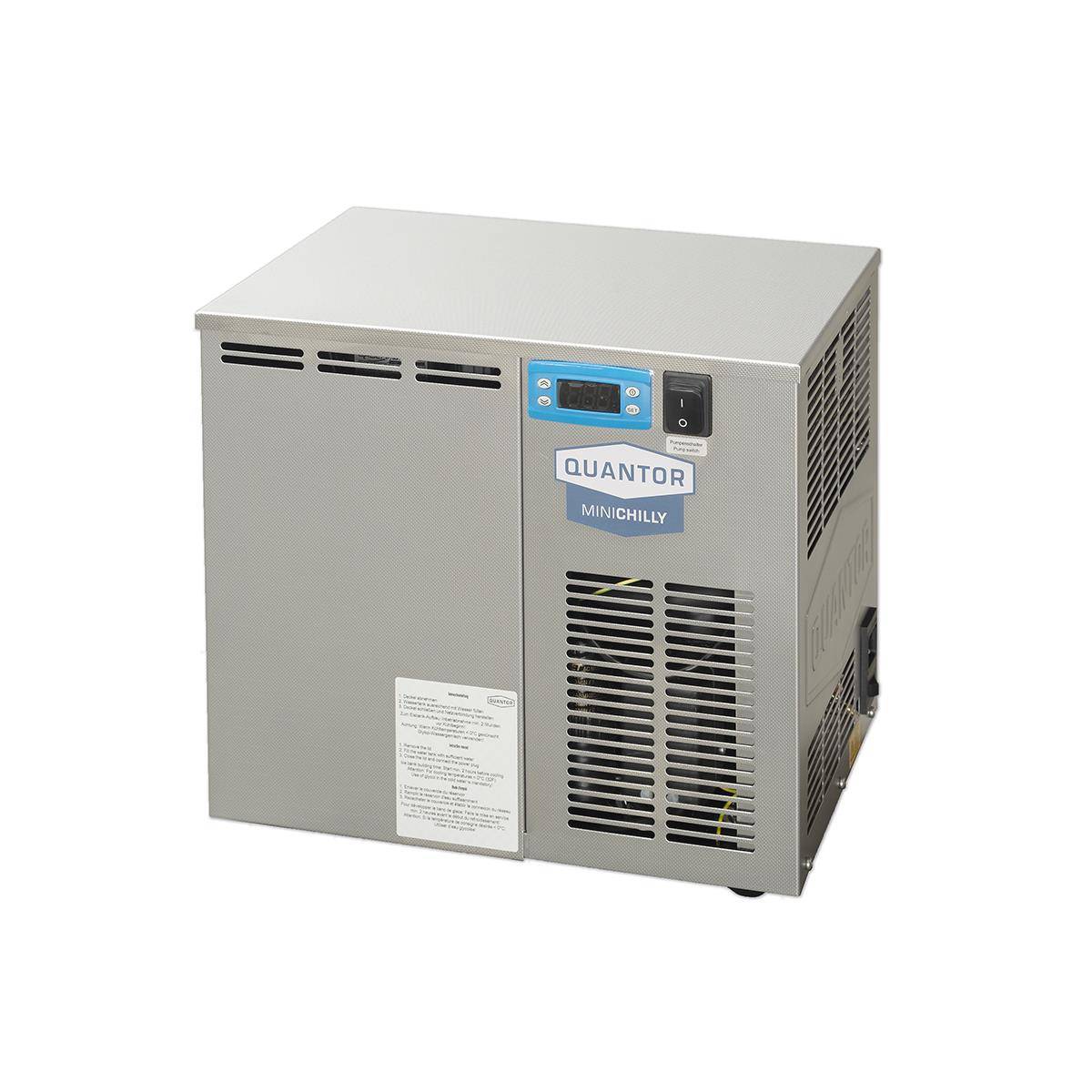

Quantor MiniChilly STD 03
Quantor MiniChilly STD 03
Couldn't load pickup availability
The complete compact chiller — pump and controller built in.
The Quantor MiniChilly is a stainless steel glycol chiller built from the best components, with a fill-level display, leading controller, built-in pump, detachable cord and on/off switch — everything you need to crash-cool tanks and control fermentation, integrated. Cools to -6°C (optimal beer cooling around -2°C) with an integrated ice-bank option. The 03 is the smallest, entry model — ideal for home and micro-breweries.
Key points
- Built-in pump, fill-level display, controller and on/off switch
- Cools to -6°C (beer cooling ~-2°C); integrated ice-bank option
- Eco R290 refrigerant; durable stainless steel
- Made in Germany by WTG-Quantor
Prefer to add your own pumps? See the MiniChilly SB BLACK · See all Glycol Chillers
Which model fits your volume
Approximate total jacketed-fermenter volume each Quantor MiniChilly can hold at fermentation temperature, plus its cold-crash capacity. Your model is highlighted — size up if you plan to add vessels.
| Model | Cooling @ 0°C (BTU/hr) | Fermenting (L) | Cold crash (L) |
| MiniChilly 03 | 648 | 234 | 58.5 |
| MiniChilly 05 | 1331 | 481 | 83 |
| MiniChilly 09 | 1877 | 819 | 117 |
| MiniChilly 17 | 3412 | 1404 | 234 |
Specifications
| Cooling power | 190 W @ 0°C · 260 W @ 15°C nominal |
| Capacity guide | Fermenting ~234 L · cold crash ~58.5 L |
| Min temperature | -6°C (beer ~-2°C) |
| Tank volume / pump | 6.3 L · 38 W pump |
| Power input | ~0.36 HP · 260 W nominal · R290 |
| Controller / plug | Eliwell ST120 · IEC C19 · CEE 7/4 Type F |
| Dimensions (H×W×L) | 340 × 310 × 420 mm |
| Weight (empty) | 19 kg |
