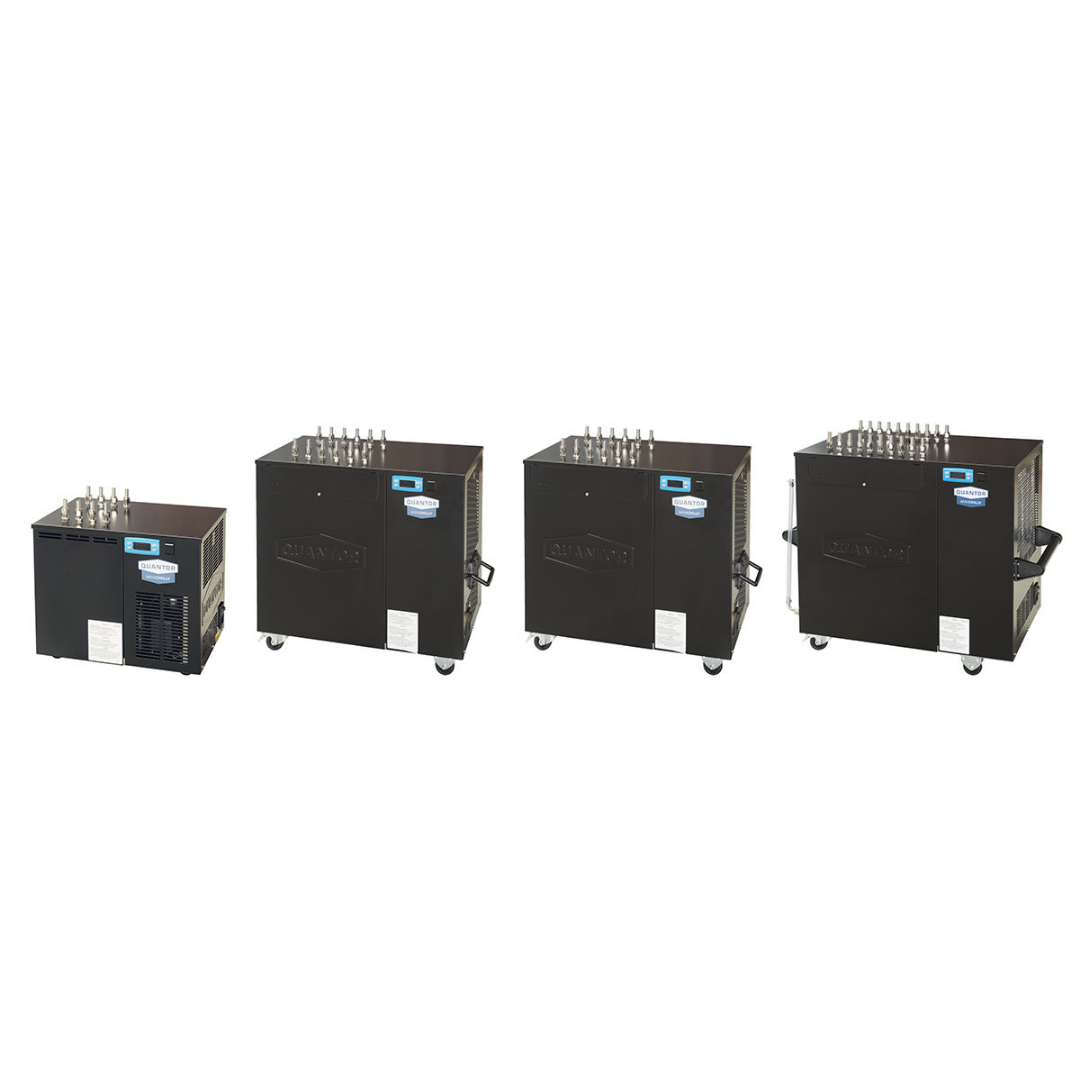

Quantor MiniChilly SB-Comp BLACK 03
Quantor MiniChilly SB-Comp BLACK 03
Couldn't load pickup availability
| Quantor Minichilly 03 | Quantor Minichilly 05 | Quantor Minichilly 09 | Quantor Minichilly 17 | |
|---|---|---|---|---|
| Capacity (0°C) [BTUs/hr] | 648 | 1331 | 1877 | 3412 |
| Fermenting [liter] | 234 | 481 | 819 | 1404 |
| Cold Crash [liter] | 58.5 | 83 | 117 | 234 |
* Please be aware that the capacity requirements are influenced by ambient temperatures and the amount of exothermic heat produced during fermentation. This information is based on average usage.
The new model MiniChilly SB - BLACK, made of stainless steel, has a cooling circuit with a water-bath for placing individual submersible pumps for each tank. It is specifically suitable for several leading brewing systems on the market, as well as for small wine and beer tanks. It is a durable system for cooling of fermentation and storage tanks as well as for crushing for BBT and Lagering.
The unit is equipped with special grooves for threading and protecting the pumps cables. It is mobile on wheels for easy handling. Barbs 3/8" suited to the fitting of common submersible pumps allow easy connection with plastic tubes for glycol water. It is an ideal solution for any small winemaker or brewer that does not want to deal with installing fixed glycol piping. The MiniChilly - SB - BLACK is able to cool water down to -6 °C using glycol.
Please note that submersible pumps are not part of package.
- Compact cooling unit made of stainless steel
- Ice-bank at 0°C (32°F) water temperature
- For low water temperature ranges down to -6°C
- Environmentally friendly refrigerant R290
- Manufactured in Germany by WTG-Quantor.
| Model | Minichilly 03 | Minichilly 05 | Minichilly 09 | Minichilly 17 |
|---|---|---|---|---|
| Type of Controller | Eliwell ST120 | Eliwell ST120 | Eliwell ST120 | Eliwell ST120 |
| Cooling Power Nominal 15°C [Watt] | 260 W | 600 W | 900 W | 1650 W |
| Cooling Capacity Nominal 15°C [BTUs/hr] | 886 Btu | 2046 Btu | 3069 Btu | 5627 Btu |
| Cooling Power at 0°C [Watt] | 190 W | 390 W | 550 W | 1000 W |
| Cooling Capacity at 0°C [BTUs/hr] | 648 Btu | 1331 Btu | 1877 Btu | 3412 Btu |
| Tank Volume [liter] | 6.3 L | 27 L | 27 L | 63 L |
| Power Socket | IEC C19 | IEC C19 | IEC C19 | IEC C19 |
| Power Cable Plug Type | CEE 714 Typ F | CEE 714 Typ F | CEE 714 Typ F | CEE 714 Typ F |
| Power Input [HP] | ca 0.36 | ca 0.38 | ca 0.67 | ca 1.04 |
| Nominal Power Input [watt] | 260 W | 280 W | 490 W | 790 W |
| Pump Power [W] | 38 W | 165 W | 165 W | 165 W |
| Refrigerant | R290 | R290 | R290 | R290 |
| Product Height [mm] | 340 mm | 520 mm | 520 mm | 600 mm |
| Product Width [mm] | 310 mm | 380 mm | 380 mm | 420 mm |
| Product Length [mm] | 420 mm | 640 mm | 640 mm | 750 mm |
| Weight (empty) [kg] | 19 kg | 33 kg | 33 kg | 42 kg |
