JoinTech Fermentation Glycol Chiller G20.

500W compressor cooling. 2 independently controlled pumps. Compact multi-fermenter solution.

Overview

The G20 is a compact, compressor-driven glycol chiller designed for serious homebrewers and small-scale breweries.

With 500W cooling power and two integrated pumps, it can independently control two fermenters at different temperatures.

Powerful enough for well-insulated fermenters up to 200L, or multiple smaller vessels.

Cooling performance

• Cooling power: 500W (0.67HP) rated at 22°C
• Power consumption: 155W
• Refrigerant: R600a (Isobutane)
• Reservoir volume: 16.42L

Compressor-based cooling provides significantly higher efficiency and better performance in hot ambient environments compared to thermoelectric units.

Suitable for crash cooling and stable fermentation control even in warm garages or breweries.

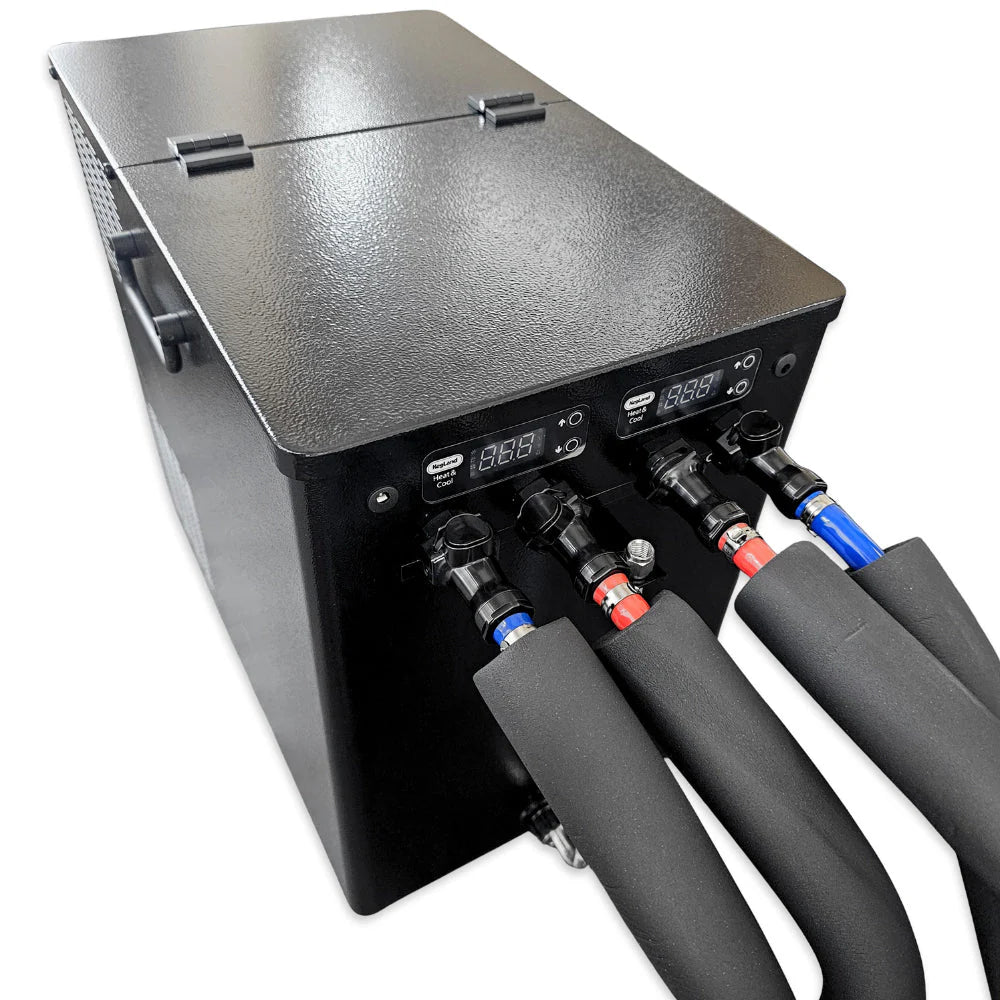

Integrated dual pumps

• 2 × integrated pumps (individually controlled)
• Max head (per pump): 5 meters
• Max flow (per pump): 600 L/hour

Each pump has its own temperature controller, allowing independent fermentation temperatures.

No additional wiring required. Pumps are factory-installed and ready to use.

Connections

• Fittings: JoinTech 1/2" Dry Break Male
• Requires matching 1/2" Dry Break Female fittings (13mm ID hose)

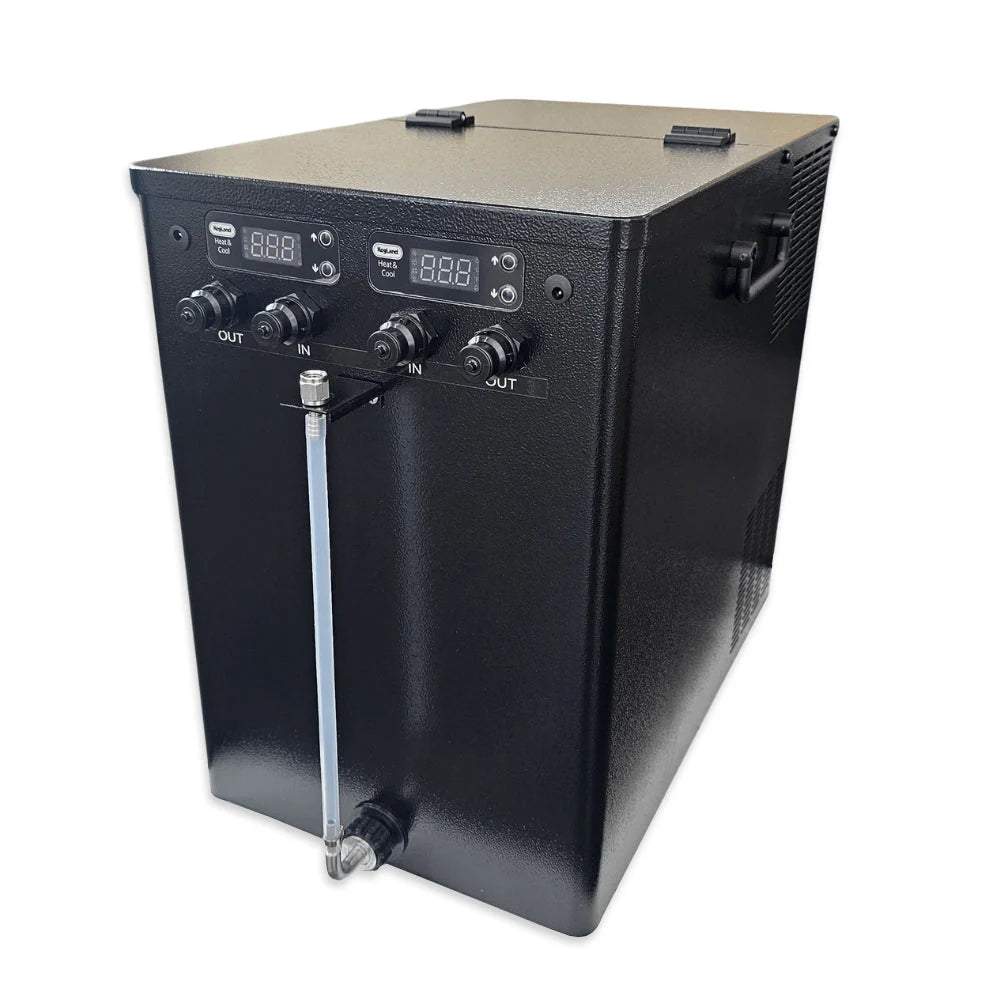

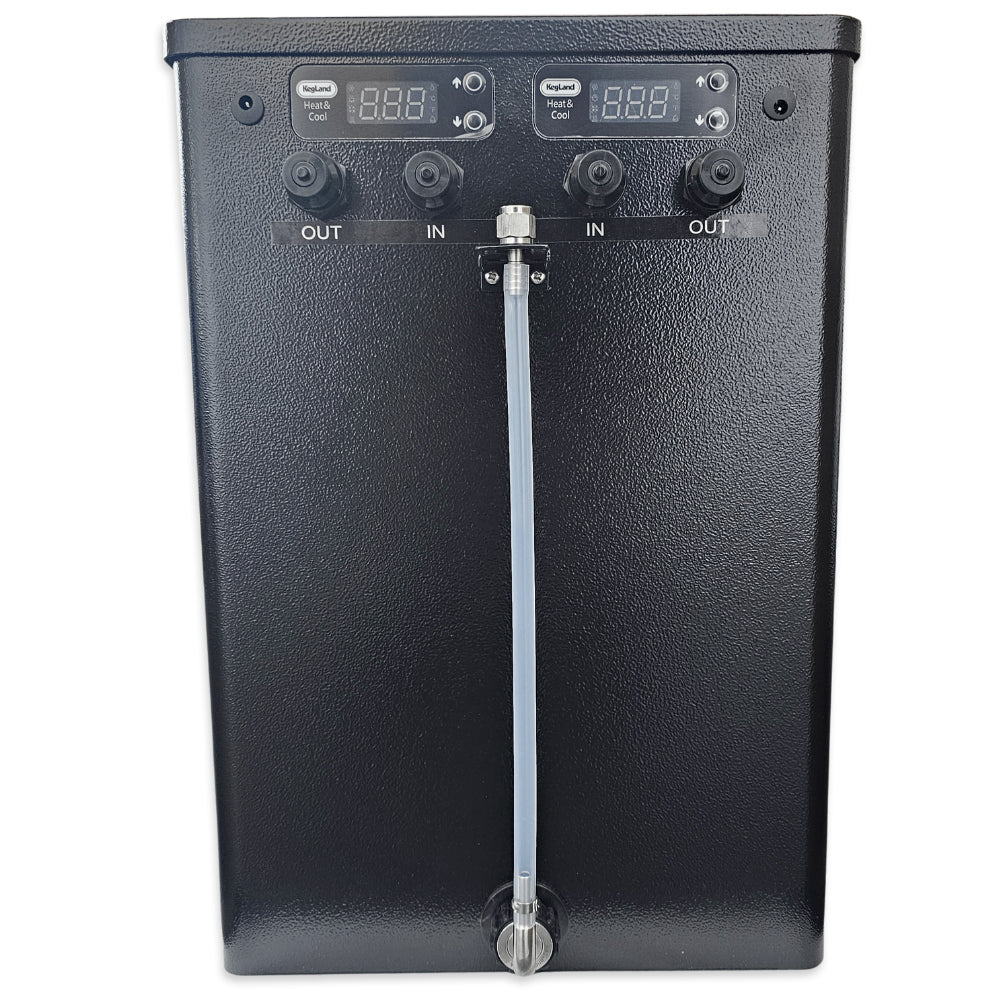

Improved push-in sight glass tubing with stabiliser bracket included.

Recommended glycol mix

For optimal performance use Propylene Glycol at approx. 20–30% concentration.

This provides freeze protection down to approximately -8°C depending on mixture ratio.

Chilling wort

The G20 is designed to assist cooling after initial water chilling.

Important: Always cool wort below 50°C using water before switching to glycol. Direct cooling from boiling temperatures may overload the compressor.

Compatible with:

• Immersion chillers
• Counterflow chillers
• Plate chillers

Heating capability

The controller supports heating output control via auxiliary port.

Submersible heating devices must be installed by a qualified electrician.

Installation requirements

• Minimum 100mm clearance around ventilation areas
• Regular radiator cleaning required
• Stable, level surface

Dimensions

• Size: 510 × 300 × 460 mm (L × W × H)

Controller settings (Advanced Parameters)

Access advanced menu by pressing UP + DOWN simultaneously.

Navigate parameters F0–F13 to configure temperature limits, alarms, compressor delay and differential settings.

Technical summary

• Cooling type: Compressor
• Cooling capacity: 500W
• Reservoir: 16.42L
• Pumps: 2 × integrated (independent control)
• Max head: 5m
• Max flow: 600L/h per pump
• Refrigerant: R600a
• Power draw: 155W
