CF-600 · Jacketed Conical Fermenter 600/750 L (2.0 bar)
CF-600 · Jacketed Conical Fermenter 600/750 L (2.0 bar)
Made to order — priced per project, not per cart
Freight for a crated, palletised unit is quoted to your address (country, access, unloading). Heating power, ports and branding are confirmed to your site before production. Payment by pro-forma invoice — 50% deposit, balance before dispatch; B2B at 0% VAT with a valid EU VAT number.
Start with the 3-minute questionnaire · or email us — we reply within 24 hours with a delivered price.
3-minute questionnaire — we reply within 24 hours with a configuration proposal and a delivered price. Prefer e-mail? info@brewtaurus.com
Couldn't load pickup availability
The 600 L fermenter with a real pressure rating.
The BrewTaurus PRO CF-600 is a jacketed conical fermenter rated 2.0 bar working / 4.0 bar design and test pressure — closed fermentation, pressure transfers and spunding are part of the design, not an upgrade. 600 L effective, 750 L total volume for kräusen headspace.
Vessel architecture
- SUS304 inner vessel Ø900 mm, 60° cone, dimple-plate glycol jacket over cylinder and cone
- 80 mm PU insulation, brushed SUS304 outer shell Ø1060 mm
- Jacket pressure-tested at 4.0 bar for 24 h before dispatch · TIG welded · interior pickled and passivated
- Four height-adjustable legs with leveling pads · lifting lugs
Ports & fittings
Ø50.8 drain / dump · Ø38.1 beer outlet · Ø38.1 glycol inlet and outlet · G1/2 thermowell with temperature probe · Ø38.1 sampling valve · pressure gauge · Ø38.1 spunding valve port · pressure relief valve · Ø38.1 CIP arm with 360° spray ball · Ø38.1 carbonation port · 430 × 330 mm side manhole · Ø50.8 rotary racking arm · Ø101.6 dry-hopping port · Ø50.8 drain. All product connections tri-clamp.
Production-scale cellar
From 600 L up the side manhole gives full access for yeast harvesting and inspection, the Ø101.6 dry-hopping port takes a hop dosing vessel or dry-hop cannon, and the Ø50.8 racking arm keeps transfers fast. Above 500 L we supply fermenters only — carbonation and serving happen in a bright beer tank of the same size.
Installation: glycol supply from a chiller sized to your cellar (Ø38.1 tri-clamp jacket connections), floor drain, level floor rated for approx. 1,127 kg filled. Tri-clamp connections throughout — no welding on site. Commissioning guided by our Prague team on a video call.
Technical summary
| Type | Jacketed conical fermenter |
| Volume | 600 L effective · 750 L total |
| Working pressure | 2.0 bar |
| Design / test pressure | 4.0 bar |
| Jacket | Glycol, dimple plate, cylinder + cone · −7 to +80 °C |
| Material | SUS304 · TIG welded · pickled & passivated |
| Connections | Tri-clamp throughout |
| Lead time | Approx. 12–16 weeks incl. sea freight (made to order) |
Dimensions & vessel data
| Vessel diameter | Ø900 mm |
| Outer diameter incl. insulation | Ø1060 mm |
| Overall height | 2,291 mm |
| Cone | 60° |
| Manhole | 430 × 330 mm side manhole |
| Doorway check | plan doors on the route at ≥ 1,110 mm clear |
| Weight | approx. 340 kg |

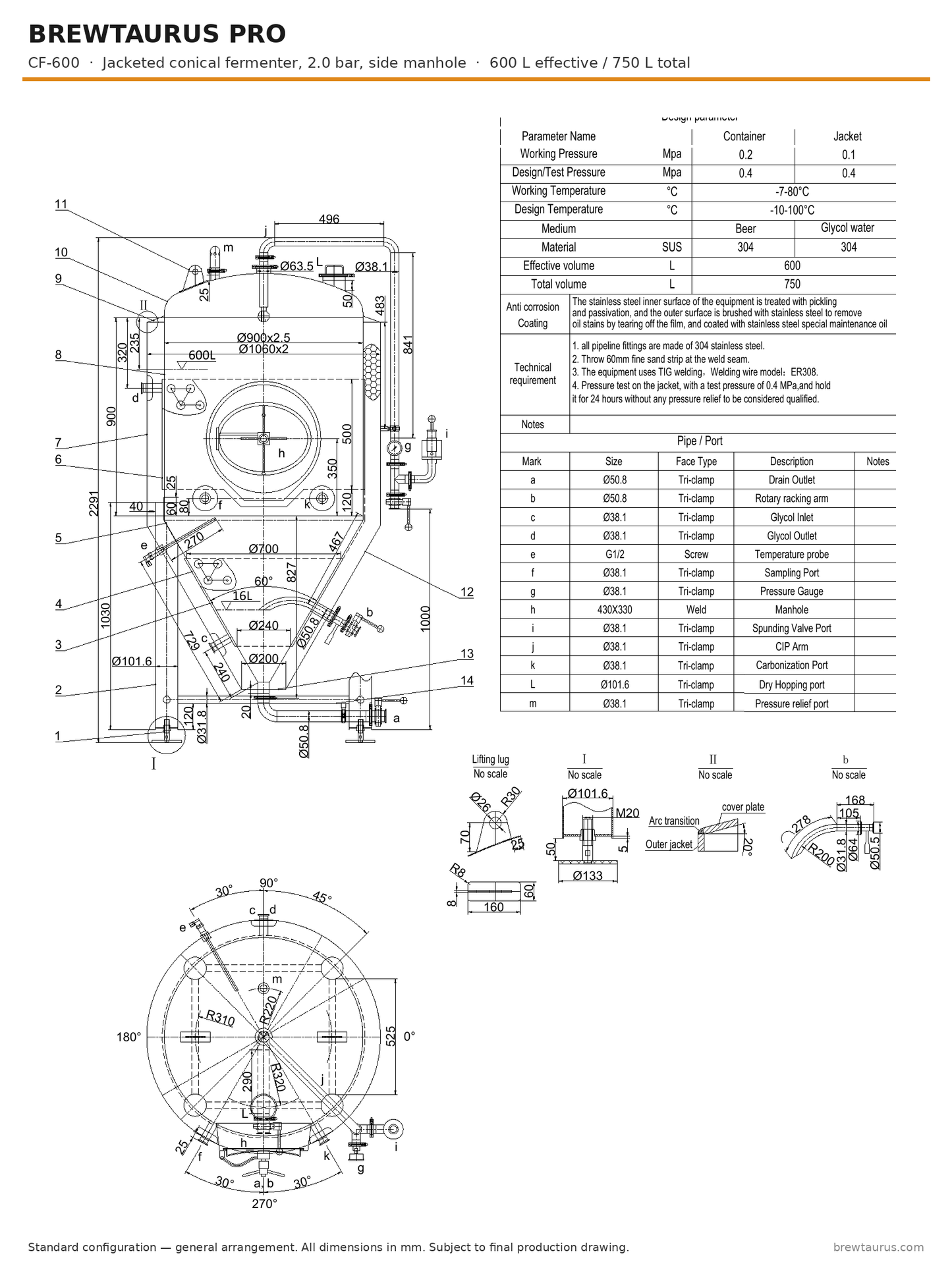

Dimensions from the general arrangement drawing (standard configuration, mm). Port positions and options are confirmed on your drawing before production.
Documentation, warranty & support
- PED 2014/68/EU Module H (EN 13445) — serial-numbered EU Declaration of Conformity for this vessel · CE marking with Notified Body No. 1128 on the nameplate · food-contact declaration (Reg. (EC) 1935/2004)
- Warranty 3 years on the vessel, 1 year on fittings and moving parts
- Spare parts by air within days · commissioning by video call · EU invoice from Prague, no import formalities
