The 400 L fermenter with a real pressure rating.
The BrewTaurus PRO CF-400 is a jacketed conical fermenter rated 2.0 bar working / 4.0 bar design and test pressure — closed fermentation, pressure transfers and spunding are part of the design, not an upgrade. 400 L effective, 500 L total volume for kräusen headspace.
Fermenter or unitank — which one?
Same vessel, same 2.0 bar rating, same glycol jacket. The difference is what happens after fermentation:
| Fermenter | Unitank | |
| What it does | CF-400: ferments the beer, which is then transferred to a bright beer tank (BBT) for carbonation and serving | UT-400: ferments, carbonates and serves from one tank — no BBT needed |
| Fittings | standard port set | standard port set + rotary racking arm, spunding valve, carbonation stone |
| Typical setup | production cellar: 2–3 fermenters share one BBT, fermenters turn over faster | taproom or small cellar: fewer tanks, beer poured straight from the tank |
| Best for | breweries that package or serve from bright tanks | brewpubs, taprooms, limited floor space |
Not sure? Tell us your weekly output and how you serve in the project questionnaire — we recommend the cellar layout with the quote.
Vessel architecture
- SUS304 inner vessel Ø800 mm, 60° cone, dimple-plate glycol jacket over cylinder and cone
- 80 mm PU insulation, brushed SUS304 outer shell Ø960 mm
- Jacket pressure-tested at 4.0 bar for 24 h before dispatch · TIG welded · interior pickled and passivated
- Four height-adjustable legs with leveling pads · lifting lugs
Ports & fittings
Ø38.1 drain / dump · Ø38.1 beer outlet · Ø38.1 glycol inlet and outlet · G1/2 thermowell with temperature probe · Ø38.1 sampling valve · pressure gauge · Ø38.1 spunding valve port · pressure relief valve · Ø38.1 CIP arm with 360° spray ball · Ø38.1 carbonation port · DN350 flanged top manhole · Ø50.8 rotary racking arm · Ø50.8 spare port. All product connections tri-clamp.
Installation: glycol supply from a chiller sized to your cellar (Ø38.1 tri-clamp jacket connections), floor drain, level floor rated for approx. 765 kg filled. Tri-clamp connections throughout — no welding on site. Commissioning guided by our Prague team on a video call.
Technical summary
| Type | Jacketed conical fermenter |
| Volume | 400 L effective · 500 L total |
| Working pressure | 2.0 bar |
| Design / test pressure | 4.0 bar |
| Jacket | Glycol, dimple plate, cylinder + cone · −7 to +80 °C |
| Material | SUS304 · TIG welded · pickled & passivated |
| Connections | Tri-clamp throughout |
| Lead time | Approx. 12–16 weeks incl. sea freight (made to order) |
Dimensions & vessel data
| Vessel diameter | Ø800 mm |
| Outer diameter incl. insulation | Ø960 mm |
| Overall height | 2,014 mm |
| Cone | 60° |
| Manhole | DN350 flanged top manhole |
| Doorway check | plan doors on the route at ≥ 1,010 mm clear |
| Weight | approx. 240 kg |

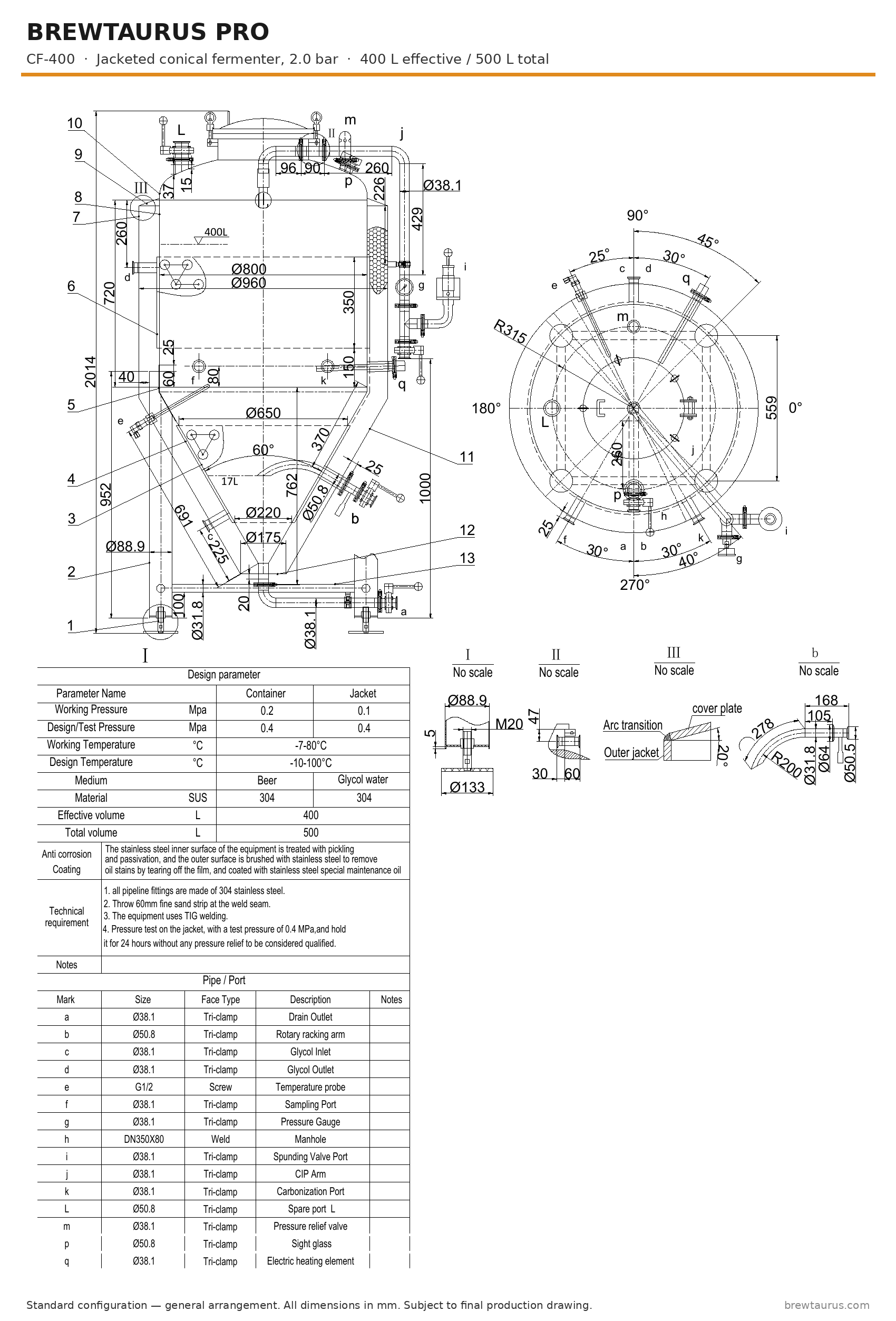

Dimensions from the general arrangement drawing (standard configuration, mm). Port positions and options are confirmed on your drawing before production.
Documentation, warranty & support
- PED 2014/68/EU Module H (EN 13445) — serial-numbered EU Declaration of Conformity for this vessel · CE marking with Notified Body No. 1128 on the nameplate · food-contact declaration (Reg. (EC) 1935/2004)
- Warranty 3 years on the vessel, 1 year on fittings and moving parts
- Spare parts by air within days · commissioning by video call · EU invoice from Prague, no import formalities
