Clear beer, ready to pour — the 400 L bright beer tank.

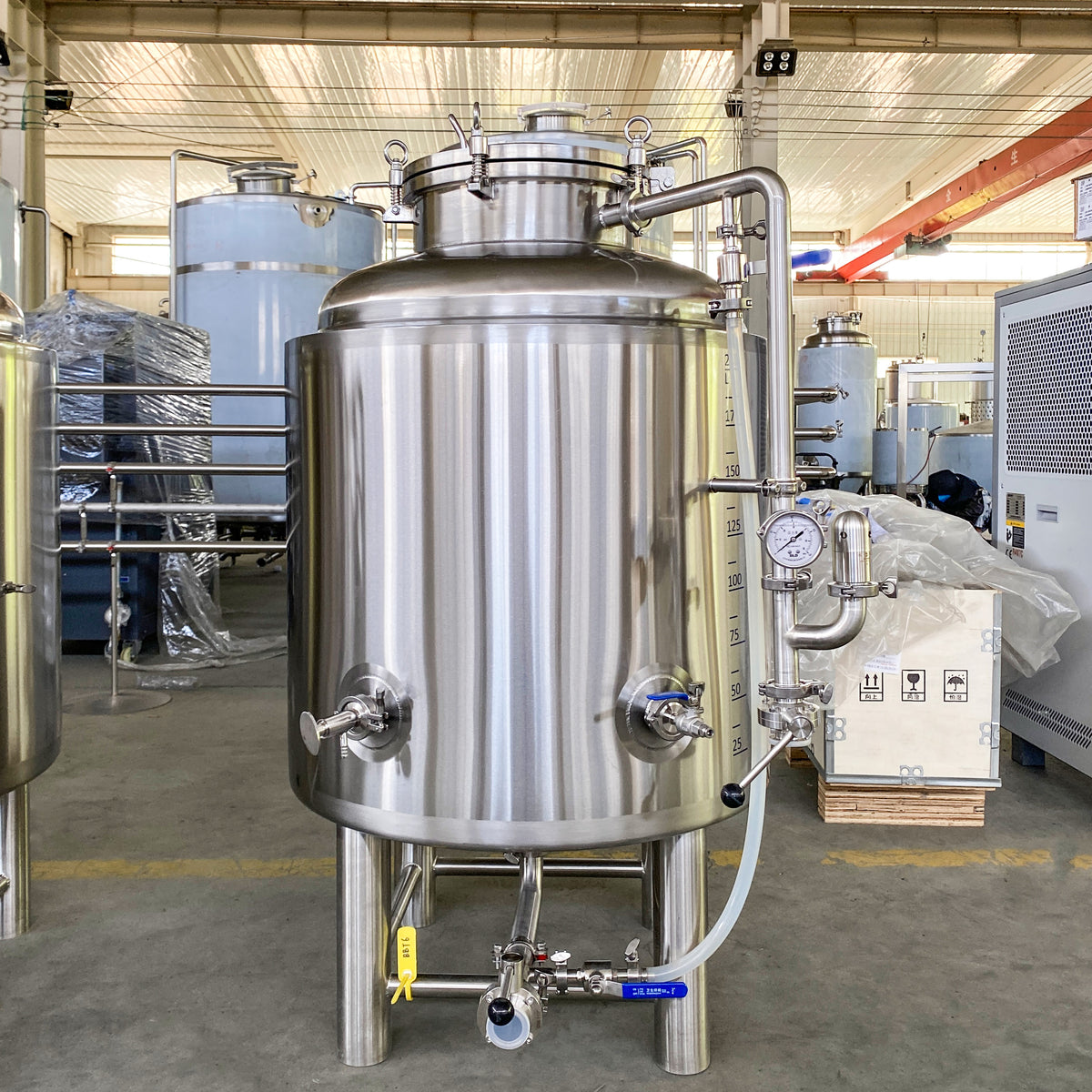

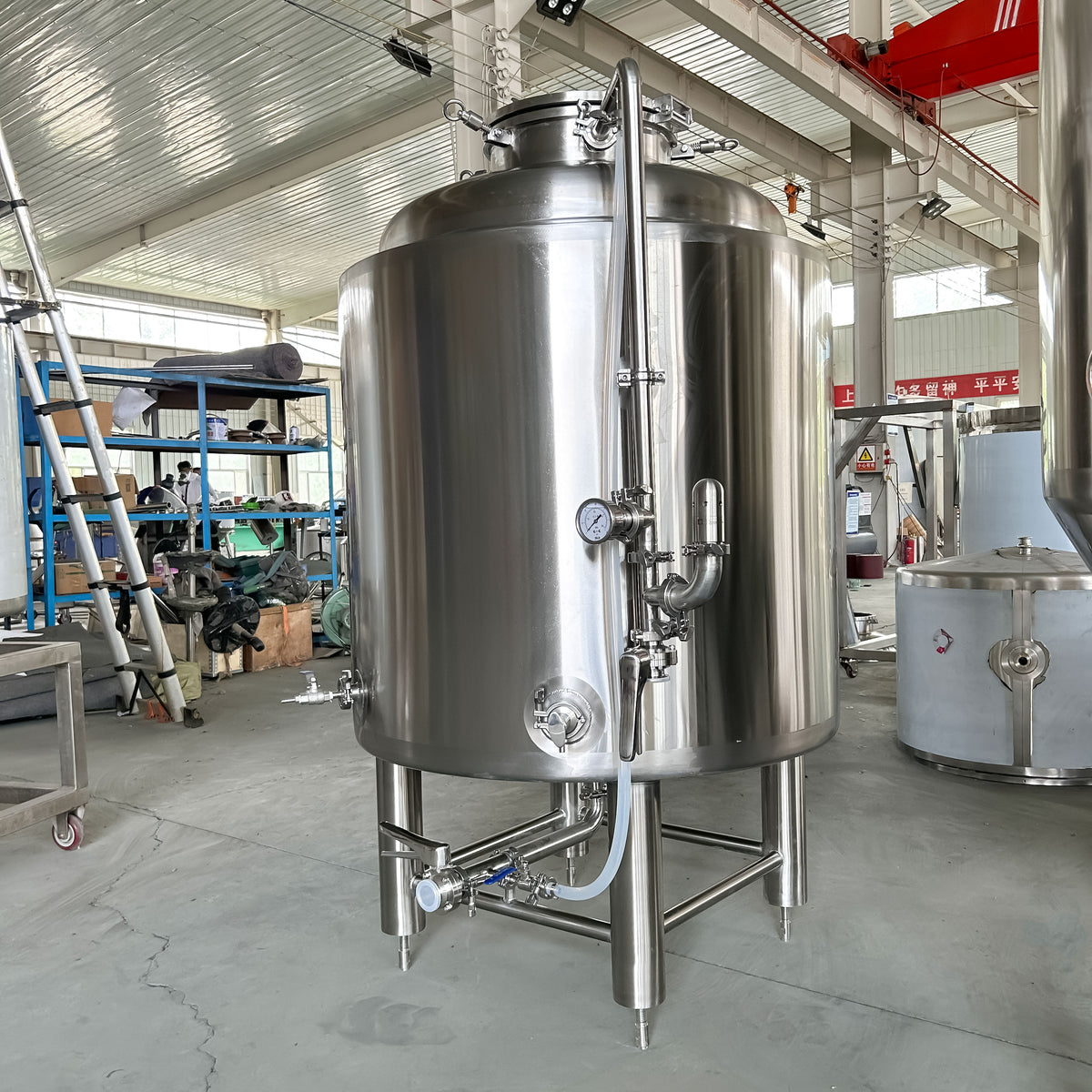

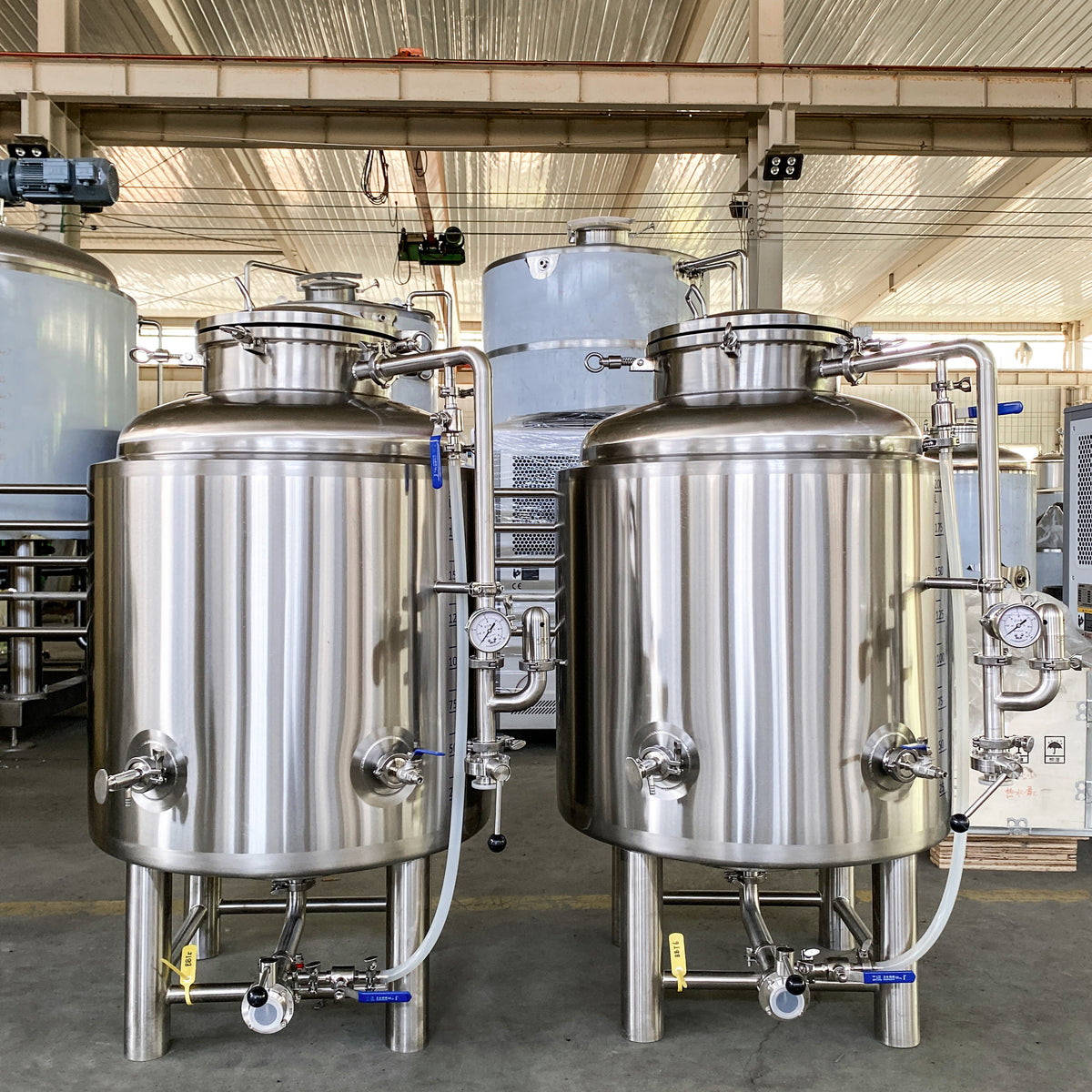

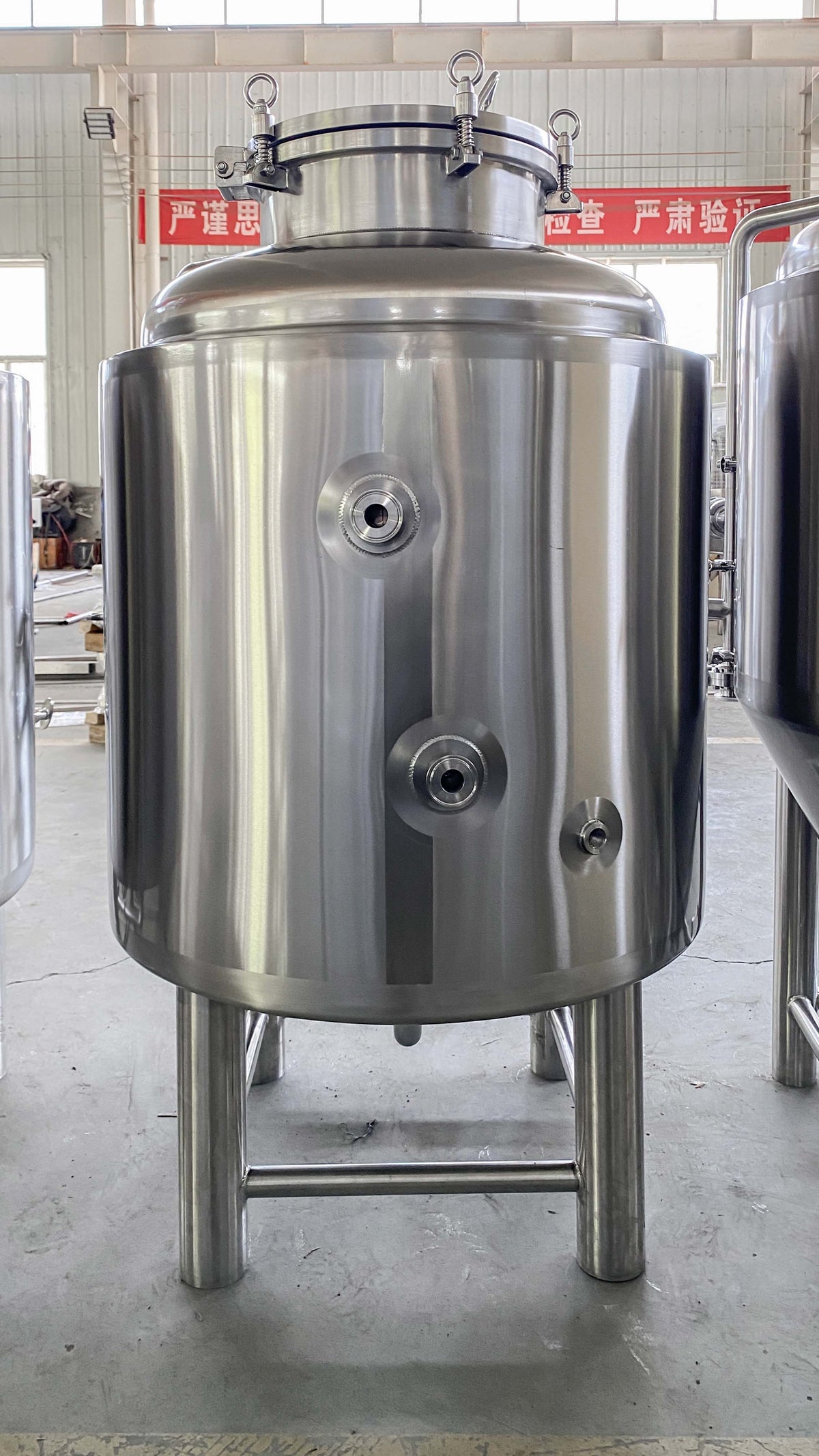

The BrewTaurus PRO BBT-400 is a jacketed bright beer tank rated 2.0 bar working / 4.0 bar design and test pressure for maturation, forced carbonation and serving. 400 L effective, 560 L total, with a sight tube for level reading and a carbonation stone port for carbonating in under 24 hours.
Vessel architecture
- SUS304 inner vessel Ø900 mm, dished top and 160° dished bottom, dimple-plate glycol jacket
- 80 mm PU insulation, brushed SUS304 outer shell Ø1060 mm
- Jacket pressure-tested at 4.0 bar for 24 h before dispatch · TIG welded · interior pickled and passivated
- Four height-adjustable legs with leveling pads · lifting lugs
Ports & fittings

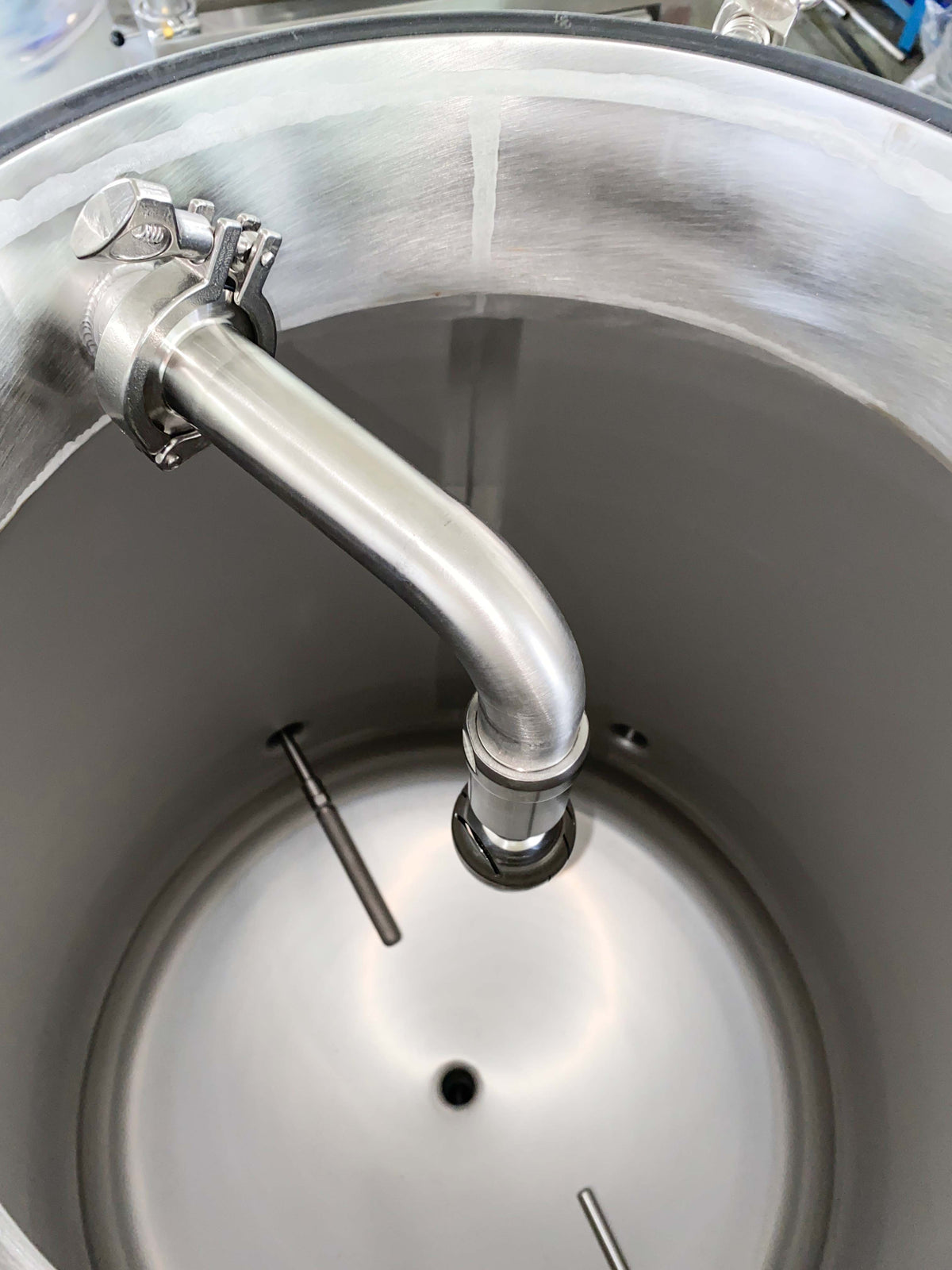

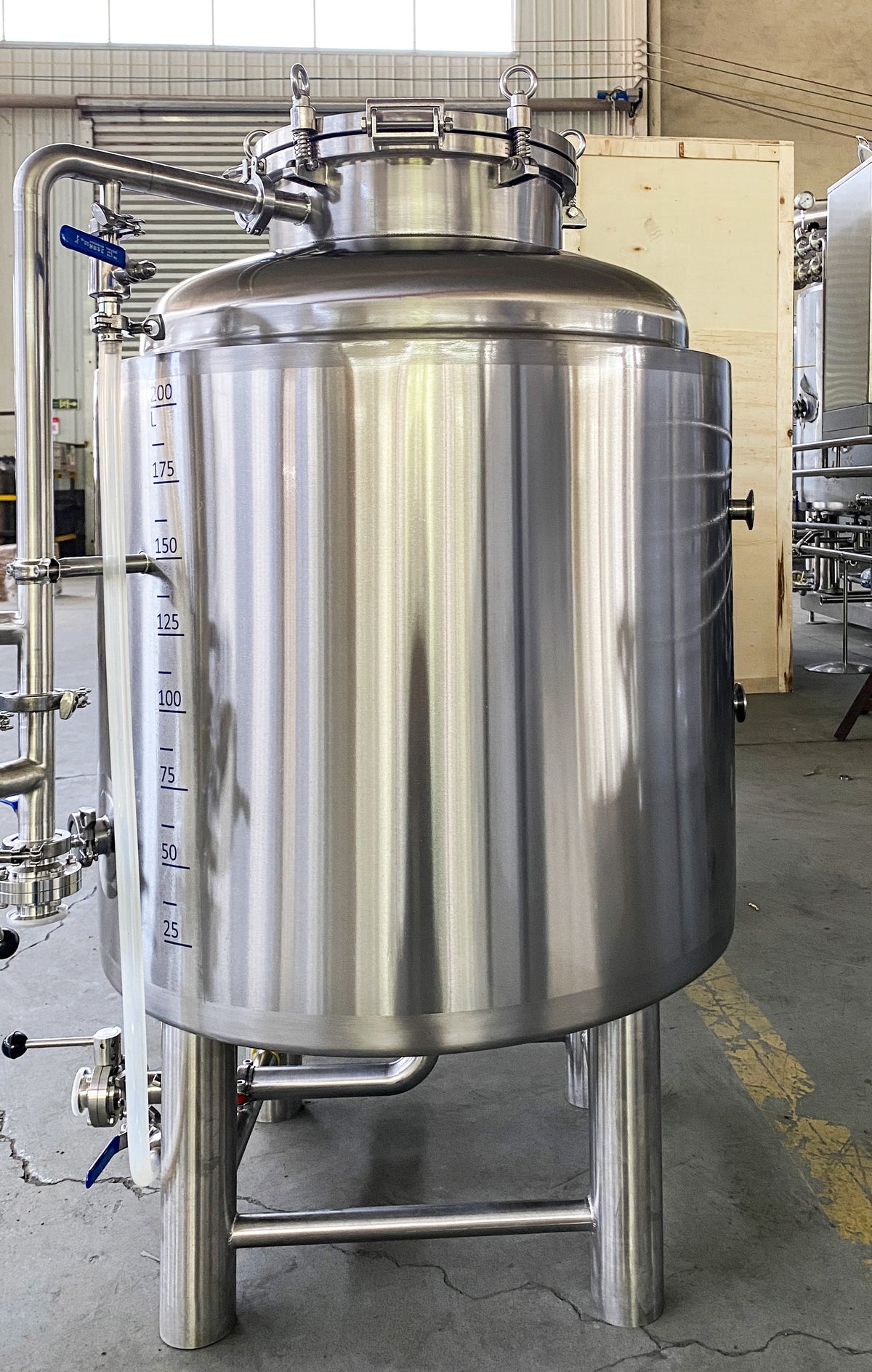

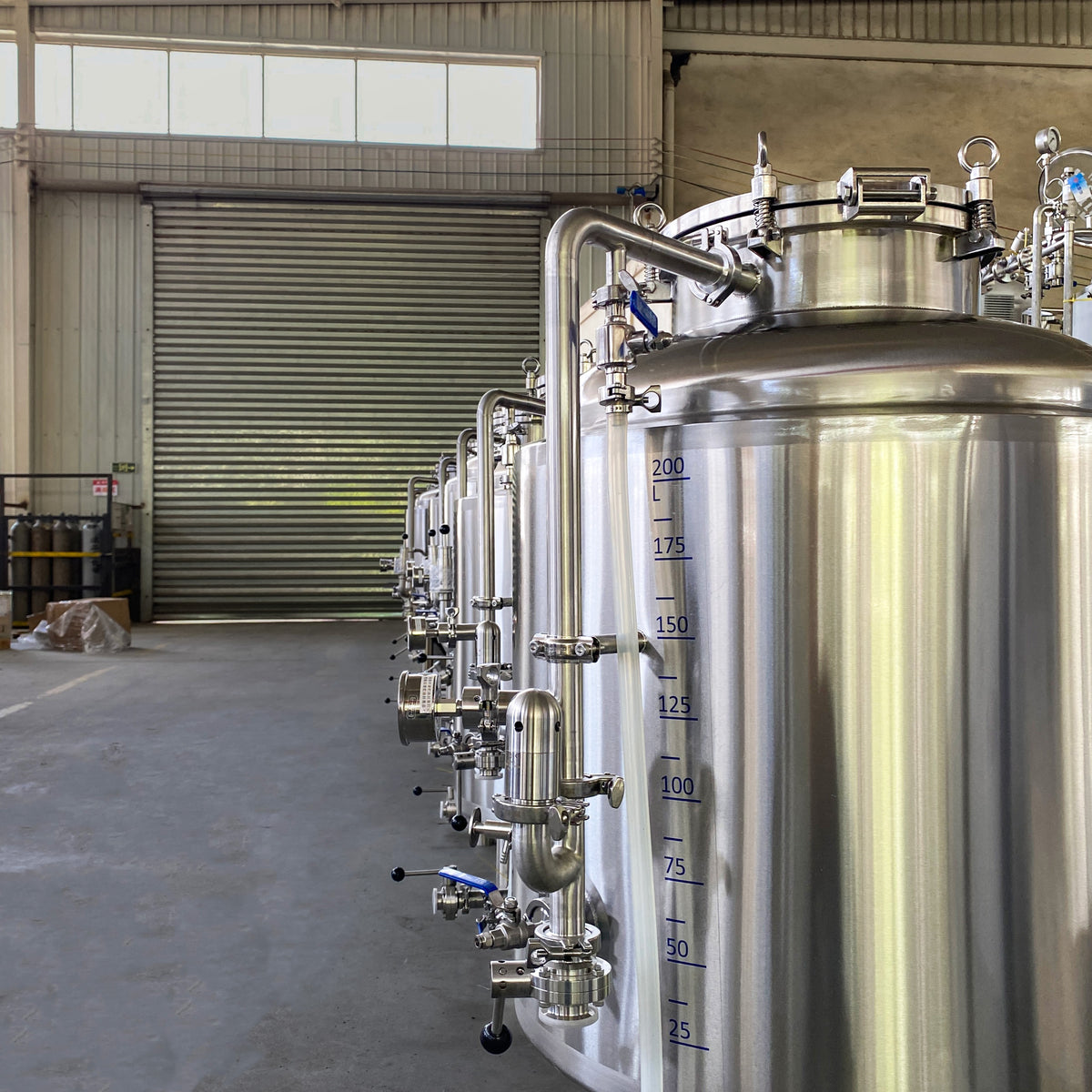

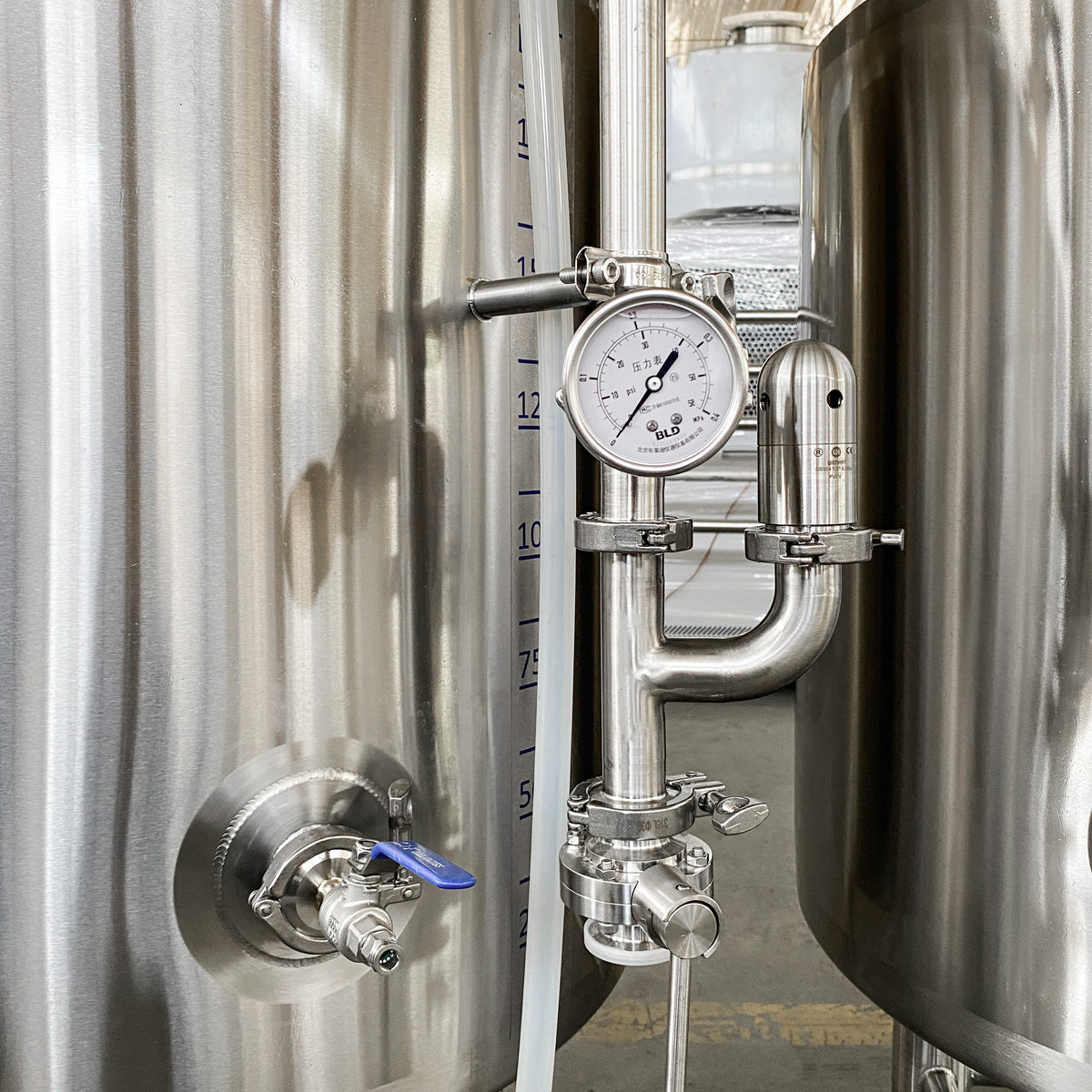

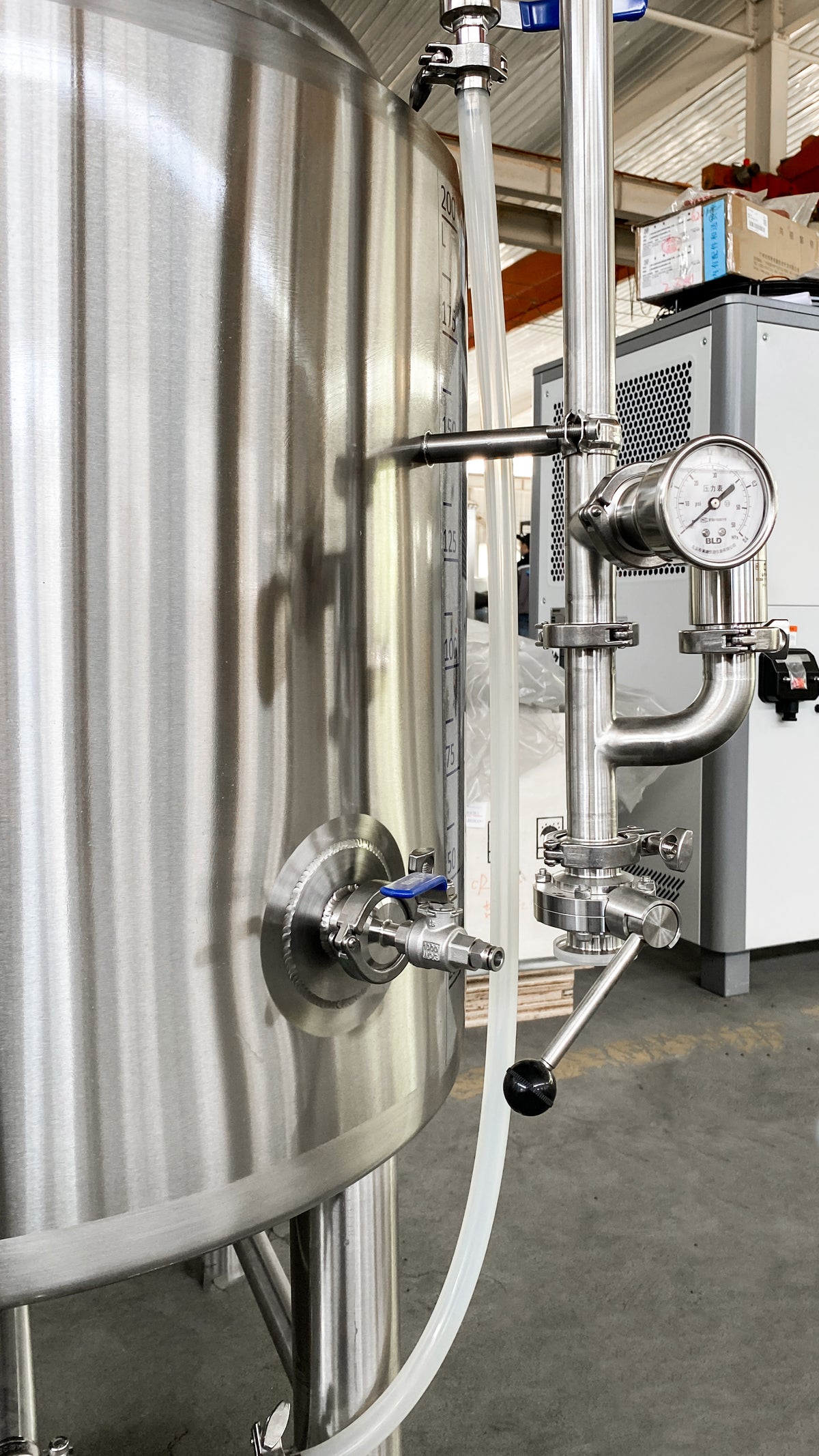

Ø50.8 drain / beer outlet · Ø32 glycol inlet and outlet · G1/2 thermowell with temperature probe · Ø38.1 sampling valve · pressure gauge · pressure relief valve · Ø38.1 CIP arm with 360° spray ball · Ø38.1 carbonation port · Ø19 sight tube (liquid level) · DN400 flanged top manhole. All product connections tri-clamp.
Fermenter and bright tank
Pair the BBT-400 with a CF-400 of the same size: ferment in the conical, transfer under pressure to the bright tank, carbonate and serve from it while the next batch is already fermenting. One bright tank per two fermenters is a common starting ratio.
Installation: glycol supply from a chiller sized to your cellar (Ø32 tri-clamp jacket connections), CO2 supply for carbonation and serving, floor drain, level floor rated for approx. 828 kg filled. Tri-clamp throughout — no welding on site.
Technical summary
| Type | Jacketed bright beer tank (serving / maturation) |
| Volume | 400 L effective · 560 L total |
| Working pressure | 2.0 bar |
| Design / test pressure | 4.0 bar |
| Jacket | Glycol, dimple plate · −7 to +80 °C |
| Material | SUS304 · TIG welded · pickled & passivated |
| Connections | Tri-clamp throughout |
| Lead time | Approx. 12–16 weeks incl. sea freight (made to order) |
Dimensions & vessel data
| Vessel diameter | Ø900 mm |
| Outer diameter incl. insulation | Ø1060 mm |
| Overall height | 1,731 mm |
| Manhole | DN400 flanged top manhole |
| Doorway check | plan doors on the route at ≥ 1,110 mm clear |
| Weight | approx. 240 kg |

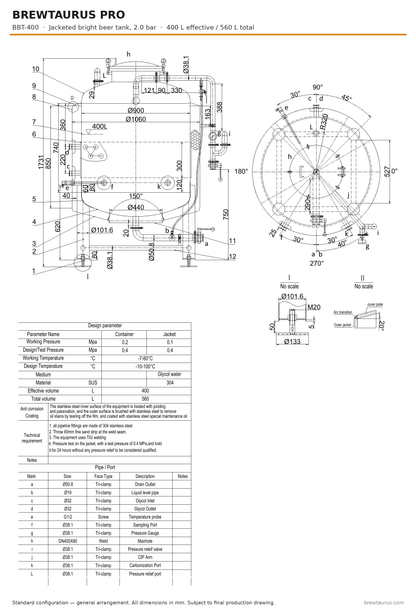

Dimensions from the general arrangement drawing (standard configuration, mm). Port positions and options are confirmed on your drawing before production.
Documentation, warranty & support
- PED 2014/68/EU Module H (EN 13445) — serial-numbered EU Declaration of Conformity for this vessel · CE marking with Notified Body No. 1128 on the nameplate · food-contact declaration (Reg. (EC) 1935/2004)
- Warranty 3 years on the vessel, 1 year on fittings and moving parts
- Spare parts by air within days · commissioning by video call · EU invoice from Prague, no import formalities
