1.5" Hose Adaptor 12.7mm barb hose

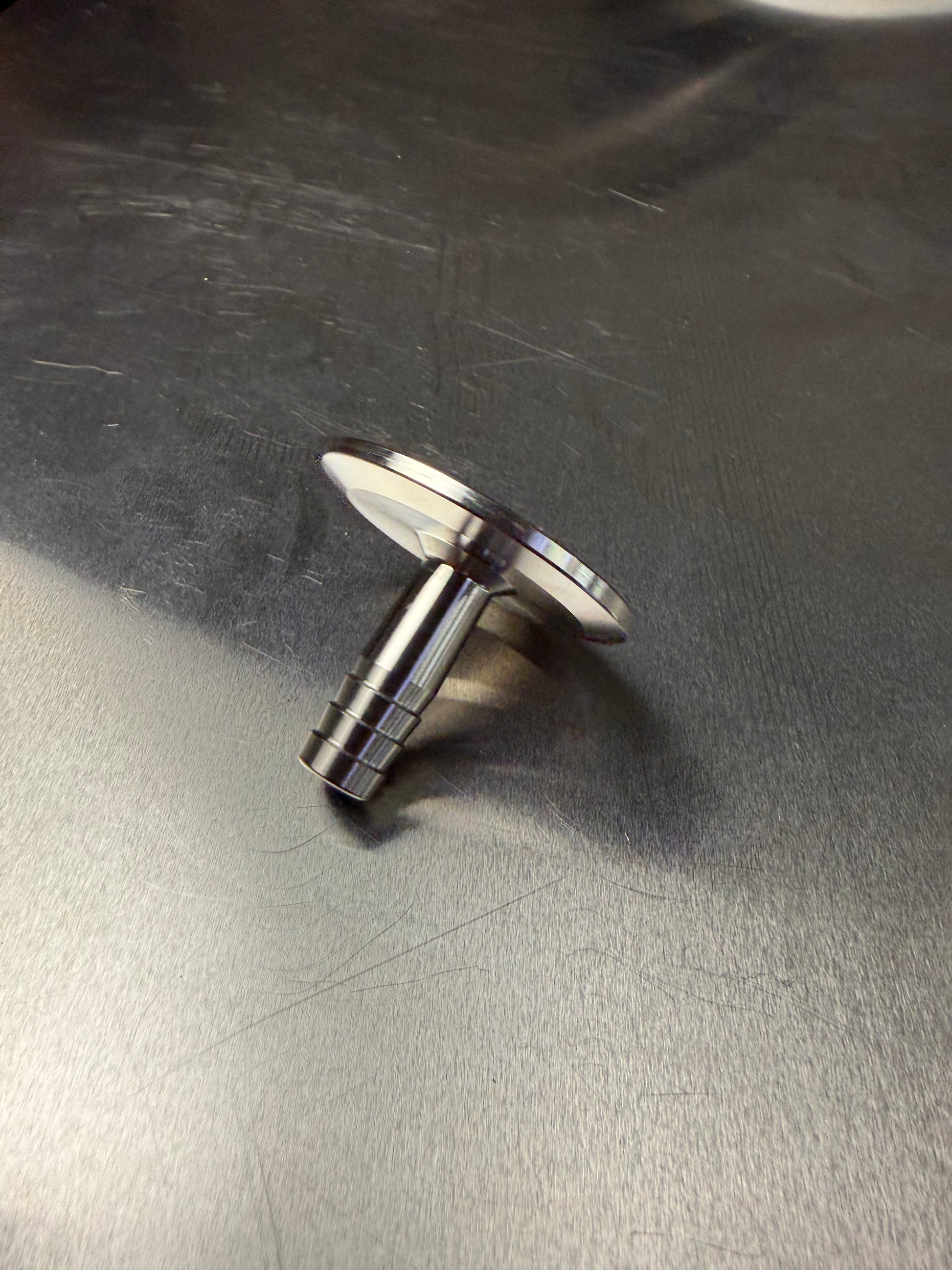

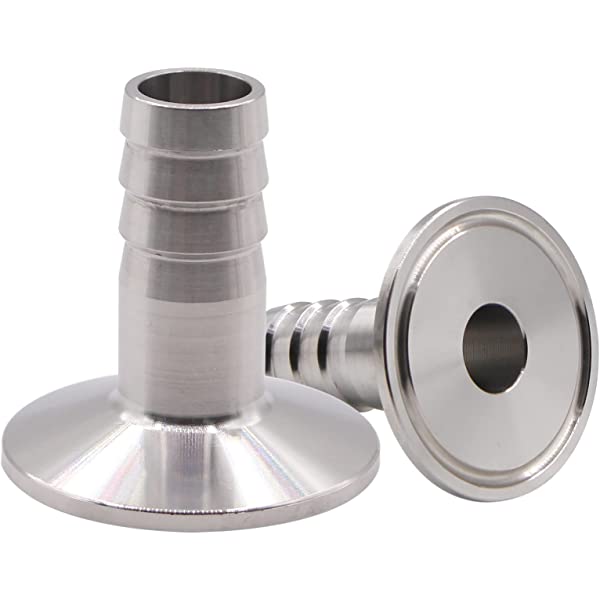

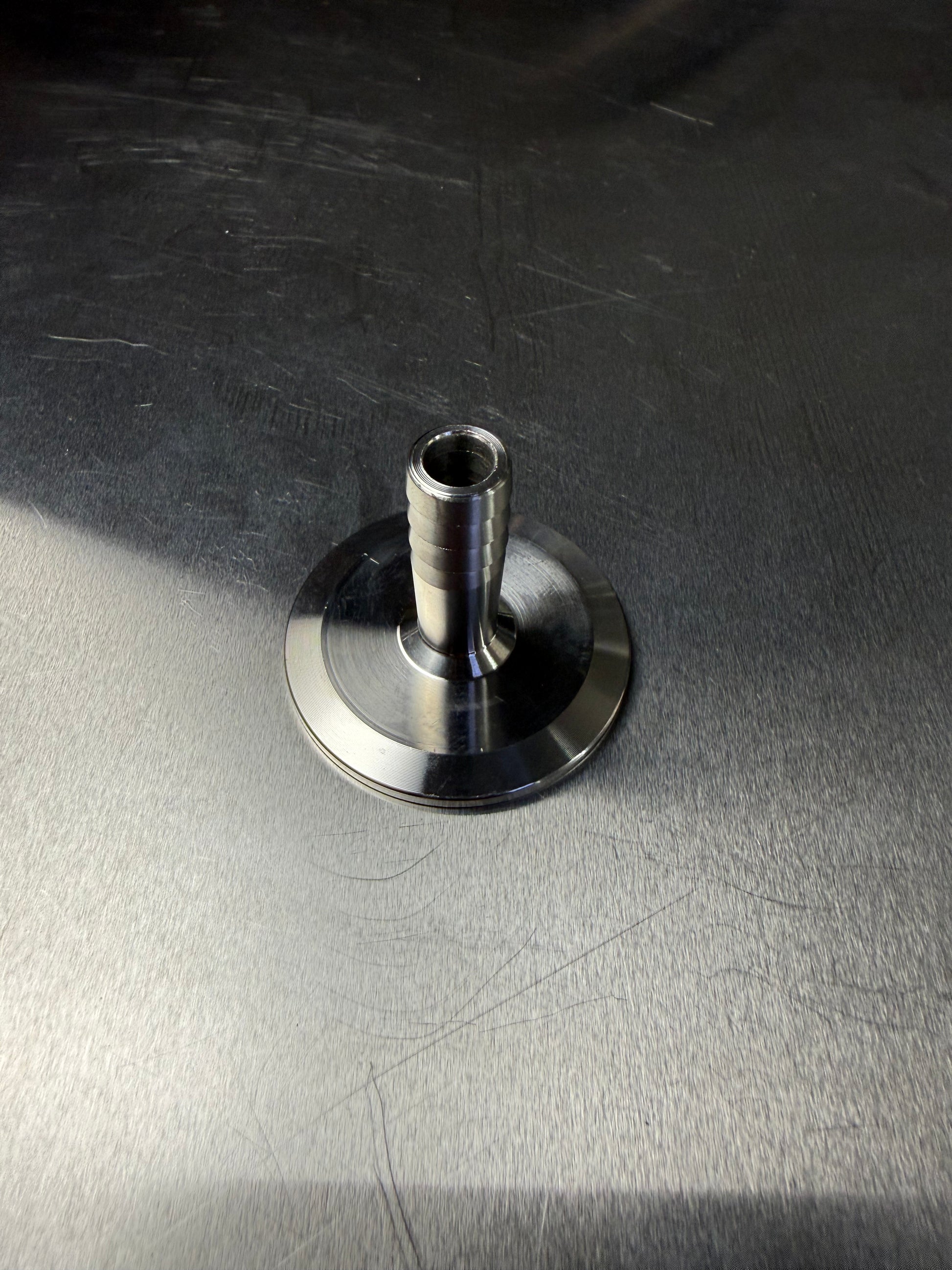

1.5" Tri-Clamp Hose Adaptor – 12.7mm Barb

Sanitary 1.5" TC to 12.7mm (½") hose connection.

This adaptor allows you to connect standard 12.7mm (½") inner diameter silicone hose to any 1.5" tri-clamp port.

Designed for brewing, transfer, recirculation and CIP applications.

Function

• Converts 1.5" Tri-Clamp port to hose barb
• Compatible with 12.7mm (½") ID silicone tubing
• Secure hose fit with clamp (recommended)

Ideal for pump routing, transfer lines and temporary process connections.

Specifications

• Tri-Clamp size: 1.5"
• Barb size: 12.7mm (½")
• Material: Stainless steel SS304
• Finish: Brushed stainless

Installation note

For secure operation under hot liquid conditions, use a stainless hose clamp on the barb connection.
