Quantor MiniChilly STD 09
Quantor MiniChilly STD 09
Couldn't load pickup availability
| Quantor Minichilly 03 | Quantor Minichilly 05 | Quantor Minichilly 09 | Quantor Minichilly 17 | |
|---|---|---|---|---|
| Capacity (0°C) [BTUs/hr] | 648 | 1331 | 1877 | 3412 |
| Fermenting [liter] | 234 | 481 | 819 | 1404 |
| Cold Crash [liter] | 58.5 | 83 | 117 | 234 |
* Please be aware that the capacity requirements are influenced by ambient temperatures and the amount of exothermic heat produced during fermentation. This information is based on average usage.

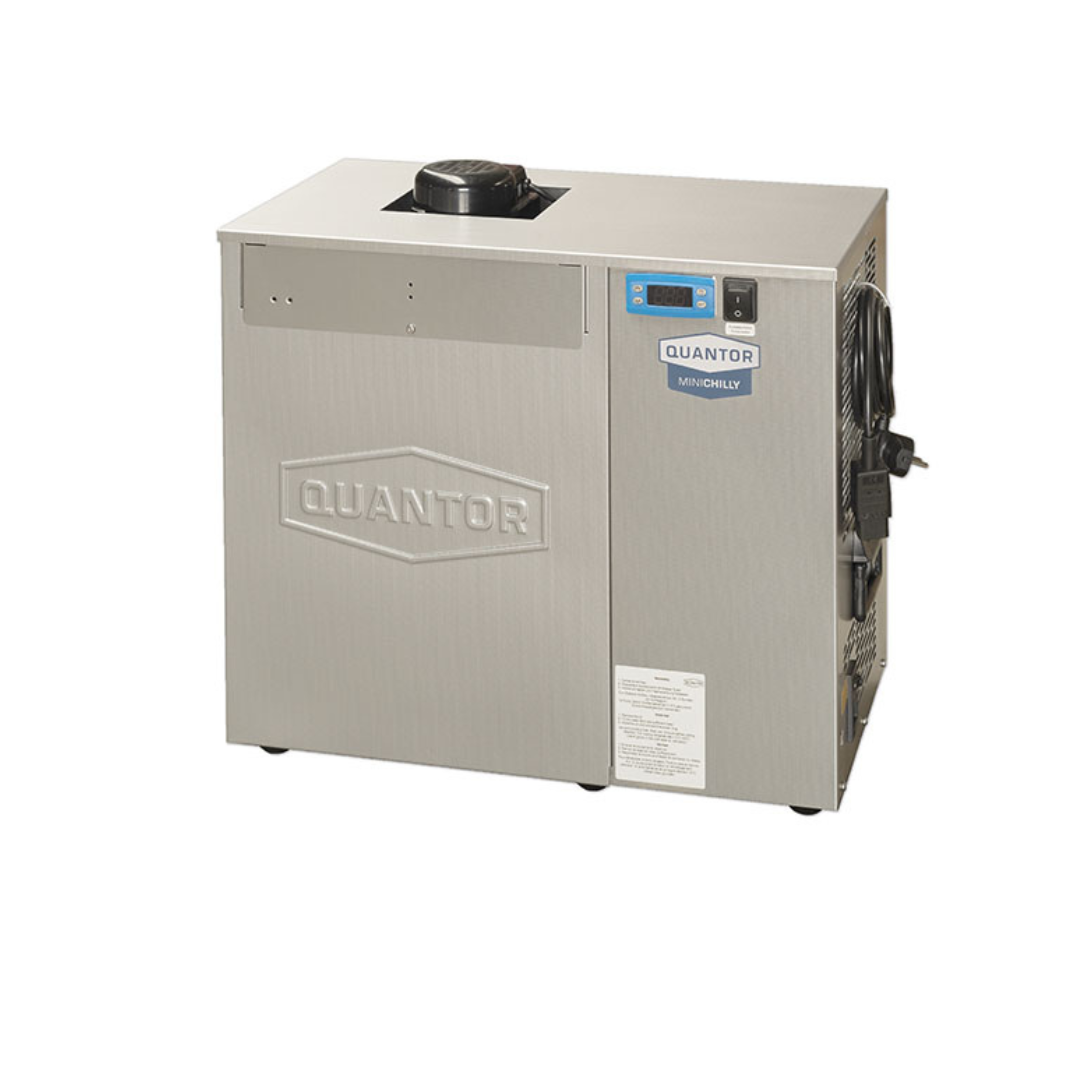

The MiniChilly from Quantor, is made in stainless-steel, with the best components, unit-design and manufacture techniques. With fill level display, leading controller, detachable electric cord, pump, on/off switch. Temperature to -6°C, optimal beer cooling at -2°C. The optimal choice for home and micro-breweries. With ice-bank option integrated. Designed to crash-cool tanks in room ambient, and fermentation control. Durable, German made unit of the market leader in cooling techniques.
- Compact cooling unit made of stainless steel
- Ice-bank at 0°C (32°F) water temperature
- For low water temperature ranges down to -6°C
- Environmentally friendly refrigerant R290
- Manufactured in Germany by WTG-Quantor.
The compact cooling unit MiniChilly, made of stainless steel, is an ideal solution for micro-breweries, hobby brewers and smaller wineries. Quantor chillers can provide cooling for any tanks, using any type of temperature control.
| Model | Minichilly 03 | Minichilly 05 | Minichilly 09 | Minichilly 17 |
|---|---|---|---|---|
| Type of Controller | Eliwell ST120 | Eliwell ST120 | Eliwell ST120 | Eliwell ST120 |
| Cooling Power Nominal 15°C [Watt] | 260 W | 600 W | 900 W | 1650 W |
| Cooling Capacity Nominal 15°C [BTUs/hr] | 886 Btu | 2046 Btu | 3069 Btu | 5627 Btu |
| Cooling Power at 0°C [Watt] | 190 W | 390 W | 550 W | 1000 W |
| Cooling Capacity at 0°C [BTUs/hr] | 648 Btu | 1331 Btu | 1877 Btu | 3412 Btu |
| Tank Volume [liter] | 6.3 L | 27 L | 27 L | 63 L |
| Power Socket | IEC C19 | IEC C19 | IEC C19 | IEC C19 |
| Power Cable Plug Type | CEE 714 Typ F | CEE 714 Typ F | CEE 714 Typ F | CEE 714 Typ F |
| Power Input [HP] | ca 0.36 | ca 0.38 | ca 0.67 | ca 1.04 |
| Nominal Power Input [watt] | 260 W | 280 W | 490 W | 790 W |
| Pump Power [W] | 38 W | 165 W | 165 W | 165 W |
| Refrigerant | R290 | R290 | R290 | R290 |
| Product Height [mm] | 340 mm | 520 mm | 520 mm | 600 mm |
| Product Width [mm] | 310 mm | 380 mm | 380 mm | 420 mm |
| Product Length [mm] | 420 mm | 640 mm | 640 mm | 750 mm |
| Weight (empty) [kg] | 19 kg | 33 kg | 33 kg | 42 kg |
