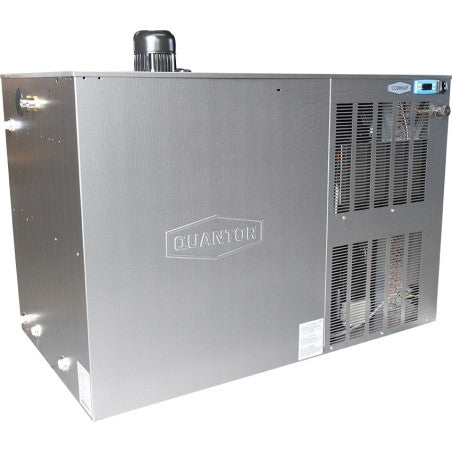

Quantor IceChilly 45

The most powerful IceChilly — serious crash cooling.

The Quantor IceChilly 45 tops the range, pairing a stainless-steel build with an integrated ice-bank at 0°C for stable pull-downs and low water temperatures down to -6°C with glycol. Two independent cooling circuits, a complete insulated water circuit with tank and submersible pump, and a 180 L tank make it ideal for breweries and wineries running reliable multi-vessel temperature control. Made in Germany by WTG-Quantor.

Key points

• Integrated ice-bank at 0°C — extra stored capacity for crash cooling
• Two independent cooling circuits for higher operational safety
• Stainless housing and evaporator; fully insulated water path
• Built-in tank + submersible pump (~1.5 m³/h @ 1.7 bar)
• Eco R290 refrigerant; water range -6°C to +30°C (glycol below 0°C)
• Fermentation capacity ~2840 L · cold crash ~710 L

Optional: stainless coil for direct product cooling (inner tube Ø ~15 mm); overflow-prevention kit for installs above unit level. Ambient operating range +10°C to +32°C.

See all Glycol Chillers · Cools jacketed fermenters

Specifications
