BrewTaurus PRO
GWT-400 · Glycol Water Tank 400 L with Pump
GWT-400 · Glycol Water Tank 400 L with Pump
Made to order — priced per project, not per cart
Freight for a crated, palletised unit is quoted to your address (country, access, unloading). Heating power, ports and branding are confirmed to your site before production. Payment by pro-forma invoice — 50% deposit, balance before dispatch; B2B at 0% VAT with a valid EU VAT number.
Start with the 3-minute questionnaire · or email us — we reply within 24 hours with a delivered price.
3-minute questionnaire — we reply within 24 hours with a configuration proposal and a delivered price. Prefer e-mail? info@brewtaurus.com
Couldn't load pickup availability
The cold buffer for your cellar — 400 L glycol water tank with circulation pump.
The BrewTaurus PRO GWT-400 is an insulated glycol reservoir that sits between the chiller and your fermenters: the chiller keeps the tank at set point, the circulation pump feeds the jackets. A buffer this size lets the chiller run in efficient cycles instead of chasing every fermenter individually, and carries you through crash-cooling peaks. Sized for a cellar of up to ~800 L of jacketed fermentation volume (guide — we confirm the pairing with your chiller before you order).
Tank architecture
- SUS304 tank Ø700 mm, 160° dished bottom, 80 mm PU insulation, brushed outer shell Ø860 mm
- Sanitary glycol circulation pump with tri-clamp manifold — glycol supply and return to the fermenter loop
- Ø350 welded top manhole with breathing port · level indicator · G1/2 temperature probe
- TIG welded · interior pickled and passivated · lifting lugs · adjustable legs
Connections
Ø38 chiller inlet and outlet · Ø38 glycol supply and return to fermenters · Ø38 drain · Ø25 level indicator · Ø38 breathing port · G1/2 temperature probe. All tri-clamp.
How the cooling loop works
Chiller → glycol water tank → pump → fermenter jackets → back to the tank. Each fermenter gets a solenoid valve driven by its own temperature controller (see the PID fermentation control panel); the tank and pump run continuously. Use food-grade propylene glycol at 30–35% for −7 °C set points.
Installation: 230 V supply for the pump, insulated glycol lines to the fermenters, level floor rated for approx. 682 kg filled. Tri-clamp throughout — no welding on site.
Technical summary
| Type | Insulated glycol water tank with circulation pump |
| Volume | 400 L effective · 450 L total |
| Working temperature | −7 to +80 °C |
| Cellar size (guide) | up to ~800 L jacketed fermentation volume |
| Material | SUS304 · TIG welded · pickled & passivated |
| Connections | Tri-clamp Ø38 |
| Lead time | Approx. 12–16 weeks incl. sea freight (made to order) |
Dimensions & tank data
| Tank diameter | Ø700 mm |
| Outer diameter incl. insulation | Ø860 mm |
| Overall height | 1,890 mm incl. pump manifold |
| Manhole | Ø350 top |
| Doorway check | plan doors on the route at ≥ 910 mm clear |
| Weight | approx. 210 kg |

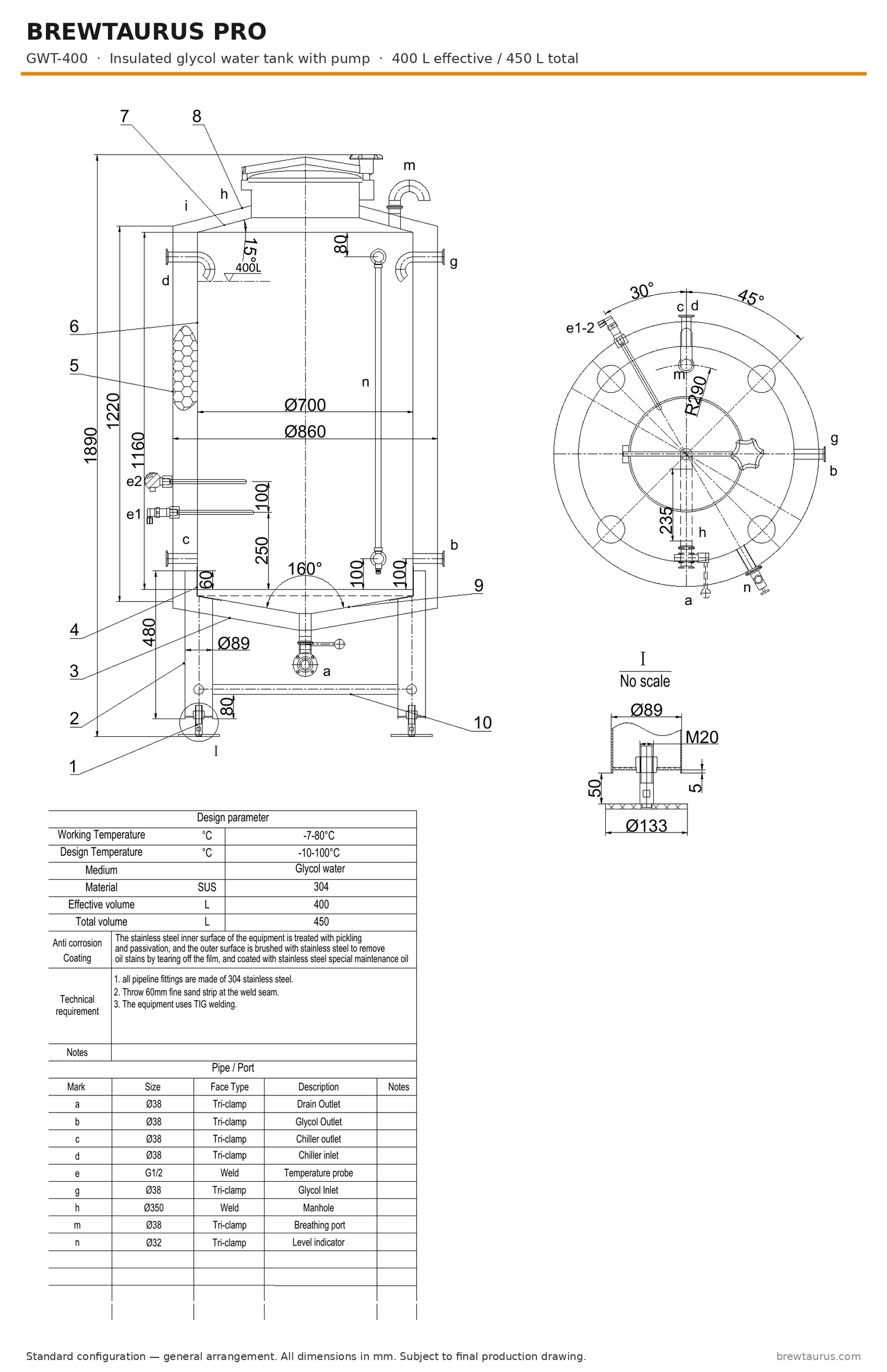

Dimensions from the general arrangement drawing (standard configuration, mm). Port positions and options are confirmed on your drawing before production.
Documentation, warranty & support
- CE marked · EU Declaration of Conformity · operation manual
- Warranty 3 years on vessels, 1 year on fittings, electrical and moving parts
- Spare parts by air within days · commissioning by video call · EU invoice from Prague, no import formalities
