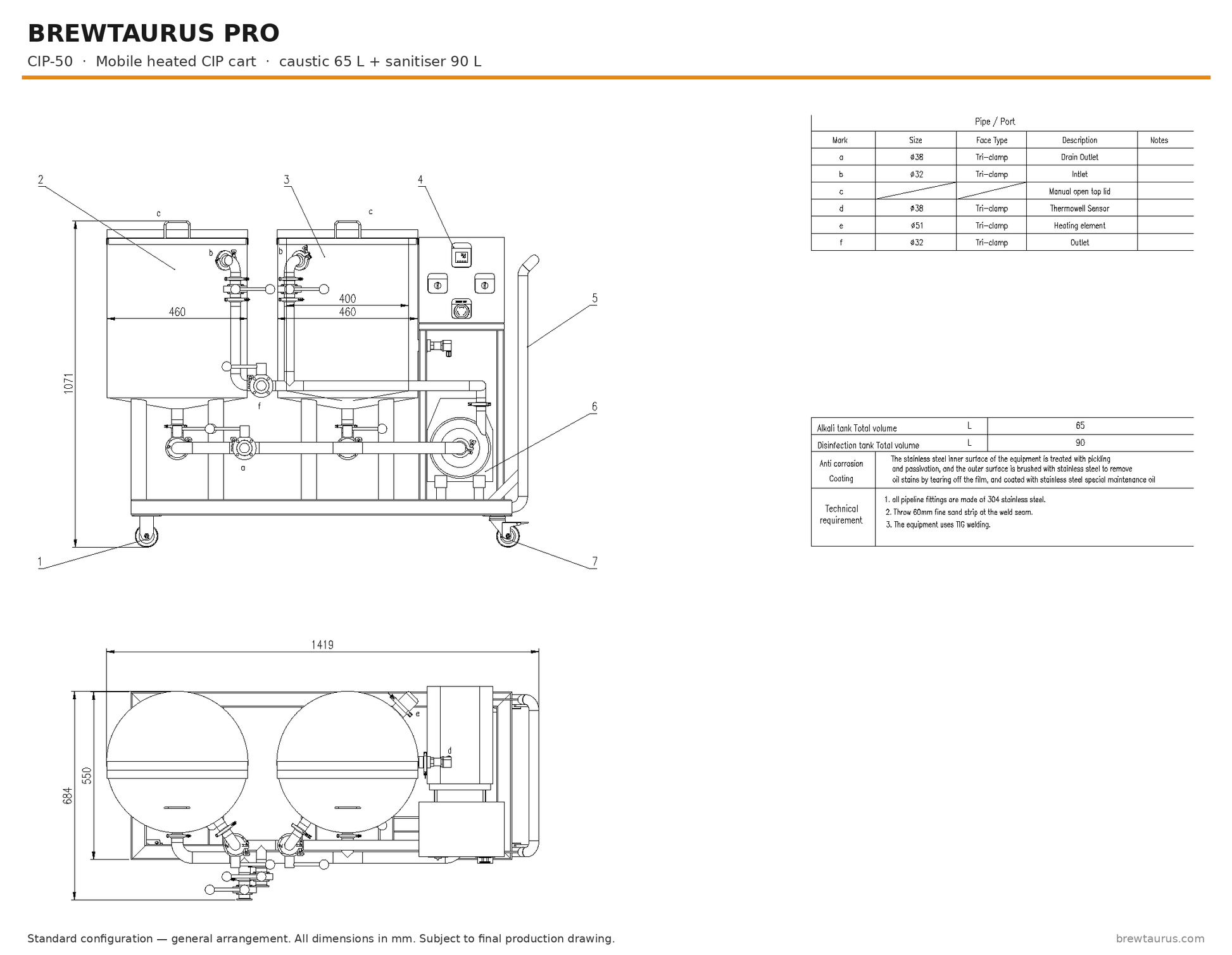

• BrewTaurus PRO CIP-50 mobile heated CIP cart — general arrangement drawing, elevation and plan
1 1

BrewTaurus PRO

CIP-50 · Mobile CIP Cart 50 L, heated

CIP-50 · Mobile CIP Cart 50 L, heated

€4.190,00 EUR
€4.190,00 EUR
Sale Sold out
Taxes included.

Made to order — priced per project, not per cart

Freight for a crated, palletised unit is quoted to your address (country, access, unloading). Heating power, ports and branding are confirmed to your site before production. Payment by pro-forma invoice — 50% deposit, balance before dispatch; B2B at 0% VAT with a valid EU VAT number.

Start with the 3-minute questionnaire · or email us — we reply within 24 hours with a delivered price.

Request a quote

3-minute questionnaire — we reply within 24 hours with a configuration proposal and a delivered price. Prefer e-mail? info@brewtaurus.com

Clean in place, on wheels — the 50 L CIP cart.

The BrewTaurus PRO CIP-50 is a mobile two-tank CIP station: one heated tank for caustic, one for acid or sanitiser, a sanitary pump and tri-clamp connections that match every port on our PRO tanks and brewhouses. Roll it to the vessel, connect supply and return, run the cycle.

Architecture

  • Two SUS304 tanks (caustic tank 65 L total · sanitiser tank 90 L total) with manual open-top lids, electric heating elements and thermowell sensors
  • Sanitary CIP pump with control box — temperature and pump switching
  • Ø32/Ø38 tri-clamp supply and return manifold with butterfly valves
  • Stainless frame on four castors, push handle

Ports & fittings

Ø38 drain outlet · Ø32 inlet · Ø38 thermowell sensor · Ø51 heating element · Ø32 outlet · manual open top lids. All tri-clamp.

Installation: 400 V / 50 Hz three-phase supply for the heating elements, water supply, floor drain. Ships ready to use; no welding on site.

Technical summary

Type Mobile heated CIP cart, two tanks
Tanks caustic tank 65 L total · sanitiser tank 90 L total
Heating Electric · 400 V / 50 Hz / 3-ph
Pump Sanitary CIP pump
Material SUS304 · TIG welded · pickled & passivated
Dimensions 1,419 × 684 × 1,071 mm
Weight approx. 120 kg
Lead time Approx. 12–16 weeks incl. sea freight (made to order)

Dimensions from the general arrangement drawing (standard configuration, mm). Port positions and options are confirmed on your drawing before production.

Documentation, warranty & support

  • CE marked · EU Declaration of Conformity · operation manual
  • Warranty 3 years on vessels, 1 year on fittings, electrical and moving parts
  • Spare parts by air within days · commissioning by video call · EU invoice from Prague, no import formalities

BTP-CIP-50
