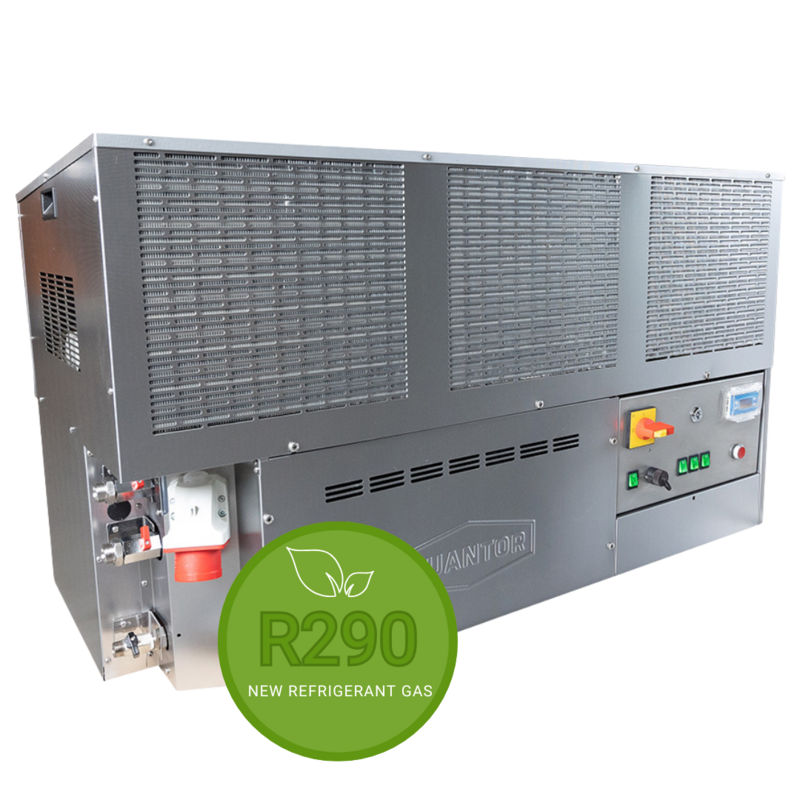

Quantor ModuChilly · Modular Ice-Bank Glycol Chiller 3–9 kW

Buy the cooling you need today, bolt on more when the brewery grows.

The Quantor ModuChilly is a stainless ice-bank chiller with a modular heart: one, two or three independent 3 kW cooling modules, each with its own compressor, evaporator and condenser. Start with a single module for 2–3 tanks and retrofit the second and third later in minutes — no new unit, no new plumbing. An ice-bank builds at 0°C in the 80 L tank, storing extra capacity for crash cooling, and the unit runs glycol down to -6°C. Made in Germany by WTG-Quantor.

Key points

• 1–3 modules × 3 kW — 3 / 6 / 9 kW at +15°C water, retrofittable any time
• Ice-bank at 0°C (~25 kg per module) for crash-cool reserve
• Independent circuits: one module down, the other two keep cooling
• 80 L stainless tank, open water circuit with pump and pressure switch
• 230 V single-phase with 1–2 modules; 400 V three-phase with 3
• Eco R290 refrigerant (150 g per module)

Ships on a pallet directly from the manufacturer in Germany, typically 3–6 weeks. Freight is quoted to your address — request a quote and we reply within 24 hours with a delivered price. Additional modules can be ordered later as a retrofit.

One module cools ~3,000 L of fermenting beer; three modules ~9,000 L. See all PRO Cooling · cools PRO unitanks
