PF160 Unitank +[Extra accessories]

Real unitank architecture — scaled to 170 L.

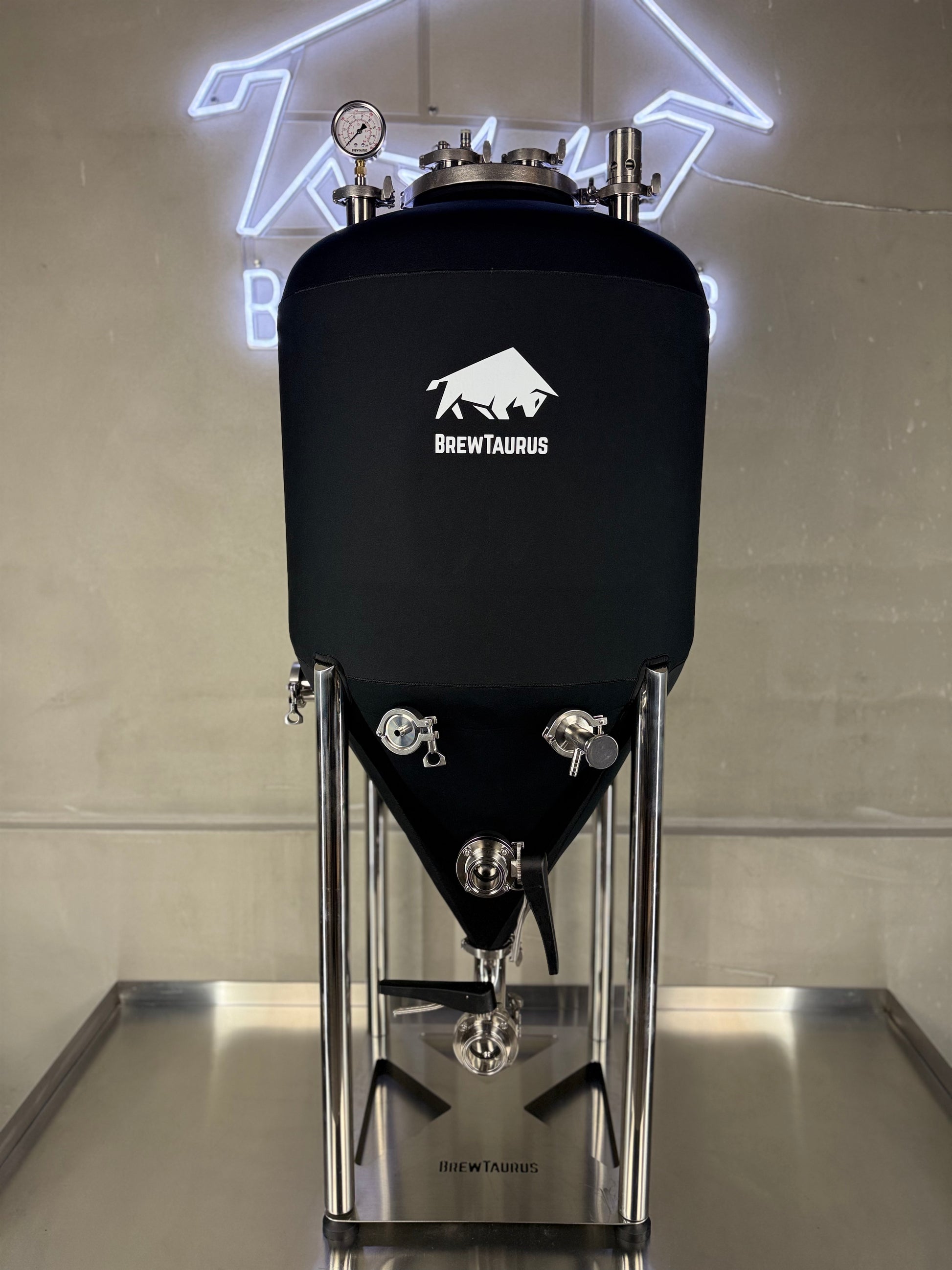

The BrewTaurus PF160 Unitank is built like brewery hardware. A jacketed, pressure-capable conical with large 8" top access, a proper 2" dump and a full tri-clamp workflow — for serious pilot- and nano-scale brewing that wants real yeast management, sanitary connections and glycol control. Everything is modular, serviceable, and every port has a job.

Pre-order item (built in production batches). Contact us for the current lead time before ordering.

Why a PF Unitank

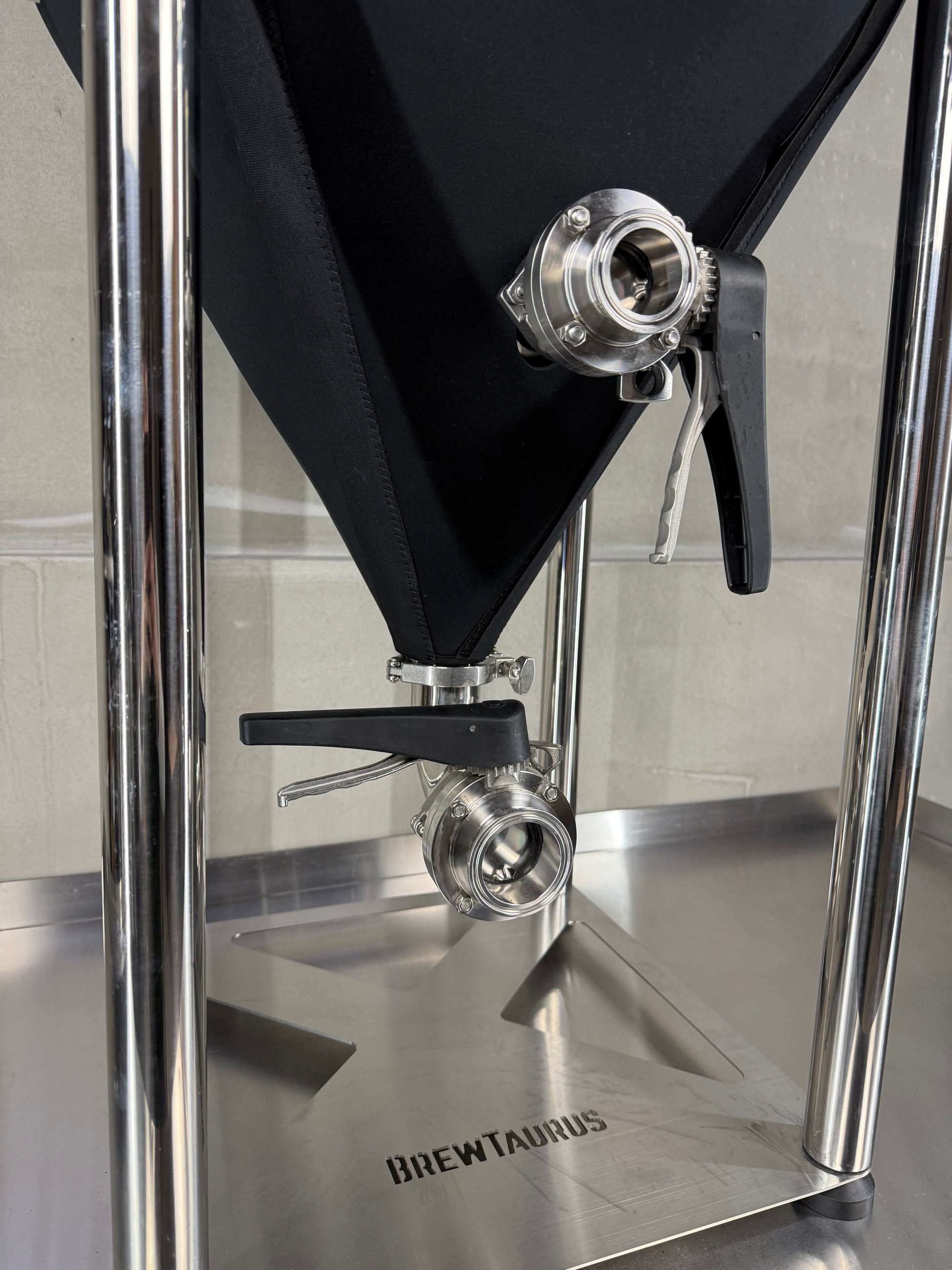

• Real bottom dump — a proper 2" tri-clamp outlet for yeast and trub handling
• Jacketed cooling — efficient glycol control with no coil inside the beer path
• Full tri-clamp workflow — modular, sanitary and easy to upgrade
• Pressure-capable construction for modern closed-process workflows
• Large 8" top access — easier cleaning, inspection and accessory integration

Batch range & cooling

170 L gross with a ~38 L cone and a cooling jacket wrapping the ~125 L cylindrical body. Recommended fermentation window is about 40–150 L, with a 60–140 L everyday sweet spot. Below ~40 L most liquid sits in the cone and the jacket isn't fully engaged; above ~150 L you lose useful fermentation headspace. The supplied neoprene jacket improves cooling stability.

Port architecture

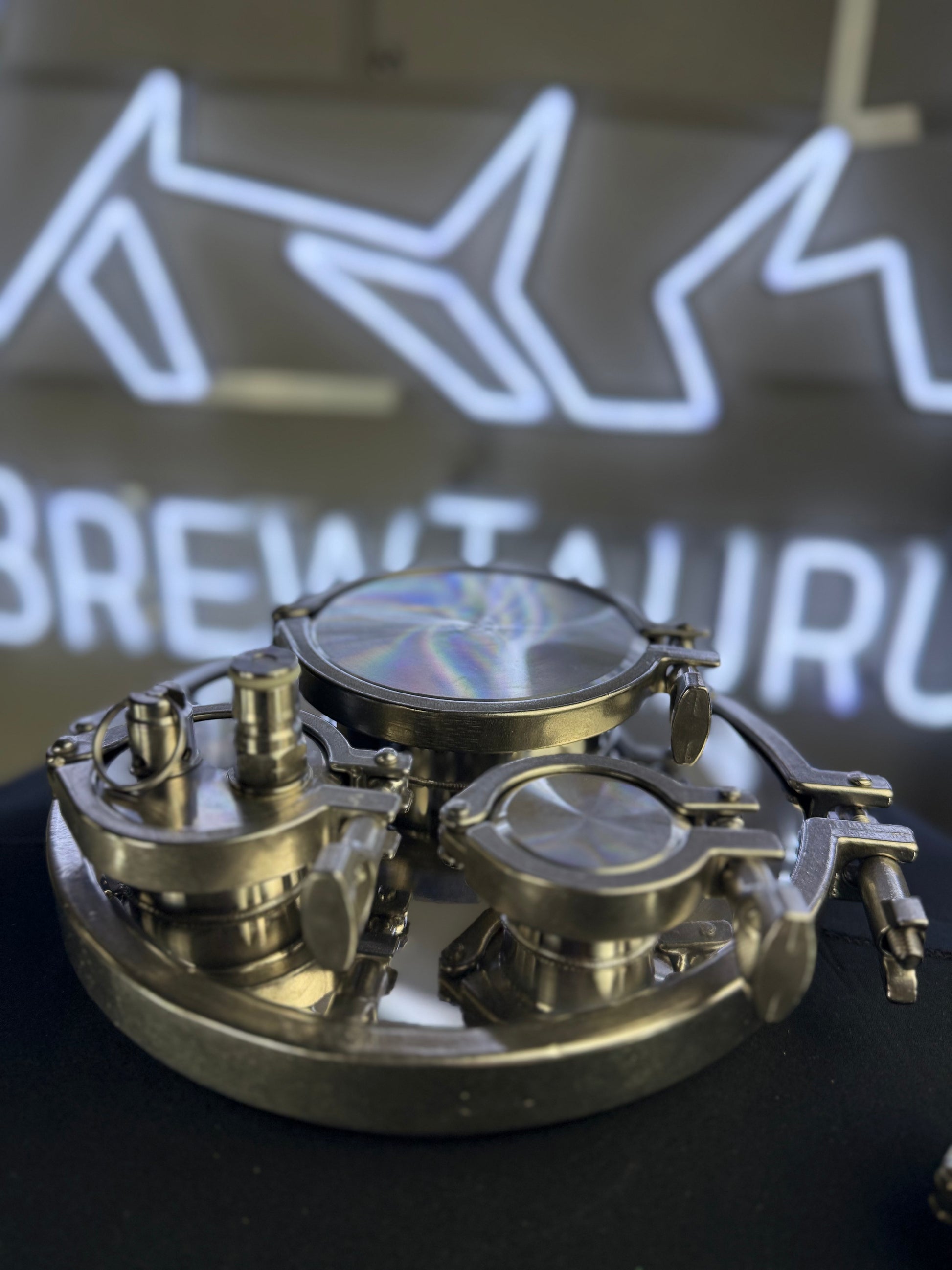

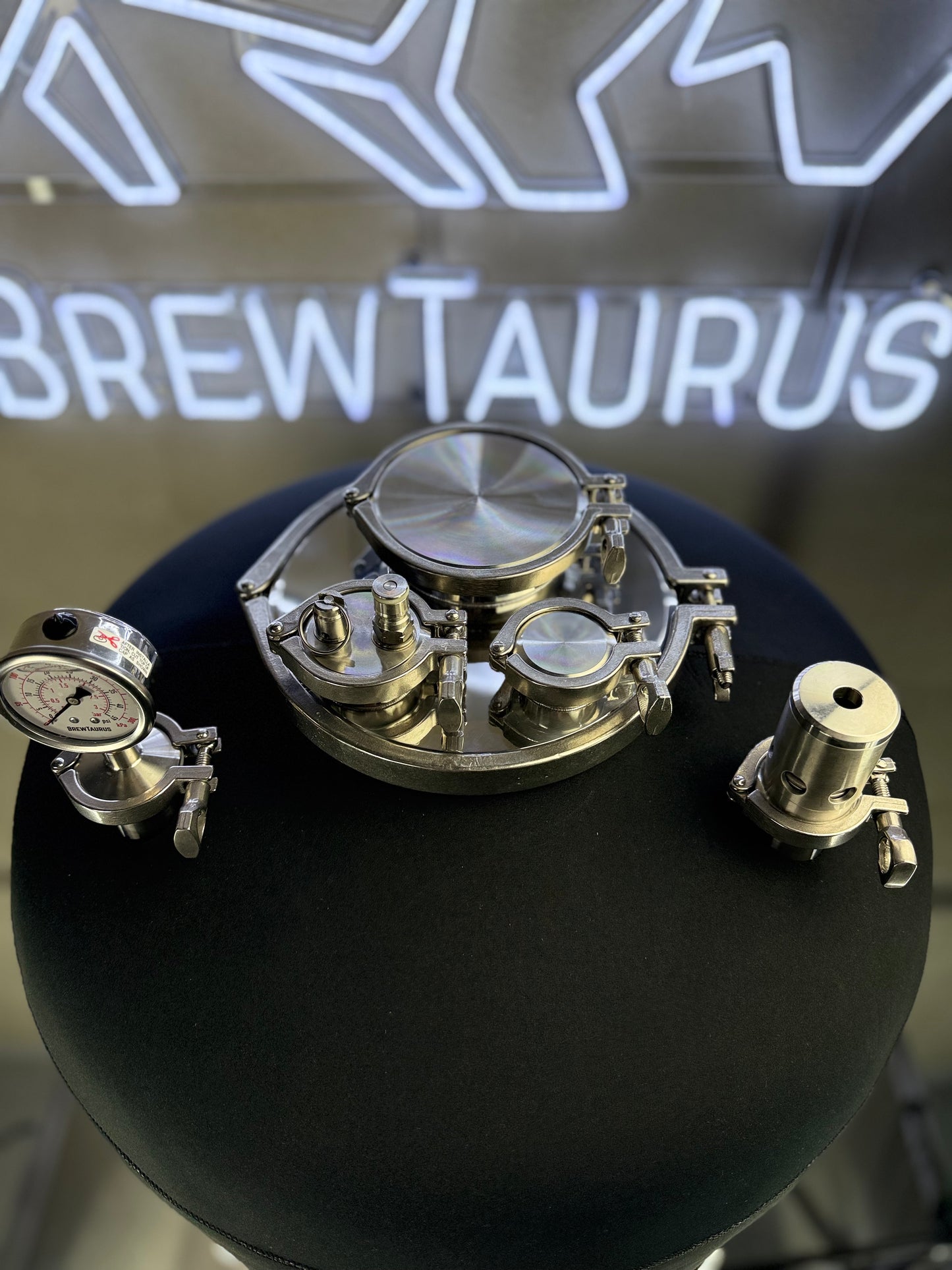

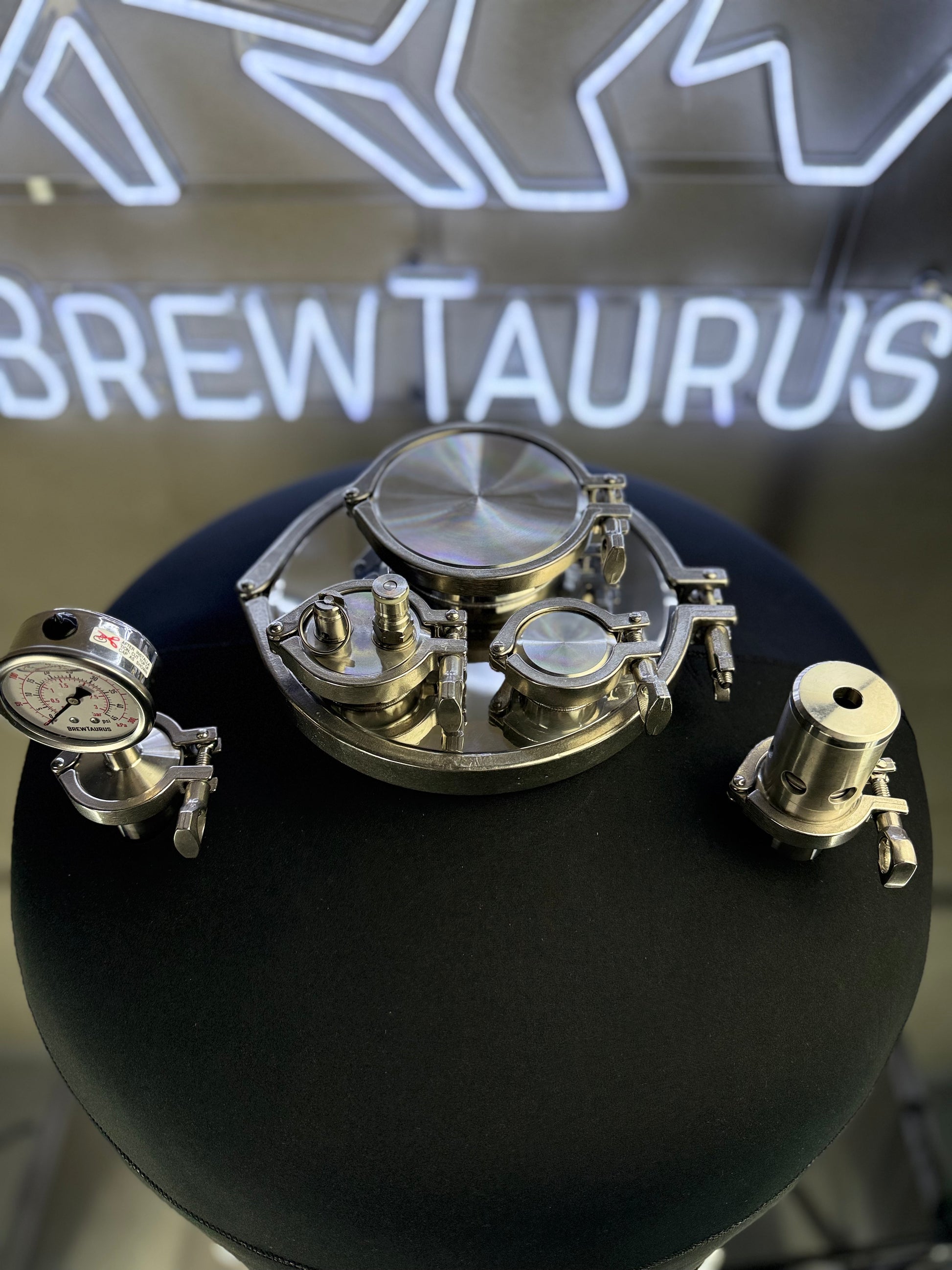

• Top access: 8" tri-clamp

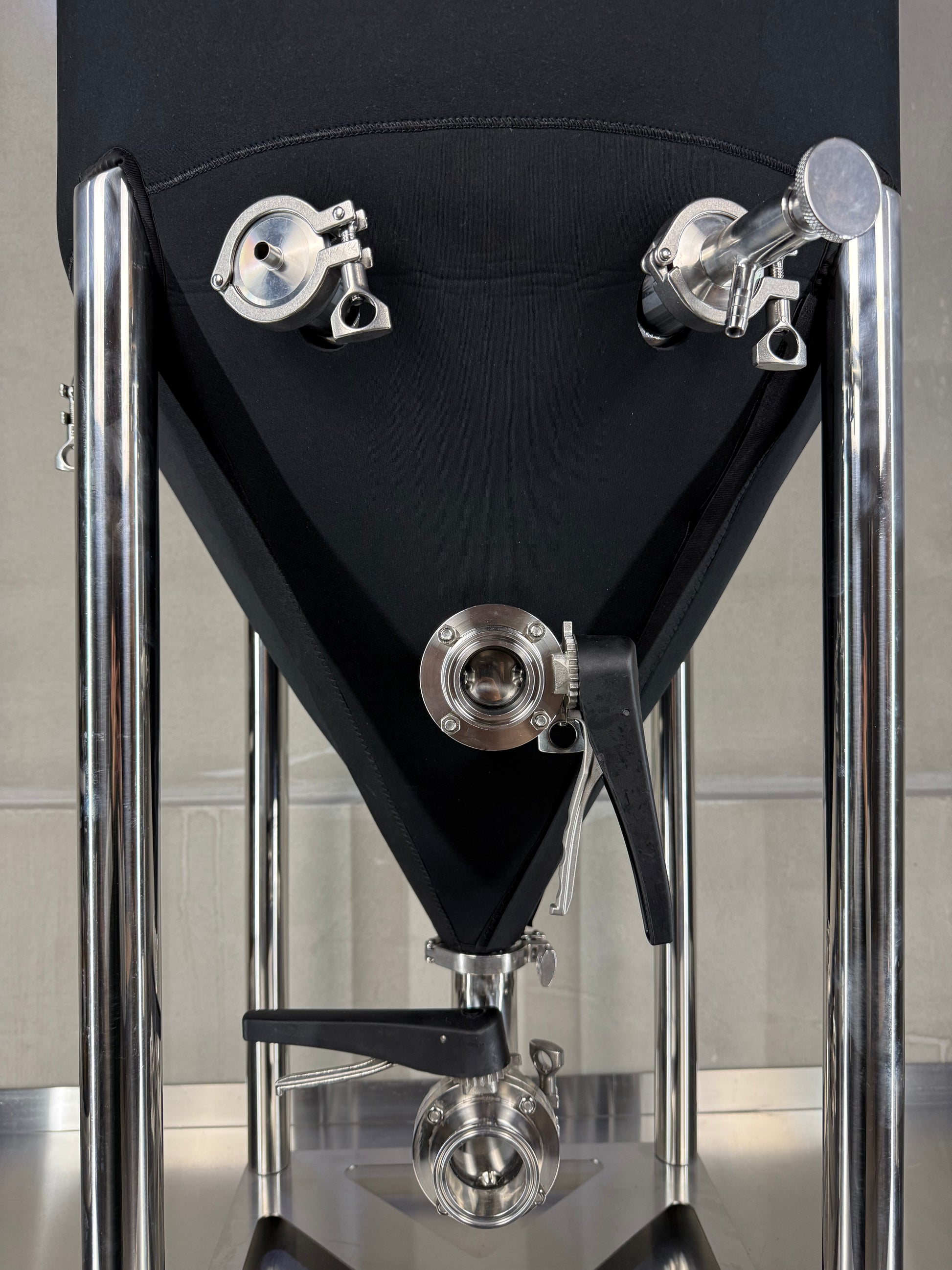

• Bottom dump: 2" tri-clamp · 60° cone

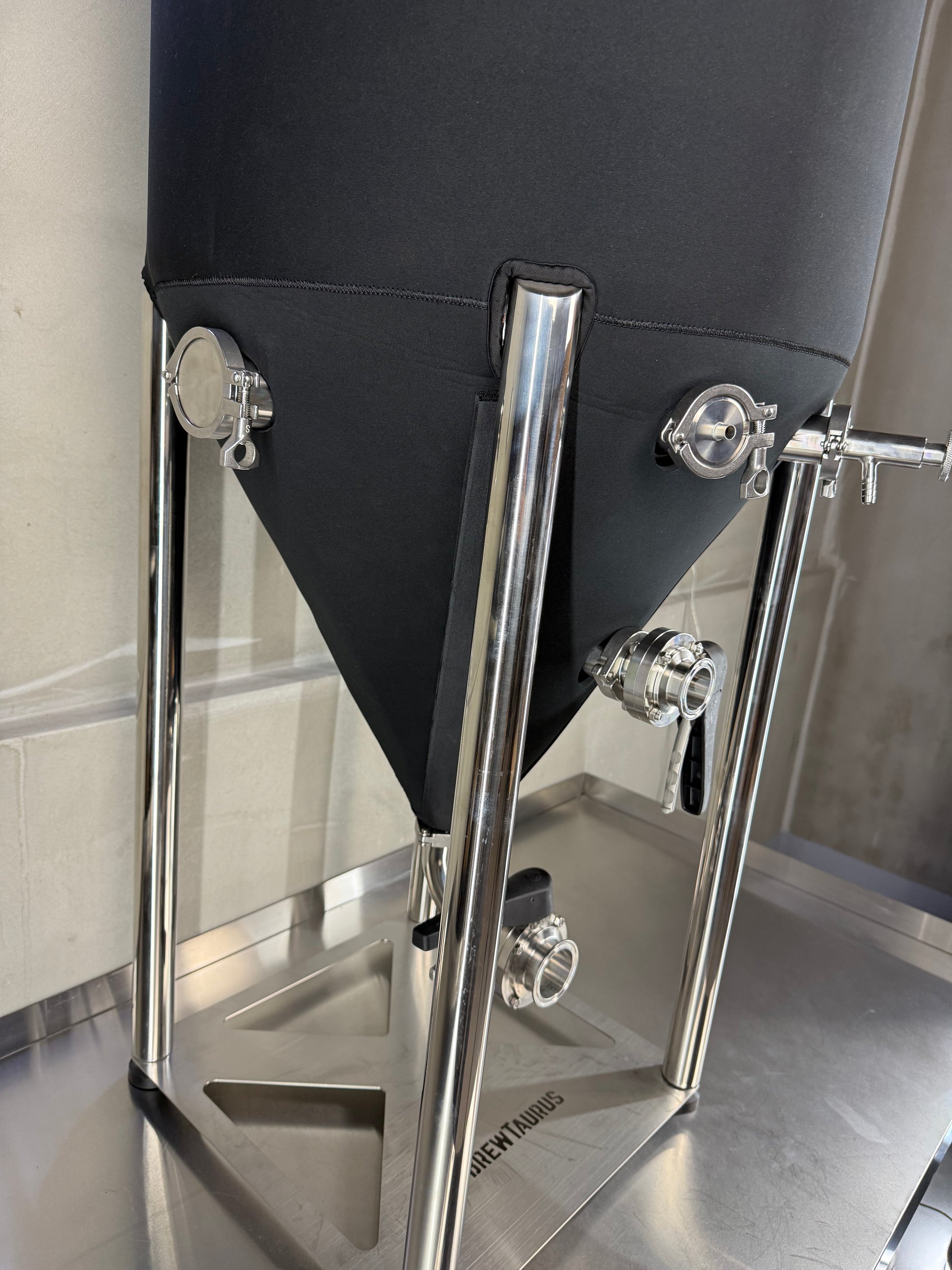

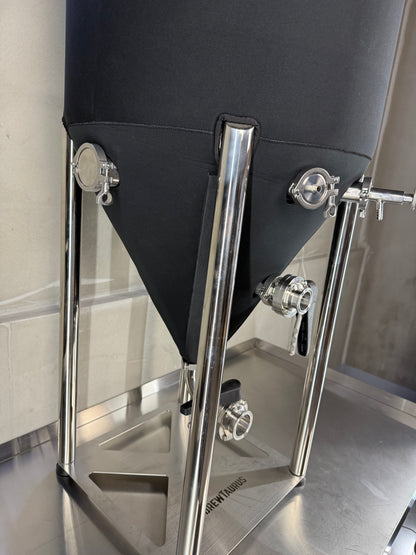

• Accessory ports: multiple 1.5" tri-clamp (sampling, thermowell, sensors)
• Glycol ports: 2× 1.5" tri-clamp (in / out)

What's in the box

• 1× PF160 Unitank (jacketed, 60° cone) + 8"→4"→2"→1.5" stepped reducer assembly
• 1× 8" clamp + gasket · 1× 4" clamp + gasket · 4× 2" clamps + gaskets · 6× 1.5" clamps + gaskets
• 1× 2" butterfly valve · 1× 1.5" butterfly valve · 1× 1.5" sample tap

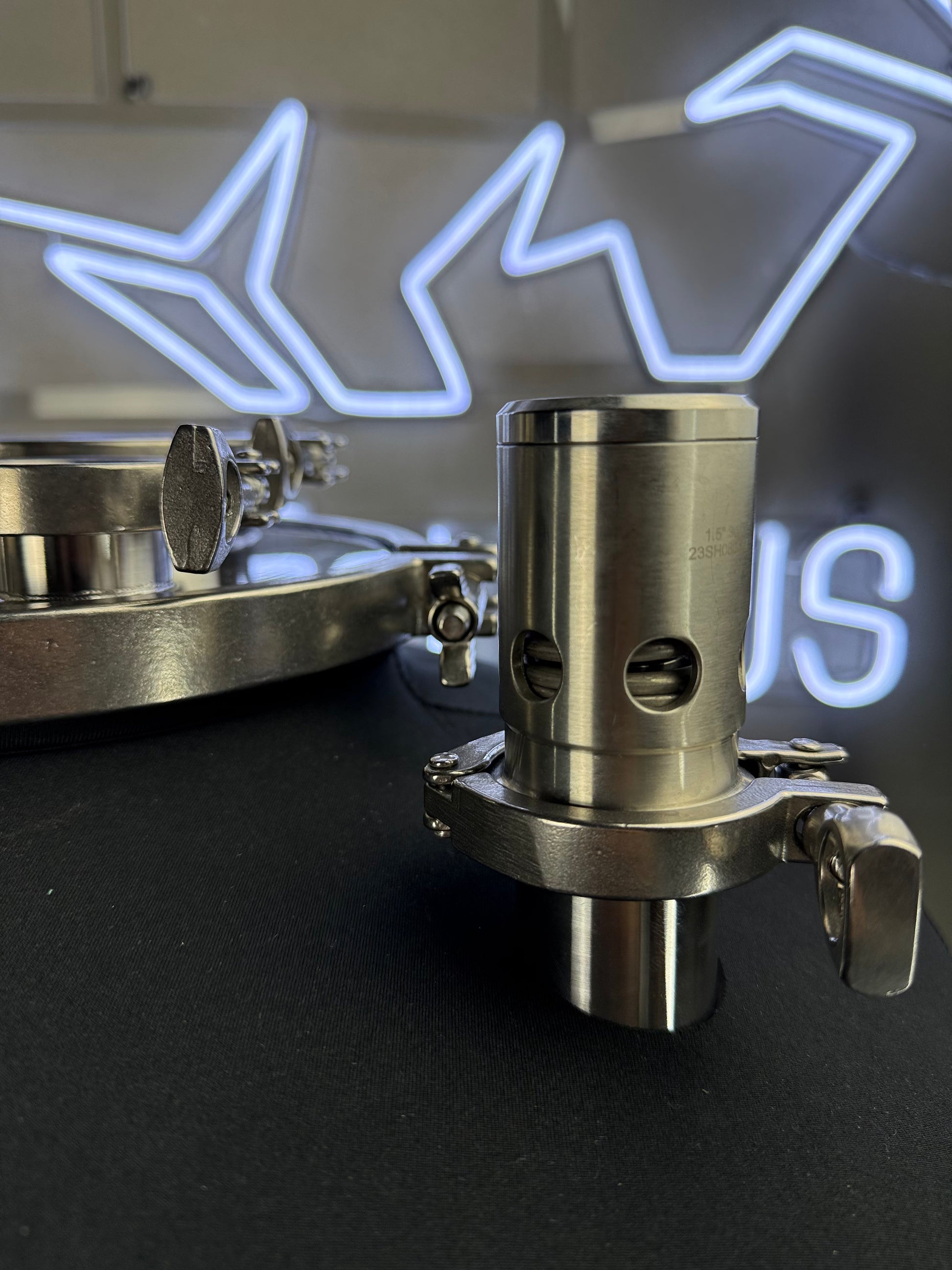

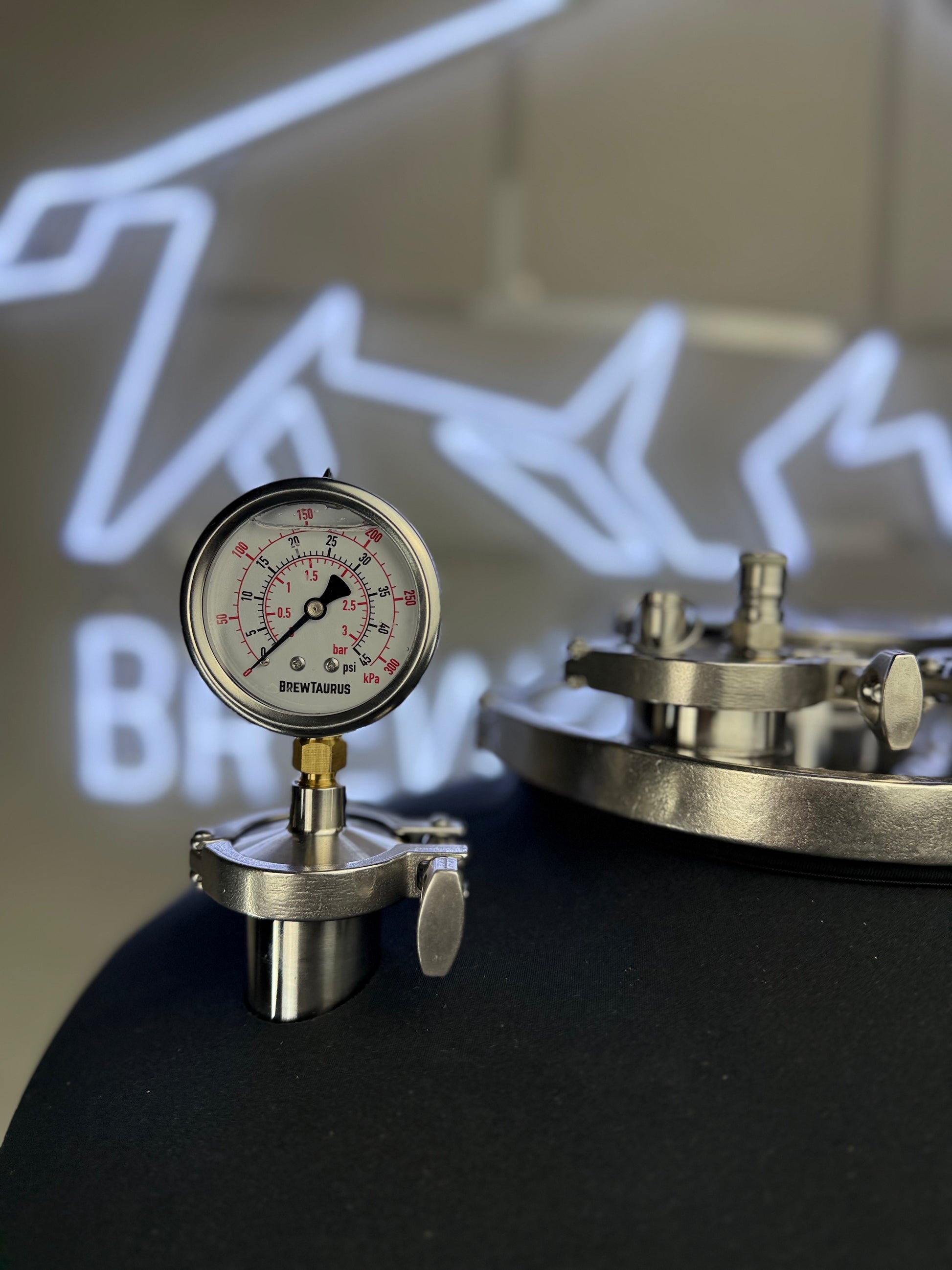

• 1× 1.5" thermowell (140 mm) · 1× 1.5" pressure gauge · 1× 1.5" PRV · 1× 2" TC cap with gas post + 35 PSI PRV
• 1× 2" TC blind cap · 1× 1.5" TC blind cap · 1× 4" TC blind cap

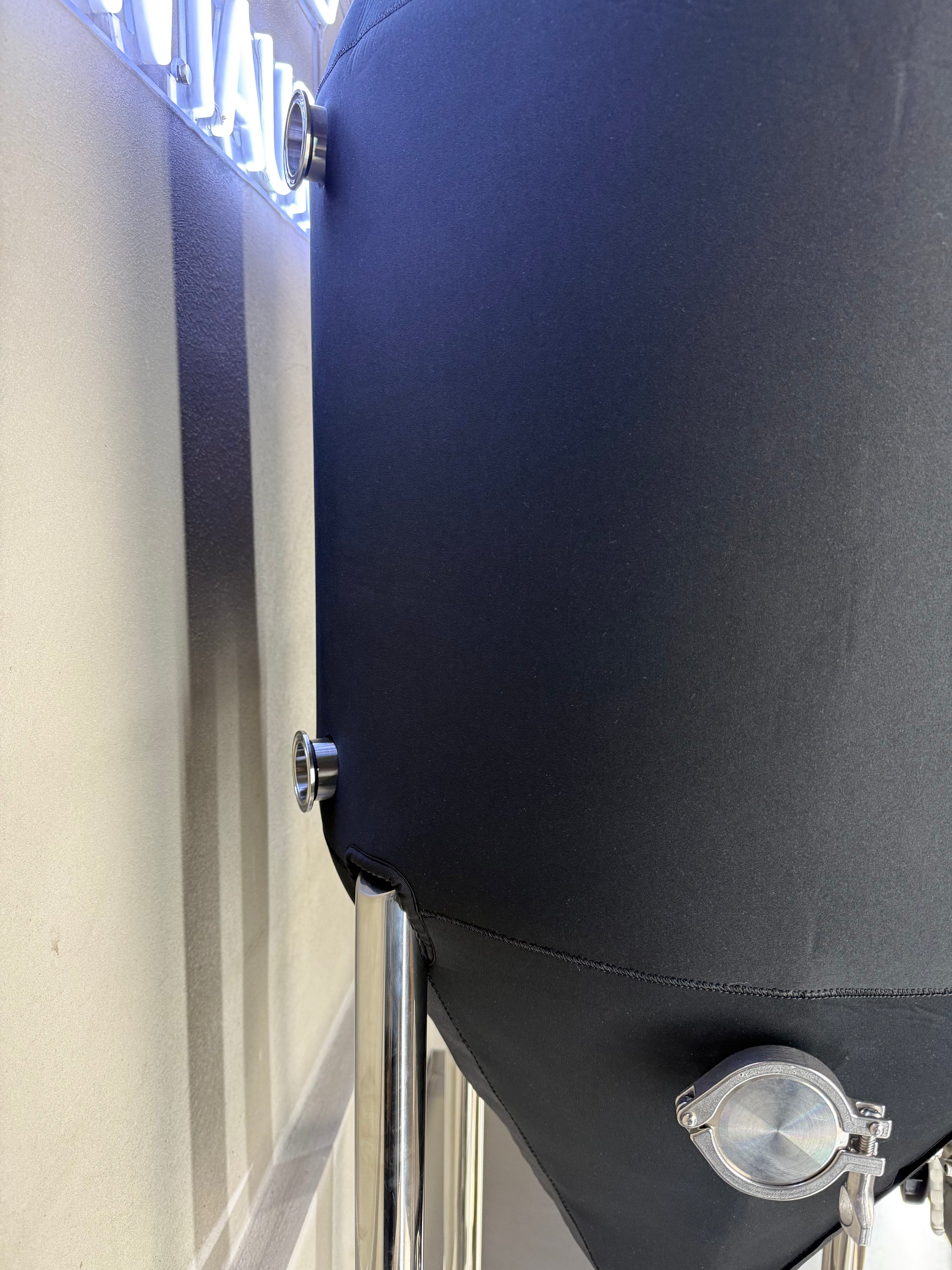

• Stainless support stand with adjustable M10 leveling feet · removable neoprene insulation jacket

Pressure safety: working pressure 1.0 bar, never exceed the 2.0 bar maximum. Always use a PRV.

Run the jacket off a glycol chiller · Clean it with the CIP Kit · See all Pressurised Fermenters

Which Unitank size fits your batch

BrewTaurus PF Unitanks share one jacketed, pressure-capable design — all 1.0 bar working (2.0 bar max) with a 2" bottom dump. Pick by fermentation batch; your size is highlighted.
